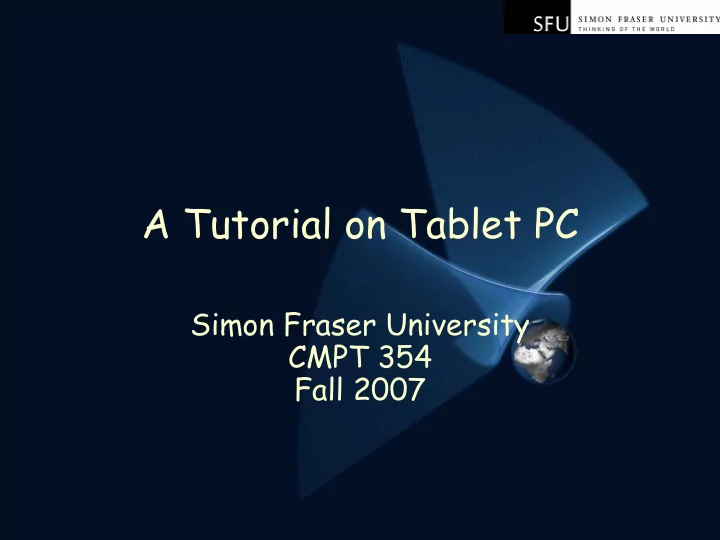

A Tutorial on Tablet PC Simon Fraser University CMPT 354 Fall 2007 - - PowerPoint PPT Presentation
A Tutorial on Tablet PC Simon Fraser University CMPT 354 Fall 2007 - - PowerPoint PPT Presentation
A Tutorial on Tablet PC Simon Fraser University CMPT 354 Fall 2007 Agenda Tablet PC Overview Tablet PC Development Tablet PC Resources A Tutorial on Tablet PC 2/22 Tablet PC Overview What is Tablet PC? A fully-functional computer running
SLIDE 2
SLIDE 3
Tablet PC Overview
SLIDE 4
A Tutorial on Tablet PC
4/22
What is Tablet PC?
A fully-functional computer running Microsoft Windows XP Tablet PC Edition, a superset of Windows XP Professional
Geared for pen-enabled, handwriting-enabled, and speech- enabled applications
A highly mobile computer that enables new usage scenarios A powerful platform enabling a new generation of business applications
Windows XP SP2 Tablet PC
Windows XP Professional Service Pack 2 Tablet PC Components 2005
SLIDE 5
A Tutorial on Tablet PC
5/22
Features Overview - Software
Windows XP Tablet PC Edition 2005 adds the following features to Windows XP Professional
Pen input Ink controls Gesture recognition engine and APIs Handwriting and speech recognition engines Some useful applications, such as Windows Journal, Sticky Notes …
SLIDE 6
A Tutorial on Tablet PC
6/22
Features Overview - Hardware
All Tablet PC devices will include the following hardware attributes
Electromagnetic digitizer and pen Optimized power states Screen rotation support Free of old hardware Hardware buttons for logging on to Windows and doing additional tasks Support for surprise undocking …
SLIDE 7
A Tutorial on Tablet PC
7/22
Why We Need a Tablet PC?
Mobility (sitting, standing, walking...) Ink now, recognize later Can’t type for beans or in cramped spaces Drawing / sketching Take notes electronically Microsoft Windows XP Tablet PC Home Page
Top 10 benefits
http://www.microsoft.com/windowsxp/tabletpc/evaluation/topten benefits.mspx
Case studies
http://www.microsoft.com/windowsxp/tabletpc/evaluation/casest udies/default.mspx
SLIDE 8
How to Use a Tablet PC?
SLIDE 9
Tablet PC Development
SLIDE 10
A Tutorial on Tablet PC
10/22
Development Environment
Hardware
A Tablet PC Or any other computer, having Microsoft Windows 2000 SP4 or higher (but handwriting and speech recognition cannot be tested and debugged)
Software
Tablet PC SDK 1.7 (the latest version) Microsoft Visual Studio
Version 6 SP5, .Net 2003, .Net 2005 Programming languages can be Visual C# (recommended), C++, VB6, VB.Net
Microsoft SQL Server 2005 (for the course project)
SLIDE 11
A Tutorial on Tablet PC
11/22
Tablet PC SDK 1.7
It comes with
Context Tagging Tool Microsoft Tablet PC Platform SDK Documentation Samples and Source Code
Suggestion
Before jumping into the implementation, please read the above three documentations carefully Most of the coding problems can find solutions from them
SLIDE 12
A Tutorial on Tablet PC
12/22
Tablet PC Platform Overview
Ink Collection (Input) Ink Data and Management Ink Recognition
SLIDE 13
A Tutorial on Tablet PC
13/22
Ink Collection (Input)
Digitizer Basics
Very High Resolution Very High Throughput Packet Properties
X, Y Pressure, Angle, Rotation, etc.
Using the API to collect Ink
InkCollector InkOverlay RealTimeStylus (New in SDK version 1.7)
SLIDE 14
A Tutorial on Tablet PC
14/22
Ink Data And Management
Ink is a data type Ink looks good
Bezier smoothed Anti-aliased
Rich, Extensible API Copy to / paste from the clipboard Multiple persistence formats
SLIDE 15
A Tutorial on Tablet PC
15/22
Ink Recognition
Interpret pen movements and/or strokes as:
Text (handwriting) Gestures Shapes and symbols – Limited object recognition in API
Current language support
US English, International English, Japanese, German, French, Simplified and Traditional Chinese as well as Korean, Spanish and Italian
Additional language support with Lonestar
More Asian Languages
Synchronous and asynchronous recognition Data structure of recognize result and alternates Extensibility architecture
SLIDE 16
A Tutorial on Tablet PC
16/22
Object Model Overview
I nkCollector I nkOverlay I nk Strokes Renderer Tablet Stroke Recognizers Recognizer Draw ingAttributes RecognizerContext
SLIDE 17
A Tutorial on Tablet PC
17/22
Key Objects
Ink Collection
InkCollector InkOverlay Ink collection events
Ink Data Management
Ink Strokes Stroke DrawingAttributes Renderer Ink data management events
Ink Recognition
RecognizerContext RecognitionResult
SLIDE 18
A Tutorial on Tablet PC
18/22
Referencing the SDK
The Tablet PC SDK has to be referenced from Microsoft Visual Studio
This provides access to the managed object model and controls
To add a reference to the Windows XP Tablet PC Edition Development Kit 1.7 in Visual Studio .NET
Open your Visual Studio .NET project. On the Project menu, click Add Reference. On the .NET tab in the Add Reference dialog box, on the components list, select Microsoft Tablet PC API, version 1.7.xxxx.x. Click Select, and then click OK.
SLIDE 19
How to Develop for a Tablet PC?
SLIDE 20
Tablet PC Resources
SLIDE 21
A Tutorial on Tablet PC
21/22
Resources
Within Tablet PC SDK 1.7
Microsoft Tablet PC Platform SDK Documentation Samples and Source Code
MSDN Tablet PC Developer Center
http://msdn.microsoft.com/mobility/tabletpc/default.aspx
MSDN Library
http://msdn2.microsoft.com/en-us/library/ms950406.aspx
Windows Tablet PC Home Page
http://www.microsoft.com/windowsxp/tabletpc/default.mspx
Tablet PC Team Blog
http://blogs.technet.com/tabletpc/
Books in the library Google the World Wide Web
