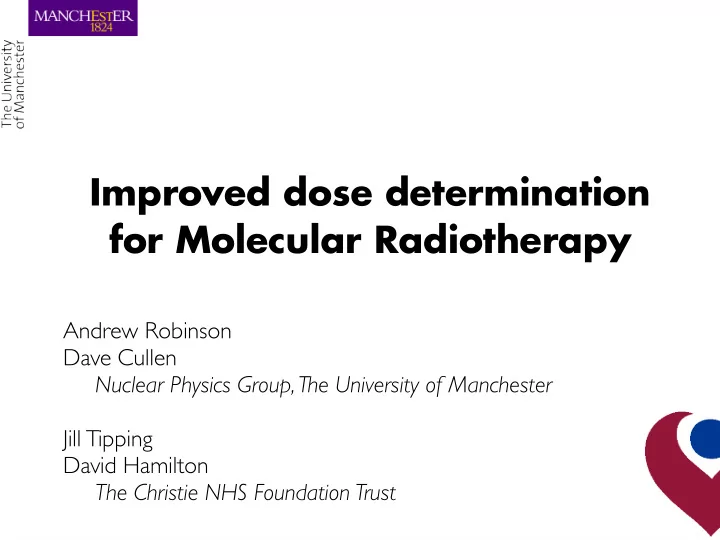

Improved dose determination for Molecular Radiotherapy Andrew Robinson Dave Cullen Nuclear Physics Group, The University of Manchester Jill Tipping David Hamilton The Christie NHS Foundation Trust Christie Research Huddle 07/04/14

SLIDE 1

Improved dose determination for Molecular Radiotherapy

Andrew Robinson Dave Cullen Nuclear Physics Group, The University of Manchester Jill Tipping David Hamilton The Christie NHS Foundation Trust

SLIDE 2

Christie Research Huddle – 07/04/14

SLIDE 3

Christie Research Huddle – 07/04/14

SLIDE 4

Christie Research Huddle – 07/04/14

Scatter Correction Triple Energy Window Sensitivity Factor

SLIDE 5

TRT with 177Lu-DOTATATE

EM SC RAW TEW

177Lu: t1/2

= 6.647 days bbeta (177Lu) = 100% bgamma (177Hf) = 18%

5000 MBq 300 MBq Day 0 Day 6

Christie Research Huddle – 07/04/14

SLIDE 6

Christie Research Huddle – 07/04/14

Collimator and touch plate
Crystal
PMT array
Back compartment
Shielding
Bed and mattress

Simulation - Camera

SLIDE 7

Simulation - Phantom

Christie Research Huddle – 07/04/14

SLIDE 8

Simulation - Sources

99mTc

T1/2 = 6.0 hrs Bgamma = 0.999963 (140 keV) Bbeta = 0.000037 (112 keV mean energy)

177Lu

T1/2 = 6.647 days Bgamma = 0.236 (113, 208 keV daughter nucleus) Bbeta = 1.000 (134.2 keV mean energy)

90Y

T1/2 = 64.053 hrs Bgamma = 0.000115 (1.76 MeV daughter nucleus) Bbeta = 1.000 (933 keV mean energy) Bpositron = 0.000032 (daughter nucleus)

SLIDE 9

Simulation - Sources

99mTc

T1/2 = 6.0 hrs Bgamma = 0.999963 (140 keV) Bbeta = 0.000037 (112 keV mean energy)

177Lu

T1/2 = 6.647 days Bgamma = 0.236 (113, 208 keV daughter nucleus) Bbeta = 1.000 (134.2 keV mean energy)

90Y

T1/2 = 64.053 hrs Bgamma = 0.000115 (1.76 MeV daughter nucleus) Bbeta = 1.000 (933 keV mean energy) Bpositron = 0.000032 (daughter nucleus)

SLIDE 10

Christie Research Huddle – 07/04/14

 Gate 6.1  Gate 6.2  Gate 7.0(beta)  Geant 4.9.4  Geant 4.9.5  Geant 4.9.6  Geant 4.10 (MT)

Cluster

SLIDE 11

Cluster

nucpc76.ph.man.ac.uk FASTPC2 nucpc90.ph.man.ac.uk FASTPC3 nucpc91.ph.man.ac.uk FASTPC4 nucpc96.ph.man.ac.uk FASTPC5 nucpc97.ph.man.ac.uk FASTPC6 nucpc108.ph.man.ac.uk FASTPC8 nucpc115.ph.man.ac.uk FASTPC9 x2 Xeon E5520 @ 2.27GHz 8 Cores (16 with Hyper Threading) x2 Xeon E5620 @ 2.4GHz 8 Cores (16 with Hyper Threading) x2 Xeon E5620 @ 2.4GHz 8 Cores (16 with Hyper Threading) x2 Xeon E5620 @ 2.4GHz 8 Cores (16 with Hyper Threading) x4 AMD Opteron 6176 @ 2.3GHz 48 Cores x4 AMD Opteron 6274 @ 2.2GHz 64 Cores x4 AMD Opteron 6274 @ 2.2GHz 64 Cores nucpc116.ph.man.ac.uk FASTPC10 x4 AMD Opteron 6274 @ 2.2GHz 64 Cores

264 cores 76 TB storage

SLIDE 12

Improved Scatter Correction

“Is it possible to have a scatter correction method which provides accurate quantification and improved image quality which is applicable in ALL conditions? Quantification Image Quality

SLIDE 13

Triple Energy Window Correction

ICMP 2013 – Brighton (4th September)

Infinia Hawkeye Simulation (all events) Unscattered events

SLIDE 14

Triple Energy Window Correction

K. Ogawa et al, IEEE Trans. Med.

Imaging, 10, 408-412 (1991)

Scat

EM1 EM2 Infinia Hawkeye Simulation (all events) Unscattered events

SLIDE 15

Pre reconstruction TEW Whole Image

Christie Research Huddle – 07/04/14

SLIDE 16

Pre reconstruction TEW Whole Image

Christie Research Huddle – 07/04/14

SLIDE 17

3D Printing

Use 3D printing to produce phantom inserts based on CT images.

Sensitivity Factor
Partial Volume effects
Patient specific measurements

Christie Research Huddle – 07/04/14

SLIDE 18

3D Printing

Christie Research Huddle – 07/04/14

SLIDE 19

3D Printing

Christie Research Huddle – 07/04/14
