: A QCD AXION DIRECT- DETECTION EXPERIMENT XIAOYUE LI FOR THE MADMAX COLLABORATION MAX PLANCK INSTITUTE FOR PHYSICS, MUNICH, GERMANY TAUP Toyama, September 9, 2019 Xiaoyue Li (MPP Munich) TAUP 2019 Toyama 2 INTRODUCTION 09.09.2019 THE


slide-1
SLIDE 1

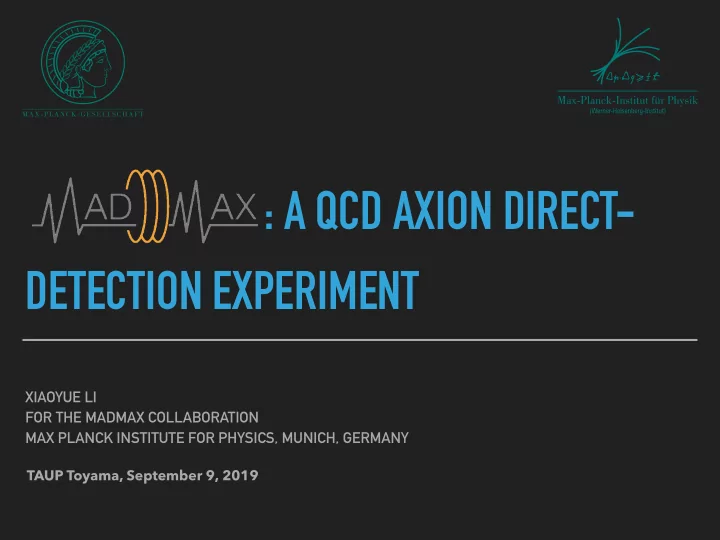

: A QCD AXION DIRECT- DETECTION EXPERIMENT

XIAOYUE LI FOR THE MADMAX COLLABORATION MAX PLANCK INSTITUTE FOR PHYSICS, MUNICH, GERMANY

TAUP Toyama, September 9, 2019

slide-2
SLIDE 2

Xiaoyue Li (MPP Munich) TAUP 2019 Toyama 09.09.2019

INTRODUCTION

THE STRONG CP PROBLEM

▸ The QCD Lagrangian contains a CP-violating term: ▸ Neutron electric dipole moment ▸ The Standard Model does not provide a reason for why is so

tiny, i.e. the strong CP problem.

▸ The Peccei-Quinn mechanism provides a reason for the value of

and predicts a light neutral pseudoscalar boson — the axion.

2

ℒQCD = . . . + αs 8π ¯ θ Gμνa ˜ Gμν

a ,

¯ θ = θQCD + θYukawa ∈ [−π, π] ∼ 𝒫(1) dN ∼ 10−16 ¯ θ e-cm < 3 × 10−26 e-cm ⇒ ¯ θ < 3 × 10−10

¯ θ ¯ θ

slide-3
SLIDE 3

Xiaoyue Li (MPP Munich) TAUP 2019 Toyama 09.09.2019

Axion potential is minimized at

INTRODUCTION

THE PECCEI-QUINN MECHANISM

▸ Peccei-Quinn introduces a global U(1)PQ symmetry which spontaneously breaks

at

3

ℒ = . . . + ¯ θ αs 8πGμνa ˜ Gμν

a + 1

2∂μa∂μa + a fa αs 8πGμνa ˜ Gμν

a

1 GeV < T < fa (PQ symmetry breaking) T < 1 GeV (QCD phase transition)

¯ θ + a fa = 0

Va (a/fa)

The axions produced by the “misalignment” mechanism are a good CDM candidate

T = fa ≫ ΛQCD

QCD

θ( = a fa ) V(θ) Measured today

slide-4
SLIDE 4

Xiaoyue Li (MPP Munich) TAUP 2019 Toyama 09.09.2019

INTRODUCTION

CONSTRAINTS ON QCD AXION MASS

4

∼ Λ2

QCD

fa ∼ 5.70μeV 1012GeV fa

slide-5
SLIDE 5

Xiaoyue Li (MPP Munich) TAUP 2019 Toyama 09.09.2019

INTRODUCTION

CONSTRAINTS ON QCD AXION MASS

5

Scenario A: PQ symmetry breaking happens before inflation Scenario B: PQ symmetry breaking happens after inflation

slide-6
SLIDE 6

Xiaoyue Li (MPP Munich) TAUP 2019 Toyama 09.09.2019

AXION DETECTION

CDM AXION DIRECT-DETECTION

▸ Axion-photon interaction: ▸ CDM axions behave like a classical wave:

▸ E.g.

▸ Axion de Broglie wavelength: ▸ Axion phase-space occupancy:

▸ Axion-Maxwell equation under external B-field:

a/fa = θ = θ0 cos(mat)

ma ∼ 100 μeV, local galactic axion density ρa = 0.3 GeV/cm3

λa = 2π mava ≳ 10 m (va ≈ 10−3c) 𝒪a ∼ naλ3

a = (ρa/ma)λ3 a ∼ 1022

6

ℒaγγ = Caγγ α 2πfa aFμν ˜ Fμν

gaγ = 2.04(3) × 10−16GeV−1 ma μeV Caγγ

∇ ⋅ D = ρf − gaγBe ⋅ ∇a ∇ × H − · D = Jf+gaγBe · a

{

  • Model-dependent and of order 1

a ~ B

  • gaγ
slide-7
SLIDE 7

Xiaoyue Li (MPP Munich) TAUP 2019 Toyama 09.09.2019

AXION DETECTION

AXION HALOSCOPE

▸ Axion induced electric field:

7

x scaled field strength

a E

a = a0 cos(mat)

|Ea| = − gaγBe ϵ a = 1.3 × 10−12 Vm−1 × ( Be 10 T ) ( ρa 300 MeV/cm3 )

1/2 Caγγ

ϵ

Dielectric constant Local axion DM density

slide-8
SLIDE 8

Xiaoyue Li (MPP Munich) TAUP 2019 Toyama 09.09.2019

AXION DETECTION

CAVITY AXION SEARCH

8

a = θ0 cos(mat)

x scaled field strength

a E

Resonant Cavity

Δνa ∼ 10−6ν Axion linewidth Cavity linewidth

Psig ∼ 1.9 × 10−22 W ( V 136l ) ( Be 6.8T )

2

( C 0.4) ( Caγγ 0.97)

2

( ρa 0.45 GeV cm−3 ) ( f 650 MHz) ( Q 50,000)

Cavity mode factor Cavity volume, scaled by

f −3

Cavity Quality factor

▸ At higher frequencies, cavities are increasingly difficult to build

slide-9
SLIDE 9

Xiaoyue Li (MPP Munich) TAUP 2019 Toyama 09.09.2019

AXION DETECTION

HIGHER FREQUENCY: DIELECTRIC HALOSCOPE

▸ Power emitted at a metal (

) surface: ϵ = inf

9

x scaled field strength

a E

  • electromag. wave emission

Psig A = 2 . 2 × 10−27 W m2 ( Be 10 T)

2

C2

aγγ

slide-10
SLIDE 10

Xiaoyue Li (MPP Munich) TAUP 2019 Toyama 09.09.2019

AXION DETECTION

DIELECTRIC HALOSCOPE

▸ Power enhancement from coherent emission from and resonance at

interfaces

Psig A = 2.2 × 10−27 W m2 ( Be 10 T )

2

C2

aγγ ⋅ β2

Boost factor needs to be

  • Of order 104~105
  • Frequency and bandwidth-tunable

L L ≪ λdeBroglie

11

slide-11
SLIDE 11

Xiaoyue Li (MPP Munich) TAUP 2019 Toyama 09.09.2019

AXION DETECTION

BOOST FACTOR

β2

▸ is roughly proportional to the number of

discs

achievable with 80 discs with dielectric constant

▸ Area law:

β2 104 ∼ 105 ϵ ≈ 24 ∫ β2 dν = const

12

Disc positions randomly varied by σ = 15 μm Frequency is tuned by changing disc positions

Power boost factor β2 Power boost factor simulation (1D)

slide-12
SLIDE 12

Xiaoyue Li (MPP Munich) TAUP 2019 Toyama 09.09.2019

AXION DETECTION

BOOST FACTOR : 3D EFFECTS

β2

▸ 3D simulation shows the axion beam shape is well matched to a Gaussian beam. ▸ Reduction and frequency shift of power boost factor relative to 1D prediction are

expected; axion signal coupling to antenna also results in loss of received power.

12

1D model 3D total 3D coupled to antenna

Simulated axion beam shape Simulated power boost factor

slide-13
SLIDE 13

Xiaoyue Li (MPP Munich) TAUP 2019 Toyama 09.09.2019

AXION DETECTION

BOOST FACTOR : 3D EFFECTS

β2

▸ Other 3D effects such as disc tilting, surface roughness and axion velocity have been

  • studied. Requirements (tiling < 0.1 mili radian, surface roughness < 10 µm) can be

satisfied experimentally.

13

1 milirad 0.3 milirad 0.1 milirad

Simulated w/ disc tilting

β2

Simulated w/ disc surface roughness

β2

slide-14
SLIDE 14

Xiaoyue Li (MPP Munich) TAUP 2019 Toyama 09.09.2019

MADMAX

MAgnetized Disc and Mirror Axion eXperiment (MADMAX)

14

Focusing mirror Booster with a mirror and 80 LaAlO3 discs 1mm-thick, 1m2 in area 9 T superconducting magnet with >1 m2 aperture, <5% inhomogeneity Horn antenna Cryostats B-field 2m Mirror

MADMAX baseline design

Receiver chain

slide-15
SLIDE 15

Xiaoyue Li (MPP Munich) TAUP 2019 Toyama 09.09.2019

MADMAX

MADMAX SENSITIVITY

15

Post-inflationary scenario

Prototype detector sensitivity

* System temperature ~8K,

β2 = 5 × 104

5 years uninterrupted running

QCD axion model benchmark

slide-16
SLIDE 16

Xiaoyue Li (MPP Munich) TAUP 2019 Toyama 09.09.2019

MADMAX

TIMELINE

16

2017-2019 DESIGN 2019-2022 PROTOTYPING 2022-2025 DETECTOR CONSTRUCTION 2025-2035 DATA TAKING @ DESY

HERA hall north DESY

First physics run at CERN with prototype detector

  • Eur. Phys. J. C (2019) 79: 186

MADMAX white paper MORPURGO magnet up to 1.9 T *Full-size detector

slide-17
SLIDE 17

Xiaoyue Li (MPP Munich) TAUP 2019 Toyama 09.09.2019

MADMAX R&D

RECEIVER CHAIN

17

Low-noise cryogenic amplifier

Samplers LHe bath

Fake axion signal injection

Front-end mixers & amps

<2% deadtime

  • signal detectable

with ~days of measurement time

1.2 × 10−22 W

Trec ≈ 5 − 6 K

slide-18
SLIDE 18

Xiaoyue Li (MPP Munich) TAUP 2019 Toyama 09.09.2019

MADMAX R&D

PROOF-OF-PRINCIPLE BOOSTER

▸ Boost factor cannot be measured directly; it has to

be calculated based on disc positions

▸ Disc positions can be obtained through the group

delay of the reflectivity measurement

▸ precision achieved with up to 5 discs ▸ Booster temporal stability, disc tilting effects etc.

have also been studied

18

20cm sapphire discs ∼ μm

slide-19
SLIDE 19

Xiaoyue Li (MPP Munich) TAUP 2019 Toyama 09.09.2019

MADMAX R&D

DIELECTRIC DISC

▸ Discs are

m in diameter and 1mm in thickness

▸ Candidate material: LaAlO3 ▸ ▸ ▸ Only grown on 3” wafer; tiling needed for 1

m2 discs

▸ Material electromagnetic properties (,

) at

  • GHz are under investigation

▸ Other possible candidate materials are being

explored

1.25 ϵ ≈ 24 tan δ ≲ 10−4 ϵ tan δ f > 10

19

First tiled LaAlO3 disc ( 30 cm)

ϕ =

slide-20
SLIDE 20

Xiaoyue Li (MPP Munich) TAUP 2019 Toyama 09.09.2019

MADMAX PROTOTYPE

PROTOTYPE DETECTOR

▸ Aim to construct and commission

prototype booster by 2022

▸ 20 LaAlO3 tiled discs with 30cm

diameter; laser interferometer incorporated

▸ Hammer out the details of the

mechanical design for the full- size detector

▸ First physics results in 2022 with

Morpurgo magnet at CERN

▸ Development and testing of piezo

motors are ongoing

▸ 4K, ~9T, long travel range, 6 kg

load bearing, m precision

< 10 μ

20

Preliminary prototype booster mechanics design 2 Preliminary prototype booster mechanics design 1

slide-21
SLIDE 21

Xiaoyue Li (MPP Munich) TAUP 2019 Toyama 09.09.2019

MADMAX MAGNET

MAGNET DESIGN STUDIES

▸ magnet has never been built before ▸ Working with innovation partners and an expert committee ▸ NbTi coil, 9 T field, 1.25 m2 aperture, ~5% inhomogeneity ▸ Design to be finalized in 2019; demonstrator coil to be delivered by 2021; full magnet to

be commissioned by 2025

21

B2 ⋅ T = 100 T2m2

slide-22
SLIDE 22

Xiaoyue Li (MPP Munich) TAUP 2019 Toyama 09.09.2019

SUMMARY

SUMMARY AND FUTURE PROSPECT

▸ There is a strong theoretical motivation for axion as it can solve the Strong CP problem

and at the same time be a good CDM candidate

▸ The MADMAX experiment aims to search for QCD axion in the well-motivated mass

range of

▸ Novel dielectric haloscope to boost axion signal to a detectable level ▸ Design R&D and simulation studies are on going ▸ Prototype booster to be delivered by 2022 ▸ Aim for data-taking with full-size detector in 2025

40 ∼ 400 μeV

22

Thank you for your attention

slide-23
SLIDE 23

Xiaoyue Li (MPP Munich) TAUP 2019 Toyama 09.09.2019

COLLABORATION

23

RWTH Aachen MPI für Radioastronomy Bonn DESY Hamburg Universität Hamburg MPI für Physik München CEA Irfu Saclay Universität Tübingen Universidad Zaragoza Associate member: CPPM, Marseille Institut Néel, Grenoble
