Session 3 - Oscillators and PLLs A 107 W MedRadio Injection-Locked Clock Multiplier with a CTAT-biased 126 ppm/ C Ring Oscillator Somok Mondal and Drew A. Hall University of California, San Diego La Jolla, CA, (USA) IEEE CICC, Austin, TX,


slide-1

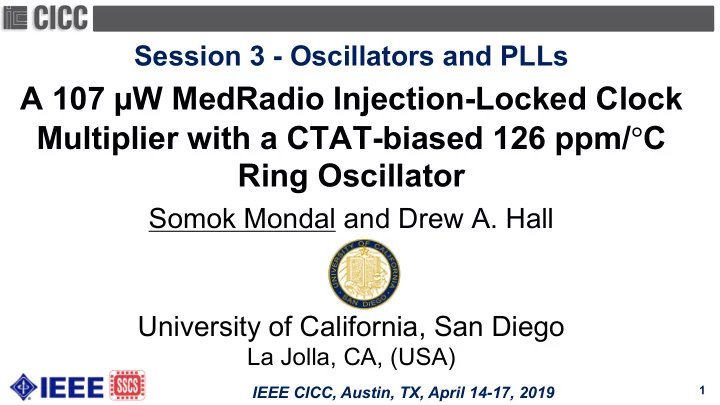

SLIDE 1

IEEE CICC, Austin, TX, April 14-17, 2019

1

Session 3 - Oscillators and PLLs

A 107 µW MedRadio Injection-Locked Clock Multiplier with a CTAT-biased 126 ppm/°C Ring Oscillator

Somok Mondal and Drew A. Hall University of California, San Diego

La Jolla, CA, (USA)

slide-2
SLIDE 2

IEEE CICC, Austin, TX, April 14-17, 2019

The Internet of Medical Things – Io(M)T

2

ü Communication to a nearby data-aggregator (e.g., smartphone, smartwatch, etc.) ü Miniaturized wearable sensor nodes Ultra-Low Power Operation

slide-3
SLIDE 3

IEEE CICC, Austin, TX, April 14-17, 2019

3

A Wireless IoMT Bio-Sensor Node

  • Medical Device Radiocommunica/ons Service (MedRadio): 402-405 MHz
  • Frequency stability ±100 ppm/°C over 0 to 55 °C
  • Attenuate out-of-band/spurious emissions by 20 dBc

[1]: “Medical Device Radio Communications Service,” in Electronic Code of Federal Regulations (e-CFR), vol. Title 47,Chapter I, Subchapter D, Part 95, Oct. 2018.

slide-4
SLIDE 4

IEEE CICC, Austin, TX, April 14-17, 2019

4

A Wireless IoMT Bio-Sensor Node

  • Medical Device Radiocommunications Service (MedRadio): 402-405 MHz
  • Short-range transmi@er (<2 meters TX distance)
  • Duty-cycled operation
slide-5
SLIDE 5

IEEE CICC, Austin, TX, April 14-17, 2019

5

Short-Range Transmitter

Short-range PA (< -17 dBm or 20 μW

  • utput power)

Power-hungry block (400 MHz RF carrier)

slide-6
SLIDE 6

IEEE CICC, Austin, TX, April 14-17, 2019

6

Injection-Locked Clock Multiplier (ILCM)

!"#$ = &. !()! !"#$ < &. !()!

slide-7
SLIDE 7

IEEE CICC, Austin, TX, April 14-17, 2019

7

Prior Work – ULP Narrowband TX

[Pandey JSSC ‘11]

ü PLL-free low power TX ü Fast start-up û Very sensi?ve to PVT

[Teng JSSC ‘17], [Liu JSSC ‘14], [Ma TBioCAS ‘13]ü Robust to static PV variations

û Constant temperature assumption (close proximity to human body) û Slow start-up (if calibrated each time) Loss of lock Large REF spur

Dynamic temperature variations need to be addressed

slide-8
SLIDE 8

IEEE CICC, Austin, TX, April 14-17, 2019

8

Motivation & Proposed Work

Conventional Injection-Locked Clock Multiplier (ILCM): Proposed open-loop ILCM: ü Low power ü PVT Robust ü Fast-start-up ü Robust û Power hungry

slide-9
SLIDE 9

IEEE CICC, Austin, TX, April 14-17, 2019

9

Ring Oscillator Temperature Sensitivity

Current-starved delay cell implementation

Constant-voltage bias

!

"#$ ∝ &'()

*+ &'(),- = /0 ⋅ exp(6

78/:;)

∝ :;

=

>?@Aà strong PTAT

(:; ∝ T)

Constant-current bias >?@Aà PTAT

BC: negative TC (junction & MOS

  • xide cap.)

!

"#$ ∝ &'(),DEFGH

BC

[Zhang TCAS-I ‘11], [Shrivatava CICC’12]

slide-10
SLIDE 10

IEEE CICC, Austin, TX, April 14-17, 2019

10

Temperature Compensation Concept

  • Nominally, ring DCO’s free-running frequency exhibits PTAT characteristics
  • Introduce CTAT characteristics in frequency control knob

CTAT bias current to counteract the PTAT nature of osc. frequency

slide-11
SLIDE 11

IEEE CICC, Austin, TX, April 14-17, 2019

11

ILCM: Circuit Implementation

  • Min 3-stage ring à larger devices à lower variations
  • 8-bit DCO with ±25% tuning range
slide-12
SLIDE 12

IEEE CICC, Austin, TX, April 14-17, 2019

12

CTAT Current Generation: Implementation

!

",$%&% = − )! % ln ,

2 + !

//

4 1234,$%&% = !

",$%&% ⁄ 6"

[Choi ESSCIRC ‘14]

  • Low voltage, sub-threshold operation
  • N = 24, 6" adds negligibly to CTAT characteristics

Adds <5% power overhead

slide-13
SLIDE 13

IEEE CICC, Austin, TX, April 14-17, 2019

13

Delay Cell: Implementation

  • !"#$,#&'& = !"#$ ) (1 − -.Δ0)

DCO current at )23 frequency mode CTAT TC

  • Pseudo-differen8al delay cell
  • M567 , M589: injection/start-up
slide-14
SLIDE 14

IEEE CICC, Austin, TX, April 14-17, 2019

14

Delay Cell: Temperature Sensitivity

  • Both junction and MOS capacitor

exhibit CTAT TC

!" = !"$ 1 − '(Δ*

  • Using current-starved delay cell

+

,-. ∝

0123,2565 !" = 0123 7 1 − '8Δ* !"$ 1 − '(Δ*

TC cancella)on independent of 9:;< = (DCO mode)

slide-15
SLIDE 15

IEEE CICC, Austin, TX, April 14-17, 2019

15

Simulated Temperature Sensitivity

Free-running ring oscillator’s Temperature Coefficients (TC)

Nominal TC with different topologies: TC at corners with proposed topology: TC improvement: ↓5 (constant I-bias) à ↓40 (CTAT I-bias)

slide-16
SLIDE 16

IEEE CICC, Austin, TX, April 14-17, 2019

16

Chip Micrograph

slide-17
SLIDE 17

IEEE CICC, Austin, TX, April 14-17, 2019

17

Low TC DCO: Measurements

Temperature sensitivity over multiple chips (DCO tuned to 403 MHz at 25 °C) "#$% drift <4 MHz (401 to 405 MHz) across 0 to 55°C

slide-18
SLIDE 18

IEEE CICC, Austin, TX, April 14-17, 2019

18

Low TC DCO: Measurements

Measured distributions across 20 chips Temperature coefficients

  • ver 0 to 55°C range
  • Avg. TC (20 chips) of 126 ppm/°C

across 0 to 55°C

  • Min: 113 ppm/°C
  • Max: 157 ppm/°C
slide-19
SLIDE 19

IEEE CICC, Austin, TX, April 14-17, 2019

19

Max frequency devia0on

  • ver 0 to 55°C endpoints

Low TC DCO: Measurements

Measured distributions across 20 chips

(ΔF: frequency deviation from nominal value at 25 °C)

Free-running oscillation frequencies

slide-20
SLIDE 20

IEEE CICC, Austin, TX, April 14-17, 2019

20

Low TC DCO: Measurements

Temperature sensi-vity of same DCO tuned to different frequencies

(ΔF: frequency deviation from nominal value at 25 °C, F$: Nominal tuned frequency)

Compensation consistent over multiple DCO modes

slide-21
SLIDE 21

IEEE CICC, Austin, TX, April 14-17, 2019

21

ILCM: Measured Output Spectrum

403 MHz MedRadio band carrier from 31 MHz reference

slide-22
SLIDE 22

IEEE CICC, Austin, TX, April 14-17, 2019

22

ILCM: Measured Phase Noise

  • 106.6 dBc/Hz phase noise at 300 kHz offset
slide-23
SLIDE 23

IEEE CICC, Austin, TX, April 14-17, 2019

23

ILCM: Measurements over 0 to 55°C

Worst case measured spectrum and phase noise over 0 to 55°C range Carrier to spur ratio (CSR) > 20 dB Phase Noise consistent

slide-24
SLIDE 24

IEEE CICC, Austin, TX, April 14-17, 2019

24

ILCM: Measured Power Start-up

Measured settling time with step voltage on the supply Fast settling for duty-cycled operation

slide-25
SLIDE 25

IEEE CICC, Austin, TX, April 14-17, 2019

25

ILCM: Measured Lock Time

Measured se)ling .me with reference injec.on kick-star.ng the oscillator: ~150 ns (4 REF cycles) jitter settling

Period Jitter: |!"#$%&'#( − !*+,/.|

slide-26
SLIDE 26

IEEE CICC, Austin, TX, April 14-17, 2019

26

Low TC DCO: Standalone Performance

[Zhang TCAS-I ‘11] [Lee VLSIC ‘09] [Lakhsmikumar CICC ‘07] [Shrivastava CICC ‘12] This Work Technology 90 nm 180 nm 130 nm 130 nm 180 nm Supply (V) 1 1.2 3.3 1.1 0.7 Frequency 1.8 GHz 10 MHz 1.25 GHz 100 kHz 400 MHz TC (ppm/°C) 85 67 340 14 126 1 198 2 Temp Range (°C) 7 to 62

  • 20 to 100
  • 40 to 120

20 to 70 0 to 55 1

  • 40 to 100 2

# chips measured 1 ̶ 15 10 20 !

"#$ Tuning

× × × ü via DCO ü via DCO Power 87 µW 80 µW 11 mW 1 µW 93 µW 1 ̶ MedRadio temperature range; 2 – Full temperature range;

Low voltage, supports freq. tuning, supports injec7on-locking

slide-27
SLIDE 27

IEEE CICC, Austin, TX, April 14-17, 2019

27

ILCM: Performance Summary

[Li ISSCC ‘18] [Liu JSSC ‘14] [Pandey JSSC ‘11] [Yang TBioCAS’13] This Work Tech. 65 nm 65 nm 90 nm 65 nm 180 nm Supply (V) 1.1 0.8 0.7 1 0.7 Topology ILRO + FTL ILRO + calibration ILRO +EC PLL TC-ILRO + calibration

  • Freq. (MHz)

200 900 400 402 403 Multiplier 20 × 9 × 9 × 1340 × 13 × Phase noise (dBc/Hz)

  • 95**

@300k

  • 100.8

@1M

  • 105.2

@300k

  • 102.1

@200k

  • 106.6

@300k CSR (dB) 43 56# 44# 45 41# 30* Settling time ̶ 88 ns 250 ns 350 µs 30 ns Lock time ̶ ̶ ̶ ̶ 150 ns Power (µW) 130 538 <90 430 107 PVT-robust? Pü Vü Tü Pü Vü T× P× V× T× Pü Vü Tü Pü Vü Tü

**From reported PN plot; #Nominal value at room/single temperature; *Across MedRadio temperature range (meeting 20 dB regulation)

slide-28
SLIDE 28

IEEE CICC, Austin, TX, April 14-17, 2019

28

Conclusion

ü Open-loop (PLL-free) ILCM ü Dynamic temperature variations addressed ü 126 ppm/°C Ring with minimal power overhead CTAT-biasing ü 150 ns start-up for duty-cycled operation ü Best combination of PVT-robustness & low power at comparable operation frequencies

slide-29
SLIDE 29

IEEE CICC, Austin, TX, April 14-17, 2019

29

Acknowledgement

  • Equipment purchased through DURIP award from the Office
  • f Naval Research (award no. N00014-18-1-2350)
