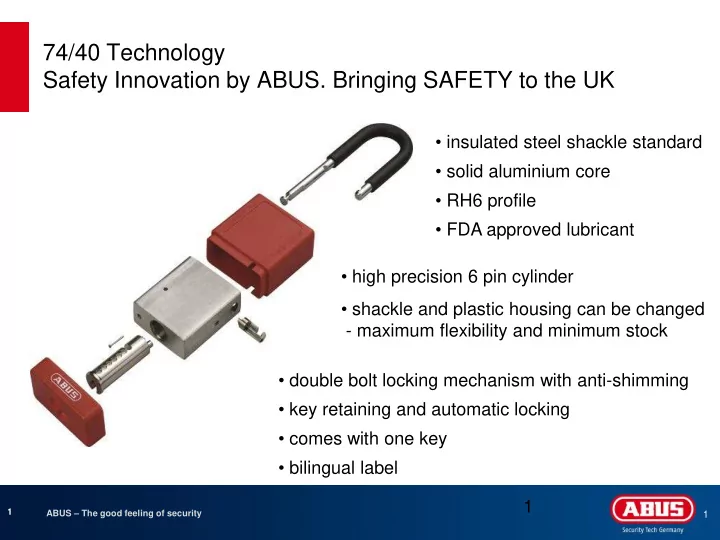

74/40 Technology Safety Innovation by ABUS. Bringing SAFETY to the UK

• insulated steel shackle standard
• solid aluminium core
• RH6 profile
• FDA approved lubricant
• double bolt locking mechanism with anti-shimming
• key retaining and automatic locking
• comes with one key
• bilingual label
• high precision 6 pin cylinder
• shackle and plastic housing can be changed
• maximum flexibility and minimum stock

ABUS – The good feeling of security

2

2

2

74/40 Fact Sheet

74/40 Lock Body (Width/Hight) 40mm/46mm Shackle (Hight/Width) 40mm/ 6,75mm or 5mm (w/o insulation) (Standard) 75mm/ 6,75mm or 5mm (w/o insulation) Shackle Insulated steel shackle Colors 10 clearly different colors (red, yellow, blue, green, black, orange, brown, purple, grey, white) Key-Retaining Yes Keying KD, KA, MK, KA customised Laser Engraving Yes Weight 96g (74/40 KD with one key)

ABUS – The good feeling of security

3

3

3

Typical Industrial Environment or why the 74 is the World‘s Best Safety Padlock

• Protection of Life and Health commands:

– Protection against accidental opening – Precise cylinder to avoid key interchanges – High visibility, many distinct colors and markings

• Withstands extreme Temperatures and

aggressive Chemicals

• Easy Handling

– Quick, convenient and reliable operation - essential

• High Reliability and Durability

– Avoids production delays – High logistical cost for replacement

• Good availability of Customised Locks

ABUS – The good feeling of security

4

ABUS LOTO Program Additional Safety Products

701/702 and 801/802 safety hasps

• 210 Multiloop for flexible lockout of odd shaped devices
• 72/40 as reference for durability and price
• T84MB
• T65AL

The LOTO program of ABUS is growing – just like the market!
