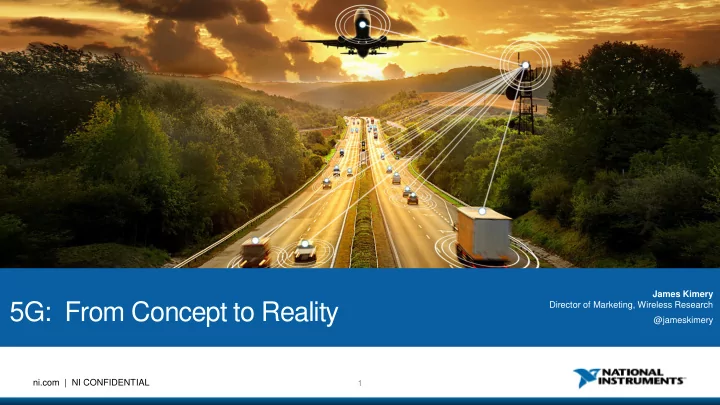

5G: From Concept to Reality

James Kimery Director of Marketing, Wireless Research @jameskimery

5

ni.com | NI CONFIDENTIAL

Hyper Connected Everything

Data rate Capacity Power Consumption Coexistence Security Monitoring

6

ni.com | NI CONFIDENTIAL

5G 5G 5G

Wireless Requires Massive Platform Expansion

> 10 Gbps peak rates > 100K connections per cell < 1 ms latency

7

ni.com | NI CONFIDENTIAL

Prototyping Is Critical for Algorithm Research

“Experience shows that the real world often breaks some of the assumptions made in theoretical research, so testbeds are an important tool for evaluation under very realistic operating conditions” “…development of a testbed that is able to test radical ideas in a complete, working system is crucial”

1NSF Workshop on Future Wireless

Communication Research

Platforms Enabling Advanced Wireless Research (PAWR)

8

ni.com

Approaching The Pivotal Moment

We are here

Source: www.gsmhistory.com/who_created-gsm Technical ideas from a huge number of sources Implementation by a large number of suppliers & operators

5G Broad Based Adoption Pivotal Moment

• f Standardization

1987 1982-85 1988-91 Birth of GSM The Pivotal Year GSM

Billions of Devices Multiple Ideas

9

ni.com | NI CONFIDENTIAL

Proposed 3GPP Release 15 / 5G Timeline

RAN#72 Jun 16 RAN#69 Sep 15 Channel Modeling

RAN1 SI Evaluation of Solutions RAN1 WG Specification of Solutions

RAN1 Scope / Req’s RAN#75 Mar 17 RAN#75 Dec 17

SA R15

RAN#79 Jun 18 RAN#79 Mar 18

WI Rel 15 NSA R15 “New Radio” Phase 1

10

ni.com | NI CONFIDENTIAL

RF Communications Lead User Program

• Established in 2010
• Goals: Further wireless research through prototyping
• Research Institutions
• Academic
• Industry
• Over 100 research papers published

12

ni.com | NI CONFIDENTIAL

Utilize potential of extremely wide bandwidths at frequency ranges once thought impractical for commercial wireless. Consistent connectivity meeting the 1000x traffic demand for 5G Dramatically increased number of antenna elements on base station.

5G Vectors

Improve bandwidth utilization through evolving PHY Level and flexible numerology

Multi-RAT Enhanced PHY Massive MIMO Advanced Wireless Networks mmWave

• Densification
• SDN
• NFV
• CRAN

13

ni.com | NI CONFIDENTIAL

NI 5G Research Initiatives

Massive MIMO Wireless Networks Multi-RAT mmWave

USRP RIO PXI Systems

Personal Computers

14

ni.com | NI CONFIDENTIAL

Utilize potential of extremely wide bandwidths at frequency ranges once thought impractical for commercial wireless. Consistent connectivity meeting the 1000x traffic demand for 5G Dramatically increased number of antenna elements on base station.

5G Vectors

Improve bandwidth utilization through evolving PHY Level and flexible numerology

Multi-RAT Enhanced PHY Massive MIMO Advanced Wireless Networks mmWave

• Densification
• SDN
• NFV
• CRAN

16

ni.com | NI CONFIDENTIAL

NI and Lund University Collaborate on Massive MIMO

Goal: Build a massive MIMO prototype 100 antenna system with real time processing capabilities Challenges: System complexity 100 Synchronized Tx / Rx chains Data throughput for processing Aggregation of multiple channels Heterogeneous computation

Prof Ove Edfors Prof Fredrik Tufvesson

17

ni.com | NI CONFIDENTIAL

Facebook announces ARIES Testbed 71 bits/Second/Hz 96 Antennas, 24 Users

(USRP RIO, LV, Custom LV Code Base)

April 2016

Bristol Smashes Spectral Efficiency Record >146.4 bits/Second/Hz 128 Antennas, 22 Users

(USRP RIO, LV, NI LU Code Base)

May 2016

Massive MIMO Successes

19

ni.com | NI CONFIDENTIAL

Hardware Architecture: 128 Base Station Antennas x 12 UE Antennas @ 20 MHz

NI PCIe Switch Boxes for Data NI Octoclocks for Clocking

…

Laptops+USRP RIO As UEs NI FlexRIOs or Atrox for MIMO Co-processing

21

ni.com | NI CONFIDENTIAL

Utilize potential of extremely wide bandwidths at frequency ranges once thought impractical for commercial wireless. Consistent connectivity meeting the 1000x traffic demand for 5G Dramatically increased number of antenna elements on base station.

5G Vectors

Improve bandwidth utilization through evolving PHY Level and flexible numerology

Multi-RAT Enhanced PHY Massive MIMO Advanced Wireless Networks mmWave

• Densification
• SDN
• NFV
• CRAN

22

ni.com | NI CONFIDENTIAL

Advanced Wireless Prototypes

Texas A&M Advanced MAC Research NI Lead User Group Open LTEWiFi Coexistence Testbed CROWD SDN ABSF Network System NS-3 Intel CRAN-Massive MIMO

23

ni.com | NI CONFIDENTIAL

5G Advanced Wireless Networks Research

• Hyper dense networks
• Software defined networking (SDN)
• Cloud radio access network (cRAN)
• Cellular/802.11 coexistence and co-ordination
• Next generation 802.11 stack

24

ni.com | NI CONFIDENTIAL

Architecture for Protocol Stack Explorations

PHY/MAC Stack in LabVIEW Open Source Upper Layer Stack (e.g. ns-3) LTE 802.11 MTC IoT LTE Ref Design 802.11 Ref Design NI Hardware

25

ni.com | NI CONFIDENTIAL

Real LTE OTA Experiments with NS-3 Network Simulator

L1-L2 API PHY L1-L2 API eNB UE L1-L2 API MAC PHY L1-L2 API UL DL RLC PDCP IP APP MAC RLC PDCP GTP UDP IP GTP UDP IP IP SGW/PGW DA/AD+RF DA/AD+RF PHY Emu eNB UE PHY Emu MAC RLC PDCP IP APP MAC RLC PDCP GTP UDP IP GTP UDP IP IP SGW/PGW

26

ni.com | NI CONFIDENTIAL

Utilize potential of extremely wide bandwidths at frequency ranges once thought impractical for commercial wireless. Consistent connectivity meeting the 1000x traffic demand for 5G Dramatically increased number of antenna elements on base station.

5G Vectors

Improve bandwidth utilization through evolving PHY Level and flexible numerology

Multi-RAT Enhanced PHY Massive MIMO Advanced Wireless Networks mmWave

• Densification
• SDN
• NFV
• CRAN

27

ni.com | NI CONFIDENTIAL

The Question of Frequency: WRC-15 Outcome

• The ITU released a list of globally viable frequencies for 5G mmWave

technologies

28

ni.com | NI CONFIDENTIAL

FCC Embraces mmWave

37 to 38.6 Upper microwave flexible use Unlicensed 27.5 - 28.35 37 - 38.6 38.6 - 40 64 - 71 Further Notice of Proposed Rulemaking (FNPRM) 71 -76 81 -86 24.25 – 24.45 24.75 – 25.25 31.8 – 33.4 42 - 42.5 47.2 – 50.2 50.4 – 52.6 3 7 t

• 3

8 . 6

29

ni.com | NI CONFIDENTIAL

Verizon “5G” Specification

• Adaption of “LTE” OFDM technology to cmWave/mmWave frequencies
• Fc = 28, 37, 39 GHz
• Adds control signaling for beam forming
• Applications
• Fixed, broadband wireless
• Mobility?
• Verizon contributing to 3GPP but this is NOT the 5G specification

∆fsc [kHz] Scaling factor BW [MHz] Slot dur. [ms] Sampling Rate [MSps] TX SRC factor (fs / 3072 MSps) TX SRC factorization Symb dur [us] CP dur [us] Symbols per slot 75 5 100 0,100 153,60 20,00 5*2*2 13,33 0,9 7 150 10 200 0,100 307,20 10,00 5*2 6,67 0,5 14 300 20 400 0,100 614,40 5,00 5 3,33 0,2 28

32

ni.com | NI CONFIDENTIAL

mmWave Prototypes and Channel Sounding

NYU Wireless mmWave Channel Sounding NTT Docomo 73 GHz BW = 1 GHz Nokia Multiple Prototypes AT&T Channel Sounding

• Prof. Ted Rappaport

36

ni.com

Timeline w/ NI Platform

Brooklyn 5G Summit 2014 NIWeek 2015 MWC 2016

73 GHz 73 GHz 73 GHz 1 GHz 2 GHz 2 GHz 1x1 2x2 2x2 16 QAM 16 QAM 64 QAM

2.3 Gbps >10 Gbps >14.5 Gbps Frequency Bandwidth Streams Modulation Peak rate

38

ni.com

NI mmWave Transceiver System

The world’s first 2 GHz bandwidth mmWave transceiver covering the 71-76 GHz frequency band for channel sounding and real-time 2-way MIMO communications with coding. Applications

• Cellular
• Wi-Fi
• Channel sounding

Capabilities

• 71 – 76 GHz
• 2 GHz Bandwidth
• MIMO
• Real-time 2-way communication

Q2 2016

40

ni.com

Software Defined Radio Architecture

CPU GPP FPGA DSP D/A D/A A/D A/D

VCO

PLL

VCO

PLL

90 90

Host Connection

Determines Streaming Bandwidth Ex. Gigabit E-net, PCIe

Multi-Processor Subsystem

Real-time signal processor

• Physical Layer (PHY)
• ex FPGA, DSP

Host processor

• Medium Access Control (MAC) –

Rx/Txcontrol

• ex. Host GPP

, multi-core CPU

Baseband Converters RF Front End

• General Purpose

RF

• Dual LOs
• Contiguous

Frequency Range

ni.com | NI CONFIDENTIAL

www.ni.com/5g www.ni.com/sdr
