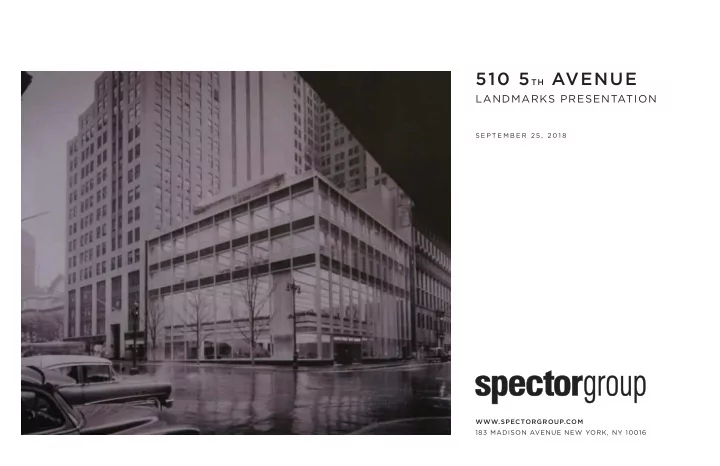

510 5 TH AVENUE LANDMARKS PRESENTATION S E P T E M B E R 2 5 , 2 0 1 8 WWW.SPECTORGROUP.COM 183 MADISON AVENUE NEW YORK, NY 10016 CONTENT 1. Floor Plans - Previous Plan - Revised Plan 2. Glass Wall - Previous Wall - Revised Wall 3.
WWW.SPECTORGROUP.COM 183 MADISON AVENUE NEW YORK, NY 10016
S E P T E M B E R 2 5 , 2 0 1 8
SPECTOR GROUP | 4 510 5TH AVENUE - LANDMARKS REVIEW 43RD STREET LOBBY MODIFICATIONS September 25, 2018
Remove existing drywall partition and hollow metal door and frame Replace wall with new rated drywall partition and rated door. Wall to be faced with stainless steel mullion caps to replicate the original glass partition. Replace the reception desk with a new desk Remove door and frame and enclose the
match the adjacent wall
PREVIOUS EXISTING AND PROPOSED PLANS - MAY 15, 2018 EXISTING PLAN
43RD STREET 43RD STREET
PROPOSED PLAN
SPECTOR GROUP | 5 510 5TH AVENUE - LANDMARKS REVIEW 43RD STREET LOBBY MODIFICATIONS September 25, 2018
Remove existing drywall partition and hollow metal door and frame Replace wall with new rated drywall partition and rated door. Wall to be faced with stainless steel mullion caps to replicate the original glass partition. Replace the reception desk with a new desk Existing door and frame to remain
REVISED EXISTING AND PROPOSED PLANS EXISTING PLAN
43RD STREET 43RD STREET
PROPOSED PLAN
ORIGINAL 43RD STREET LOBBY - 1954
The MANUFACTURERS TRUST COMPANY BUILDING was designed by Skidmore Owings & Merrill and opened in October 1954. This lobby served as the elevator lobby for the upper floors and as a vestibule for the reception area into the safe deposit boxes. The lobbies were separated by a clear glass partition and door. The illuminated ceiling and gray marble wall extend from the elevator lobby into the reception area.
SPECTOR GROUP | 8 510 5TH AVENUE - LANDMARKS REVIEW 43RD STREET LOBBY MODIFICATIONS September 25, 2018 | 8
43RD STREET LOBBY - CIRCA 2011
Through several mergers, MANUFACTURERS TRUST became a part of Chemical Bank. In 1994 the first floor was divided into two spaces. The space to the left in the photo above served as a bank entrance and ATM lobby for Chemical Bank while the space beyond the glass partition above was converted to retail space. Chemical Bank became part of Chase Manhattan Bank in 1996. The interior of the building began public hearings in 1990 and were granted landmark status on February 15, 2011.
LOBBY CONDITION CIRCA 2011
SPECTOR GROUP | 9 510 5TH AVENUE - LANDMARKS REVIEW 43RD STREET LOBBY MODIFICATIONS September 25, 2018
EXISTING 43RD STREET LOBBY
At some point between 1994 and the interior landmark designation in 2011, the original glass wall was removed and replaced with a painted drywall partition. The hollow metal door and frame served as a second means of egress and as a back of house entrance for employees into the retail space beyond.
CURRENT SPACE BEHIND DRYWALL PARTITION LOBBY CONDITION CIRCA 2011
SPECTOR GROUP | 10 510 5TH AVENUE - LANDMARKS REVIEW 43RD STREET LOBBY MODIFICATIONS September 25, 2018
GL-1 Mirror Glass McGrory Glass SPGR-759 GL-2 Etched Mirror Glass McGrory Glass HOKNY-940
PREVIOUS GLASS WALL ELEVATION - MAY 15, 2018 GLASS WALL - CIRCA 2011 PROPOSED GLASS WALL
SPECTOR GROUP | 11 510 5TH AVENUE - LANDMARKS REVIEW 43RD STREET LOBBY MODIFICATIONS September 25, 2018
GL-1 Mirror Glass McGrory Glass SPGR-759 GL-2 Etched Mirror Glass McGrory Glass HOKNY-940
PROPOSED GLASS WALL ELEVATION GLASS WALL - CIRCA 2011 PROPOSED GLASS WALL
SPECTOR GROUP | 12 510 5TH AVENUE - LANDMARKS REVIEW 43RD STREET LOBBY MODIFICATIONS September 25, 2018
PROPOSED GLASS WALL DETAILS
SPECTOR GROUP | 14 510 5TH AVENUE - LANDMARKS REVIEW 43RD STREET LOBBY MODIFICATIONS September 25, 2018
EXISTING TELLER DESKS - FURNITURE OF ORIGINAL BANK SPACE
SPECTOR GROUP | 15 510 5TH AVENUE - LANDMARKS REVIEW 43RD STREET LOBBY MODIFICATIONS September 25, 2018
The existing reception desk is not original to the building and was installed circa 1994 when the first floor was divided into two retail spaces. It now serves as security check-in for the upper floors. The desk has become antiquated due to the need for higher security and does not allow equipment to be concealed such as badging equipment, computer, phone, etc. The base is also open to view and wiring is unsightly to arriving guests.
EXISTING RECEPTION DESK EXISTING RECEPTION DESK - FRONT ELEVATION EXISTING RECEPTION DESK - REAR ELEVATION
SPECTOR GROUP | 16 510 5TH AVENUE - LANDMARKS REVIEW 43RD STREET LOBBY MODIFICATIONS September 25, 2018
ST-1 Calacatta M - Polished Stonesource B-2 Satin Stainless Steel PL-1 Matte Black Laminate Formica Colorcore2 909C-58 WD-1 Wood - Dark Walnut Natural veneer, Flat Cut Black plastic laminate Dark stained walnut Satin Stainless Steel Calacatta “M” Polished Marble
PREVIOUS RECEPTION DESK DESIGN - MAY 15, 2018 PREVIOUS RECEPTION DESK - FRONT ELEVATION PREVIOUS RECEPTION DESK - REAR ELEVATION
SPECTOR GROUP | 17 510 5TH AVENUE - LANDMARKS REVIEW 43RD STREET LOBBY MODIFICATIONS September 25, 2018
ST-1 Calacatta M - Polished PL-1 Matte Black Laminate Formica Colorcore2 909C-58 WD-1 Wood - Dark Walnut Natural veneer, Flat Cut PL-1 Black plastic laminate WD-1 Dark stained walnut B-2 Polished Stainless Steel base ST-1 Calacatta “M” Polished Marble GL-3 etched 1/2” glass screen GL-3 1/2” Tempered Etched Glass w/ polished edge McGrory Glass SPGR -675 B-2 Polished Stainless Steel
PROPOSED RECEPTION DESK PROPOSED RECEPTION DESK - FRONT PERSPECTIVE PROPOSED RECEPTION DESK - FRONT AND REAR PERSPECTIVE PROPOSED RECEPTION DESK - FRONT ELEVATION
SPECTOR GROUP | 18 510 5TH AVENUE - LANDMARKS REVIEW 43RD STREET LOBBY MODIFICATIONS September 25, 2018
RECEPTION DESK DETAILS
