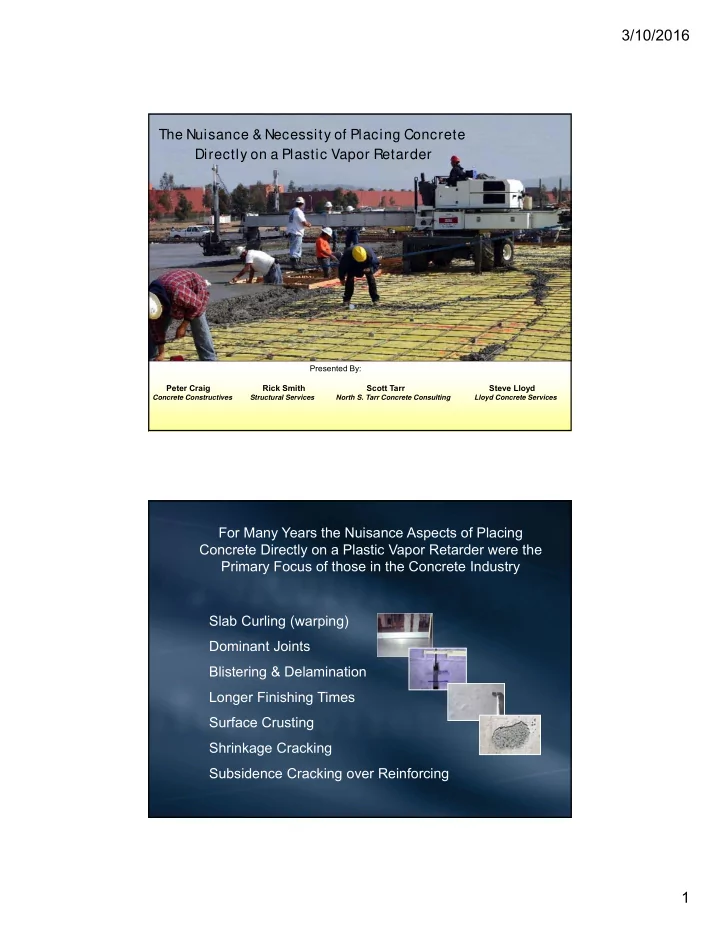

SLIDE 1 3/10/2016 1
The Nuisance & Necessity of Placing Concrete Directly on a Plastic Vapor Retarder
Presented By: Peter Craig Rick Smith Scott Tarr Steve Lloyd
Concrete Constructives Structural Services North S. Tarr Concrete Consulting Lloyd Concrete Services
For Many Years the Nuisance Aspects of Placing Concrete Directly on a Plastic Vapor Retarder were the Primary Focus of those in the Concrete Industry Slab Curling (warping) Dominant Joints Blistering & Delamination Longer Finishing Times Surface Crusting Shrinkage Cracking Subsidence Cracking over Reinforcing
SLIDE 2
3/10/2016 2
The History and E volution of Vapor Retarder Location
1981
Typical Slab Concrete Mixture w/c: 0.40 to 0.60 Slump: 4” to 6” Nicholson Study O.697 - 0.753 & 0.801 8” & 9”
SLIDE 3
3/10/2016 3
1989 The Blotter / Fill Course Layer
Fill layer
Vapor Retarder
The Blotter / Fill Course Concept
Water Table Earth
SLIDE 4
3/10/2016 4
1993 1996
SLIDE 5 3/10/2016 5
By 1998 the Number of Moisture-related Flooring Problems Directly Related to the Fill Course Detail had Increased Significantly
ACI Committee 302 forms a special Moisture Task Group Earth
Fill layer
C: 100% RH
High RH % Puncture Vapor Retarder Water Table RH% increases
The Problem with the Blotter / Fill Course Concept
SLIDE 6 3/10/2016 6
Earth
C:100% RH
Puncture Vapor Retarder Water Table
Vapor Retarder Directly Below Slab By 2001 a shift in thinking began taking place
Concrete International April 2001
SLIDE 7
3/10/2016 7
2001
By 2004, ACI 302.1R began to introduce a change in thinking
2004
SLIDE 8
3/10/2016 8
By 2006 the directive was clear Today - ACI 302.1R - 15
SLIDE 9 3/10/2016 9
Today
Today much has been learned about the Nuisance & Necessity
- f placing concrete directly on a plastic vapor retarder
The necessity is real, and doing so is today the industry standard for the design and construction of concrete slabs-
- n-ground that will receive a moisture sensitive floor
covering or coating. Up next are three of the concrete industry’s finest who will discus further some of the nuisance and benefit aspects of placing concrete directly on a plastic vapor retarder and what is being done to successfully mitigate potential concerns Rick Smith Scott Tarr Steve Lloyd
SLIDE 10
3/10/2016 10
Rick Smith
January 1987
My First World of Concrete, Houston, TX Astrohall / Astrodome
December 1987
Graduated Oklahoma State University with BS in Construction Management Technology
May 1988 ‐ 2000
Ribtec Carbon Steel Sales Manager Novocon / SI Concrete Systems Regional Sales Manager, Director of Technical Services
June 2000 – January 2016
Structural Services Inc.
29th Consecutive WOC!
SLIDE 11 3/10/2016 11
Subbase Subgrade – 4 to 6” Dense Graded Aggregate (DGA), 3/4” Minus Crusher Run Concrete
< 15’ OCEW
No Mention of a Vapor Retarder
SLIDE 12 3/10/2016 12
Concrete Isolation Joint aka - Expansion joint Construction Joint aka - Formed joint Contraction Joint aka - Control Joint Strategic Reinforcement Smooth Dowel Plate Dowel
SLIDE 13 3/10/2016 13
Concrete Smooth Dowel Plate Dowel Deformed Reinforcement Fiber Reinforcement
SLIDE 14
3/10/2016 14
Drying Shrinkage vs Time Shrinkage & Thermal Expansion / Contraction vs Aggregate Type.
SLIDE 15
3/10/2016 15
Slab Warms in Summer and Extrudes Filler out of the Joint Hone Flush and Fill With Semi‐ Rigid Epoxy in Late Winter Floor Expands, Extrudes Filler Lift Truck Shaves it Flush
SLIDE 16
3/10/2016 16
Channel Cuts Narrow & Wide Nosing Repairs
SLIDE 17
3/10/2016 17
1, 2, 3 or 4 Deep Pallet Riders 1600‐PSI Contact Pressure
4” Unreinforced Slab on Ground Plate Dowels at Construction Joints Joints < 10‐FT OCEW 10‐Mil Vapor Retarder Poured June 2005
SLIDE 18
3/10/2016 18
Non Uniform Joint Activation Faulted Joints
SLIDE 19
3/10/2016 19
Cut Out Existing Filler Install and Rake Silica Sand Fuse with Modified Structural Urethane Overfill with Semi‐Rigid Polyurea and Shave Flush
SLIDE 20
3/10/2016 20
#3 x 36” @ 16 or 18” OC “Hybrid” – Plate Dowels + #3 x 36 @ 24” OC ALTERNATING
SLIDE 21
3/10/2016 21
Construction Joint Contraction Joint
SLIDE 22
3/10/2016 22
6 & 7‐1/4” Slabs on Ground Reinforcement
#3’s @ 18” OCEW for 6” SOG #3’s @ 16” OCEW for 7‐1/4” SOG
TX‐DOT 247 Flex Base Moisture Conditioned Moisture Injected
SLIDE 23
3/10/2016 23
SLIDE 24
3/10/2016 24
SLIDE 25
3/10/2016 25
SLIDE 26
3/10/2016 26
With Vapor Retarder Without Vapor Retarder
SLIDE 27
3/10/2016 27
With Vapor Retarder Without Vapor Retarder
SLIDE 28
3/10/2016 28
SLIDE 29
3/10/2016 29
SLIDE 30
3/10/2016 30
SLIDE 31
3/10/2016 31
SLIDE 32
3/10/2016 32
World of Concrete 2016
SLIDE 33
3/10/2016 33
To prevent transmitting moisture from the sub grade to the surface of the concrete Radon gas Codes Slip sheet
Finishing operations Curling Dominate joints Cracking Plastic Shrinkage Delamination
SLIDE 34
3/10/2016 34
SLIDE 35
3/10/2016 35
SLIDE 36
3/10/2016 36
SLIDE 37
3/10/2016 37
SLIDE 38
3/10/2016 38
SLIDE 39
3/10/2016 39
SLIDE 40
3/10/2016 40
SLIDE 41
3/10/2016 41
SLIDE 42
3/10/2016 42
SLIDE 43
3/10/2016 43
SLIDE 44
3/10/2016 44
SLIDE 45
3/10/2016 45
SLIDE 46
3/10/2016 46
SLIDE 47
3/10/2016 47
