2012 Outdoor Ultra-Premium Grill Product Line 5 Ultra-Premium - - PowerPoint PPT Presentation

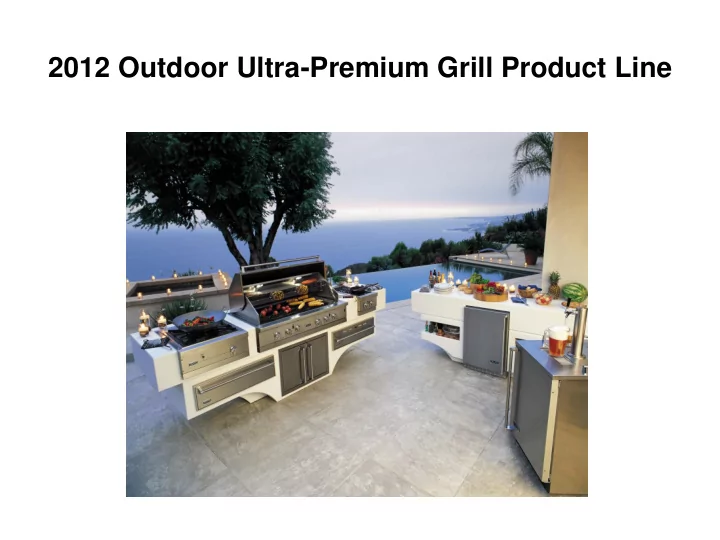

2012 Outdoor Ultra-Premium Grill Product Line

• 5 Ultra-Premium configurations (Total VGBQ & VGIQ – All E-Series)
• TruSear™ Infrared Burner available on select models

• NEW! Polished/Brushed Edge

Canopy Design New Custom Professional Cosmetic Features: – Stainless Steel Knobs – Landing Ledge – Custom Handle and Endcaps – New Rotisserie Housing – All Exterior Facial Screws Eliminated

• NEW! 18 SR™ – Stainless Steel

Burners – 29K BTU (Highest in Industry – Exclusive!)

• NEW! Ceramic Heat Distribution

System – Black Briquettes (Exclusive!) with “Flip-Clean” Self- Clean Design

• NEW! Blue LED Control Panel

Lighting

• NEW! Three-Position Stainless

Steel Warming Rack

Pro Custom Landing Ledge Stainless Knobs Standard Dedicated Outdoor Logo Blue LED CP Lighting Updated Rotisserie with Pro Custom Design All Exterior Screws Eliminated

• 28” Full-Depth Cutout (Largest

in Industry - Exclusive!)

• Constructed of heavy-duty,
• utdoor approved Stainless

Steel

• Double wall canopy

construction Laser-etched graphics will never fade

• Viking Exclusive! NO

insulated jacket required

– May be built into ANY

enclosure!

• Hermetically sealed numeric

thermometer with Viking logo provides accurate temperature readings without fogging

• 18 SR™ stainless steel provides

excellent resistance to high-temp scaling in an outdoor environment.

• Exclusive! 29,000 BTU burners

provide searing heat across complete grilling surface

• NEW! Positive Position Ignition™

(PPI) – new igniter location on the burner provides reliable ignition

• ver the life of the grill
• NEW! Press-Clip burner removal

design makes it easy to remove the burner for cleaning or service in the field.

• Double side ported for even heat

distribution

• LIFETIME WARRANTY on rust

through

• Exclusive Black Coal design
• Catches drippings to generate smoke

for flavor while protecting the burner

• Minimizes flare-ups by protecting the

grease from flame

• Provides superior heat distribution and

control

• Flip-Clean/Self-Clean design

• Power Porcelain™ coated cast

iron - the most heat conducive metal in the world

• Extremely heavy-duty and durable
• Exclusive arch design discourages

flare-ups

• Improved cleanability with thicker

spacing

• Exclusive - built into canopy and

hidden from view

• Smooth and easy operation –

provides weight counterbalance when opening and closing the canopy

• Significantly reduces weight of

canopy

• Dedicated blue LED lighting above

every knob on control panel – Elegant light washes over entire control panel and improves visibility

• Two 50 watt halogen bulbs

provide excellent lighting across entire grilling surface

• Dedicated on/off push button

controls both canopy and control panel lighting

• 120V electric ignition

– Push and turn ignition (range- style) – Recommend for built-in and cabinet installations – Automatic Re-ignition feature

• All models equipped with

convenient alternative flashtube lighting system for backup

• peration

• 30,000 High BTU or 1200+°F!
• Constructed of heavy-duty inconel stainless steel rather than typical off-the-

shelf ceramic

• Intense searing power locks in flavor and juices
• Available on select models

• Standard on all Viking models
• 15,000 BTU Gourmet-Glo™ Stainless Steel Infrared Rear

Burner

• No “banana” cut on sides for rotisserie
• Stainless Steel ½” Rotisserie Rod Supported on Ball

Bearing Rollers

• No Counter Balance Needed
• Tested to a 75 lb. Max Capacity!

• Large capacity accommodates

chips or chunks of wood

• Hinged for easy access
• Allows wet or dry smoking
• Extra cooking grid and flavor

generator plate included to replace smoker system

• Stainless Steel Construction
• Multi-Position
• Cooking and/or warming
• Room for casserole dishes with

lids

• Additional Racks available as

accessories

• Exclusive Tray-Within-A-Tray System Channels grease to removable,

dishwasher-safe drip trays

• Exclusive! No need for expensive accessories, build a Viking grill

into any enclosure!

The following cosmetic changes will be applied to outdoor ultra-premium complimentary products:

• Carts, Warming Drawers, Access

Doors and Storage Drawers – Custom-Style Handles and Endcaps

• Built-in Side Burner, Wok, and Infrared

Griller – Custom Landing Ledge and Stainless Steel Knobs

• Built-in VGSO – Custom Handle and

Stainless Steel Knob

• 30” and 36” Widths
• New 24.5” Cutout Depth
• Polished/Brushed Edge Canopy

Design

• Updated Handle, Endcaps and

Landing Ledge

• Black Cast Metal Knobs
• 120-Volt Ignition
• Interior Halogen Lighting
• 304 Stainless Steel Burners – 25K

BTU

• Stainless Steel Cooking Grates
• Ceramic Heat Distribution System

– White Briquettes with “Flip-Clean” Design

• Rotisserie System
• Insulated Jacket Accessory Required

for Combustible Installations

• New Carts to Accommodate 24.5”

Depth

• Sold in 30” and 36” Widths
• New 24.5” Cutout Depth
• Polished/Brushed Edge Canopy Design
• Updated Handle, Endcaps and Landing Ledge
• Black Cast Metal Knobs
• 9-Volt Battery Ignition
• 304 Stainless Steel Burners – 25K BTU
• Black, Porcelain-Coated, Cold Roll Steel

Grates

• Ceramic Heat Distribution System
• White Briquettes with “Flip-Clean” Design
• Insulated Jacket Accessory Required for

Combustible Installations

• New Carts to Accommodate 24.5” Depth
