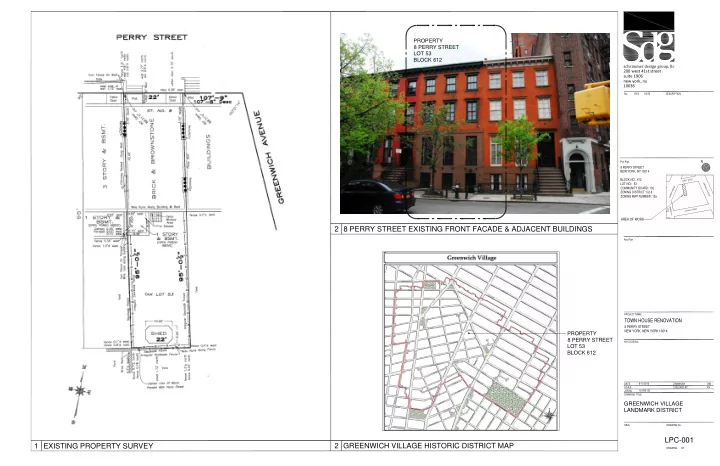

2 8 PERRY STREET EXISTING FRONT FACADE & ADJACENT BUILDINGS Key - - PowerPoint PPT Presentation

SLIDE 1

PROPERTY 8 PERRY STREET LOT 53 BLOCK 612

DESCRIPTION DATE REV. No. DRAWING No. SEAL

TOWN HOUSE RENOVATION

GW XX NYC DOB No.: CHECKED BY DRAWN BY DATE SCALE JOB No. DRAWING TITLE PROJECT NAME DRAWING OF

NEW YORK, NEW YORK 10014

schrimmer design group, llc 200 west 41st street suite 1906 new york, ny 10036

8 PERRY STREET

Key Plan Plot Plan

AREA OF WORK N 8 PERRY STREET NEW YORK, NY 10014 BLOCK NO.: 612 LOT NO.: 53 COMMUNITY BOARD: 102 ZONING DISTRICT: C2-6 ZONING MAP NUMBER: 12a

6-10-2016 15-059.100

PERRY STREET SEVENTH AVENUE GREENWICH AVENUE WAVERLY PL. CHARLES STREET

8 PERRY STREET EXISTING FRONT FACADE & ADJACENT BUILDINGS 2 GREENWICH VILLAGE HISTORIC DISTRICT MAP 2

GREENWICH VILLAGE LANDMARK DISTRICT

LPC-001

PROPERTY 8 PERRY STREET LOT 53 BLOCK 612

EXISTING PROPERTY SURVEY 1

SLIDE 2

DESCRIPTION DATE REV. No. DRAWING No. SEAL

TOWN HOUSE RENOVATION

GW XX NYC DOB No.: CHECKED BY DRAWN BY DATE SCALE JOB No. DRAWING TITLE PROJECT NAME DRAWING OF

NEW YORK, NEW YORK 10014

schrimmer design group, llc 200 west 41st street suite 1906 new york, ny 10036

8 PERRY STREET

Key Plan Plot Plan

AREA OF WORK N 8 PERRY STREET NEW YORK, NY 10014 BLOCK NO.: 612 LOT NO.: 53 COMMUNITY BOARD: 102 ZONING DISTRICT: C2-6 ZONING MAP NUMBER: 12a

6-10-2016 15-059.100

PERRY STREET SEVENTH AVENUE GREENWICH AVENUE WAVERLY PL. CHARLES STREET

EXISTING CONDITIONS FRONT FACADE

LPC-002 EXISTING CONDITIONS PHOTOS - 8 PERRY STREET - FRONT FACADE 1

SLIDE 3

DESCRIPTION DATE REV. No. DRAWING No. SEAL

TOWN HOUSE RENOVATION

GW XX NYC DOB No.: CHECKED BY DRAWN BY DATE SCALE JOB No. DRAWING TITLE PROJECT NAME DRAWING OF

NEW YORK, NEW YORK 10014

schrimmer design group, llc 200 west 41st street suite 1906 new york, ny 10036

8 PERRY STREET

Key Plan Plot Plan

AREA OF WORK N 8 PERRY STREET NEW YORK, NY 10014 BLOCK NO.: 612 LOT NO.: 53 COMMUNITY BOARD: 102 ZONING DISTRICT: C2-6 ZONING MAP NUMBER: 12a

6-10-2016 15-059.100

PERRY STREET SEVENTH AVENUE GREENWICH AVENUE WAVERLY PL. CHARLES STREET

HISTORIC PHOTOS

LPC-003 EXISTING CONDITIONS PHOTOS - 8 PERRY STREET - FRONT FACADE 1

HISTORIC PHOTO FROM 1932 ( NEW YORK PUBLIC LIBRARY ) PERRY STREET - VIEW FROM SOUTH WEST CORNER OF 7TH AVENUE AND 11TH STREET HISTORIC PHOTO FROM 1937 ( NEW YORK PUBLIC LIBRARY ) PERRY STREET - VIEW FROM WEST SIDE OF 7TH AVENUE MID BLOCK BETWEEN 11TH STREET AND PERRY STREET LANDMARKS PRESERVATION COMMISSION - DESIGNATION REPORT - GREENWICH VILLAGE HISTORIC DISTRICT - 1969 HISTORIC PHOTO FROM 1940 ( MUNICIPAL ARCHIVES ) PERRY STREET - VIEW FROM NORTH EAST CORNER OF 7TH AVE AND PERRY STREET

SLIDE 4

ROOF @ FRONT

ELEV 39'-3" +/- ELEV 29'-6" +/-

SECOND FL.

ELEV 19'-3" +/-

FIRST FL.

ELEV + 6'-10" +/- ELEV 0'-0"

BASEMENT

ELEV -2'-0" +/-

CELLAR

ELEV -10'-0" +/-

GRADE (CURB LEVEL) T.O. PARAPET

ELEV 40'-10 1/2" +/-

T.O. BULKHEAD

ELEV 46'-6 1/4" +/-

EXISTING FRONT ELEVATION

SCALE: 1/8" = 1'-0" THIRD FL. ROOF @ REAR

ELEV 37'-6 1/4" +/-

EXISTING WINDOW TO BE REPLACED WITH NEW DOOR AND TRANSOM TO MATCH CHARACTER OF ENTRY AT 6 PERRY STREET EXISTING WINDOWS TO BE REPLACED WITH NEW WOOD WINDOWS TO MATCH EXISTING NOTE: ALL OTHER DOORS AND WINDOWS AT FRONT FACADE TO REMAIN AS THERE HAVE BEEN REPLACED WITH NEW DOUBLE GLAZED WOOD UNITS

PROPOSED FRONT ELEVATION

SCALE: 1/8" = 1'-0" ROOF @ FRONT

ELEV 39'-3" +/- ELEV 29'-6" +/-

SECOND FL.

ELEV 19'-3" +/-

FIRST FL.

ELEV + 6'-10" +/- ELEV 0'-0"

BASEMENT

ELEV -2'-0" +/-

CELLAR

ELEV -10'-0" +/-

GRADE (CURB LEVEL) T.O. PARAPET

ELEV 40'-10 1/2" +/-

T.O. BULKHEAD

ELEV 46'-6 1/4" +/-

THIRD FL. ROOF @ REAR

ELEV 37'-6 1/4" +/- 8

EXISTING WINDOW TO BE REPLACED WITH NEW DOOR AND TRANSOM TO MATCH CHARACTER OF ENTRY AT 10 PERRY STREET EXISTING WINDOWS TO BE REPLACED WITH NEW WOOD WINDOWS TO MATCH EXISTING NOTE: ALL OTHER WINDOWS AT FRONT FACADE TO REMAIN AS THEY HAVE BEEN REPLACED WITH NEW DOUBLE GLAZED WOOD UNITS NEW HISTORIC FRONT STOOP, STEPS AND RAILINGS TO MATCH EXISTING HISTORIC STEPS AT 10 PERRY STREET NEW STAIR BULKHEAD AT ROOF, METAL STANDING SEAM FINISH TO BE DETERMINED NEW METAL RAILING TO MEET CODE REQUIRMENTS

DESCRIPTION DATE REV. No. DRAWING No. SEAL

TOWN HOUSE RENOVATION

GW XX NYC DOB No.: CHECKED BY DRAWN BY DATE SCALE JOB No. DRAWING TITLE PROJECT NAME DRAWING OF

NEW YORK, NEW YORK 10014

schrimmer design group, llc 200 west 41st street suite 1906 new york, ny 10036

8 PERRY STREET

Key Plan Plot Plan

AREA OF WORK N 8 PERRY STREET NEW YORK, NY 10014 BLOCK NO.: 612 LOT NO.: 53 COMMUNITY BOARD: 102 ZONING DISTRICT: C2-6 ZONING MAP NUMBER: 12a

6-10-2016 15-059.100

PERRY STREET SEVENTH AVENUE GREENWICH AVENUE WAVERLY PL. CHARLES STREET

EXISTING FRONT ELEVATION 1

EXISTING AND PROPOSED FRONT FACADE ELEVATION

LPC-004 PROPOSED FRONT ELEVATION 2

SLIDE 5

PROPOSED NEW BROWNSTONE STOOP, STEPS, AND RAILINGS TO MATCH HISTORIC ORIGINAL

(PHOTO OF 10 PERRY STREET ORIGINAL AS PER LPC REPORT)

PROPOSED NEW BROWNSTONE STOOP, STEPS, AND RAILINGS TO MATCH HISTORIC ORIGINAL

(PHOTO OF 10 PERRY STREET ORIGINAL AS PER LPC REPORT)

PROPOSED FRONT ELEVATION

SCALE: 1/8" = 1'-0" SECOND FL.

ELEV 19'-3" +/-

FIRST FL.

ELEV + 6'-10" +/- ELEV 0'-0"

BASEMENT

ELEV -2'-0" +/-

CELLAR

ELEV -10'-0" +/-

GRADE (CURB LEVEL)

8

EXISTING WINDOW TO BE REPLACED WITH NEW DOOR AND TRANSOM TO MATCH CHARACTER OF ENTRY AT 10 PERRY STREET EXISTING WINDOWS TO BE REPLACED WITH NEW WOOD WINDOWS TO MATCH EXISTING NEW HISTORIC FRONT STOOP, STEPS AND RAILINGS TO MATCH EXISTING HISTORIC STEPS AT 10 PERRY STREET PROPOSED NEW BROWNSTONE STOOP, STEPS, AND RAILINGS TO MATCH HISTORIC ORIGINAL

(PHOTO OF 10 PERRY STREET ORIGINAL AS PER LPC REPORT)

DESCRIPTION DATE REV. No. DRAWING No. SEAL

TOWN HOUSE RENOVATION

GW XX NYC DOB No.: CHECKED BY DRAWN BY DATE SCALE JOB No. DRAWING TITLE PROJECT NAME DRAWING OF

NEW YORK, NEW YORK 10014

schrimmer design group, llc 200 west 41st street suite 1906 new york, ny 10036

8 PERRY STREET

Key Plan Plot Plan

AREA OF WORK N 8 PERRY STREET NEW YORK, NY 10014 BLOCK NO.: 612 LOT NO.: 53 COMMUNITY BOARD: 102 ZONING DISTRICT: C2-6 ZONING MAP NUMBER: 12a

6-10-2016 15-059.100

PERRY STREET SEVENTH AVENUE GREENWICH AVENUE W A V E R L Y P L . CHARLES STREET

PROPOSED ENLARGED FRONT ELEVATION ENTRY AND REFERENCE PHOTOS 1

ENLARGED PROPOSED FRONT ELEVATION ENTRY AND REFERENCE PHOTOS

LPC-005

SLIDE 6

SUBJECT PROPERTY 8 PERRY STREET EXISTING REAR FACADE

DESCRIPTION DATE REV. No. DRAWING No. SEAL

TOWN HOUSE RENOVATION

GW XX NYC DOB No.: CHECKED BY DRAWN BY DATE SCALE JOB No. DRAWING TITLE PROJECT NAME DRAWING OF

NEW YORK, NEW YORK 10014

schrimmer design group, llc 200 west 41st street suite 1906 new york, ny 10036

8 PERRY STREET

Key Plan Plot Plan

AREA OF WORK N 8 PERRY STREET NEW YORK, NY 10014 BLOCK NO.: 612 LOT NO.: 53 COMMUNITY BOARD: 102 ZONING DISTRICT: C2-6 ZONING MAP NUMBER: 12a

6-10-2016 15-059.100

PERRY STREET SEVENTH AVENUE GREENWICH AVENUE WAVERLY PL. CHARLES STREET

PROPOSED REAR ELEVATION AND REFERENCE PHOTOS 1

EXISTING CONDITIONS PHOTOS REAR ELEVATION

LPC-006

SLIDE 7

EXISTING FULL WIDTH 2 STORY ADDITION ADJACENT AT 10 PERRY STREET EXISTING PARTIAL WIDTH 3 STORY ADDITION ADJACENT AT 6 PERRY STREET AND FULL WIDTH 3 STORY ADDITION AT 4 PERRY STREET

DESCRIPTION DATE REV. No. DRAWING No. SEAL

TOWN HOUSE RENOVATION

GW XX NYC DOB No.: CHECKED BY DRAWN BY DATE SCALE JOB No. DRAWING TITLE PROJECT NAME DRAWING OF

NEW YORK, NEW YORK 10014

schrimmer design group, llc 200 west 41st street suite 1906 new york, ny 10036

8 PERRY STREET

Key Plan Plot Plan

AREA OF WORK N 8 PERRY STREET NEW YORK, NY 10014 BLOCK NO.: 612 LOT NO.: 53 COMMUNITY BOARD: 102 ZONING DISTRICT: C2-6 ZONING MAP NUMBER: 12a

6-10-2016 15-059.100

PERRY STREET SEVENTH AVENUE GREENWICH AVENUE WAVERLY PL. CHARLES STREET

PROPOSED REAR ELEVATION AND REFERENCE PHOTOS 1

EXISTING CONDITIONS PHOTOS REAR ADDITIONS AT ADJACENT PROPERTIES

LPC-007

SLIDE 8

ELEV 0'-0" ELEV -2'-0" +/-

CELLAR

ELEV -12'-4" +/-

GRADE (CURB LEVEL)

EXISTING REAR ELEVATION

SCALE: 1/8" = 1'-0" BASEMENT (REAR YARD) ROOF @ FRONT

ELEV 39'-3" +/- ELEV 29'-6" +/-

SECOND FL.

ELEV 19'-3" +/-

FIRST FL.

ELEV + 6'-10" +/-

T.O. PARAPET

ELEV 40'-10 1/2" +/-

T.O. BULKHEAD

ELEV 46'-6 1/4" +/-

THIRD FL. ROOF @ REAR

ELEV 37'-6 1/4" +/-

EXISTING WINDOWS TO BE REPLACED WITH NEW DOUBLE GLAZED DOUBLE HUNG WOOD WINDOWS TO MATCH EXISTING FRONT WINDOWS WITH 6 OVER 6 CONFIGURATION SEE PROPOSED ELEVATION EXISTING FIRE ESCAPE TO BE REMOVED EXISTING 2 STORY PARTIAL WIDTH REAR ADDITION TO BE REMOVED AND REPLACED WITH NEW FULL WIDTH 3 STORY REAR YARD ADDITION, SEE PLANS AND SECTION FOR MORE INFO. EXIST REAR ADDITION TO BE REMOVED AND REPLACED WITH NEW EXISTING REAR FACADE TO BE REMOVED TO ACCOMMODATE NEW 3 STORY REAR YARD ADDITION

PROPOSED REAR ELEVATION

SCALE: 1/8" = 1'-0" ROOF @ FRONT

ELEV 39'-3" +/- ELEV 29'-6" +/-

SECOND FL.

ELEV 19'-3" +/-

FIRST FL.

ELEV + 6'-10" +/- ELEV 0'-0"

BASEMENT

ELEV -2'-0" +/-

CELLAR

ELEV -10'-0" +/-

GRADE (CURB LEVEL) T.O. PARAPET

ELEV 40'-10 1/2" +/-

T.O. BULKHEAD

ELEV 46'-6 1/4" +/-

THIRD FL. ROOF @ REAR

ELEV 37'-6 1/4" +/-

NEW STAIR BULKHEAD AT ROOF, METAL STANDING SEAM FINISH TO BE DETERMINED NEW METAL RAILING TO MEET CODE REQUIRMENTS NEW DOUBLE HUNG 6 OVER 6 DOUBLE GLAZED WINDOWS IN EXISTING OPENINGS NEW DOUBLE HUNG 6 OVER 6 DOUBLE GLAZED WINDOWS IN NEW OPENINGS AT NEW REAR YARD ADDITION NEW CASEMENT TYPE DOUBLE GLAZED WINDOWS WITH TRANSOM TO MATCH EXISTING IN NEW OPENINGS AT NEW REAR YARD ADDITION NEW OUTSWING 15 LITE WOOD DOUBLE GLAZED FRENCH DOOR UNITS NEW FULL WIDTH REAR YARD ADDITION 31'-5" PROPOSED NEW FULL WIDTH 3 STORY REAR YARD ADDITION NEW BRICK TO MATCH EXISTING HISTORIC BRICK, IN COLOR, APPEARANCE, BOND PATTERN AND MORTAR JOINT

DESCRIPTION DATE REV. No. DRAWING No. SEAL

TOWN HOUSE RENOVATION

GW XX NYC DOB No.: CHECKED BY DRAWN BY DATE SCALE JOB No. DRAWING TITLE PROJECT NAME DRAWING OF

NEW YORK, NEW YORK 10014

schrimmer design group, llc 200 west 41st street suite 1906 new york, ny 10036

8 PERRY STREET

Key Plan Plot Plan

AREA OF WORK N 8 PERRY STREET NEW YORK, NY 10014 BLOCK NO.: 612 LOT NO.: 53 COMMUNITY BOARD: 102 ZONING DISTRICT: C2-6 ZONING MAP NUMBER: 12a

6-10-2016 15-059.100

PERRY STREET SEVENTH AVENUE GREENWICH AVENUE W A V E R L Y P L . CHARLES STREET

EXISTING REAR FACADE ELEVATION 1

EXISTING AND PROPOSED REAR FACADE ELEVATIONS

LPC-008 PROPOSED REAR FACADE ELEVATION 2

SLIDE 9

LOT LINE 95'-0 1/2" (DEED) 95'-0 1/2" (TAX MAP) LOT LINE 22'-0" ( DEED & TAX MAP ) LOT LINE 22'-0" ( DEED & TAX MAP ) TAX LOT NO. 53 8 PERRY STREET (4) STORY MASONRY PROPERTY LINE PROPERTY LINE PROPERTY LINE PROPERTY LINE PROPERTY LINE PROPERTY LINE LOT LINE 95'-0 1/2" (DEED) 95'-0 1/2" (TAX MAP) EXISTING 2 STORY REAR YARD ADDITION ON 8 PERRY STREET TO BE REMOVED

9'-1"

EXISTING REAR YARD TO REMAIN

50'-3 1/4" 22'-0" 40'-4" EXISTING BUILDING DEPTH

EXISTING 2 STORY REAR YARD ADDITION ON 6 PERRY STREET FROM LOT LINE TO LOT LINE TAX LOT NO. 52 10 PERRY STREET (4) STORY MASONRY TAX LOT NO. 54 6 PERRY STREET (4) STORY MASONRY 4TH FLOOR ROOF 2 STORY MASONRY EXISTING 2 STORY MASONRY

EXISTING PLOT PLAN

SCALE: 1/8" = 1'-0" LOT LINE 95'-0 1/2" (DEED) 95'-0 1/2" (TAX MAP) LOT LINE 22'-0" ( DEED & TAX MAP ) LOT LINE 22'-0" ( DEED & TAX MAP ) TAX LOT NO. 53 8 PERRY STREET (4) STORY MASONRY PROPERTY LINE PROPERTY LINE PROPERTY LINE PROPERTY LINE PROPERTY LINE PROPERTY LINE LOT LINE 95'-0 1/2" (DEED) 95'-0 1/2" (TAX MAP) EXISTING 2 STORY REAR YARD ADDITION ON 8 PERRY STREET TO BE REMOVED

9'-1"

EXISTING REAR YARD TO REMAIN

50'-3 1/4" 22'-0" 40'-4" EXISTING BUILDING DEPTH

EXISTING 2 STORY REAR YARD ADDITION ON 6 PERRY STREET FROM LOT LINE TO LOT LINE TAX LOT NO. 52 10 PERRY STREET (4) STORY MASONRY TAX LOT NO. 54 6 PERRY STREET (4) STORY MASONRY 4TH FLOOR ROOF 2 STORY MASONRY PROPOSED (3) STORY MASONRY ADDITION

22'-0" PROPOSED ADDITION 10'-0" PROPOSED ADDITION

PROPOSED STAIR BULKHEAD

40'-3 1/4" PROPOSED REAR YARD DEPTH

PROPOSED STOOP & STAIR TO MATCH HISTORIC STAIR AT 4,6, & 10 PERRY STREET

PROPOSED PLOT PLAN

SCALE: 1/8" = 1'-0"

DESCRIPTION DATE REV. No. DRAWING No. SEAL

TOWN HOUSE RENOVATION

GW XX NYC DOB No.: CHECKED BY DRAWN BY DATE SCALE JOB No. DRAWING TITLE PROJECT NAME DRAWING OF

NEW YORK, NEW YORK 10014

schrimmer design group, llc 200 west 41st street suite 1906 new york, ny 10036

8 PERRY STREET

Key Plan Plot Plan

AREA OF WORK N 8 PERRY STREET NEW YORK, NY 10014 BLOCK NO.: 612 LOT NO.: 53 COMMUNITY BOARD: 102 ZONING DISTRICT: C2-6 ZONING MAP NUMBER: 12a

6-10-2016 15-059.100

PERRY STREET SEVENTH AVENUE GREENWICH AVENUE WAVERLY PL. CHARLES STREET

EXISTING BUILDING PLOT PLAN 1 PROPOSED BUILDING PLOT PLAN 2

PLOT PLANS EXISTING & PROPOSED

LPC-009

SLIDE 10

ROOF @ FRONT

ELEV 39'-3" +/- ELEV 29'-6" +/-

SECOND FL.

ELEV 19'-3" +/-

FIRST FL.

ELEV + 6'-10" +/- ELEV 0'-0"

BASEMENT

ELEV -2'-0" +/-

CELLAR

ELEV -10'-0" +/-

GRADE (CURB LEVEL) T.O. PARAPET

ELEV 40'-10 1/2" +/-

T.O. BULKHEAD

ELEV 46'-6 1/4" +/-

THIRD FL. ROOF @ REAR

ELEV 37'-6 1/4" +/-

EXISTING ADJACENT 2 STORY FULL WIDTH REAR YARD ADDITION @ 10 PERRY STREET EXISTING REAR YARD TO REMAIN EXISTING 2 STORY PARTIAL WIDTH REAR YARD ADDITION TO BE REMOVED

40'-10" EXISTING HEIGHT TO REMAIN 9'-0" EXISTING ADDITION TO BE REMOVED

PROPOSED NEW 3 STORY REAR ADDITION TO ALIGN WITH EXISTING ADJACENT ADDITION AT 10 PERRY STREET

(LINE IS OFFSET ONLY FOR CLARITY)

24'-3" EXISTING REAR YARD ADDITION @ 10 PERRY STREET 21'-3" EXISTING ADDITION TO BE REMOVED 31'-6" PROPOSED 3 STORY REAR YARD ADDITION 10'-0" PROPOSED FULL WIDTH ADDITION TO ALIGN WITH ADJ. @ 10 PERRY

EXISTING REAR WALL TO BE REMOVED AT BASEMENT, 1ST FLOOR, AND SECOND FLOOR, TO ACCOMMODATE NEW FULL WIDTH REAR YARD ADDITION FRONT LOT LINE EXISTING TOP STORY REAR WALL LINE TO REMAIN UNCHANGED IN DEPTH FRONT FACADE TO REMAIN UNCHANGED PROPOSED ADDITION OF HISTORIC FRONT STOOP AND STEPS TO MATCH 4, 6, & 10 PERRY STREET PROPOSED NEW STAIR BULKHEAD

7'-11"

VISIBILITY ANGLE

EXISTING AND PROPOSED BUILDING SECTION

SCALE: 1/8" = 1'-0"

3'-6" 3'-6"

PROPOSED REQ'D RAILING AT 42" A.F.R. PROPOSED REQ'D RAILING AT 42" A.F.R.

DESCRIPTION DATE REV. No. DRAWING No. SEAL

TOWN HOUSE RENOVATION

GW XX NYC DOB No.: CHECKED BY DRAWN BY DATE SCALE JOB No. DRAWING TITLE PROJECT NAME DRAWING OF

NEW YORK, NEW YORK 10014

schrimmer design group, llc 200 west 41st street suite 1906 new york, ny 10036

8 PERRY STREET

Key Plan Plot Plan

AREA OF WORK N 8 PERRY STREET NEW YORK, NY 10014 BLOCK NO.: 612 LOT NO.: 53 COMMUNITY BOARD: 102 ZONING DISTRICT: C2-6 ZONING MAP NUMBER: 12a

6-10-2016 15-059.100

PERRY STREET SEVENTH AVENUE G R E E N W I C H A V E N U E W A V E R L Y P L . CHARLES STREET

EXISTING AND PROPOSED BUILDING SECTION 1

EXISTING AND PROPOSED BUILDING SECTION

LPC-010

SLIDE 11

LOT C850 17 STORY MULTIPLE DWELLING FULL LOT COVERAGE LOT 51 6 STORY MULTIPLE DWELLING FULL LOT COVERAGE LOT 52 4 STORY 2 STORY ADDITION 3 STORY ADDITION 3 STORY ADDITION 2 STORY ADDITION 1 STORY ADDITION 5 STORY ADDITION 1 STORY ADDITION 1 STORY ADDITION 2 STORY ADDITION 5 STORY ADDITION 2 STORY ADDITION 1 STORY ADDITION LOT 53 4 STORY SUBJECT PROPERTY LOT 54 4 STORY LOT 55 4 STORY LOT 56 4 STORY LOT 57 5 STORY LOT 58 5 STORY LOT 59 5 STORY LOT 60 5 STORY LOT 62 5 STORY LOT 64 5 STORY LOT 65 5 STORY FULL LOT COVERAGE LOT 66 5 STORY LOT 68 5 STORY LOT 69 5 STORY 8 PERRY ST. SUBJECT PROPERTY 2 STORY ADDITION TO BE REMOVED AND 3 STORY FULL WIDTH PROPOSED LOT C850 1 STORY SETBACK LOT 51 1 STORY SETBACK LOT C850 PARKING ENTRANCE

PERRY STREET SEVENTH AVENUE GREENWICH AVENUE WAVERLY PL. CHARLES STREET BLOCK 612

BLOCK STUDY - REAR ADDITIONS

SCALE: 1/64" = 1'-0"

LEGEND

EXISTING 1 STORY ADDITION EXISTING 2 STORY ADDITION EXISTING 3 STORY ADDITION EXISTING 4 STORY ADDITION EXISTING 5 STORY ADDITION

DESCRIPTION DATE REV. No. DRAWING No. SEAL

TOWN HOUSE RENOVATION

GW XX NYC DOB No.: CHECKED BY DRAWN BY DATE SCALE JOB No. DRAWING TITLE PROJECT NAME DRAWING OF

NEW YORK, NEW YORK 10014

schrimmer design group, llc 200 west 41st street suite 1906 new york, ny 10036

8 PERRY STREET

Key Plan Plot Plan

AREA OF WORK N 8 PERRY STREET NEW YORK, NY 10014 BLOCK NO.: 612 LOT NO.: 53 COMMUNITY BOARD: 102 ZONING DISTRICT: C2-6 ZONING MAP NUMBER: 12a

6-10-2016 15-059.100

PERRY STREET SEVENTH AVENUE GREENWICH AVENUE WAVERLY PL. CHARLES STREET

BLOCK PLAN AND SATELLITE IMAGE REAR YARD ADDITIONS 1

BLOCK PLAN AND SATELLITE IMAGE REAR YARD ADDITIONS

LPC-011

SATELLITE IMAGE OF BLOCK 612 SHOWING REAR YARD ADDITIONS

SLIDE 12

LOT C850 17 STORY MULTIPLE DWELLING FULL LOT COVERAGE LOT 51 6 STORY MULTIPLE DWELLING FULL LOT COVERAGE LOT 52 4 STORY 2 STORY ADDITION 3 STORY ADDITION 3 STORY ADDITION 2 STORY ADDITION 1 STORY ADDITION 5 STORY ADDITION 1 STORY ADDITION 1 STORY ADDITION 2 STORY ADDITION 5 STORY ADDITION 2 STORY ADDITION 1 STORY ADDITION LOT 53 4 STORY SUBJECT PROPERTY LOT 54 4 STORY LOT 55 4 STORY LOT 56 4 STORY LOT 57 5 STORY LOT 58 5 STORY LOT 59 5 STORY LOT 60 5 STORY LOT 62 5 STORY LOT 64 5 STORY LOT 65 5 STORY FULL LOT COVERAGE LOT 66 5 STORY LOT 68 5 STORY LOT 69 5 STORY 8 PERRY ST. SUBJECT PROPERTY 2 STORY ADDITION TO BE REMOVED AND 3 STORY FULL WIDTH PROPOSED LOT C850 1 STORY SETBACK LOT 51 1 STORY SETBACK LOT C850 PARKING ENTRANCE

PERRY STREET SEVENTH AVENUE G R E E N W I C H A V E N U E WAVERLY PL. CHARLES STREET BLOCK 612

BLOCK STUDY - REAR ADDITIONS

SCALE: 1/64" = 1'-0"

LEGEND

EXISTING 1 STORY ADDITION EXISTING 2 STORY ADDITION EXISTING 3 STORY ADDITION EXISTING 4 STORY ADDITION EXISTING 5 STORY ADDITION

DESCRIPTION DATE REV. No. DRAWING No. SEAL

TOWN HOUSE RENOVATION

GW XX NYC DOB No.: CHECKED BY DRAWN BY DATE SCALE JOB No. DRAWING TITLE PROJECT NAME DRAWING OF

NEW YORK, NEW YORK 10014

schrimmer design group, llc 200 west 41st street suite 1906 new york, ny 10036

8 PERRY STREET

Key Plan Plot Plan

AREA OF WORK N 8 PERRY STREET NEW YORK, NY 10014 BLOCK NO.: 612 LOT NO.: 53 COMMUNITY BOARD: 102 ZONING DISTRICT: C2-6 ZONING MAP NUMBER: 12a

6-10-2016 15-059.100

PERRY STREET SEVENTH AVENUE GREENWICH AVENUE WAVERLY PL. CHARLES STREET

1

BLOCK PLAN AND PHOTOS OF REAR YARD ADDITIONS

LPC-012

EXISTING 2 STORY REAR ADDITION AT LOT 68 9 CHARLES STREET EXISTING 5 STORY REAR ADDITION AT LOT 69 11 CHARLES STREET EXISTING25 STORY REAR ADDITION AT LOT 66 5 CHARLES STREET EXISTING25 STORY REAR ADDITION AT LOT 66 5 CHARLES STREET

BLOCK PLAN AND PHOTOS OF REAR YARD ADDITIONS

SLIDE 13

LOT C850 17 STORY MULTIPLE DWELLING FULL LOT COVERAGE LOT 51 6 STORY MULTIPLE DWELLING FULL LOT COVERAGE LOT 52 4 STORY 2 STORY ADDITION 3 STORY ADDITION 3 STORY ADDITION 2 STORY ADDITION 1 STORY ADDITION 5 STORY ADDITION 1 STORY ADDITION 1 STORY ADDITION 2 STORY ADDITION 5 STORY ADDITION 2 STORY ADDITION 1 STORY ADDITION LOT 53 4 STORY SUBJECT PROPERTY LOT 54 4 STORY LOT 55 4 STORY LOT 56 4 STORY LOT 57 5 STORY LOT 58 5 STORY LOT 59 5 STORY LOT 60 5 STORY LOT 62 5 STORY LOT 64 5 STORY LOT 65 5 STORY FULL LOT COVERAGE LOT 66 5 STORY LOT 68 5 STORY LOT 69 5 STORY 8 PERRY ST. SUBJECT PROPERTY 2 STORY ADDITION TO BE REMOVED AND 3 STORY FULL WIDTH PROPOSED LOT C850 1 STORY SETBACK LOT 51 1 STORY SETBACK LOT C850 PARKING ENTRANCE

PERRY STREET SEVENTH AVENUE G R E E N W I C H A V E N U E WAVERLY PL. CHARLES STREET BLOCK 612

BLOCK STUDY - REAR ADDITIONS

SCALE: 1/64" = 1'-0"

LEGEND

EXISTING 1 STORY ADDITION EXISTING 2 STORY ADDITION EXISTING 3 STORY ADDITION EXISTING 4 STORY ADDITION EXISTING 5 STORY ADDITION

DESCRIPTION DATE REV. No. DRAWING No. SEAL

TOWN HOUSE RENOVATION

GW XX NYC DOB No.: CHECKED BY DRAWN BY DATE SCALE JOB No. DRAWING TITLE PROJECT NAME DRAWING OF

NEW YORK, NEW YORK 10014

schrimmer design group, llc 200 west 41st street suite 1906 new york, ny 10036

8 PERRY STREET

Key Plan Plot Plan

AREA OF WORK N 8 PERRY STREET NEW YORK, NY 10014 BLOCK NO.: 612 LOT NO.: 53 COMMUNITY BOARD: 102 ZONING DISTRICT: C2-6 ZONING MAP NUMBER: 12a

6-10-2016 15-059.100

PERRY STREET SEVENTH AVENUE GREENWICH AVENUE WAVERLY PL. CHARLES STREET

BLOCK PLAN AND PHOTOS OF REAR YARD ADDITIONS 1

BLOCK PLAN AND PHOTOS OF REAR YARD ADDITIONS

LPC-013

EXISTING 2 STORY REAR ADDITION AT LOT 53 SUBJECT PROPERTY 8 PERRY STREET EXISTING 5 STORY REAR ADDITION AT LOT 52 10 PERRY STREET EXISTING 3 STORY REAR ADDITION AT LOT 55 4 PERRY STREET EXISTING 3 STORY REAR ADDITION AT LOT 54 6 PERRY STREET

SLIDE 14

LOT C850 17 STORY MULTIPLE DWELLING FULL LOT COVERAGE LOT 51 6 STORY MULTIPLE DWELLING FULL LOT COVERAGE LOT 52 4 STORY 2 STORY ADDITION 3 STORY ADDITION 3 STORY ADDITION 2 STORY ADDITION 1 STORY ADDITION 5 STORY ADDITION 1 STORY ADDITION 1 STORY ADDITION 2 STORY ADDITION 5 STORY ADDITION 2 STORY ADDITION 1 STORY ADDITION LOT 53 4 STORY SUBJECT PROPERTY LOT 54 4 STORY LOT 55 4 STORY LOT 56 4 STORY LOT 57 5 STORY LOT 58 5 STORY LOT 59 5 STORY LOT 60 5 STORY LOT 62 5 STORY LOT 64 5 STORY LOT 65 5 STORY FULL LOT COVERAGE LOT 66 5 STORY LOT 68 5 STORY LOT 69 5 STORY 8 PERRY ST. SUBJECT PROPERTY 2 STORY ADDITION TO BE REMOVED AND 3 STORY FULL WIDTH PROPOSED LOT C850 1 STORY SETBACK LOT 51 1 STORY SETBACK LOT C850 PARKING ENTRANCE

PERRY STREET SEVENTH AVENUE G R E E N W I C H A V E N U E WAVERLY PL. CHARLES STREET BLOCK 612

BLOCK STUDY - REAR ADDITIONS

SCALE: 1/64" = 1'-0"

LEGEND

EXISTING 1 STORY ADDITION EXISTING 2 STORY ADDITION EXISTING 3 STORY ADDITION EXISTING 4 STORY ADDITION EXISTING 5 STORY ADDITION

DESCRIPTION DATE REV. No. DRAWING No. SEAL

TOWN HOUSE RENOVATION

GW XX NYC DOB No.: CHECKED BY DRAWN BY DATE SCALE JOB No. DRAWING TITLE PROJECT NAME DRAWING OF

NEW YORK, NEW YORK 10014

schrimmer design group, llc 200 west 41st street suite 1906 new york, ny 10036

8 PERRY STREET

Key Plan Plot Plan

AREA OF WORK N 8 PERRY STREET NEW YORK, NY 10014 BLOCK NO.: 612 LOT NO.: 53 COMMUNITY BOARD: 102 ZONING DISTRICT: C2-6 ZONING MAP NUMBER: 12a

6-10-2016 15-059.100

PERRY STREET SEVENTH AVENUE GREENWICH AVENUE WAVERLY PL. CHARLES STREET

1

PROPOSED FRONT ELEVATION AND REFERENCE PHOTOS

LPC-014

EXISTING 1 STORY REAR ADDITION AT LOT 59 51 GREENWICH AVENUE EXISTING 2 STORY REAR ADDITION AT LOT 58 53 GREENWICH AVENUE EXISTING 1 STORY REAR ADDITION AT LOTS 60 & 62 49 & 45 GREENWICH AVENUE

BLOCK PLAN AND PHOTOS OF REAR YARD ADDITIONS

EXISTING 5 STORY REAR ADDITION AT LOT 60 49 GREENWICH AVENUE

SLIDE 15

BEDROOM LIVING ROOM STAIR HALL BATHROOM DN

PERRY STREET

LOT LINE ( 22'-0" ) LOT LINE ( 95'-0" ) LOT LINE ( 95'-0" )

BEDROOM KITCHEN BEDROOM LIVING ROOM STAIR HALL BATHROOM DN

PERRY STREET

LOT LINE ( 22'-0" ) LOT LINE ( 95'-0" ) LOT LINE ( 95'-0" )

KITCHEN UP

EXISTING SECOND FLOOR PLAN EXISTING THIRD FLOOR PLAN

SCALE: 1/8" = 1'-0" SCALE: 1/8" = 1'-0"

SKYLIGHT ABOVE SKYLIGHT ABOVE

BEDROOM BEDROOM STUDY STAIR HALL WLK'N CLOSET DN UP

PERRY STREET

LOT LINE ( 22'-0" ) LOT LINE ( 95'-0" ) LOT LINE ( 95'-0" )

LIVING ROOM KITCHEN ENTRY VEST STAIR HALL STUDY DN UP

PERRY STREET

LOT LINE ( 22'-0" ) LOT LINE ( 95'-0" ) LOT LINE ( 95'-0" )

DINING ROOM CLOSET BATH STORAGE UP

PERRY STREET

LOT LINE ( 22'-0" ) LOT LINE ( 95'-0" ) LOT LINE ( 95'-0" )

BOILER ROOM STORAGE STORAGE STORAGE SPRINKLER AND ELECTRICAL ROOM BATH HATCH ABOVE

EXISTING CELLAR FLOOR PLAN EXISTING BASEMENT FLOOR PLAN EXISTING FIRST FLOOR PLAN

SCALE: 1/8" = 1'-0" SCALE: 1/8" = 1'-0" SCALE: 1/8" = 1'-0" BATH SCALE: 1/8" = 1'-0" SCALE: 1/8" = 1'-0" SCALE: 1/8" = 1'-0"

EXISTING ADJACENT BUILDING LINE AT 6 PERRY STREET DESCRIPTION DATE REV. No. DRAWING No. SEAL

TOWN HOUSE RENOVATION

GW XX NYC DOB No.: CHECKED BY DRAWN BY DATE SCALE JOB No. DRAWING TITLE PROJECT NAME DRAWING OF

NEW YORK, NEW YORK 10014

schrimmer design group, llc 200 west 41st street suite 1906 new york, ny 10036

8 PERRY STREET

Key Plan Plot Plan

AREA OF WORK N 8 PERRY STREET NEW YORK, NY 10014 BLOCK NO.: 612 LOT NO.: 53 COMMUNITY BOARD: 102 ZONING DISTRICT: C2-6 ZONING MAP NUMBER: 12a

6-10-2016 15-059.100

PERRY STREET SEVENTH AVENUE GREENWICH AVENUE WAVERLY PL. CHARLES STREET

EXISTING FLOOR PLANS 1

EXISTING FLOOR PLANS

LPC-015

SLIDE 16

LOWER ENTRY VEST

6'-6" x 6'-0"

STAIR HALL DN UP

LOT LINE ( 22'-0" ) LOT LINE ( 95'-0" ) LOT LINE ( 95'-0" )

UP

LOT LINE ( 22'-0" ) LOT LINE ( 95'-0" ) LOT LINE ( 95'-0" )

BOILER ROOM LAUNDRY

8'-0" x 10'-0"

BATH

5'-0" x 6'-0"

HATCH ABOVE SAUNA

5'-0" x 6'-7"

NEW FOUNDATION AND SLAB ON GRADE ABOVE

REF

OPEN LIVING / DEN SPACE

25'-6" x 21'-0"

WET BAR

6'-6" x 8'-0"

BATH

6'-0" x 7'-6"

CLOSET BEDROOM

13'-6" x 14'-0"

DN

PERRY STREET PERRY STREET

STAIR HALL DN UP

PERRY STREET

LOT LINE ( 22'-0" ) LOT LINE ( 95'-0" )

DINING ROOM

16'-0" x 14'-0" WINE

KITCHEN

14'-6" x 21'-0"

PWD'R RM.

5'-0" x 5'-0"

DN LIVING ROOM

18'-6" x 14'-0"

PROPOSED CELLAR FLOOR PLAN PROPOSED BASEMENT FLOOR PLAN PROPOSED FIRST FLOOR PLAN

SCALE: 1/8" = 1'-0" SCALE: 1/8" = 1'-0" SCALE: 1/8" = 1'-0" GYM

20'-0" x 14'-0" W D

SEWER PUMP

OVEN EXISTING ADJACENT BUILDING LINE AT 6 PERRY STREET REF MICRO COFFEE

UPPER ENTRY VEST'BL

8'-0" x 6'-0"

EXISTING LIGHT WELL TO CELLAR TO BE REMOVED EXISTING REAR WALL TO BE DEMOLISHED EXISTING REAR WALL TO BE DEMOLISHED REPLACE PREVIOUSLY REMOVED EXTERIOR STAIR TO MATCH HISTORIC STAIR AT 6 & 10 PERRY STREET PROPOSED 6'-0" WOOD FENCE AT PERIMETER OF REAR YARD STAIR HALL DN

PERRY STREET

LOT LINE ( 22'-0" ) LOT LINE ( 95'-0" ) LOT LINE ( 95'-0" )

STAIR HALL DN

PERRY STREET

LOT LINE ( 22'-0" ) LOT LINE ( 95'-0" ) LOT LINE ( 95'-0" )

UP OFFICE / DEN

9'-0" x 13'-6"

WLK'N CLOSET

9'-0" x 6'-0"

WLK'N CLOSET

9'-0" x 6'-0"

BEDROOM

13'-3" x 13'-6"

BEDROOM

13'-6" x 12'-0"

BEDROOM

12'-0" x 7'-6"

BATH

7'-9" x 7'-0"

CL. CL. CL. BATH

7'-9" x 7'-0"

UP WLK'N CLOSET

6'-3" x 9'-0"

WLK'N CLOSET

6'-3" x 9'-6"

MASTER BEDROOM

16'-0" x 12'-6"

SITTING ROOM

16'-0" x 7'-6"

MASTER SUITE HALL MASTER BATH

9'-0" x 20'-0"

PROPOSED SECOND FLOOR PLAN PROPOSED THIRD FLOOR PLAN

SCALE: 1/8" = 1'-0" SCALE: 1/8" = 1'-0" ROOF EXISTING REAR WALL TO BE DEMOLISHED

DESCRIPTION DATE REV. No. DRAWING No. SEAL

TOWN HOUSE RENOVATION

GW XX NYC DOB No.: CHECKED BY DRAWN BY DATE SCALE JOB No. DRAWING TITLE PROJECT NAME DRAWING OF

NEW YORK, NEW YORK 10014

schrimmer design group, llc 200 west 41st street suite 1906 new york, ny 10036

8 PERRY STREET

Key Plan Plot Plan

AREA OF WORK N 8 PERRY STREET NEW YORK, NY 10014 BLOCK NO.: 612 LOT NO.: 53 COMMUNITY BOARD: 102 ZONING DISTRICT: C2-6 ZONING MAP NUMBER: 12a

6-10-2016 15-059.100

PERRY STREET SEVENTH AVENUE GREENWICH AVENUE WAVERLY PL. CHARLES STREET

PROPOSED FLOOR PLANS 1

PROPOSED FLOOR PLANS

LPC-016

SLIDE 17

PERRY STREET

LOT LINE ( 22'-0" ) LOT LINE ( 95'-0" ) LOT LINE ( 95'-0" )

STAIR HALL DN ROOF MECH EQUIP

PROPOSED ROOF PLAN

SCALE: 1/8" = 1'-0" ROOF BELOW

PERRY STREET

LOT LINE ( 22'-0" ) LOT LINE ( 95'-0" ) LOT LINE ( 95'-0" )

EXISTING ROOF PLAN

SCALE: 1/8" = 1'-0"

SKYLIGHT SKYLIGHT COVERED ROOF HATCH DESCRIPTION DATE REV. No. DRAWING No. SEAL

TOWN HOUSE RENOVATION

GW XX NYC DOB No.: CHECKED BY DRAWN BY DATE SCALE JOB No. DRAWING TITLE PROJECT NAME DRAWING OF

NEW YORK, NEW YORK 10014

schrimmer design group, llc 200 west 41st street suite 1906 new york, ny 10036

8 PERRY STREET

Key Plan Plot Plan

AREA OF WORK N 8 PERRY STREET NEW YORK, NY 10014 BLOCK NO.: 612 LOT NO.: 53 COMMUNITY BOARD: 102 ZONING DISTRICT: C2-6 ZONING MAP NUMBER: 12a

6-10-2016 15-059.100

PERRY STREET SEVENTH AVENUE GREENWICH AVENUE WAVERLY PL. CHARLES STREET

PROPOSED ROOF PLAN 2

EXISTING AND PROPOSED ROOF PLANS

LPC-017 EXISTING ROOF PLAN 1

SLIDE 18

PERRY ST 7 T H A V E N U E WAVERLY PLACE W 1 1 T H S T BANK ST P E R R Y S T C H A R L E S S T W 1 2 T H S T GREENWICH AVENUE W 1 1 T H S T W12TH ST W 1 3 T H S T W 1 2 T H S T 7 T H A V E N U E VIEW 3 V I E W 2 V I E W 1 AREA KEY PLAN

NOT TO SCALE

GREENWICH AVENUE VIEW 4 V I E W 5

DESCRIPTION DATE REV. No. DRAWING No. SEAL

TOWN HOUSE RENOVATION

GW XX NYC DOB No.: CHECKED BY DRAWN BY DATE SCALE JOB No. DRAWING TITLE PROJECT NAME DRAWING OF

NEW YORK, NEW YORK 10014

schrimmer design group, llc 200 west 41st street suite 1906 new york, ny 10036

8 PERRY STREET

Key Plan Plot Plan

AREA OF WORK N 8 PERRY STREET NEW YORK, NY 10014 BLOCK NO.: 612 LOT NO.: 53 COMMUNITY BOARD: 102 ZONING DISTRICT: C2-6 ZONING MAP NUMBER: 12a

6-10-2016 15-059.100

PERRY STREET SEVENTH AVENUE GREENWICH AVENUE WAVERLY PL. CHARLES STREET

VISIBILITY PHOTOS 1

VISIBILITY PHOTOS

LPC-018

VIEW NO. 1 SOUTH SIDE OF GREENWICH AVENUE MID BLOCK BETWEEN 7TH AVENUE AND BANK STREET ENLARGED VIEW NO. 1 SOUTH SIDE OF GREENWICH AVENUE MID BLOCK BETWEEN 7TH AVENUE AND BANK STREET ENLARGED VIEW NO. 1 - MONTAGE SHOWING RAILINGS SOUTH SIDE OF GREENWICH AVENUE MID BLOCK BETWEEN 7TH AVENUE AND BANK STREET

SLIDE 19

PERRY ST 7 T H A V E N U E WAVERLY PLACE W 1 1 T H S T BANK ST P E R R Y S T C H A R L E S S T W 1 2 T H S T GREENWICH AVENUE W 1 1 T H S T W12TH ST W 1 3 T H S T W 1 2 T H S T 7 T H A V E N U E VIEW 3 V I E W 2 V I E W 1 AREA KEY PLAN

NOT TO SCALE

GREENWICH AVENUE VIEW 4 V I E W 5

DESCRIPTION DATE REV. No. DRAWING No. SEAL

TOWN HOUSE RENOVATION

GW XX NYC DOB No.: CHECKED BY DRAWN BY DATE SCALE JOB No. DRAWING TITLE PROJECT NAME DRAWING OF

NEW YORK, NEW YORK 10014

schrimmer design group, llc 200 west 41st street suite 1906 new york, ny 10036

8 PERRY STREET

Key Plan Plot Plan

AREA OF WORK N 8 PERRY STREET NEW YORK, NY 10014 BLOCK NO.: 612 LOT NO.: 53 COMMUNITY BOARD: 102 ZONING DISTRICT: C2-6 ZONING MAP NUMBER: 12a

6-10-2016 15-059.100

PERRY STREET SEVENTH AVENUE GREENWICH AVENUE WAVERLY PL. CHARLES STREET

VISIBILITY PHOTOS 1

VISIBILITY PHOTOS

LPC-019

VIEW NO. 2 NORTH WEST CORNER OF 7TH AVENUE AND 11TH STREET ENLARGED VIEW NO. 2 NORTH WEST CORNER OF 7TH AVENUE AND 11TH STREET ENLARGED VIEW NO. 2 - MONTAGE SHOWING RAILINGS NORTH WEST CORNER OF 7TH AVENUE AND 11TH STREET

SLIDE 20

PERRY ST 7 T H A V E N U E WAVERLY PLACE W 1 1 T H S T BANK ST P E R R Y S T C H A R L E S S T W 1 2 T H S T GREENWICH AVENUE W 1 1 T H S T W12TH ST W 1 3 T H S T W 1 2 T H S T 7 T H A V E N U E VIEW 3 V I E W 2 V I E W 1 AREA KEY PLAN

NOT TO SCALE

GREENWICH AVENUE VIEW 4 V I E W 5

DESCRIPTION DATE REV. No. DRAWING No. SEAL

TOWN HOUSE RENOVATION

GW XX NYC DOB No.: CHECKED BY DRAWN BY DATE SCALE JOB No. DRAWING TITLE PROJECT NAME DRAWING OF

NEW YORK, NEW YORK 10014

schrimmer design group, llc 200 west 41st street suite 1906 new york, ny 10036

8 PERRY STREET

Key Plan Plot Plan

AREA OF WORK N 8 PERRY STREET NEW YORK, NY 10014 BLOCK NO.: 612 LOT NO.: 53 COMMUNITY BOARD: 102 ZONING DISTRICT: C2-6 ZONING MAP NUMBER: 12a

6-10-2016 15-059.100

PERRY STREET SEVENTH AVENUE GREENWICH AVENUE WAVERLY PL. CHARLES STREET

VISIBILITY PHOTOS 1

VISIBILITY PHOTOS

LPC-020

VIEW NO. 3 WEST SIDE OF 7TH AVENUE MID BLOCK BETWEEN 11TH STREET AND PERRY STREET ENLARGED VIEW NO. 3 WEST SIDE OF 7TH AVENUE MID BLOCK BETWEEN 11TH STREET AND PERRY STREET ENLARGED VIEW NO. 3 - MONTAGE SHOWING RAILINGS WEST SIDE OF 7TH AVENUE MID BLOCK BETWEEN 11TH STREET AND PERRY STREET

SLIDE 21

PERRY ST 7 T H A V E N U E WAVERLY PLACE W 1 1 T H S T BANK ST P E R R Y S T C H A R L E S S T W 1 2 T H S T GREENWICH AVENUE W 1 1 T H S T W12TH ST W 1 3 T H S T W 1 2 T H S T 7 T H A V E N U E VIEW 3 V I E W 2 V I E W 1 AREA KEY PLAN

NOT TO SCALE

GREENWICH AVENUE VIEW 4 V I E W 5

DESCRIPTION DATE REV. No. DRAWING No. SEAL

TOWN HOUSE RENOVATION

GW XX NYC DOB No.: CHECKED BY DRAWN BY DATE SCALE JOB No. DRAWING TITLE PROJECT NAME DRAWING OF

NEW YORK, NEW YORK 10014

schrimmer design group, llc 200 west 41st street suite 1906 new york, ny 10036

8 PERRY STREET

Key Plan Plot Plan

AREA OF WORK N 8 PERRY STREET NEW YORK, NY 10014 BLOCK NO.: 612 LOT NO.: 53 COMMUNITY BOARD: 102 ZONING DISTRICT: C2-6 ZONING MAP NUMBER: 12a

6-10-2016 15-059.100

PERRY STREET SEVENTH AVENUE GREENWICH AVENUE WAVERLY PL. CHARLES STREET

VISIBILITY PHOTOS 1

VISIBILITY PHOTOS

LPC-021

VIEW NO. 4 WEST SIDE OF GREENWICH AVENUE AT CORNER OF PERRY STREET ENLARGED VIEW NO. 4 WEST SIDE OF GREENWICH AVENUE AT CORNER OF PERRY STREET

SLIDE 22

PERRY ST 7 T H A V E N U E WAVERLY PLACE W 1 1 T H S T BANK ST P E R R Y S T C H A R L E S S T W 1 2 T H S T GREENWICH AVENUE W 1 1 T H S T W12TH ST W 1 3 T H S T W 1 2 T H S T 7 T H A V E N U E VIEW 3 V I E W 2 V I E W 1 AREA KEY PLAN

NOT TO SCALE

GREENWICH AVENUE VIEW 4 V I E W 5

DESCRIPTION DATE REV. No. DRAWING No. SEAL

TOWN HOUSE RENOVATION

GW XX NYC DOB No.: CHECKED BY DRAWN BY DATE SCALE JOB No. DRAWING TITLE PROJECT NAME DRAWING OF

NEW YORK, NEW YORK 10014

schrimmer design group, llc 200 west 41st street suite 1906 new york, ny 10036

8 PERRY STREET

Key Plan Plot Plan

AREA OF WORK N 8 PERRY STREET NEW YORK, NY 10014 BLOCK NO.: 612 LOT NO.: 53 COMMUNITY BOARD: 102 ZONING DISTRICT: C2-6 ZONING MAP NUMBER: 12a

6-10-2016 15-059.100

PERRY STREET SEVENTH AVENUE GREENWICH AVENUE WAVERLY PL. CHARLES STREET

VISIBILITY PHOTOS 1

VISIBILITY PHOTOS

LPC-022

VIEW NO. 5 - REAR FACADE NORTH SIDE OF CHARLES STREET MID BLOCK AT DRIVEWAY ENLARGED VIEW NO. 5 - REAR FACADE NORTH SIDE OF CHARLES STREET MID BLOCK AT DRIVEWAY VIEW NO. 5 - REAR FACADE - MONTAGE SHOWING REAR ADDITION, BULKHEAD AND RAILING NORTH SIDE OF CHARLES STREET MID BLOCK AT DRIVEWAY
