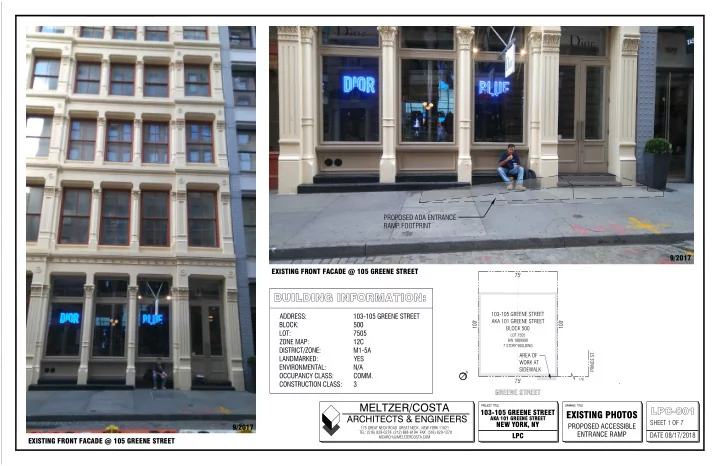

PROPOSED ADA ENTRANCE RAMP FOOTPRINT 9/2017 EXISTING FRONT FACADE @ 105 GREENE STREET 75' BUILDING INFORMATION: 103-105 GREENE STREET ADDRESS: 103-105 GREENE STREET AKA 101 GREENE STREET 100' 100' BLOCK: 500 BLOCK 500 LOT: 7505 LOT

slide-1
SLIDE 1

103-105 GREENE STREET AKA 101 GREENE STREET BLOCK 500

GREENE STREET

AREA OF WORK AT SIDEWALK 75' 75' 100' 100'

176'

PRINCE ST.

LOT 7505 BIN 1089990 7 STORY BUILDING

N

ADDRESS: 103-105 GREENE STREET BLOCK: 500 LOT: 7505 ZONE MAP: 12C DISTRICT/ZONE: M1-5A LANDMARKED: YES

BUILDING INFORMATION:

ENVIRONMENTAL: N/A OCCUPANCY CLASS: COMM. CONSTRUCTION CLASS:3

EXISTING PHOTOS

LPC-001

DATE 08/17/2018

175 GREAT NECK ROAD GREAT NECK, NEW YORK 11021 TEL: (516) 829-0278 (212) 688-6194 FAX: (516) 829-1270 MCARCH@MELTZERCOSTA.COM

103-105 GREENE STREET

AKA 101 GREENE STREET

NEW YORK, NY LPC

MELTZER/COSTA

ARCHITECTS & ENGINEERS

PROPOSED ACCESSIBLE ENTRANCE RAMP PROPOSED ADA ENTRANCE RAMP FOOTPRINT EXISTING FRONT FACADE @ 105 GREENE STREET 9/2017 EXISTING FRONT FACADE @ 105 GREENE STREET 9/2017

SHEET 1 OF 7

slide-2
SLIDE 2

EXISTING PHOTOS

LPC-002

DATE 08/17/2018

175 GREAT NECK ROAD GREAT NECK, NEW YORK 11021 TEL: (516) 829-0278 (212) 688-6194 FAX: (516) 829-1270 MCARCH@MELTZERCOSTA.COM

103-105 GREENE STREET

AKA 101 GREENE STREET

NEW YORK, NY LPC

MELTZER/COSTA

ARCHITECTS & ENGINEERS

PROPOSED ACCESSIBLE ENTRANCE RAMP EXISTING ENTRANCE @ 105 GREENE ST. LOOKING SOUTH ON GREENE STREET LOOKING SOUTH ON GREENE STREET 9/2017 9/2017 9/2017 EXISTING DIAMOND PLATED RISERS

SHEET 2 OF 7

EXISTING ENTRANCE @ 105 GREENE ST. 9/2017

slide-3
SLIDE 3

PROPERTY LINE EXISTING SIDEWALK EXISTING CURB

RETAIL TENANT

EXISTING SIDEWALK HATCH DOORS TO REMAIN. SEAL DOORS FROM VAULT SPACE BELOW EXISTING ENTRANCE STEPS EXISTING DIAMOND PLATED RISERS

GREENE STREET

  • EL. 0'-0"
  • EL. -1'-0"

DN

  • EXIST. (2) 2'-8"

ENTRY DOORS EXISTING VAULT GLASS LIGHT COVERS ON EXISTING UPPER TREAD

EXISTING FLOOR PLAN @ SIDEWALK

EXISTING PLAN

LPC-003

DATE 08/17/2018

175 GREAT NECK ROAD GREAT NECK, NEW YORK 11021 TEL: (516) 829-0278 (212) 688-6194 FAX: (516) 829-1270 MCARCH@MELTZERCOSTA.COM

103-105 GREENE STREET

AKA 101 GREENE STREET

NEW YORK, NY LPC

MELTZER/COSTA

ARCHITECTS & ENGINEERS

PROPOSED ACCESSIBLE ENTRANCE RAMP SCALE: 1/4"=1'-0"

SHEET 3 OF 7

slide-4
SLIDE 4

GREENE STREET

NEW RAMP DOWN SLOPE 1:12

5'-8" 12'-0" 11" 9'-4" EXISTING CONCRETE SIDEWALK EXISTING CURB EXISTING SIDEWALK HATCH DOORS TO BE SEALED FROM INTERIOR 5'-11"

DN

1'-0" 3'-8" 5'-0" TURNING RADIUS 1-1/2" DIA., 36" HIGH METAL RAIL EACH SIDE PAINTED BLACK METAL FRAME RAMP

  • CONSTR. WITH NON SLIP

SURFACE PAINTED BLACK TO MATCH SURROUNDING

  • EXIST. DIAMOND

PLATE RISERS INSTALL NEW AUTOMATIC ELECTRIC DOOR OPENER CONNECTED TO ACTUATOR TO OPERATE BOTH DOOR LEAFS

RETAIL TENANT

NEW LANDING NEW INTERIOR SURFACE MOUNTED PUSH PLATE ACTUATOR 3'-0" MIN NEW LANDING RAMP

  • EL. 0'-0"
  • EL. -1'-0"
  • EL. 0'-0"

1 007

PROPERTY LINE

NEW RAMP DOWN SLOPE 1:12 DN 2R

5'-8" 12'-0" 11" 18'-7" 3'-8" PROPOSED RAMP 2'-3" 3'-6" RAMP

  • EL. -1'-0"

3'-6" RAMP NEW POST MOUNTED PUSH PLATE ACTUATOR

  • EXIST. TOP TREAD WITH VAULT LIGHTS TO REMAIN
  • EXIST. (2) 2'-8"

ENTRY DOORS

5'-11"

  • EXIST. LOWER TREAD WITH GLASS VAULT LIGHT

COVERS TO TO BE PRESERVED. INSTALL NEW BLACK PAINTED, DIAMOND PLATE TREAD OVER WATER TIGHT SEAL. PREP FOR NEW RAMP AND PLATFORM NEW TREAD NEW METAL POST BOLTED TO SIDEWALK NEW STEEL ANGLE UPPER TREAD AND GLASS VAULT LIGHTS TO REMAIN PROVIDE NEW DIAMOND PLATE TREAD OVER EXIST. LOWER TREAD

PROPOSED FLOOR PLAN @ SIDEWALK

SCALE: 1/4"=1'-0"

PROPOSED PLAN

LPC-004

DATE 08/17/2018

175 GREAT NECK ROAD GREAT NECK, NEW YORK 11021 TEL: (516) 829-0278 (212) 688-6194 FAX: (516) 829-1270 MCARCH@MELTZERCOSTA.COM

103-105 GREENE STREET

AKA 101 GREENE STREET

NEW YORK, NY LPC

MELTZER/COSTA

ARCHITECTS & ENGINEERS

PROPOSED ACCESSIBLE ENTRANCE RAMP

SHEET 4 OF 7

slide-5
SLIDE 5

FIRST FLR

  • EL. 0'-0"

NEW 1-1/2" DIA., 36" HIGH METAL RAIL EACH SIDE. PAINTED BLACK TUBE STEEL FRAMING BELOW RAMP LANDING EXISTING SIDEWALK HATCH DOORS (BEYOND) TO BE SEALED FROM INTERIOR.

PUSH

3'-0"

RETAIL TENANT SIDEWALK VAULT

1'-0" EXISTING STORE SIGN

EXTERIOR INTERIOR

NEW INTERIOR PUSH BUTTON DOOR ACTUATOR MOUNTED 30"-44" A.F.F.

SECTION DETAILS

LPC-005

DATE 08/17/2018

175 GREAT NECK ROAD GREAT NECK, NEW YORK 11021 TEL: (516) 829-0278 (212) 688-6194 FAX: (516) 829-1270 MCARCH@MELTZERCOSTA.COM

103-105 GREENE STREET

AKA 101 GREENE STREET

NEW YORK, NY LPC

MELTZER/COSTA

ARCHITECTS & ENGINEERS

PROPOSED ACCESSIBLE ENTRANCE RAMP

EXISTING UPPER TREAD WITH GLASS VAULT LIGHT COVERS

SHEET 5 OF 7

EXISTING LOWER TREAD WITH GLASS VAULT LIGHT COVERS TO BE PRESERVED. INSTALL NEW BLACK PAINTED, DIAMOND PLATE TREAD OVER EXISTING TREAD PRIOR TO NEW RAMP CONSTRUCTION

EXISTING ENTRANCE STEPS @ 105 GREENE ST. EXISTING ENTRANCE STEPS @ 105 GREENE ST. 9/2017 9/2017 PROPOSED STEEL DIAMOND PLATE PER LOWER TREAD

PARTIAL BUILDING SECTION

SCALE: 1/4"=1'-0"

SECTION DETAIL

SCALE: 1-1/2"=1'-0"

  • EXIST. UPPER

TREAD AND VAULT LIGHTS TO REMAIN INSTALL NEW STEEL ANGLE WITH T-SHAPED CROSS BRACE TO SUPPORT NEW LANDING NEW STEEL DIAMOND PLATE TREAD TO BE INSTALLED OVER EXISTING LOWER TREAD

  • EXIST. DOOR

TO REMAIN NEW STEEL DIAMOND PLATE LANDING NEW RAILING POST

slide-6
SLIDE 6

FIRST FLR

  • EL. 0'-0"

EXISTING SIGN TO REMAIN EXISTING DIAMOND PLATED RISERS +/- 9'-4" CLEAR SCALE: 1/4"=1'-0"

  • EXIST. ELEVATION

LPC-006

DATE 08/17/2018

175 GREAT NECK ROAD GREAT NECK, NEW YORK 11021 TEL: (516) 829-0278 (212) 688-6194 FAX: (516) 829-1270 MCARCH@MELTZERCOSTA.COM

103-105 GREENE STREET

AKA 101 GREENE STREET

NEW YORK, NY LPC

MELTZER/COSTA

ARCHITECTS & ENGINEERS

PROPOSED ACCESSIBLE ENTRANCE RAMP

EXISTING FRONT FACADE ELEVATION

SHEET 6 OF 7

slide-7
SLIDE 7

METAL STAIR PAINTED BLACK 11" TREAD, (+/-) 6" RISERS NEW 1" DIA., 36" HIGH RAIL, BLACKENED-METAL FINISH 12'-0" RUN 5'-8" 11" NEW RAMP (1:12 SLOPE) LANDING TREAD 1'-0" 3'-0" 4 " DIAMOND PLATE SIDE FINISH PAINTED BLACK 12" MIN. 6" NON SLIP RAMP SURFACE 2'-6" 3'-0" BOLT CONNECTION AT EXISTING SIDEWALK 12" MIN. 5"

PUSH

NEW EXTERIOR PUSH BUTTON DOOR ACTUATOR POST MOUNTED 30"-44" A.F.F. NEW RISERS NEW RAILING, BLACKENED-METAL FINISH 12'-0" RUN 5'-8" 11" 9'-4" LANDING TREAD 3'-0" 1'-0" 3'-0" EXISTING SIGN TO REMAIN

FIRST FLR

  • EL. 0'-0"

+/- 8'-9" CLEAR NEW RAMP (1:12 SLOPE)

PROPOSED FRONT FACADE ELEVATION

SCALE: 1/4"=1'-0"

  • PROP. ELEVATION

LPC-007

DATE 08/17/2018

175 GREAT NECK ROAD GREAT NECK, NEW YORK 11021 TEL: (516) 829-0278 (212) 688-6194 FAX: (516) 829-1270 MCARCH@MELTZERCOSTA.COM

103-105 GREENE STREET

AKA 101 GREENE STREET

NEW YORK, NY LPC

MELTZER/COSTA

ARCHITECTS & ENGINEERS

SHEET 7 OF 7

PROPOSED ACCESSIBLE ENTRANCE RAMP

PUSH BUTTON ACTUATOR MATERIAL: DIAMOND PLATE FINISH
