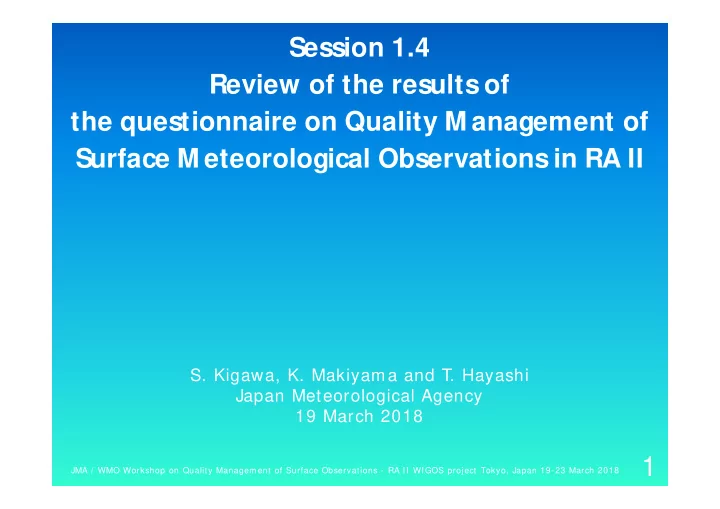

Session 1.4 Review of the results of the questionnaire on Quality M anagement of Surface M eteorological Observations in RA II S. Kigawa, K. Makiyama and T. Hayashi Japan Meteorological Agency 19 March 2018 1 JMA / WMO Workshop on Quality

slide-1
SLIDE 1

Session 1.4 Review of the results of the questionnaire on Quality M anagement of Surface M eteorological Observations in RA II

  • S. Kigawa, K. Makiyama and T. Hayashi

Japan Meteorological Agency 19 March 2018

JMA / WMO Workshop on Quality Management of Surface Observations - RA II WIGOS project Tokyo, Japan 19-23 March 2018

1

slide-2
SLIDE 2

Thank you

JMA / WMO Workshop on Quality Management of Surface Observations - RA II WIGOS project Tokyo, Japan 19-23 March 2018

2

for joining this workshop

slide-3
SLIDE 3

Communication with you in the last two months

JMA / WMO Workshop on Quality Management of Surface Observations - RA II WIGOS project Tokyo, Japan 19-23 March 2018

3

And many e-mail messages

# 1 1 9 J a n # 2 2 5 J a n # 3 3 1 J a n # 4 6 F e b # 5 1 4 F e b # 6 1 9 F e b # 7 2 7 F e b # 8 6 M a r

slide-4
SLIDE 4

Draft report

JMA / WMO Workshop on Quality Management of Surface Observations - RA II WIGOS project Tokyo, Japan 19-23 March 2018

4

2 tables and 32 graphs

slide-5
SLIDE 5

Why?

JMA / WMO Workshop on Quality Management of Surface Observations - RA II WIGOS project Tokyo, Japan 19-23 March 2018

5

Why do we assemble here?

slide-6
SLIDE 6

Recent disasters

JMA / WMO Workshop on Quality Management of Surface Observations - RA II WIGOS project Tokyo, Japan 19-23 March 2018

6

Country report previews

slide-7
SLIDE 7

JMA’s approach

JMA / WMO Workshop on Quality Management of Surface Observations - RA II WIGOS project Tokyo, Japan 19-23 March 2018

7

Observation NW P W eather forecast and w arning/ advisory services Hydrological indices Now casts Real tim e QPE QPF

slide-8
SLIDE 8

JMA’s posters on Day 4

JMA / WMO Workshop on Quality Management of Surface Observations - RA II WIGOS project Tokyo, Japan 19-23 March 2018

8

slide-9
SLIDE 9

JMA’s posters on Day 4

JMA / WMO Workshop on Quality Management of Surface Observations - RA II WIGOS project Tokyo, Japan 19-23 March 2018

9

slide-10
SLIDE 10

Questionnaire survey

JMA / WMO Workshop on Quality Management of Surface Observations - RA II WIGOS project Tokyo, Japan 19-23 March 2018 10

The questionnaire survey on Quality Management for Surface Meteorological Observations in RA II was conducted in 2016. Twenty NMHSs in RA II Members responded to the questionnaire. JMA analyzed the responses and prepared the draft report of the survey results.

slide-11
SLIDE 11

Survey analysis

JMA / WMO Workshop on Quality Management of Surface Observations - RA II WIGOS project Tokyo, Japan 19-23 March 2018 11

Four groups: m anned w eather stations, m anned precipitation/ hydrological stations, autom atic w eather stations and autom atic precipitation/ hydrological stations are used Four icons are used Manned Automatic Weather precipitation/ hydrological

slide-12
SLIDE 12

Major findings (1/ 4)

JMA / WMO Workshop on Quality Management of Surface Observations - RA II WIGOS project Tokyo, Japan 19-23 March 2018 12

Automatic precipitation/ hydrological stations are

  • perated by only one third of NMHSs.

Operational

  • bservation

stations

slide-13
SLIDE 13

Major findings (2/ 4)

JMA / WMO Workshop on Quality Management of Surface Observations - RA II WIGOS project Tokyo, Japan 19-23 March 2018 13

Precipitation/ hydrological stations are operated with difficulties in a quality check of the observation data and an environmental check of the stations. Only one half

  • f NMHSs

manually check

  • bservation

data.

Method of manual checking

slide-14
SLIDE 14

Major findings (2/ 4 cont.)

JMA / WMO Workshop on Quality Management of Surface Observations - RA II WIGOS project Tokyo, Japan 19-23 March 2018 14

Precipitation/ hydrological stations are operated with difficulties in a quality check of the observation data and an environmental check of the stations. Lower activities are conducted for checking station conditions.

Activities of checking station conditions

slide-15
SLIDE 15

Major findings (3/ 4)

JMA / WMO Workshop on Quality Management of Surface Observations - RA II WIGOS project Tokyo, Japan 19-23 March 2018 15

A percentage of NMHSs which utilize observation data

  • f the precipitation/ hydrological stations

for application effective in Disaster Risk Reduction, such as advisories/ warnings and nowcasting, is generally lower than that of NMHSs utilizing observation data of weather stations.

Application of

  • bservations

data

slide-16
SLIDE 16

Major findings (3/ 4)

JMA / WMO Workshop on Quality Management of Surface Observations - RA II WIGOS project Tokyo, Japan 19-23 March 2018 16

A percentage of NMHSs which utilize observation data

  • f the precipitation/ hydrological stations

for application effective in Disaster Risk Reduction, such as advisories/ warnings and nowcasting, is generally lower than that of NMHSs utilizing observation data of weather stations.

Application of

  • bservations

data

slide-17
SLIDE 17

Major findings (4/ 4)

JMA / WMO Workshop on Quality Management of Surface Observations - RA II WIGOS project Tokyo, Japan 19-23 March 2018 17

NMHSs recognized “lack of skilled staff” rather than “lack of knowledge.”

Problems experienced in checking

slide-18
SLIDE 18

Survey results

JMA / WMO Workshop on Quality Management of Surface Observations - RA II WIGOS project Tokyo, Japan 19-23 March 2018 18

Many NMHSs which responded to the questionnaire operate services in rainy regions. Although a precipitation observation is one of key components for DRR, it was recognized that many observation stations faced difficulties in both the quality check of observation data and the environm ent check of the stations. It was also found that there was room for improvement in applications of observation data such as nowcasting or issuing advisories/ warnings.

slide-19
SLIDE 19

Discussions

JMA / WMO Workshop on Quality Management of Surface Observations - RA II WIGOS project Tokyo, Japan 19-23 March 2018 19

Given that DRR is one of the highest priorities, multi-scale challenges should be discussed by Member countries to solve issues. We are focusing on the precipitation observation in this workshop.

slide-20
SLIDE 20

Although we focus on rain…

JMA / WMO Workshop on Quality Management of Surface Observations - RA II WIGOS project Tokyo, Japan 19-23 March 2018

slide-21
SLIDE 21

What?

JMA / WMO Workshop on Quality Management of Surface Observations - RA II WIGOS project Tokyo, Japan 19-23 March 2018 20

What do we learn and discuss?

slide-22
SLIDE 22

Rain

JMA / WMO Workshop on Quality Management of Surface Observations - RA II WIGOS project Tokyo, Japan 19-23 March 2018 21

slide-23
SLIDE 23

Heavy Rain

JMA / WMO Workshop on Quality Management of Surface Observations - RA II WIGOS project Tokyo, Japan 19-23 March 2018 22

Big raindrop Big

slide-24
SLIDE 24

Science!

JMA / WMO Workshop on Quality Management of Surface Observations - RA II WIGOS project Tokyo, Japan 19-23 March 2018 23

We need science

slide-25
SLIDE 25

Workshop outline

JMA / WMO Workshop on Quality Management of Surface Observations - RA II WIGOS project Tokyo, Japan 19-23 March 2018 24

Session 1 W I GOS Survey Country report Session 2 Calibration/ traceability Session 3 Operational QM Science Session 4 Discussions W orkshop

  • utcom e
slide-26
SLIDE 26

Huge raindrop

JMA / WMO Workshop on Quality Management of Surface Observations - RA II WIGOS project Tokyo, Japan 19-23 March 2018

Unnatural?

slide-27
SLIDE 27

Raindrop shape and size

JMA / WMO Workshop on Quality Management of Surface Observations - RA II WIGOS project Tokyo, Japan 19-23 March 2018

https://pmm.nasa.gov/education/articles/shape-of-a-raindrop

slide-28
SLIDE 28

Motivation and inspiration

JMA / WMO Workshop on Quality Management of Surface Observations - RA II WIGOS project Tokyo, Japan 19-23 March 2018

slide-29
SLIDE 29

Motivation and inspiration

JMA / WMO Workshop on Quality Management of Surface Observations - RA II WIGOS project Tokyo, Japan 19-23 March 2018

http://www.noaa.gov/resource-collections/water-cycle

slide-30
SLIDE 30

Findings and discussions

JMA / WMO Workshop on Quality Management of Surface Observations - RA II WIGOS project Tokyo, Japan 19-23 March 2018 25

Automatic precipitation/ hydrological stations are operated by only one third of NMHSs. Precipitation/ hydrological stations are operated with difficulties in a quality check

  • f the observation data and an

environmental check of the stations. A percentage of utilization of precipitation/ hydrological

  • bservation data

for Disaster Risk Reduction applications is generally. NMHSs recognized “lack of skilled staff” rather than “lack of knowledge.”

( C) Improvement of

  • n-site quality

management ( D) Approach to training skilled staffs ( A) Visions of surface

  • bservation networks

( B) Short-term or long-term goals of the quality of

  • bservation data
slide-31
SLIDE 31

How?

JMA / WMO Workshop on Quality Management of Surface Observations - RA II WIGOS project Tokyo, Japan 19-23 March 2018 26

How do we discuss?

slide-32
SLIDE 32

Organization

JMA / WMO Workshop on Quality Management of Surface Observations - RA II WIGOS project Tokyo, Japan 19-23 March 2018 27

( A) Visions of surface

  • bservation networks

( B) Short-term or long-term goals of the quality of

  • bservation data

( C) Improvement of

  • n-site quality

management ( D) Approach to training skilled staffs

  • Ms. Al Hameli, Ms. Al Mandoos
  • Ms. Do, Mr. Faisal, Mr. Le Xuan
  • Dr. Cui, Mr. Douangmala
  • Mr. Phapany, Mr. Promsut
  • Mr. Sungkhawanna
  • Mr. Thala Bandaralage
  • Mr. Wimalasuriya
  • Mr. Abdul Karrem, Dr. Ahmad
  • Mr. Hak, Mr. Lwin, Ms. Nan
  • Mr. Toe Aung
  • Ms. Baten, Mr. Chowdhury
  • Mr. Gayyoom, Mr. Lyhon

Supported by speakers

slide-33
SLIDE 33

Key words

JMA / WMO Workshop on Quality Management of Surface Observations - RA II WIGOS project Tokyo, Japan 19-23 March 2018 28

( A) Visions of surface

  • bservation networks

( B) Short-term or long-term goals of the quality of

  • bservation data

( C) Improvement of

  • n-site quality

management ( D) Approach to training skilled staffs

design, DRR, integrated, international/ inter- agency, observation/ analysis, regional climate DRR, field work, international collaboration, quality information, services/ products, study calibration, environment, instrument, integration, spatiotemporal scale, system cooperation, face-to-face, post-workshop newsletters, practical demonstration, telecommunicated, training materials

slide-34
SLIDE 34

Related stories

JMA / WMO Workshop on Quality Management of Surface Observations - RA II WIGOS project Tokyo, Japan 19-23 March 2018 29

( A) Visions of surface

  • bservation networks

( B) Short-term or long-term goals of the quality of

  • bservation data

( C) Improvement of

  • n-site quality

management ( D) Approach to training skilled staffs

Rain and snow (25 Jan) Quality of design and service (31 Jan) Quality of design and service (31 Jan) Qualitative or quantitative (6 Jan) Qualitative or quantitative (6 Jan) Quality management for WIGOS era (19 Feb) Training for improving skill (14 Feb) Workshop (19 Feb)

slide-35
SLIDE 35

Schedule

JMA / WMO Workshop on Quality Management of Surface Observations - RA II WIGOS project Tokyo, Japan 19-23 March 2018 30

Session 4 .1 Discussion on future activities/ actions for improvement of quality management of observation data in RA II

0900-0910 Discussion guidance 0910-1030 Group discussions Discuss a group’s topic with referring other sessions’ lectures, key words and related stories (newsletter dated 19 Feb.). Write presentation slides on a summary of group discussions using a template below. 1030-1100 Break 1100-1130 Presentations on group discussion results 1130-1230 General discussion on proposal for action plan

slide-36
SLIDE 36

Configuration

JMA / WMO Workshop on Quality Management of Surface Observations - RA II WIGOS project Tokyo, Japan 19-23 March 2018 31

Session 4 .1 Discussion on future activities/ actions for improvement of quality management of observation data in RA II 0910-1030 Group discussions

slide-37
SLIDE 37

Links

JMA / WMO Workshop on Quality Management of Surface Observations - RA II WIGOS project Tokyo, Japan 19-23 March 2018 32

( A) Visions of surface

  • bservation networks

( B) Short-term or long-term goals of the quality of

  • bservation data

( C) Improvement of

  • n-site quality

management ( D) Approach to training skilled staffs

Because ultimately only skilled staffs would realize (A), (B) and (C). Therefore, discussions on (A), (B) and (C) should be linked to (D).

slide-38
SLIDE 38

(D) Approach to training skilled staffs

JMA / WMO Workshop on Quality Management of Surface Observations - RA II WIGOS project Tokyo, Japan 19-23 March 2018 33

It is noted that many NMHSs recognized “lack of skilled staff” rather than “lack of knowledge” according to the survey. Sharing knowledge and information is becoming easy through technological innovations of telecommunication. We live in our highly-telecommunicated age and the telecommunicated approaches must provide many people opportunity to learn. Face-to-face meetings still have a significant role such as learning, training, and finding common goals. A face-to-face meeting works to unite the people concerned.

slide-39
SLIDE 39

Visions – integration (1/ 3)

JMA / WMO Workshop on Quality Management of Surface Observations - RA II WIGOS project Tokyo, Japan 19-23 March 2018 34

Temperature C

  • ld

warm

Low er tem perature = higher cloud top

Satellite I nfrared im agery

In the troposphere, temperature decreases with height. You can estimate cloud top height using infrared brightness temperature.

slide-40
SLIDE 40

Visions – integration (2/ 3)

JMA / WMO Workshop on Quality Management of Surface Observations - RA II WIGOS project Tokyo, Japan 19-23 March 2018 35

Infrared brightness temperature - surface temperature [ K]

10-min rainfall [ mm] Rain gauge observation data

20 10

  • 30 -20 -10 -2 0

Upper lim it of precipitation intensity Grey dot : precipitation

Precipitation exceeds limit. Data quality is suspected. Precipitation below limit Data quality is OK.

slide-41
SLIDE 41

Visions – integration (3/ 3)

JMA / WMO Workshop on Quality Management of Surface Observations - RA II WIGOS project Tokyo, Japan 19-23 March 2018 36

The current HRPN

  • perational algorithm is

designed to correct wind- induced horizontal drift that

  • ccurs when raindrops fall

based on the wind speed of several layers. The nature of complex raindrop tracks associated with air flow (left) and the

  • rographic concentration of

raindrops are currently being researched.

slide-42
SLIDE 42

Summary

JMA / WMO Workshop on Quality Management of Surface Observations - RA II WIGOS project Tokyo, Japan 19-23 March 2018 37

The questionnaire survey on Quality Management for Surface Meteorological Observations in RA II was conducted in 2016. Twenty NMHSs in RA II Members responded to the questionnaire. JMA analyzed the responses and prepared the draft report of the survey results. It was recognized that many observation stations faced difficulties in both the quality check of observation data and the environment check of the stations. Improvement in DRR applications of

  • bservation data is needed

WE WILL DISCUSS

slide-43
SLIDE 43

Discussions

JMA / WMO Workshop on Quality Management of Surface Observations - RA II WIGOS project Tokyo, Japan 19-23 March 2018 38

( C) I m provem ent of

  • n-site

quality m anagem ent ( B) Short-term or long-term goals of the quality of

  • bservation data

( D) Approach to training skilled staffs ( A) Visions of surface

  • bservation

netw orks

slide-44
SLIDE 44

Between atmosphere and people

JMA / WMO Workshop on Quality Management of Surface Observations - RA II WIGOS project Tokyo, Japan 19-23 March 2018 39

The bottom of the atmosphere is the surface of the earth where people live. Therefore, meteorological observation

  • n the surface is very close to

people’s daily life. We are working...

slide-45
SLIDE 45

Thank you

JMA / WMO Workshop on Quality Management of Surface Observations - RA II WIGOS project Tokyo, Japan 19-23 March 2018 40
