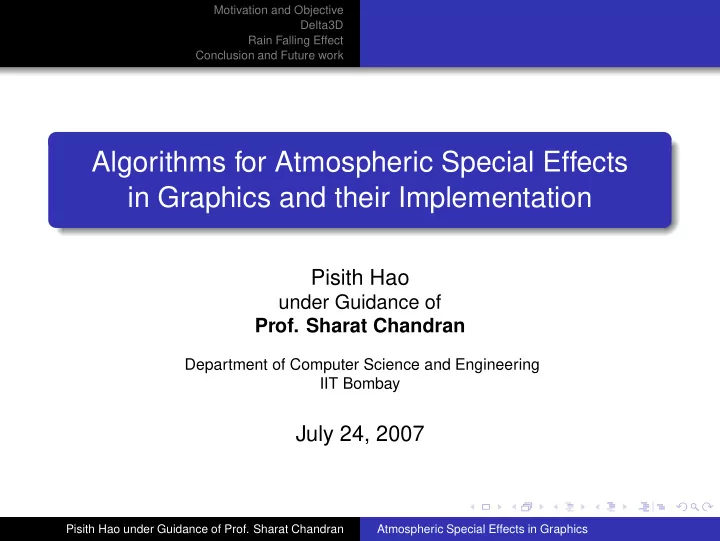

Algorithms for Atmospheric Special Effects in Graphics and their Implementation

Pisith Hao

under Guidance of

• Prof. Sharat Chandran

Department of Computer Science and Engineering IIT Bombay

July 24, 2007

Pisith Hao under Guidance of Prof. Sharat Chandran Atmospheric Special Effects in Graphics

Motivation and Objective Delta3D Rain Falling Effect Conclusion and Future work

Outline

1

Motivation and Objective Motivation Objective

2

Delta3D What’s Delta3D? Why Delta3D?

3

Rain Falling Effect Using Delta3D Particle Editor Using Physical Properties-Based Method

4

Conclusion and Future work
