Yorkshire & Humber Carbon Capture, Transportation & Storage Infrastructure Planning Commission: Introductory Presentation, May 2011 The Hatfield CCS Project is co-financed by the European Unions European Energy Programme for Recovery

slide-1
SLIDE 1

1

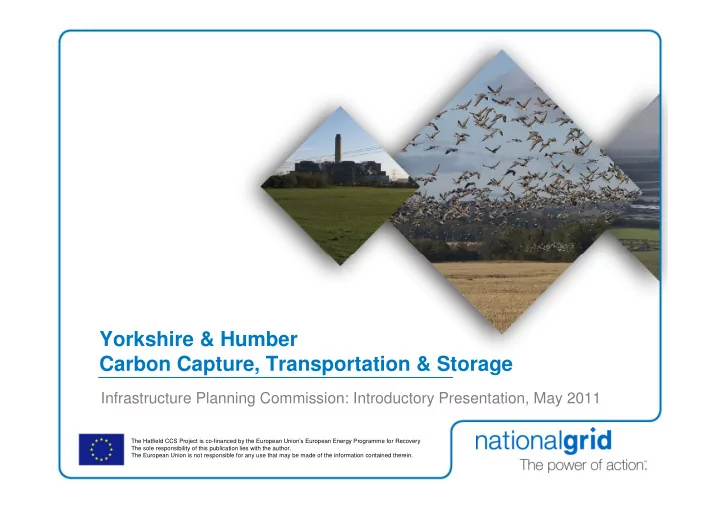

The Hatfield CCS Project is co-financed by the European Union’s European Energy Programme for Recovery The sole responsibility of this publication lies with the author. The European Union is not responsible for any use that may be made of the information contained therein.

Yorkshire & Humber Carbon Capture, Transportation & Storage

Infrastructure Planning Commission: Introductory Presentation, May 2011

slide-2
SLIDE 2

2

Purpose of the Presentation

Who is National Grid Carbon Limited and the Need Case for CCS? Project Background Project Programme Strategic Options Considered Discretionary Consultation & Route Corridor Investigation Approach to Pipeline Construction Issues for Further Consideration What Information Do you Need from Us?

slide-3
SLIDE 3

3

National Grid Carbon & The Need Case

slide-4
SLIDE 4

4

slide-5
SLIDE 5

5

slide-6
SLIDE 6

6

Need Case

International consensus on CO2 contributions to Climate Change EU Policy and initiatives:

20-20-20 Package EEPR NER300

UK Policy and Initiatives:

Our Energy Future – Creating a Low Carbon Economy Climate Change Act 2008 DECC 2050 Pathway Analysis National Policy Statement EN-1 Low Carbon Economic Areas

How Familiar is the IPC with the Need Case?

6

slide-7
SLIDE 7

7

Where will our electricity come from?

100 200 300 400 500 600 2010 2014 2018 2022 2026 2030 2034 2038 2042 2046 2050 Year TWh Interconnector Oil Coal CCS Gas CCGT Wind Other Renewable Nuclear CHP

slide-8
SLIDE 8

8

slide-9
SLIDE 9

9

Background to the Yorkshire & Humber CCS Project

slide-10
SLIDE 10

10

Project Background

2009: Section 36 granted for the construction and

  • peration of 900MW IGCC power station near Hatfield

2009: Award of EEPR grant funding to Powerfuel Power Limited and National Grid to develop the transportation and storage aspects of the project 2010: Powerfuel Power Limited enter administration 2011: Acquisition of Powerfuel Power Limited by 2CO

slide-11
SLIDE 11

11

Why Yorkshire and Humber?

90Mt of CO2 emissions in the region per year Approx 60Mt of CO2 released from point source emitters Major emitters located in a relatively small geographic area Adjacent coastline to southern North Sea with significant storage potential Opportunity to gain a world lead for the region & UK Designation of the area as a LCEA

slide-12
SLIDE 12

12

Natural Clusters

Source: IEA Greenhouse Gas R&D Programme

CO2 volume Cluster Region 10Mt Liverpool Bay 11Mt Teesside 18Mt Scotland 28Mt Thames 60Mt Humber Scotland Teesside Humber Thames Liverpool Bay

slide-13
SLIDE 13

13

Pumping Station Don Valley Power Project

slide-14
SLIDE 14

14

Industrial Emitter

Locations and scale approximate

Power Station

slide-15
SLIDE 15

15

Major Emitters in the Area

0.5Mt/y Power Station Brigg 1.4Mt/y Oil Refinery Lindsey Refinery 1.5 Mt/y Power Station Keadby 1.8Mt/y Oil Refinery Humber Refinery 3.5 Mt/y Power Station Killingholme ‘A’ and ‘B’ 2.9Mt/y Combined Heat and Power Station Immingham 3.3Mt/y Power Station South Humber Bank 3.4Mt/y Power Station Saltend Cogen 4.0 Mt/y Power Station Ferrybridge ‘C’ 5.1 Mt/y Integrated Iron and Steel works Corus Steel Works 5.5 Mt/y Power Station Eggborough 19.9 Mt/y Power Station Drax CO2Emissions / yr (2009) Activity Facility

Based on data from the World ETS Database, a comprehensive analytical tool incorporating all mandatory carbon trading schemes around the world, including the EU ETS Companies Database.

slide-16
SLIDE 16

16

Defining the Project

Section 36 already granted for Don Valley Power Project. Transportation and Storage components of the Project are expected to comprise:

Compressor Buried Pipeline AGI (at 15km intervals along the route length) Pumping Station Subsea pipeline Offshore Rig

slide-17
SLIDE 17

17

Sole Shared

Planned extensions/growth

Defining the Project

slide-18
SLIDE 18

18

Defining the Project

slide-19
SLIDE 19

19

Project Programme

slide-20
SLIDE 20

20

slide-21
SLIDE 21

21

Strategic Options Considered

slide-22
SLIDE 22

22

  • North East

Lincolnshire North Lincolnshire East Riding of Yorkshire Doncaster Metropolitan Borough Selby District Hull City North Yorkshire County East Lindsey District West Lindsey District Lincolnshire County

slide-23
SLIDE 23

23 23

slide-24
SLIDE 24

24

Transport Mode for CO2

slide-25
SLIDE 25

25

slide-26
SLIDE 26

26 26

slide-27
SLIDE 27

27

slide-28
SLIDE 28

28

Recommendations

Northern Option is considered to:

  • 1. Offer the least potential environmental impact
  • 2. Have the lowest resource requirements both during construction

and operation

  • 3. Have the least adverse impact on the agricultural resource and

local economy

  • 4. Be the least technically complex option to construct and maintain,

with the lowest delivery risk and lowest capital cost of each option

  • 5. Offers good connectivity to Aire Valley coal fired power stations

28

slide-29
SLIDE 29

29

Consultation on Strategic Options

Group presentation and Feedback session with key consultees on 15th February. Attendees:

29

Selby District Council West Lindsey District Council Environment Agency Natural England Marine Management Organisation CO2 Sense Doncaster Council East Lindsey District Council East Riding of Yorkshire Council Hull City Council Lincolnshire County Council North East Lincolnshire Council North Lincolnshire Council North Yorkshire County Council

slide-30
SLIDE 30

30

Consultation on Strategic Options

Further Consultation letters to:

30

English Heritage JNCC DECC

slide-31
SLIDE 31

31

Consultation on Strategic Options (1)

31

Positive and supportive comments received from many stakeholders National Grid commended for it’s “open and inclusive” approach to consultation Congratulated on our “clear, concise and informative format of the consultation document” from North East Lincolnshire Council

slide-32
SLIDE 32

32

Consultation on Strategic Options (2)

32

Broad agreement with the rationale behind the appraisal methodology and identification of the northern option as preferred solution Consultees keen for National Grid to progress subsequent phased extensions of the ‘backbone route’ Preferred Strategic Option Announced 18th May 2011

slide-33
SLIDE 33

33

Discretionary Consultation & Route Corridor Investigations

slide-34
SLIDE 34

34

X X X X X X X X X X X X X X X X = approximate location of consultation venue

slide-35
SLIDE 35

35

Discretionary Public Consultation

  • Wressle
  • Stainforth
  • Airmyn
  • Carlton
  • Holme On Spalding Moor
  • Market Weighton
  • Lund
  • North Cave
  • Leconfield Village
  • Cherry Burton
  • Hutton Cranswick
  • Brandesburton
  • Barmston And Fraisthorpe
  • Skipsea
  • North Frodingham

27th June – 14th July 2011

slide-36
SLIDE 36

36

Discretionary Public Consultation

slide-37
SLIDE 37

37

Information live on 13th June:

www.ccshumber.co.uk ccshumber@uk.ngrid.com 0800 954 9517 Freepost CCS National Grid

Discretionary Public Consultation

slide-38
SLIDE 38

38

Public Consultation

slide-39
SLIDE 39

39

Public Consultation

slide-40
SLIDE 40

40

Public Consultation

slide-41
SLIDE 41

41

Public Consultation

slide-42
SLIDE 42

42

Public Consultation

slide-43
SLIDE 43

43

Public Consultation

slide-44
SLIDE 44

44

Public Consultation

slide-45
SLIDE 45

45

Approach to Pipeline Construction

slide-46
SLIDE 46

46

Example Route Corridor Constraints Mapping

slide-47
SLIDE 47

47

Ground Investigations/Surveys Archaeological Investigation Ecological Investigation

slide-48
SLIDE 48

48 Construction Sequence: Preparation

  • Receive materials - pipe etc.
slide-49
SLIDE 49

49 Construction sequence: Preparation (Cont.)

  • Receive materials - pipe etc.
  • Pre-works - hedge trimming, newt fencing

etc.

slide-50
SLIDE 50

50 Construction Sequence: Preparation (Cont.)

  • Receive materials - pipe etc.
  • Pre-works - hedge trimming, newt fencing

etc.

  • Set out the working width
slide-51
SLIDE 51

51 Construction sequence: Preparation (Cont.)

  • Receive materials - pipe etc.
  • Pre-works - hedge trimming, newt fencing

etc.

  • Set out the working width
  • Pre-construction drainage
slide-52
SLIDE 52

52 Construction sequence: Preparation (Cont.)

  • Receive materials - pipe etc.
  • Pre-works - hedge trimming, newt fencing

etc.

  • Set out the working width
  • Pre-construction drainage
  • Topsoil stripping
slide-53
SLIDE 53

53 Construction sequence: Preparation (Cont.)

  • Receive materials - pipe etc.
  • Pre-works - hedge trimming, newt fencing

etc.

  • Set out the working width
  • Pre-construction drainage
  • Topsoil stripping
  • Deliver pipe to site (pipe “stringing”)
slide-54
SLIDE 54

54 Construction sequence: Mechanical construction

  • Bend pipe for direction changes (horizontal

and vertical)

slide-55
SLIDE 55

55 Construction sequence: Mechanical construction (Cont.)

  • Bend pipe for direction changes (horizontal

and vertical)

  • Weld pipe together (manual)
slide-56
SLIDE 56

56 Construction sequence: Mechanical construction (Cont.)

  • Bend pipe for direction changes (horizontal

and vertical)

  • Weld pipe together (automatic)
slide-57
SLIDE 57

57 Construction sequence: Mechanical construction (Cont.)

  • Bend pipe for direction changes (horizontal

and vertical)

  • Weld pipe together
  • Excavate trench
slide-58
SLIDE 58

58 Construction sequence: Mechanical construction (Cont.)

  • Bend pipe for direction changes (horizontal

and vertical)

  • Weld pipe together
  • Excavate trench
  • Pipeline installation (“lower and lay”)
slide-59
SLIDE 59

59 Construction sequence: Reinstatement

  • Bend pipe for direction changes (horizontal

and vertical)

  • Weld pipe together
  • Excavate trench
  • Pipeline installation (“lower and lay”)
  • Backfilling, bedding and covering pipe
slide-60
SLIDE 60

60 Construction sequence: Reinstatement (Cont.)

  • Install post-construction land drains
slide-61
SLIDE 61

61 Construction sequence: Reinstatement (Cont.)

  • Install post-construction land drains
  • Reinstate working width (“sub soiling” or

“ripping”)

slide-62
SLIDE 62

62 Construction sequence: Reinstatement (Cont.)

  • Install post-construction land drains
  • Reinstate working width (“sub soiling” or

“ripping”)

  • Replace topsoil
slide-63
SLIDE 63

63 Construction sequence: Reinstatement (Cont.)

  • Install post-construction land drains
  • Reinstate working width (“sub soiling” or

“ripping”)

  • Replace topsoil
slide-64
SLIDE 64

64 Construction sequence: Pre commissioning

  • Install post-construction land drains
  • Reinstate working width (“sub soiling” or

“ripping”)

  • Replace topsoil
  • Pressure test pipeline, dry and

commission

slide-65
SLIDE 65

65

Construction sequence: Before and After

slide-66
SLIDE 66

66

Construction sequence: Before and After

slide-67
SLIDE 67

67

Issues for further consideration

slide-68
SLIDE 68

68

Key Licences, Permits & Consents

Onshore: Development Consent Order (Pipeline) & Associated Development (AGIs) Wildlife & Countryside Act (as appropriate) Offshore: Petroleum Act (offshore pipeline) Energy Act (offshore storage facility) FEPA Licence (deposit on the seabed) Appropriate Assessment (as appropriate)

slide-69
SLIDE 69

69

Questions for IPC

IPC Interest Offshore DECC / IPC Interface IPC Outreach Programme DECC Third Party Access Arrangements

slide-70
SLIDE 70

70

What information would you like from us?
