Xerox Bearing Tester Final Project Review [1] May 10, 2013 P13505 1 Project Team and Stakeholders Customer Erwin Ruiz Technical Specialist Project Manager Xerox Corporation Guide William Nowak Principle Engineer Xerox Corporation

slide-1

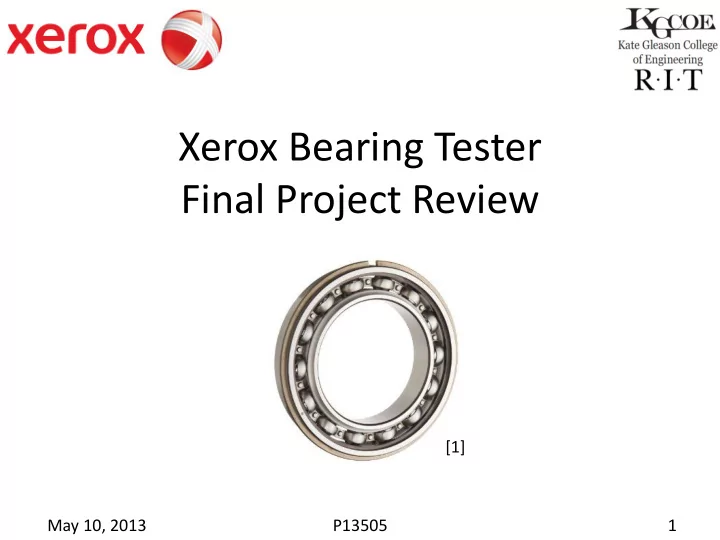

SLIDE 1

May 10, 2013 P13505 1

Xerox Bearing Tester Final Project Review

[1]

slide-2
SLIDE 2

May 10, 2013 P13505 2

Project Team and Stakeholders

Customer

Erwin Ruiz Technical Specialist Project Manager Xerox Corporation

Guide

William Nowak Principle Engineer Xerox Corporation

Faculty Consultant

Jason Kolodziej RIT ME Faculty

Project Team

Stephen Rugg Project Manager Will Craig Co-lead Engineer Andrew Shuman Co-lead Engineer Kevin Albino Team Facilitator/Project Engineer Lauren Kaczor Project Engineer Tyler Hill Project Engineer

slide-3
SLIDE 3

May 10, 2013 P13505 3

Project Background

  • There are 2 Bearings in the iGen Printer System supporting

the fuser roller

  • Every 200,000 prints the fuser roller assembly comes in for

remanufacturing

  • Bearing is reused a maximum of 4 times
  • Currently, there is no quantitative test to qualify bearings

– Potentially leads to many good bearings being scrapped

  • Customer wishes to use the machine as a design tool
slide-4
SLIDE 4

May 10, 2013 P13505 4

Updated Customer Needs

slide-5
SLIDE 5

May 10, 2013 P13505 5

Specifications

slide-6
SLIDE 6

May 10, 2013 P13505 6

System Assembly

slide-7
SLIDE 7

May 10, 2013 P13505 7

Operation

slide-8
SLIDE 8

May 10, 2013 P13505 8

Machining

  • Manual Machining

– Motor Block – Mandrels (press and slip fit) – Arbor press fixtures – Clamp attachment – Clamp frame

  • CNC Machining

– Clamp bore

slide-9
SLIDE 9

May 10, 2013 P13505 9

Data Acquisition

  • Designed a signal conditioner to power

accelerometers

  • Pairs with NI 6210 DAQ
  • DAQ outputs accelerometer readings and motor

speed

slide-10
SLIDE 10

May 10, 2013 P13505 10

LabVIEW

  • Plots of raw data and FFT
  • Display RMS values
slide-11
SLIDE 11

May 10, 2013 P13505 11

Testing

  • Performed 10+ MSAs
  • Refined SOP
  • Passed MSA using 3

bearings and 7

  • perators
slide-12
SLIDE 12

May 10, 2013 P13505 12

Data

  • RMS between 0.1 and 0.7 g’s
  • 13 ranges of resolution

– Differentiate ±0.025 g

  • Acoustic machine passed all “good” and “bad” bearings

0.1 0.2 0.3 0.4 0.5 0.6 0.7 5 10 15 20

Vibration (g's) Bearing

Bearing Vibration Levels

Good Bearings Scrap Bearings Reused Bearings

slide-13
SLIDE 13

May 10, 2013 P13505 13

Budget

  • Overall Budget - $1500-$3000
  • Final Cost Breakdown

– Data Collection $760.46 – Physical Structure $602.91 – Shipping $75.66 – Total $1439.03

slide-14
SLIDE 14

May 10, 2013 P13505 14

Recommendations-Operations

  • Establish pass/fail threshold for bearings

– Send a range of bearing to Arnprior

  • Further automate process

– Use motor controller with computer input

  • Purchase new signal conditioner
  • Remove second accelerometer and drop down rails
slide-15
SLIDE 15

May 10, 2013 P13505 15

Recommendations - Hardware

  • Make bearing clamp out of steel
  • Enlarge dowel pins
  • Hardened shaft
  • Second press-fit mandrel
  • Larger arbor press
slide-16
SLIDE 16

May 10, 2013 P13505 16

What We Learned

  • Concept selection process
  • The importance of backup plans
  • LabVIEW

– Signal Processing

  • Machining
  • Measurement system analysis
  • Teamwork
  • Team management
slide-17
SLIDE 17

May 10, 2013 P13505 17

Thank You!

  • Xerox
  • Bill Nowak
  • Erwin Ruiz
  • Dr. Kolodziej
  • Dr. Boedo
  • Dr. Ghoneim
  • RIT Machine Shop-Rob Kraynik, Dave Hathaway,

Jan Maneti

  • MSD Lab
slide-18
SLIDE 18

May 10, 2013 P13505 18

References

1. http://www.amazon.com/SKF-Bearing-Clearance-3600lbf- Capacity/dp/B0071ARFWS
