www.quickmountpv.com 10/13/11 1 Overview Who is Quick Mount PV? - PowerPoint PPT Presentation

Jan 25, 2024 •299 likes •863 views

www.quickmountpv.com 10/13/11 1 Overview Who is Quick Mount PV? Past Mounting Systems, Revisited Problems in the industry Solar Roofing Best Practices The Quick Mount Goals: Code Compliance Fastest Installation &

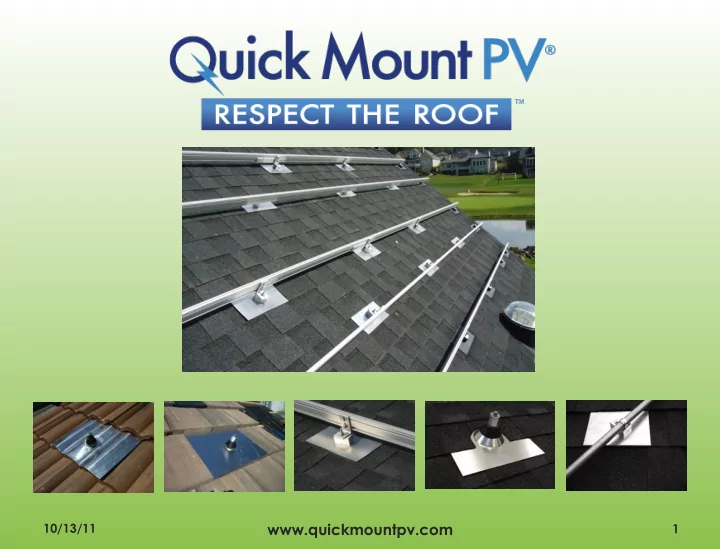

  1. www.quickmountpv.com 10/13/11 1

  2. Overview • Who is Quick Mount PV? • Past Mounting Systems, Revisited • Problems in the industry • Solar Roofing Best Practices • The Quick Mount Goals: • Code Compliance • Fastest Installation & High Quality • Longevity & Aesthetic Appeal • Compatibility With All Racking Systems www.quickmountpv.com 10/13/11 2

  3. Overview • Quick Mount PV Products • Composition Mounts • Shake & Slate Mounts • Universal Tile Mount • Flat Tile Mount • Low Slope Mount • Conduit Mount • Accessories & Tools • Quick Mount PV Website www.quickmountpv.com 10/13/11 3

  4. Born In The Trades • Founded in 2006 by Stuart and Claudia Wentworth • Family business with over 20 years experience in metal fabrication, green building and solar • Extensive experience with PV installation • Committed to the future of solar power & sustainability • Dedicated to quality, code-compliant solar installations www.quickmountpv.com 10/13/11 4

  5. Why Respect The Roof? “ …80% of all construction related litigation stems from water intrusion. ” - Rob Hernandez Pitched Roof Racking SolarPro November 2008 It only takes a single leak to cause callbacks, roof damage, bad reputation, or even a lawsuit. www.quickmountpv.com 10/13/11 5

  6. Think Like A Roofer • Solar installers must think and act like roofers when stepping onto a roof to make penetrations. • Who would install a skylight or vent jack without complete waterproof flashing? • How would a roofer approach mounting PV or solar thermal panels to a customer ’ s roof? • How do we maintain roof warranties? • What is “ code ” for solar mounting systems? www.quickmountpv.com 10/13/11 6

  7. What ’ s Wrong With This Picture? www.quickmountpv.com 10/13/11 7

  8. Past Methods It might look okay at first… Unflashed mounts were typical in the early days of solar and may have even passed inspection. www.quickmountpv.com 10/13/11 8

  9. Past Methods ... but over time leaks and corrosion are inevitable. …with sealant but no Attaching brackets or L feet …leads to corrosion and flashing… directly to a composition leakage at the penetration. roof… www.quickmountpv.com 10/13/11 9

  10. Improvements along the way… Not all flashed mounts are equally effective. www.quickmountpv.com 10/13/11 10

  11. Quick Mount PV Products The recognized standard for 100% code-compliant, watertight roof mounts Meet/exceed NRCA & • TRI standards and best practices Meet IBC, UBC, IRC, SBC • Patented waterproofing • technology Up to 50-year life • All aluminum flashing • and mount Stainless steel hardware • www.quickmountpv.com 10/13/11 11

  12. Wheel Of Accountability See our website for full information on the relationships between code makers, code enforcers and the solar installer. www.quickmountpv.com 10/13/11 12

  13. Many Roofing Codes Come Into Play A Few Key Points: ‣ IBC/IRC/SBC : Flashing required at all roof penetrations ‣ NRCA Best Practices: No exposed fasteners on shingle roofs ‣ SMACNA: No galvanized on roofs exceeding 15-year lifespan www.quickmountpv.com 10/13/11 13

  14. Classic Composition Mount Our Best-Selling Mount ICC-ES tested and certified • Approved by GAF/Elk & Owen ’ s Corning • Patented waterproofing technology • One-bolt installation • No shingle cutting • 100% code compliant • Simple installation meets or exceeds • codes & NRCA Best Practices All aluminum flashing with stainless steel • hardware included Works with all standard racking systems • www.quickmountpv.com 10/13/11 14

  15. Superior Waterproofing Technology Two EPDM rubber washers lock out moisture. Resistance to heat, ozone and weather means years of effective use. Thicker all-aluminum flashing and mount have 50-year life Patented technology allows a expectancy. strong, permanently watertight seal without welding. All stainless steel hardware included. www.quickmountpv.com 10/13/11 15

  16. Designed By Installers For Installers Practicality on the roof must be considered Reasons for oversizing: • Wind driven rain • Extra flashing for missed pilot holes 4 in. (code) 6 in. (QM) .032 in. (code) .050 in. (QM) www.quickmountpv.com 10/13/11 16

  17. Extremely Fast & Easy Installation 2. Drill ¼ ” pilot hole for lag bolt. 1. Lift shingle and clear nails. 3. Add roof sealant to pilot hole. 4. Slide Quick Mount into place. www.quickmountpv.com 10/13/11 17

  18. Extremely Fast & Easy Installation 6. Add EPDM rubber gasket. 5. Drive hanger bolt into rafter. 7. Attach preferred rails. 8. Move on to the next row. www.quickmountpv.com 10/13/11 18

  19. Faster Installation Means More Profit “ Quick Mount PV saves our crew at least four hours per job– and with zero chance of leaks. ” - Matt Steiner Plumbing, Electric & Heating Better Engineering • Further Spans • Less Roof Penetrations • Lower Cost www.quickmountpv.com 10/13/11 19

  20. Quality Speaks stronger engineering = further spans = less roof penetrations = LOWER COST www.quickmountpv.com 10/13/11 20

  21. Engineering Test Results On Composition Mounts Pullout average 3934 lbs Sample ID Wood Species Ultimate Load in Failure Mode Tension (lbs) T-DF-1 Douglas Fir 3963 Lag bolt pulled out T-DF-2 Douglas Fir 4074 Lag bolt pulled out T-DF-3 Douglas Fir 3764 Lag bolt pulled out Average …. 3934 … T-C-1 Cedar 2096 Lag bolt pulled out T-C-2 Cedar 2004 Lag bolt pulled out T-C-3 Cedar 2543 Lag bolt pulled out Average … 2214 … www.quickmountpv.com 10/13/11 21

  22. Engineering Test Results On Composition Mounts Shear average 4365 lbs Sample ID Wood Species Ultimate Load in Failure Mode Tension (lbs) S-DF-1 Douglas Fir 4306 Bent lag bolt S-DF-2 Douglas Fir 3990 Bent lag bolt S-DF-1(A) Douglas Fir 4799 Bent lag bolt Average …. 4365 … S-C-1 Cedar 3214 Bent lag bolt S-C-2 Cedar 3456 Bent lag bolt S-C-3 Cedar 3268 Bent lag bolt Average … 3313 … www.quickmountpv.com 10/13/11 22

  23. Works With All Racks Compatible with all standard solar racking systems www.quickmountpv.com 10/13/11 23

  24. Quick Mount with Unirac Rail QM Classic Composition Mount with L foot and Unirac rail www.quickmountpv.com 10/13/11 24

  25. Quick Mount with Iron Ridge Rail QM Classic Composition Mount engineered with Iron Ridge www.quickmountpv.com 10/13/11 25

  26. Quick Mount with ProSolar Rail QM Classic Composition Mount with low-profile ProSolar rail www.quickmountpv.com 10/13/11 26

  27. Engineering Reports From All Major States UniRac & ProSolar www.quickmountpv.com 10/13/11 27

  28. Approval from Roof Manufacturers GAF & Owen ’ s Corning Approved Quick Mount PV ’ s Composition Mount to not void their product warranty! www.quickmountpv.com 10/13/11 28

  29. Available In Three Different Finishes Anodized finishes help maximize beauty and durability. Aluminum mill • Clear anodized • Bronze anodized www.quickmountpv.com 10/13/11 29

  30. When Aesthetics Are Critical ... Install bronze only on perimeter where mounts are visible www.quickmountpv.com 10/13/11 30

  31. Classic Composition Mount Box Contents Comes complete with all needed hardware Case of 12 mounts with all hardware included • Aluminum mounting block bonded to .05" thick, 12" x 12" • aluminum flashing Stainless steel hanger bolt, 5/16" x 6 ” (longer bolts available) • Stainless steel EPDM rubberized sealing • washer Two stainless steel 5/16" hex nuts • Solid EPDM sealing washer with 60 • Durometer hardness Stainless steel flat washer • Stainless steel lock washer • www.quickmountpv.com 10/13/11 31

  32. Composition Mounts New Roof Comp Mount Classic Comp Mount Standoff Post & Flashing All-In-One Flashing & Mount - Great For New Roofs - Allows Roofer to Warrant Waterproofing - Great For Retrofit & New Roofs - Standard Roofing Best Practices - Quick & Easy Installation - Cuts Down Labor Costs - No Roof Cutting

  33. New Roof Comp Mount www.quickmountpv.com 10/13/11 33

  34. New Roof Comp Mount www.quickmountpv.com 10/13/11 34

  35. Shake Roof Mount The only mount designed specifically for shake roofs. ICC tested and certified • Patented waterproofing technology • One-bolt installation • No shingle cutting • 100% code compliant • Simple installation meets or exceeds all NRCA • standards and practices All aluminum flashing and mount last 50 years • Stainless steel hardware • Compatible with all racking systems • Works with natural waterproofing system • of the roof www.quickmountpv.com 10/13/11 35

  36. Shake Roofs Most shake roofs consist of interlaid felt paper for waterproofing The QM Shake Mount 18x18 flashing is designed to slip under the felt paper www.quickmountpv.com 10/13/11 36

  37. Shake Roof Mount Box Contents Comes complete with all needed hardware Case of 12 mounts • Aluminum mounting block attached to .05" thick, 18" x • 18" aluminum flashing Stainless steel hanger bolt, 5/16" x 6" • Stainless steel EPDM rubberized sealing • washer Two stainless steel 5/16" hex nuts • Solid EPDM sealing washer with 60 • Durometer hardness Stainless steel flat washer • Stainless steel lock washer • www.quickmountpv.com 10/13/11 37
