Write Through No Write Allocate Cache Write Reference Check tag and index Yes Tag AND No Index are Hit Miss in cache Memref Yes Memref Yes Update Cache - No Update Cache - Yes Write Through No Write Allocate Cache

SLIDE 1

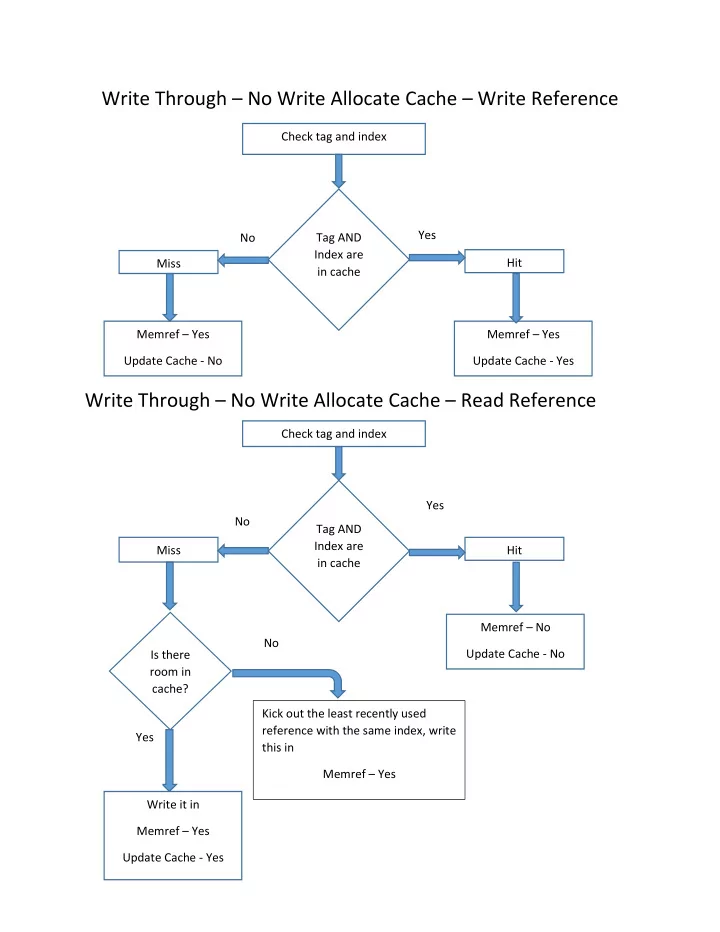

Write Through – No Write Allocate Cache – Write Reference Write Through – No Write Allocate Cache – Read Reference

Check tag and index Tag AND Index are in cache Miss Hit Memref – Yes Update Cache - No Memref – Yes Update Cache - Yes Check tag and index Tag AND Index are in cache Miss Hit Write it in Memref – Yes Update Cache - Yes Memref – No Update Cache - No No Yes No Yes Is there room in cache? Kick out the least recently used reference with the same index, write this in Memref – Yes Update Cache - Yes No Yes

SLIDE 2

Write Back – Write Allocate Cache – Write Reference

Check tag and index Tag AND Index are in cache Miss Hit Write it in. Mark dirty. Memref – Yes Update Cache - Yes Memref – No Update Cache – Yes Mark dirty No Yes Is there room in cache? Find the Least Recently Used Reference with the same index. Was there a previous write to the LRU reference? Replace the LRU

reference. Mark dirty.

Memref – Yes Update Cache - Yes Write the LRU into memory, replace the LRU in cache. Mark dirty. Memref – Yes (2) Update Cache - Yes No Yes Yes No

SLIDE 3

Write Back – Write Allocate Cache – Read Reference

Check tag and index Tag AND Index are in cache Miss Hit Write it in. Memref – Yes Update Cache - Yes Memref – No Update Cache - No No Yes Is there room in cache? Find the Least Recently Used Reference with the same index. Was there a previous write to the LRU reference? Replace the LRU reference Memref – Yes Update Cache - Yes Write the LRU into memory, replace the LRU in cache. Memref – Yes (2) Update Cache (Yes) No Yes Yes No
