Arno Smets

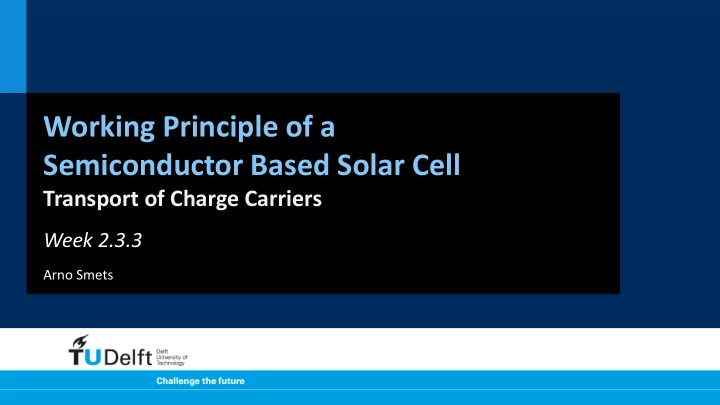

Working Principle of a Semiconductor Based Solar Cell Transport of - - PowerPoint PPT Presentation
Working Principle of a Semiconductor Based Solar Cell Transport of - - PowerPoint PPT Presentation
Working Principle of a Semiconductor Based Solar Cell Transport of Charge Carriers Week 2.3.3 Arno Smets Diffusion Drift E-Field Random movement = no net movement J e = qD e dn/dx Diffusion density Diffusion J e = qD e dn/dx density
SLIDE 2
SLIDE 3
Random movement = no net movement
SLIDE 4
Diffusion
density Je = qDe dn/dx
SLIDE 5
Diffusion
Je = qDe dn/dx density
SLIDE 6
Diffusion
Je = qDe dn/dx density
SLIDE 7
Diffusion
dn/dx=0 J=0 density
SLIDE 8
Drift
E-Field Hole Electron
SLIDE 9
Drift
Current density Density Charge Mobility Electric field
Jh = pq hE Je = nq eE
SLIDE 10
Drift
E-Field Hole Electron
SLIDE 11
E-Field
Diffusion Drift
SLIDE 12
Recombination
Charge Carrier Recombination
SLIDE 13
Radiative recombination
Charge Carrier Recombination
SLIDE 14
Auger recombination
Charge Carrier Recombination
SLIDE 15
Shockley-Read-Hall (SRH) recombination
Charge Carrier Recombination
SLIDE 16
Diffusion Length
Lh Le
L= D t
SLIDE 17
Diffusion Length
Lh Le
L= D t
SLIDE 18
Diffusion Length
Lh Le
L= D t
SLIDE 19
Diffusion Length
Transport by diffusion limited by minority carriers Diffusion length: p-doped
Le= Det e < Lh
SLIDE 20
Diffusion Length
Transport by diffusion limited by minority carriers Diffusion length: p-doped
Le= Det e < Lh
e h h h
L D L
n-doped
- +
+ + + + + + + + + + +
SLIDE 21
E-Field
Diffusion Drift
SLIDE 22
