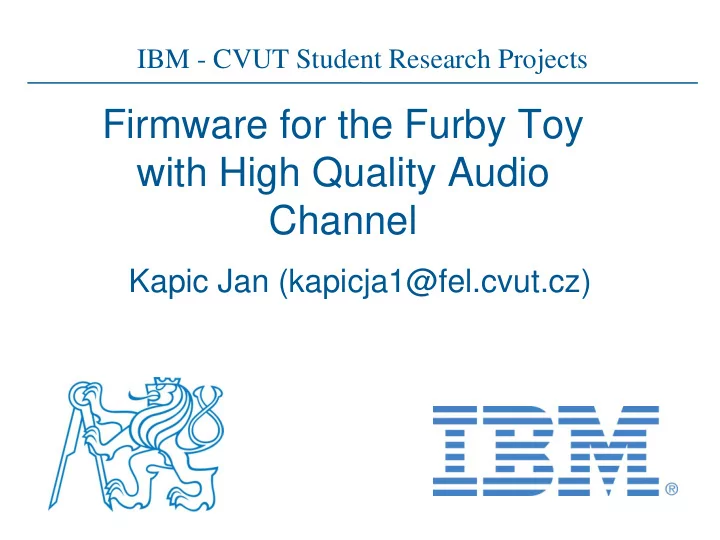

IBM - CVUT Student Research Projects Firmware for the Furby Toy with High Quality Audio Channel Kapic Jan (kapicja1@fel.cvut.cz) Goal of the project Replace the original baseboard with board designed by Martin ebek Rewrite and extend

SLIDE 1

IBM - CVUT Student Research Projects

Firmware for the Furby Toy with High Quality Audio Channel

Kapic Jan (kapicja1@fel.cvut.cz)

SLIDE 2

IBM - CVUT Student Research Projects 2

Goal of the project

 Replace the original baseboard with board

designed by Martin Šebek

 Rewrite and extend firmware over the

existing protocol

 Firmware includes

 Wireless sound transmission in high quality  Wireless control of motoric function

(movement)

SLIDE 3

IBM - CVUT Student Research Projects 3

Important parts on baseboard

Microcontroller dsPIC33FJ256GP506

 Hearth of baseboard

 Audio Codec

 Audio processing

 Bluetooth baseboard

 Wireless UART implementation

SLIDE 4

IBM - CVUT Student Research Projects 4

How does it work?

Control side Receiving and processing commands

Wireless UART

SLIDE 5

Find the 10 differences :)

IBM - CVUT Student Research Projects 5

Original board Our prototype

SLIDE 6

:)

IBM - CVUT Student Research Projects 6

SLIDE 7

Already have been done:

 Baseboard created and assembled  Audio transmission in high quality via

Bluetooth

 Application of ADPCM compression

during the sound processing

 Created small programs for testing

partitioned functionality of baseboard

IBM - CVUT Student Research Projects 7

SLIDE 8

IBM - CVUT Student Research Projects 8

TODO

 Put the all features together  Fix many bugs in the baseboard design  Better amplifier on the sound output  Connect the audio transmission to voice

recognition software

SLIDE 9

Thank you for your attention!
