Wikilab, architecture & CNC Collaborative architecture and construction with FreeCAD Yorik van Havre FOSDEM 2018 These slides available from FOSDEM website The WikiLab So Paulo, Brazil Built in 2017 Based on WikiHouse Built by

slide-1
SLIDE 1

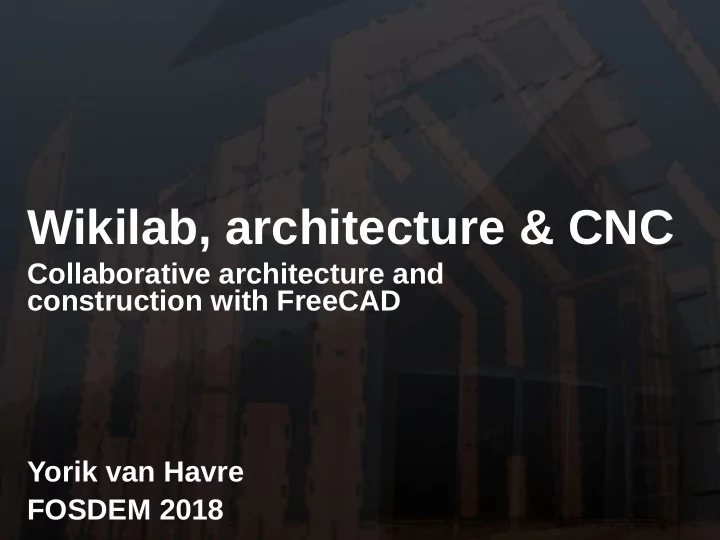

Wikilab, architecture & CNC

Collaborative architecture and construction with FreeCAD Yorik van Havre FOSDEM 2018

slide-2
SLIDE 2

These slides available from FOSDEM website

slide-3
SLIDE 3

The WikiLab

São Paulo, Brazil Built in 2017 Based on WikiHouse Built by volunteers Fully open-source

slide-4
SLIDE 4
slide-5
SLIDE 5
slide-6
SLIDE 6
slide-7
SLIDE 7
slide-8
SLIDE 8
slide-9
SLIDE 9
slide-10
SLIDE 10
slide-11
SLIDE 11
slide-12
SLIDE 12
slide-13
SLIDE 13
slide-14
SLIDE 14
slide-15
SLIDE 15
slide-16
SLIDE 16
slide-17
SLIDE 17
slide-18
SLIDE 18
slide-19
SLIDE 19

The WikiHouse project

Do-it-yourself construction system made of CNC-cut wooden pieces

  • Started in the UK in 2011
  • Already several built units around the world
  • Open-source
  • Well-tested and matured system already
  • http://wikihouse.cc
slide-20
SLIDE 20
slide-21
SLIDE 21
slide-22
SLIDE 22
slide-23
SLIDE 23
slide-24
SLIDE 24
slide-25
SLIDE 25

FreeCAD

Open-source parametric 3D modeller

  • Started in Germany in 2002
  • Today probably the most well-known

“technical” open-source 3D app

  • Generic, many uses and specialties
  • Parametric, objects are defined by their

parameters

  • http://freecadweb.org
slide-26
SLIDE 26
slide-27
SLIDE 27
slide-28
SLIDE 28
slide-29
SLIDE 29
slide-30
SLIDE 30
slide-31
SLIDE 31
slide-32
SLIDE 32

Sketchup → FreeCAD

  • Mesh geometry → Brep geometry (NURBS-

based)

  • Step-by-step conversion to parametric model
  • Integration with other elements (brickwork,

piping, etc…)

  • Precise quantities
  • Production of all needed files (2D plans,

spreadsheets, mesh models for rendering, CNC code, etc)

slide-33
SLIDE 33
slide-34
SLIDE 34
slide-35
SLIDE 35
slide-36
SLIDE 36
slide-37
SLIDE 37
slide-38
SLIDE 38
slide-39
SLIDE 39
slide-40
SLIDE 40

Producing:

  • 2D plans
  • Mesh models for rendering
  • Spreadsheets for quantities / pricing
  • CNC code
  • ...And FreeCAD code!
slide-41
SLIDE 41
slide-42
SLIDE 42
slide-43
SLIDE 43
slide-44
SLIDE 44
slide-45
SLIDE 45
slide-46
SLIDE 46
slide-47
SLIDE 47
slide-48
SLIDE 48
slide-49
SLIDE 49
slide-50
SLIDE 50
slide-51
SLIDE 51
slide-52
SLIDE 52
slide-53
SLIDE 53
slide-54
SLIDE 54
slide-55
SLIDE 55
  • Fabricating is EASY
  • Cost control is very precise
  • Lots of optimizations possible
  • A big part of the production chain is under

control

  • Lots more to do: integrate electrical

appliances, make doors and windows, cut plastic pieces too, etc

  • Give less to professioanl builders and more to

the community. Building houses is FUN

  • Experimentation, hacking, actual building and

fun are back into architecture

What I learned:

slide-56
SLIDE 56

Thanks for watching! FreeCAD http://www.freecadweb.org http://forum.freecadweb.org Facebook, Google+,etc... Yorik van Havre http://yorik.uncreated.net yorik@uncreated.net @yorikvanhavre
