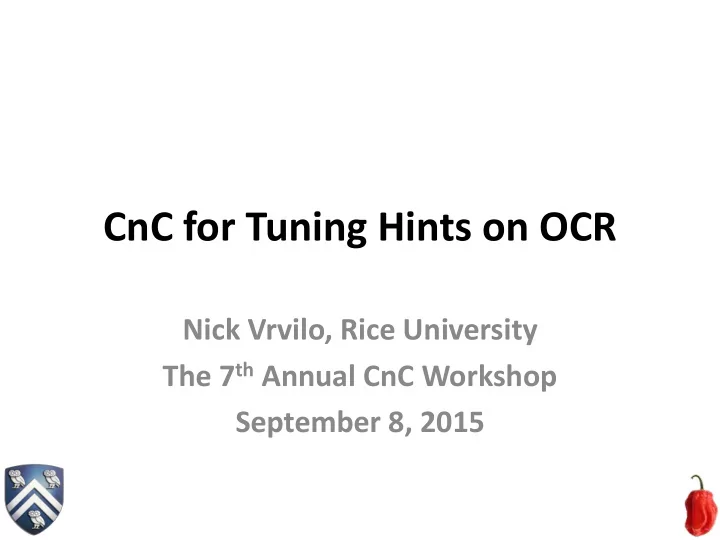

CnC for Tuning Hints on OCR

Nick Vrvilo, Rice University The 7th Annual CnC Workshop September 8, 2015

SLIDE 2

Acknowledgements

This work was done as part of my internship with the OCR team, part of Intel Federal, LLC at Jones Farm (Hillsboro, OR). Mentors (Intel): Josh Fryman and Romain Cledat Habanero Team (Rice): Vivek Sarkar, Kath Knobe, Zoran Budimlić, and Sanjay Chatterjee

2

SLIDE 3

Objective

Demonstrate the effectiveness of OCR tuning hints by way of code generation from a higher- level programming model (CnC).

3

SLIDE 4

OCR Tunings

Objective

CnC-OCR Scaffolding CnC App Code CnC Graph

hints handler

4

SLIDE 5

Open Community Runtime (OCR)*

OCR project goals:

Provide effective abstraction for diverse

hardware

Typify future task-based execution models
Handle large-scale parallelism efficiently
Maintain a separation of concerns

(application/scheduling/resources)

Open source (encourage collaboration)

* OCR ==> X-Stack Traleika Glacier project’s implementation

5

SLIDE 6

Outline

Introduction
OCR Hints API
CnC on OCR
Tuning Hints Implementation and Analysis

6

SLIDE 7

CnC / OCR Concept Mapping

Concept OCR construct CnC construct Task classes (code) EDT template Step collection Task instance EDT Step instance Data classes All DBs have type void*

(keeping track of individual DBs’ types is the app programmer's responsibility)

Item collection Data instance Datablock Item instance Unique instance identifier GUID Tag (step tag / item key) Dependence registration Event add dependence Item get Dependence satisfaction Event satisfy Item put

7

SLIDE 8

OCR Hints API: Example

// Assume we have a template and a datablock

crGuid_t edt;
crEdtCreate(&edt, template, 0, NULL, 1, NULL,

EDT_PROP_NONE, NULL_GUID, NULL); { // Set an OCR hint

crHint_t stepHints;
crHintInit(&stepHints, OCR_HINT_EDT_T);
crGetHint(edt, &stepHints);
crSetHintValue(&stepHints, OCR_HINT_EDT_PRIORITY, 100);
crSetHint(edt, &stepHints);

}

crAddDependence(datablock, edt, 0, DB_DEFAULT_MODE);

8

SLIDE 9

OCR Hints API:

Pros

Generic
Conceptually decoupled
Light-weight

Cons

Verbose
Placed in app source code
Limited expressiveness

9 9

SLIDE 10

Outline

Introduction
OCR Hints API
CnC on OCR
Tuning Hints Implementation and Analysis

10

SLIDE 11

CnC-OCR Developer Workflow

Write graph spec Run translator tool (produces skeleton project) Flesh-out skeleton code Run program (functionality check) debug Write tuning spec(s) Re-run translator tool (updates scaffolding code) Re-run program (performance check) fine-tuning

11

SLIDE 12

OCR Tunings

CnC-OCR + Tuning

CnC-OCR Scaffolding CnC App Code CnC Graph

hints handler

12

SLIDE 13

Separation of Concerns in CnC

Graph specification can be written without

implementation details

Step function implementations written without

knowledge of the external graph (only its own inputs and outputs)

Tuning specification given in a separate file
Easy to mix-in different tunings for performance

testing

Try combinations of tunings until you find the

ideal configuration

13

SLIDE 14

Outline

Introduction
OCR Hints API
CnC on OCR
Tuning Hints Implementation and Analysis

14

SLIDE 15

Tuning Hints Overview

1. Step / item distribution
2. Step affinity with input
3. Step priority
4. Scheduler throttling
5. Partial item requests

15

SLIDE 16

Hint #1: Step / Item Distribution Functions

What?

Declare a function for mapping individual step / item instances from a collection onto the set of OCR policy domains.

Why?

– Distributed OCR currently lacks advanced schedule/placement heuristics. – Need control of distribution for a reasonable baseline.

16

SLIDE 17

Smith-Waterman Sequence Alignment

Each input sequence

length ~200k

Dynamic programming
ptimization on ~40-billion

cell matrix

Tiles of 177x153 cells
Total of 1138x1322 tiles

17

SLIDE 18

Smith-Waterman Specification

Graph Specification

[ int above[] : i, j ]; [ int left[] : i, j ]; [ SeqData *data : () ]; ( swStep: i, j ) <- [ data: () ], [ above: i, j ] $when(i > 0), [ left: i, j ] $when(j > 0)

> [ below @ above: i+1, j ],

[ right @ left: i, j+1 ], ( swStep: i+i, j ) $when(i+1 < #nth);

Tuning Specification

[ above ]: { distfn: (i / 16) % $RANKS }; [ left ]: { distfn: (i / 16) % $RANKS }; ( swStep ): { distfn: (i / 16) % $RANKS };

18 18

SLIDE 19

Smith-Waterman Sequence Alignment

Each input sequence

length ~200k

Dynamic programming
ptimization on ~40-billion

cell matrix

Tiles of 177x153 cells
Total of 1138x1322 tiles
Default: CnC default

distribution

Row-block: Rows in blocks
f 16
10 runs per configuration

19

10 20 30 40 50 1 2 4 8 Average Execution Time (seconds) Node Count CnC-OCR Default CnC-OCR Row-Block iCnC Row-Block 115.40 141.49

SLIDE 20

Hint #2: Step Affinity with Input Item

What?

Declare that a step instance be affinitized with

ne of its input items.
Why?

– OCR can use this affinity to improve scheduling heuristics. – More expressive way to specify tunings like hint #1.

20

SLIDE 21

Smith-Waterman Specification

Graph Specification

[ int above[] : i, j ]; [ int left[] : i, j ]; [ SeqData *data : () ]; ( swStep: i, j ) <- [ data: () ], [ above: i, j ] $when(i > 0), [ left: i, j ] $when(j > 0)

> [ below @ above: i+1, j ],

[ right @ left: i, j+1 ], ( swStep: i+i, j ) $when(i+1 < #nth);

Tuning Specification

[ above ]: { distfn: (i / 16) % $RANKS }; [ left ]: { distfn: (i / 16) % $RANKS }; ( swStep ): { placeWith: above };

21 21

SLIDE 22

Hint #3: Step Priority Weights

What?

Express a priority weight for a given CnC step, such that steps with heavier weights should execute earlier.

Why?

– Search problems: prioritize paths likely to find the answer sooner – Enable concurrency: prefer task with high-demand

utput (many consumers)

22

SLIDE 23

N-Queens Puzzle

Board size: 13x13
Solutions possible: 73,312

♛ ♛ ♛ ♛ ♛ ♛ ♛ ♛

23

SLIDE 24

N-Queens Specification

Graph:

[ u64 solutions[4]: i ]; ( placeQueen: row, board )

> ( placeQueen: row+1, board_prime ),

[ solutions: ? ];

Tuning:

( placeQueen /* row, board */ ): { priority: row };

24

SLIDE 25

Implementation of Step Priority Weights

Description Default Scheduler Priority Scheduler Location Base data structure deque bin-heap utils/ Scheduler interface wrapper deque bin-heap scheduler-

bject/

Scheduler (aggregate) root object wst pr-wsh scheduler-

bject/

Scheduler heuristic behavior hc priority scheduler- heuristic/

25

SLIDE 26

N-Queens Puzzle

Board size: 13x13
Solutions possible: 73,312
Solutions sought: 5,000
DEQ: Default work-stealing deque
DFS: Prioritize deep rows
BFS: Prioritize shallow rows
50 runs per configuration

1 2 3 4 DEQ DFS BFS Average execution time (seconds)

26

SLIDE 27

Hint #4: Stoker Step (Scheduler Throttling)

What?

Annotate the work-creating steps (which we call stokers) so that the runtime can differentiate them from non-work-creating steps (which we call quenchers).

Why?

– If the scheduler has plenty of work to do, we can throttle by not running any more stoker steps for the time being. – For work stealing, we can prioritized stoker-steps for stealing, mitigates the need for more stealing in the near- term.

27

SLIDE 28

Task-Bomb (Synthetic Example)

Root step creates Z=32

stoker steps

Each stoker creates
Y=100 quencher tasks
One stoker task
Recursion creates X=200

levels

Since the stoker is always

created last, we would expect all of the stokers to run in a depth-first manner when using the standard work-stealing deque scheduler

$initialize stoker(0,0) quencher(0,0,0) … quencher(0,0,Y) stoker(0,1) quencher(0,1,0) … quencher(0,1,Y) stoker(0,2) … … stoker(Z,0) quencher(Z,0,0) … quencher(Z,0,Y) stoker(Z,1) …

28

SLIDE 29

Task-Bomb CnC Graph Spec

[ void *done: () ]; ( stoker: i, j )

> ( quencher: i, j, $rangeTo(Y) ),

( stoker: i, j+1 ) $when(j<X); ( quencher: i, j, k )

> [ done: () ] $when(i==0 && j==X && k==Y);

( $initialize: () ) -> ( stoker: $range(Z), 0 ); ( $finalize: () ) <- [ done: () ];

29

SLIDE 30

Task-Bomb CnC Tunings

Alternative 1: Stoker / Quencher

( stoker ): { stoker: true };

Alternative 2: Priorities

( stoker ): { priority: -1 };

30 30

SLIDE 31

Task-Bomb (Synthetic Example)

Root step creates Z=32

stoker steps

Each stoker creates
Y=100 quencher tasks
One stoker task
Recursion creates X=200

levels

Default scheduler dies

(deque overflow)

Stoker hint allows for

throttling

Similar performance via

priorities

0.5 1 1.5 2 2.5 3 3.5 4 Default Priority Stoker Average Execution Time (seconds)

☠

31

SLIDE 32

Hint #5: Partial Item Inputs

What?

Allow the programmer to specify that a step only accesses a sub-range of the bytes of an input item.

Why?

– For distributed memory, can transfer just the part that will be accessed when an item is an input to a remote step.

Work In Progress

32

SLIDE 33

Summary

OCR hints demonstrated via CnC tuning and code

generation:

– Step / item distribution – Scheduler throttling – Step affinity with input – Partial item requests – Step priority

CnC provides benefits of high-level paradigm to

OCR:

– Expressiveness – Separation of concerns

OCR design strategy makes it possible to add new

hint handlers with a reasonable amount of effort

33
