Wide-field Infrared Projects in Europe Denis Burgarella, LAM, France denis.burgarella@lam.fr 1 Outline of the Talk 1. Wide-field IR Telescope Projects (in which I am involved) 1.1. ESA White Paper Voyage 2050 1.2. SPICA (

slide-1

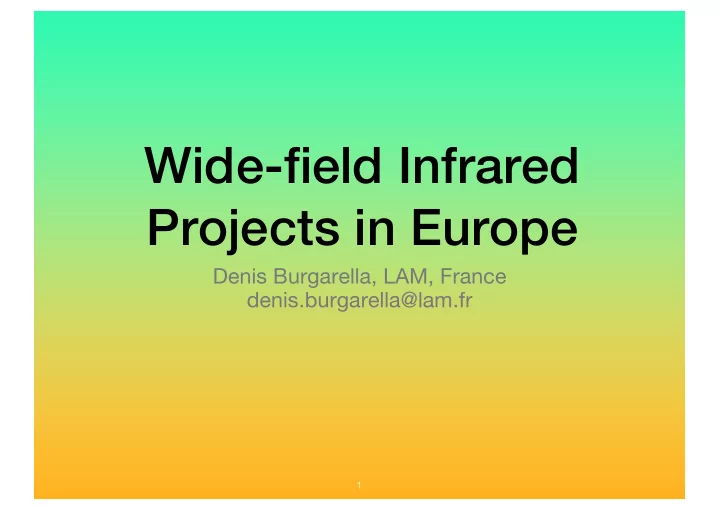

SLIDE 1

Wide-field Infrared Projects in Europe

Denis Burgarella, LAM, France denis.burgarella@lam.fr

1

slide-2
SLIDE 2

Outline of the Talk

2

  • 1. Wide-field IR Telescope Projects (in which I am involved)

1.1. ESA White Paper « Voyage 2050 » 1.2. SPICA (à 松原英雄 ) 1.3. Origins Space Telescope – MISC 1.4. VLT-MOONS 1.5 Mauna Kea Spectroscopic Explorer (MSE)

  • 2. Galaxies before the end of reionization

2.1. NIR-MIR Science Cases 2.2. Recent Result of Interest

  • 3. Perspectives of Collaborations (Japan – France)

3.1. International Research Network NECo 3.2. With my team and LAM:

  • Expertise in Optics, Data Analysis
  • Adaptation of CIGALE for Fast & Massive Fitting of

Photometry + Spectroscopy (ongoing PhD in Maths/Astro) and Simulations for MOONS à SPICA, PFS, Others?

slide-3
SLIDE 3

1.1 ESA White Paper « Voyage 2050 »

slide-4
SLIDE 4

1.1 ESA White Paper « Voyage 2050 »

Initial Assumptions:

  • Assume a 4m-class primary mirror
  • Built on the M5 FLARE and NASA OST science cases
  • 1. Science Questions

1.1.The Origins of Elements 1.1.1. When Did the First Galaxies Appear? 1.1.2. What is the History of The Rise of Metals in the Universe? 2.1.The Origins of Stellar Systems in the Milky Way 2.1.1. How Stellar Systems Form? 2.1.2. What is the Dust/Metal Cycle? 2.1.3. When did the Milky Way / Universe Became Habitable?

slide-5
SLIDE 5

1.1 ESA White Paper « Voyage 2050 »

Initial requirements (TBC by Science Team) are 1 instrument (M mission) or 2 instruments (L mission) :

  • Spectro-imager NIR-MIR (∽ 3 - 30 microns):

MUSE-like IFU or MOS ß Maximum priority

  • Spectro sub-mm (500+ microns) ß Lower priority

but strong interest by Cosmology community for all-sky survey (i.e. M5 Core+ project)

  • Wide instantaneous field of view: about 1 sq. deg
  • Angular resolution: about 0.2’’in NIR-MIR and

Herschel-like in sub-mm

  • Pixel scale: ∽ 0.2’’
slide-6
SLIDE 6

1.1 ESA White Paper « Voyage 2050 »

  • 2. Which Science Mission to Address the Science

Questions?

2.1. Summary of the Requirements from these Science Questions 2.2. What can we do with an L Science Mission? 2.3. What if we assume an M Mission?

  • 3. International Space Context
  • 4. Technology Challenges

4.1. Lightweight Large Mirror (~4m) 4.2. Deformable Mirror for Active Optics 4.3. Wide-field Integral-Field Spectrograph 4.4. Micro-Mirror Arrays

slide-7
SLIDE 7

7

1.1. Connections with Delabrouille’s cosmological WP (former M5 Core+)

All-Sky Survey mm All-Sky Survey mm Survey MIR NEP Survey MIR SEP Survey MIR MW Disk

T0 T1

slide-8
SLIDE 8

1.2. SPICA

slide-9
SLIDE 9

1.3 Origins Space Telescope - MISC

slide-10
SLIDE 10

1.3 Origins Space Telescope - MISC

slide-11
SLIDE 11

1.4 VLT-MOONS

Milestones

  • Preliminary Design Review (PDR) – 03/2016
  • Final Design Review (FDR) – 03/ 2017
  • Start of scientific operations - 2021
slide-12
SLIDE 12

1.4 VLT-MOONS

  • Two spectrographs are required

due to the large number of fibres.

  • A single cryostat will contain both of

them, in order to reduce the overall mass and volume of the instrument.

  • Each spectrograph will

simultaneously obtain spectra in the three wavebands, namely RI, YJ and H.

  • A CCD detector will be used for the

shortest waveband (RI), while Teledyne Hawaii 4RG detectors will be used for the two longer wavebands (YJ and H).

slide-13
SLIDE 13

1.4 VLT-MOONS

Scientific Objectives

Galactic archeology The study of the resolved stellar populations of the Milky Way and other Local Group

  • galaxies. Follow-up of Gaia and for Galactic surveys with VISTA. The near-IR coverage
  • f MOONS will allow to investigate the nature of the heavily-obscured regions of the

Galactic bulge. The growth of galaxies Tracing the assembly history of galaxies over cosmic time by exploiting the large multiplex and wavelength coverage of MOONS. High quality spectra for a statistically significant number of galaxies (~1 million) at z > 1. The first galaxies and Reionization The unique combination of the 8m VLT aperture, wide-area coverage, and near-IR spectroscopy offered by MOONS will provide accurate distances, relative velocities and emission-line diagnositcs for statistical samples of z > 7 galaxies. MOONS will provide the essential deep spectroscopic follow-up of current and future optical and near-IR imaging surveys (e.g. VISTA, VST, Pan-STARRS, LSST) and space mission (e.g. WISE, Athena) in the Southern hemisphere.

slide-14
SLIDE 14

1.5 Mauna Kea Spectroscopic Explorer (MSE)

slide-15
SLIDE 15
  • 2. Galaxies before the end of

reionization

slide-16
SLIDE 16

2.1. NIR-MIR Science Cases

slide-17
SLIDE 17

2.1. NIR-MIR Science Cases

z\mA mAB

25 25 26 26 27 27 28 28 29 29 5

6741 257674 2.8E+06 20084 73187

6

54 12773 307300 3873 20241

7

325 23164 532 4282

8

4 1165 55 730

9

44 5 96

10 10

1 13

This table provides the number of galaxies detected by the two WFIRST Wide (yellow) and Deep (blue) surveys at 5 < z < 10 that OST-MISC could detect. The objective of this GO proposal is to estimate M« and SFR for a sample of at least 10 galaxies per bin for WFIRST-detected objects è Needs NIR-MIR for M« and FIR for SFR.

SFR vs. Mstar

slide-18
SLIDE 18

2.1. NIR-MIR Science Cases

  • Measuring the metallicty of most

galaxies at z > 5 cannot be done from mid-IR emission line.

  • We need to find another way, or

simply drop the science case…

Rise of Metals

slide-19
SLIDE 19

2.1. NIR-MIR Science Cases

Two options:

  • 1. Use the bright optical (but

redshifted optical lines)

Needs NIR-MIR over at 3 - 10 𝜈m

slide-20
SLIDE 20

2.1. NIR-MIR Science Cases

Two options:

  • 2. Use the (also) redshifted

PAH3.3𝜈m Note that this option works pretty well for OST/MISC & SPICA/SMI (lower z)

slide-21
SLIDE 21

2.2. Recent Result of Interest

(to be submitted to Nature: Burgarella, Nanni, Hirashita, Theulé et al.)

slide-22
SLIDE 22

2.2. Recent Result of Interest

We use ALMA-observed Lyman break galaxies (detections but also upper limits) at 5 < z < 10 and we have about 25 objects.

slide-23
SLIDE 23

2.2. Recent Result of Interest

A strong modelling effort was

  • needed. This case was not (or

badly) assumed by previous models. IMF sMdust = Mdust / Mstar sSFR = SFR / Mstar

slide-24
SLIDE 24

2.2. Recent Result of Interest

Our results present thr strong advantage of being globally consistent for several galaxy populations at all redshifts in a global context (not ad- hoc modelling for LBG populations). Constraints

  • n IMF

sMdust Age

slide-25
SLIDE 25

2.2. Recent Result of Interest

IRX ∽ AFUV redshift

?

zformation

slide-26
SLIDE 26
  • 3. Perspectives of Collaborations

3.1. International Research Network NECo

slide-27
SLIDE 27
  • 3. Perspectives of Collaborations

3.1. International Research Network NECo

slide-28
SLIDE 28
  • 3. Perspectives of Collaborations

3.1. International Research Network NECo

slide-29
SLIDE 29
  • 3. Perspectives of Collaborations

3.2. With LAM and/or CIGALE Team:

  • Expertise in Optics, Data Analysis for ground-based and

space projects

  • Adaptation of CIGALE for Improved Statistics + Fast &

Massive Fitting of Photometry + Spectroscopy (ongoing PhD in Maths/Astro)

  • Simulations and Data Analysis for VLT-MOONS à also

use for SPICA, PFS, Others?

  • Should use Neural Network for each CIGALE scientific

module to speed-up already fast CIGALE

slide-30
SLIDE 30

Merci

ありがとうございました

31
