[PPT] - IRT 5000/7000 Infrared Microscopes JASCO Pr oduc t Se minar e b 9 PowerPoint Presentation

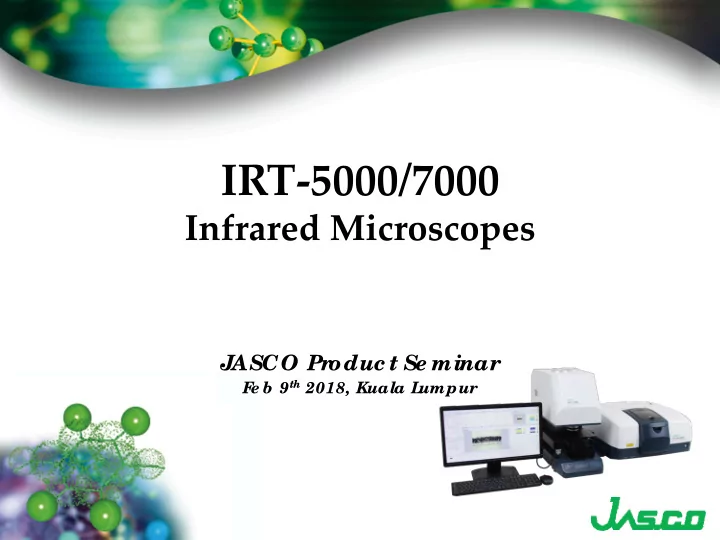

SLIDE 1

JASCO Pr

duc t Se minar

F e b 9th 2018, Kuala L umpur

IRT‐5000/7000

Infrared Microscopes

SLIDE 2

Contents ・Basic of Infrared Microspectrometry ・Advantage of IRT-5000/7000 ・Competitive information

SLIDE 3

Basic of Infrared Microspectrometry

・Target – Micro object Sample size : micron order ・Mapping measurement for small area, or analysis of change state by heating/cooling. ・The result is local information of micron area. Spectrum may be changed when you change the measurement position. The material seems to be ununiform, several points should be measured

-> Mapping / Imaging analysis is needed

Analysis by microscopic measurement

SLIDE 4

IR microscope measurement

Transmission Refrection ATR Type of measurement Sample Minimun size Sample Thickness

x 32 : 5x5 um x 16 : 10x10 um 10x10 um 0.1 – 10 um 0.1 – 5 um Doesn’t matter 0.1um -

RAS

100x100 um Several 10 Å – 0.1 um x 32 : 10x10 um x 16 : 20x20 um

Standard mid-band MCT detector Please note that these specification may be changed according to sample !

Basic of Infrared Microspectrometry

SLIDE 5

[ Target sample and measurement method] ・Foreign material, in powdery form

> Pick up it and make KBr plate, Transmission method.

・Foreign material on the Electronic substrate, Camera lens, micro relay switch

> If you pick it up, Transmission method.

Difficult to pick up, and metal base plate (IR light reflection), Reflection method. and resin base plate (smooth surface), ATR method. ・Contamination in medicine and food

> Pick up and Transmission method, or if it is on the surface
f the sample, ATR method.

・Thin layer film, thinner than 0.1um, on the metal plate or very thin film form.

> Reflection absorption spectroscopy, RAS method.

Basic of Infrared Microspectrometry

SLIDE 6

Advantage of IRT-5000/7000

FT/IR main unit Light source, Interferometer IR microscope (IRT-5000 series) Microscope optica system, Detector Control PC

IR microscope system

SLIDE 7

Microscope measurement Standard model Wide area mapping measurement Wide area, high-speed mapping Wide area, high-speed, high resolution mapping IRT-5100 IRT-5200 IRT-7100 IRT-7200 Primary use 10μm2 1 Point Measurement OK OK OK OK Identification of foreign material IQ Mapping (320x320μm) × OK OK OK Mapping of foreign material and it’s peripheral, Separation of foreign material compound Wide Area Mapping (10x7.5cm) × OK OK OK Component distribution analysis High-speed Mapping (10data/sec) × × OK OK Scanning of whole sample Change of sample state High-speed, High resolution Mapping (160data/sec) × × × OK Scanning of microscopic material Time course mapping analysis

IRT-5100 IRT-5200 IRT-7100 IRT-7200

FT/IR Microscopes

Select instrument Depending on the purpose

SLIDE 8

4 positions Revolver with various type of Cassegrain mirror

Transmission Reflection ATR RAS

SLIDE 9

Slide Attachment and Auto Recognition

Example of ATR cassegrain installation (Slide-in)

SLIDE 10

Cassegrain auto adjustment function

Auto focusing by IR light at measuement ! This is necessary for IR microscope !

Observation (Visible light focusing) Measurement (IR light focusing) Visible light IR light Sample

SLIDE 11

Single action exchange of various type detector

Detector can be select as measurement purpose from 10 detectors. 2 detectors can be mounted on IR microscope, and one of them can be exchanged in a single operation.

Linear array midband MCT(7000-650)(1 x 16Element) Linear array midband MCT(7000-650)(2 x 16Element) Linear array InSbDetector(10000-1900) Linear array InGaAsDetector(10000-5000) Mid-band MCTDetector(7800-600) Narrow-band MCTDetector(7800-750) Wide-band MCTDetector(7800-450) DLATGSDetector(7800-400) InSbDetector(15000-1850) InGaAsDetector(12000-4000)

SLIDE 12

DLATGS and MCT

Fig.1 New DLATGS and MCT, polystyrene film measurement

Measurement conditions FT/IR-6600 + IRT-5200 Aperture : 50 x 50um Accumulation : New DLATGS : x100 MCT : x50 Transmission method Accumulation number for DLATGS is twice as MCT, DLATGS have an ability to measure small area as 50x50um.

SLIDE 13

IQ mapping

SLIDE 14

Measurement method of IR microscope

1 point

Transmittance
Reflectance
ATR
RAS

Area

Transmittance
Reflectance
ATR
RAS

Specular reflectance Transmittance-reflectance Diffuse reflectance

Observation image 1649cm-1 Peak height

1.2 0.5 1 4000 750 1000 2000 3000 Abs Wavenumber [cm-1]

Mapping analysis

SLIDE 15

Conventional method

1 point

Transmittance
Reflectance
ATR
RAS

Area

Specular reflectance Transmittance-reflectance Diffuse reflectance

Manual stage Auto stage

Transmittance
Reflectance
ATR
RAS

Mapping analysis Other manufacturer still classify analysis method as this category

SLIDE 16

Conventional mapping and IQ mapping

Transmittance mapping by auto stage

SLIDE 17

Conventional mapping and IQ mapping

SLIDE 18

Conventional mapping and IQ mapping

SLIDE 19

Conventional mapping and IQ mapping

SLIDE 20

Conventional mapping and IQ mapping

SLIDE 21

Conventional mapping and IQ mapping

SLIDE 22

Conventional mapping and IQ mapping

SLIDE 23

Conventional mapping and IQ mapping

SLIDE 24

Conventional mapping and IQ mapping

SLIDE 25

Conventional mapping and IQ mapping

SLIDE 26

Measurement is completed !

SLIDE 27

IQ mapping

1 point

Transmittance
Reflectance
ATR
RAS

Area

Specular reflectance Transmittance-reflectance Diffuse reflectance

Manual stage Auto stage

Transmittance
Reflectance
ATR
RAS

IQ Mapping

IQ mapping can cover all of the measurement method. Only Jasco can do this !

SLIDE 28

Conventional mapping and IQ mapping

SLIDE 29

Measurement is completed !

SLIDE 30

IQ mapping

Advantage of mapping measurement A B C

Independently measure A, B and C data Mapping Image

A B C 1 point measurement by IR microscope

Data include all of the spectrum of A, B and C, it is not easy to analyze.

(macro) ATR measurement Mapping measurement by small aperture size Macro measurement (ATR) or 1 point measurement by IR microscope Mapping measurement by IR microscope A B C

Aperture (measurement unit) Aperture (measurement unit)

SLIDE 31

Advantage of IR mapping measurement Data include multiple spectrum from multiple compounds, it is not easy to identify each compound. 1 point measurement

1 0.5 4000 650 2000 1000 Abs Wavenumber [cm‐1] 100 μm

Multi layer sample (white frame : measurement unit)

IQ mapping

SLIDE 32

Mapping measurement

100 μm 100 μm

Multi layer sample (each white frame : measurement unit) Mapping Image

4000 650 2000 1000 Abs Wavenumber [cm‐1]

PVC + Protein PVC Polyester

0.5

Each component can be measured independently, then easily analyze it. Distribution of component is clear at a glance. Advantage of IR mapping measurement

IQ mapping

SLIDE 33

Advantage of IQ mapping : Mapping measurement can be done without auto stage. Unique and epoch-making function. Only Jasco can do IQ mapping. Maximum mapping area by IQ mapping

Maximum mapping area, um

IQ mapping

SLIDE 34

Clear View ATR

Clear View ATR, that overwhelms

ther manufacturers !

ATR-5000SD / SS

SLIDE 35

ATR measurement Problems in other manufacturer

Problem 1 : Can not observe the sample surface

f contacting area of ATR prism

Nothing can be

bserved !

Observation Image

Can not perceive even if the measurement point is wrong !

Sample surface can not be

bserved when ATR prism is

contacted on it. Therefore, we don’t know precise measurement position by ATR. In particular, hard target sample

n the soft material (for ex.,

foreign material on the gel sample) will be slipped when the prism contact on it, as a result it is difficult to measure it.

Clear View ATR

SLIDE 36

Clear View ATR + IQ mapping

ATR measurement Problems in other manufacturere

Problem 2 : measurement point is limited Only the center position of the prism can be measured.

Contamination

If you want to measure other place of the sample, once prism need to be detached from sample, move the sample position and contact the prism again. In this way, mapping data

f small sample or sticky

foreign material can not be measured.

SLIDE 37

Observe and ATR measurement during contact

ATR for IR microscope, IRT-5000/7000
Both Observation and Measurement can

be done only by Clear View ATR

Sample observation is possible through

prism under the condition of contacting the prism onto sample.

IQ monitor & IQ mapping enables you to

measure desired position by ATR while

bserving the sample

IRT-5000+FT/IR-4100

Clear View ATR

Survey position : Observe and reflectance measurement ATR positon

SLIDE 38

Clear Image by Clear View ATR

Before contact the prism (Survey position) After contact the prism (ATR position) Observation image by Clear View ATR before contact the prism (observation by cassegrain mirror) and after contact the prism onto sample. Contact surface is clearly seen.

SLIDE 39

Clear View ATR and IQ monitor, IQ mapping

By combination of Clear View ATR and IQ monitor / IQ mapping, desired position can be freely measured in the state of contacting the prism onto sample and observing the sample. This feature is quite useful for the sample which is not possible to measure again (for example, sticky foreign sample). Plastic tape Paint

IR light

Sample

Prism contact on sample, and

bserving it, desired position can

ATR mapping by auto stage

SLIDE 72

Conventional mapping and IQ mapping : ATR

SLIDE 73

Conventional mapping and IQ mapping : ATR

SLIDE 74

Conventional mapping and IQ mapping : ATR

SLIDE 75

Conventional mapping and IQ mapping : ATR

SLIDE 76

Conventional mapping and IQ mapping : ATR

SLIDE 77

Conventional mapping and IQ mapping : ATR

SLIDE 78

Conventional mapping and IQ mapping : ATR

SLIDE 79

Conventional mapping and IQ mapping : ATR

SLIDE 80

Conventional mapping and IQ mapping : ATR

SLIDE 81

Conventional mapping and IQ mapping : ATR

SLIDE 82

Conventional mapping and IQ mapping : ATR

SLIDE 83

Conventional mapping and IQ mapping : ATR

SLIDE 84

Conventional mapping and IQ mapping : ATR

Just One Time contacted + IQ mapping Faster measurement time, No need to worry about contamination

Measurement is completed ! Measurement is completed !

Conventional mapping and IQ mapping : ATR

SLIDE 117

Clear View ATR : Analysis

Mapping Observation Image

50 um 20 um

<Conditions> Model : IRT-5000 Sample : Paint Resolution : 8cm-1 Accumulation ：1 Method ：ATR (ZnS) Area : 100x100 um2 (6x6 pixel)

0.5 0.1 0.2 0.3 0.4 4000 700 2000 1000 Abs Wavenumber [cm-1]

Oil-based parint Water-based paint

Mapping image can be obtain for high viscosity sample

SLIDE 118

Conclusion of Clear View ATR

Real time sample observation is possible during contacting the prism onto sample. Measurement of interested position on the sample can be done while checking the observation image of the sample by real time observation and IQ mapping. Just One Time contacted + IQ mapping Faster measurement time, No need to worry about contamination

contacting of the prism onto sample

SLIDE 119

User friendly software

SLIDE 120

Microscope measurement window

Spectrum, Observation image, Measurement conditions etc., All information put in one window

Spectrum Real time display Measurement conditions Observation Image Thumbnail Real time data analysis

SLIDE 121

Clearer Observation Image than Stereo Microscope

Stereo Microscope x20 objective lens x16 Cassegrain (zoom x1.0) IRT-5000/7000 series

SLIDE 122

Auto Focus

Focus position 1 Focus position 2 Auto Focus graph Focus point

SLIDE 123

Auto Brightness

After automatically adjusts brightness

SLIDE 124

IQ monitor function

Observation Image, measurement position and Spectrum are shown in real time in one window.

SLIDE 125

Spectrum recording function

Spectrum recording is suited to searching for a point where the spectrum of a sample with differing thickness is not saturated.

SLIDE 126

Thumbnail

・ The window displayed on the microscopic image can be registered in the thumbnail. ・ The image registered in the thumbnail can be saved as linked with a spectrum. ・ The stage can be moved to the registered image position.

SLIDE 127

Mapping data analysis by MCR

Each component of multi layer and foreign material on it is analyzed by IR imaging and MCR (Multivariate Curve Resolution) analysis

Component A

Main Component spectrum Observation image Mapping image Green:Protein,

Blue:PVC, Red:Polyester,Yellow:Polyethylene

Database search result of main component

Component B Component C Component D

Imaging analysis result of multi layer by MCR

Component A Component C Component B Component D Protein Polyester Polyethyl ene

SLIDE 128

JASCO Sharing Holder

IR Microscope Raman Microscope The rotary sample holder will become a common standard.

JASCO Sharing Holder JASCO Sharing Holder

SLIDE 129

Correction of the stage coordinate

NRS-4500 NRS-5500/7500 IRT-5200/7200

Coordinate origin Correction of coordinate

Register the coordinate origin by using certificated sample.

Certificated sample

Share (commonize) the coordinate between instrument

SLIDE 130

IR microscope Observation image Raman microscope Observation image

Scanning image: Search the highly coincidence position. Select the comparison image

Position adjustment by image matching

SLIDE 131

(1) Set the holder to IR microscope (2) IR measurement (3) Set the holder to Raman microscope (4) Position adjustment (5) Raman measurement (6) Analysis

IR Raman

Procedure

SLIDE 132

Visible image Infrared chemical image

Cellulose PP PE PET 4000 1000 2000 3000 Wavenumber [cm-1]

Abs. (a. u.)

Cellulose PP PE PET

Raman chemical image

PP PE PET TiO

2

3000 500 1000 2000 Raman Shift [cm-1] PP PE PET TiO2

Int. (a. u.)

Example : Multi-layer film

SLIDE 133

(1) PET + pigment (2) Cellulose + pigment

4000 1000 2000 3000 Abs Wavenumber [cm-1]

(2) Cellulose (1) PET (1) Organic pigment 1 (2) Organic pigment 2

2000 200 500 1000 1500 Raman Shift [cm-1]

a. u.

IR Raman

It is possible to analyze the material of the fiber and pigment by using IR spectroscopy with Raman spectroscopy together.

Measurement example of colored fiber

SLIDE 134

It is possible to measure and analyze the same position
f the sample by using IR microscope and Raman

microscope.

JASCO can suggest the multiple analysis by IR

microscope and Raman microscope.

JASCO can supply easy and fast multiple analysis by
