Spitzer Space Telescope (A.K.A. The Space Infrared Telescope Facility) The Infrared Imaging Chain Fundamentals of Astronomical Imaging Spitzer Space Telescope 8 May 2006 1/38 The infrared imaging chain Generally similar to the optical


slide-1
SLIDE 1

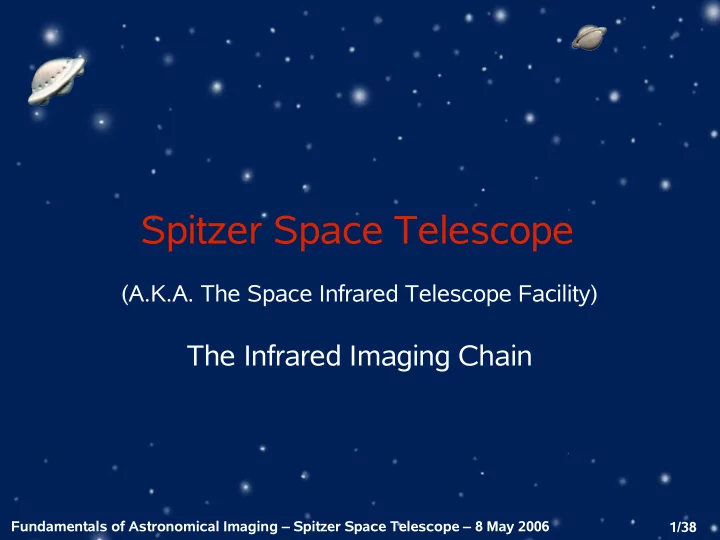

Fundamentals of Astronomical Imaging – Spitzer Space Telescope – 8 May 2006 1/38

Spitzer Space Telescope

(A.K.A. The Space Infrared Telescope Facility)

The Infrared Imaging Chain

slide-2
SLIDE 2

Fundamentals of Astronomical Imaging – Spitzer Space Telescope – 8 May 2006 2/38

The infrared imaging chain

Generally similar to the optical imaging chain...

1) Source (different from optical astronomy sources) 2) Object (usually the same as the source in astronomy) 3) Collector (Spitzer Space Telescope) 4) Sensor (IR detector) 5) Processing 6) Display 7) Analysis 8) Storage

... but steps 3) and 4) are a bit more difficult!

slide-3
SLIDE 3

Fundamentals of Astronomical Imaging – Spitzer Space Telescope – 8 May 2006 3/38

The infrared imaging chain

Longer wavelength – need a bigger telescope to get the same resolution or put up with lower resolution

slide-4
SLIDE 4

Fundamentals of Astronomical Imaging – Spitzer Space Telescope – 8 May 2006 4/38

Emission of IR radiation

Warm objects emit lots of thermal infrared as well as reflecting it

Including telescopes, people, and the Earth – so collection of IR radiation with a telescope is more complicated than an

  • ptical telescope

Optical image of Spitzer Space Telescope launch: brighter regions are those which reflect more light IR image of Spitzer launch: brighter regions are those which emit more heat Infrared wavelength depends on temperature of object

slide-5
SLIDE 5

Fundamentals of Astronomical Imaging – Spitzer Space Telescope – 8 May 2006 5/38

Atmospheric absorption

The atmosphere blocks most infrared radiation

Need a telescope in space to view the IR properly

slide-6
SLIDE 6

Fundamentals of Astronomical Imaging – Spitzer Space Telescope – 8 May 2006 6/38

Detection of infrared radiation

CCDs cannot detect wavelengths > 1 micron

IR photons do not have enough energy to knock electrons

  • ut of the silicon

Different detector technology is required IR detector technology has lagged behind CCD technology

slide-7
SLIDE 7

Fundamentals of Astronomical Imaging – Spitzer Space Telescope – 8 May 2006 7/38

The Spitzer Space Telescope

The last of NASA's four Great Observatories in space

The latest and greatest in a series of IR space missions (IRAS, MSX, ISO) Planning started two decades ago Underwent 2 major design revisions to accommodate budget cuts Launched August 2003 Expected lifetime of 5 years (limited by cryogen supply)

Telescope specs:

85 cm (33.5 in) primary mirror Cooled to 5.5 K Wavelength coverage 3 – 160 microns Earth-trailing, heliocentric orbit

slide-8
SLIDE 8

Fundamentals of Astronomical Imaging – Spitzer Space Telescope – 8 May 2006 8/38

Telescope orbit

Telescope orbits the Sun rather than the Earth Distance from Earth increasing by 15 million km/year Much colder than orbiting Earth itself Not servicable Less liquid helium cryogen is needed to keep the telescope cool – keeps lifetime long and costs down

Innovative orbit – Spitzer trails the Earth as it

  • rbits the Sun
slide-9
SLIDE 9

Fundamentals of Astronomical Imaging – Spitzer Space Telescope – 8 May 2006 9/38

Telescope view of the sky

At any time of year:

Telescope cannot point too close to the Sun (80°) or it will heat up Telescope cannot point too far away from the Sun (120°) because the solar panels need illumination to power the telescope systems

Where the telescope can point in the sky is limited by pointing constraints

slide-10
SLIDE 10

Fundamentals of Astronomical Imaging – Spitzer Space Telescope – 8 May 2006 10/38

Telescope design

Important considerations:

Compact – has to be launched into space Lightweight – every kilogram costs Thermally stable – so minimally affected by changes in temperature

slide-11
SLIDE 11

Fundamentals of Astronomical Imaging – Spitzer Space Telescope – 8 May 2006 11/38

Telescope design

Ritchey-Chretien design

Similar to Cassegrain but hyperboloid shaped mirror Wider field-of-view than Cassegrain Corrected for spherical aberration and coma

slide-12
SLIDE 12

Fundamentals of Astronomical Imaging – Spitzer Space Telescope – 8 May 2006 12/38

Telescope design

Telescope and mirror made of beryllium

Very lightweight (telescope < 50 kg) All the same material so won't break apart with thermal changes

slide-13
SLIDE 13

Fundamentals of Astronomical Imaging – Spitzer Space Telescope – 8 May 2006 13/38

Telescope Design

Telescope and instruments cooled to 5.5 K (shown in blue) Spacecraft warm (shown in red)

4 meters 865 kg

Telescope quite small compared to the whole assembly

✶ Instruments & electronics ✶ Solar panels ✶ Cryostat ✶ Telecommunications ✶ System control & power

slide-14
SLIDE 14

Fundamentals of Astronomical Imaging – Spitzer Space Telescope – 8 May 2006 14/38

Instruments

One of 3 instruments in use at a time

Mirrors and beam-splitters send the light to the instrument

IRAC (InfraRed Array Camera) IRS (InfraRed Spectrograph) MIPS (Multiband Imaging Photometer for Spitzer)

slide-15
SLIDE 15

Fundamentals of Astronomical Imaging – Spitzer Space Telescope – 8 May 2006 15/38

Instruments

Instruments are housed in the multi-instrument chamber (MIC) at the focal plane of the telescope

slide-16
SLIDE 16

Fundamentals of Astronomical Imaging – Spitzer Space Telescope – 8 May 2006 16/38

Instruments

IRAC (InfraRed Array Camera)

Images at 3.6, 4.5, 5.8, and 8.0 microns Spatial resolution of 1.8 arcsec in a 5 arcmin x 5 arcmin field Two detectors

✶ Each 256 x 256 pixels ✶ Two indium + antimony (short

wavelengths)

✶ Two arsenic-doped silicon (long

wavelengths)

No moving parts (shutter not used)

slide-17
SLIDE 17

Fundamentals of Astronomical Imaging – Spitzer Space Telescope – 8 May 2006 17/38

slide-18
SLIDE 18

Fundamentals of Astronomical Imaging – Spitzer Space Telescope – 8 May 2006 18/38

slide-19
SLIDE 19

Fundamentals of Astronomical Imaging – Spitzer Space Telescope – 8 May 2006 19/38

Instruments

IRS (InfraRed Spectrograph)

Low-resolution spectra from 5 – 38 microns High-resolution spectra from 10 – 37 microns Two detectors

✶ Each 128 x 128 pixels ✶ Arsenic-doped silicon (short wavelength) ✶ Antimony-doped silicon (long wavelength)

No moving parts

slide-20
SLIDE 20

Fundamentals of Astronomical Imaging – Spitzer Space Telescope – 8 May 2006 20/38

slide-21
SLIDE 21

Fundamentals of Astronomical Imaging – Spitzer Space Telescope – 8 May 2006 21/38

slide-22
SLIDE 22

Fundamentals of Astronomical Imaging – Spitzer Space Telescope – 8 May 2006 22/38

Instruments

MIPS (Multiband Imaging Photometer for Spitzer)

Images at 24, 70, and 160 microns Spatial resolutions of 2.5 – 16 arcsec and fields of 5.4 x 5.4 – 5.3 – 0.53 arcmin Very low-resolution spectra from 55 – 100 microns Only moving part is scan mirror

slide-23
SLIDE 23

Fundamentals of Astronomical Imaging – Spitzer Space Telescope – 8 May 2006 23/38

slide-24
SLIDE 24

Fundamentals of Astronomical Imaging – Spitzer Space Telescope – 8 May 2006 24/38

slide-25
SLIDE 25

Fundamentals of Astronomical Imaging – Spitzer Space Telescope – 8 May 2006 25/38

Infrared detectors

Not CCDs (charge coupled devices)

electrodes across the surface of the array couple the pixels together so charge can be transferred across the array and read out the use of electrodes in this way works for silicon but not

  • ther materials

pure silicon is not sensitive to wavelengths above 1 micron

slide-26
SLIDE 26

Fundamentals of Astronomical Imaging – Spitzer Space Telescope – 8 May 2006 26/38

Infrared detectors

Hybrid (two-layer) arrays

upper layer detects the photons – each pixel is a separate detector which stores charge and must be read out separately lower layer is a multiplexor which connects each pixel in turn to the readout amplifier two layers connected by columns or dots of metal which conducts the charge collected by the pixel to the lower layer

slide-27
SLIDE 27

Fundamentals of Astronomical Imaging – Spitzer Space Telescope – 8 May 2006 27/38

IR detectors vs CCDs

CCDs

Pros: Cheaper and easier to manufacture, smaller pixels and larger array sizes possible, efficient to read out, low readout noise, linear Cons: Don't work in the infrared, saturated pixels bleed into neighboring pixels, all reads are destructive

IR detectors

Pros: Work in the infrared, saturated pixels don't affect neighbors, non-destructive reads Cons: larger pixels and smaller array sizes currently possible, high readout noise, thermal mismatch between layers, non-linear

slide-28
SLIDE 28

Fundamentals of Astronomical Imaging – Spitzer Space Telescope – 8 May 2006 28/38

Spitzer detectors

IRAC

Indium antimonide (InSb), 256 x 256 pixels Arsenic-doped silicon (Si:As), 256 x 256 pixels

IRS

Si:As, 128 x 128 pixels Antimony-doped silicon (Si:Sb), 128 x 128 pixels

MIPS

InSb, 128 x 128 pixels Gallium-doped germanium (Ge:Ga), 32 x 32 pixels Stressed Ge:Ga, 2 x 20 pixels Longer wavelength smaller arrays

slide-29
SLIDE 29

Fundamentals of Astronomical Imaging – Spitzer Space Telescope – 8 May 2006 29/38

Fowler Sampling

Pairs of non-destructive reads Measure voltage differences between signal and pedestal reads Final voltage is average of 4 voltage differences Minimizes read noise On-board software calculates the slope of the line and transmits this back to Earth

P

1

P

2

P

3

P

4

S

1

S

2

S

3

S

4

Reset

Time Voltage

V4 V3 V2 V1

Exposure time Frame time Voltage difference

slide-30
SLIDE 30

Fundamentals of Astronomical Imaging – Spitzer Space Telescope – 8 May 2006 30/38

The rest of the imaging chain

Image processing

Get rid of detector artifacts, including dark current, muxbleed, non-linearity correction, flatfielding Co-add multiple frames and combine mosaicked images Flux calibration (converting counts/second to flux density)

Display

same as optical, once you have a digital (e.g., FITS) image

Analysis

very similar to optical images, on a digital image

Storage

Spitzer data takes a lot of space (many Gb)

slide-31
SLIDE 31

Fundamentals of Astronomical Imaging – Spitzer Space Telescope – 8 May 2006 31/38

The infrared universe

If it's all so much more difficult than optical astronomy, why do we bother? Obviously, we get a different view of the universe in the infrared:

in optical astronomy we see the hot stuff, while in IR astronomy we see the cool stuff in the NIR, we can see through the instellar dust, and in the mid- to far-infrared we can see the dust itself

slide-32
SLIDE 32

Fundamentals of Astronomical Imaging – Spitzer Space Telescope – 8 May 2006 32/38

Seeing through the dust in Orion

slide-33
SLIDE 33

Fundamentals of Astronomical Imaging – Spitzer Space Telescope – 8 May 2006 33/38

Astronomical IR sources

Near-infrared (1 – 5 micron)

Temperatures of 740 – 3000 K Cooler red (old) stars, red giant stars, very hot dust in the nuclei of active galaxies (most dust is transparent in NIR)

Mid-infrared (5 – 30 micron)

Temperatures 130 – 740 K Planets, comets and asteroids, dust heated by starlight in galaxies, protoplanetary disks

Far-infrared (30 – 200 micron)

Cold dust in galaxies, and cold molecular clouds

slide-34
SLIDE 34

Fundamentals of Astronomical Imaging – Spitzer Space Telescope – 8 May 2006 34/38

Some more Spitzer images

slide-35
SLIDE 35

Fundamentals of Astronomical Imaging – Spitzer Space Telescope – 8 May 2006 35/38

Henize 206 – star forming region in LMC

8 microns (IRAC) visible 24 microns (MIPS) Combined visible/IR

slide-36
SLIDE 36

Fundamentals of Astronomical Imaging – Spitzer Space Telescope – 8 May 2006 36/38

slide-37
SLIDE 37

Fundamentals of Astronomical Imaging – Spitzer Space Telescope – 8 May 2006 37/38

slide-38
SLIDE 38

Fundamentals of Astronomical Imaging – Spitzer Space Telescope – 8 May 2006 38/38

M 82 – starburst galaxy

Visible Infrared Combined X-ray (blue), IR (red), hydrogen (orange) and visible (yellow-green)
