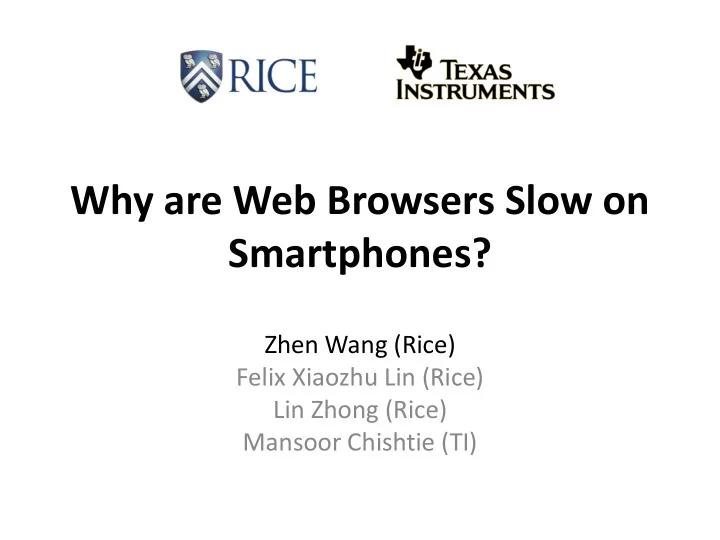

Why are Web Browsers Slow on Smartphones?

Zhen Wang (Rice) Felix Xiaozhu Lin (Rice) Lin Zhong (Rice) Mansoor Chishtie (TI)

slide-2
SLIDE 2

WINDOW TO THE CLOUD

2

slide-3
SLIDE 3

Mobile browsers are slow

3

8 sec 13 sec 12 sec 17 sec Top 10 Mobile Website Top10 Non-mobile Webpage Nexus One (N1) HTC Dream (G1)

slide-4
SLIDE 4
  • What does the browser show?
  • How does the browser work?
  • Where is the bottleneck?

4

slide-5
SLIDE 5

What does the browser show?

0% 20% 40% 60% 80% 100%

1 25 25 iPhone 3GS Users Non-mobile webpages Mobile webpages

5

avg

slide-6
SLIDE 6

How does the browser work?

Scripting Style Formatting HTML Parsing

Loaded resources Update IR

Layout

Graphics

Painting

New resources to load

Resource Loading

Internal Representation (IR)

......

6

IR operations: Parsing, Style, Scripting, Layout, Painting

slide-7
SLIDE 7

Where is the bottleneck?

  • Existing work on PC browsers

– Layout – Style formatting – Scripting

7

  • 1. C. Stockwell, "IE8 Performance," http://blogs.msdn.com/b/ie/archive/2008/08/26/ie8-performance.aspx, 2008.
  • 2. L. A. Meyerovich and R. Bodik, "Fast and parallel webpage layout," in Proc. Int. Conf. World Wide Web (WWW) Raleigh, North Carolina, USA: ACM, 2010.
  • 3. K. Zhang, L. Wang, A. Pan, and B. B. Zhu, "Smart caching for web browsers," in Proc. Int. Conf. World Wide Web (WWW) Raleigh, North Carolina, USA: ACM, 2010.
slide-8
SLIDE 8

8

Is it true for mobile browsers?

Layout, Style, Scripting

slide-9
SLIDE 9

Performance characterization

  • Metric: browser delay

– Starting point: when the user presses the “GO” button of the browser to open an URL. – End point: when the browser’s page loading progress bar indicates 100%.

9

slide-10
SLIDE 10

Performance characterization

  • Dependency timeline characterization
  • What-if analysis

10

slide-11
SLIDE 11

Dependency timeline characterization

11

Elapsed time (ms)

1 2 3 4

Resource Group

0 1000 1500 2000 2500 3000 3500 4000

5 6 7 8

Scripting Layout Resource Loading Painting Parsing Style

slide-12
SLIDE 12

Dependency timeline characterization

12

Elapsed time (ms)

1 2 3 4

Resource Group

0 1000 1500 2000 2500 3000 3500 4000

5 6 7 8

Scripting Layout Resource Loading Painting Parsing Style

request

slide-13
SLIDE 13

Dependency timeline characterization

13

Elapsed time (ms)

1 2 3 4

Resource Group

0 1000 1500 2000 2500 3000 3500 4000

5 6 7 8

Scripting Layout Resource Loading Painting Parsing Style

redirection

slide-14
SLIDE 14

Dependency timeline characterization

14

Elapsed time (ms)

1 2 3 4

Resource Group

0 1000 1500 2000 2500 3000 3500 4000

5 6 7 8

Scripting Layout Resource Loading Painting Parsing Style

Data packets

slide-15
SLIDE 15

Dependency timeline characterization

15

Elapsed time (ms)

1 2 3 4

Resource Group

0 1000 1500 2000 2500 3000 3500 4000

5 6 7 8

Scripting Layout Resource Loading Painting Parsing Style

This is part of resource loading. It is mainly spent on network.

slide-16
SLIDE 16

Glue operation

Dependency timeline characterization

16

Elapsed time (ms)

1 2 3 4

Resource Group

0 1000 1500 2000 2500 3000 3500 4000

5 6 7 8

Scripting Layout Resource Loading Painting Parsing Style

slide-17
SLIDE 17

Dependency timeline characterization

17

Elapsed time (ms)

1 2 3 4

Resource Group

0 1000 1500 2000 2500 3000 3500 4000

5 6 7 8

Scripting Layout Resource Loading Painting Parsing Style

intra-group dependency

slide-18
SLIDE 18

Dependency timeline characterization

18

Elapsed time (ms)

1 2 3 4

Resource Group

0 1000 1500 2000 2500 3000 3500 4000

5 6 7 8

Scripting Layout Resource Loading Painting Parsing Style

inter-group dependency

slide-19
SLIDE 19

What overall performance gain will be achieved if a browser

  • peration is accelerated?

19

slide-20
SLIDE 20

What-if analysis

20

Elapsed time (ms)

1 2 3 4

Resource Group

0 1000 1500 2000 2500 3000 3500 4000

5 6 7 8

Scripting Layout Resource Loading Painting Parsing Style Shrink

slide-21
SLIDE 21

What-if analysis

21

Elapsed time (ms)

1 2 3 4

Resource Group

0 1000 1500 2000 2500 3000 3500 4000

5 6 7 8

Scripting Layout Resource Loading Painting Parsing Style Shift to the left Shrink

slide-22
SLIDE 22

What-if analysis

22

Elapsed time (ms)

1 2 3 4

Resource Group

0 1000 1500 2000 2500 3000 3500 4000

5 6 7 8

Scripting Layout Resource Loading Painting Parsing Style They will not move Shrink Shift to the left

slide-23
SLIDE 23

What-if analysis

23

Elapsed time (ms)

1 2 3 4

Resource Group

0 1000 1500 2000 2500 3000 3500 4000

5 6 7 8

Scripting Layout Resource Loading Painting Parsing Style

slide-24
SLIDE 24

What-if analysis

24

Elapsed time (ms)

1 2 3 4

Resource Group

0 1000 1500 2000 2500 3000 3500 4000

5 6 7 8

Scripting Layout Resource Loading Painting Parsing Style

Original

slide-25
SLIDE 25

What-if analysis

25

Elapsed time (ms)

1 2 3 4

Resource Group

0 1000 1500 2000 2500 3000 3500 4000

5 6 7 8

Scripting Layout Resource Loading Painting Parsing Style

Original New

slide-26
SLIDE 26

Experimental setup

  • Platform:

– HTC Dream (G1): 528MHz – Nexus One (N1): 1GHz

  • Operating System

– Android 2.1 (Eclair)

  • Benchmark Webpages:

– Top 10 mobile websites – Top 10 visited non-mobile webpages from LiveLab

26

1.Nielsen.com, "Top mobiel phones, sites and brands for 2009," http://blog.nielsen.com/nielsenwire/online_mobile/top-mobile-phones-sites-and-brands-for-2009/, 2009. 2.C. Shepard, A. Rahmati, C. Tossell, L. Zhong, and P. Kortum, "Live- Lab: Measuring Wireless Networks and Smartphone Users in the Field," in Proc. Workshop on Hot Topics in Measurement & Model-ing of Computer Systems, June 2010.

slide-27
SLIDE 27

Experimental setup

  • We used three network

conditions:

– Emulated enterprise Ethernet (no traffic control) – Typical 3G network (T-mobile) – Emulated adverse network

  • First-hop RTT: 400ms
  • Bandwidth (downlink/uplink):

500Kbps/100Kbps

27

slide-28
SLIDE 28

Logging information

  • Time stamp for browser operations

– Overhead: <1%

  • Tcpdump

– Overhead: <2% (CPU); <0.4% (MEM)

28

slide-29
SLIDE 29

Results

two take-away messages

29

slide-30
SLIDE 30

IR operations do not matter much!

Parsing, Style, Scripting, Layout, Painting

30

slide-31
SLIDE 31

IR operations do not matter much

0% 2% 4% 8 16 24 32 Overall Improvement Layout Calculating Speedup

Layout

Non-mobile Web Mobile Web 0% 2% 4% 8 16 24 32 Overall Improvement Style Formatting Speedup

Style

Non-mobile Web Mobile Web 0% 2% 4% 8 16 24 32 Overall Improvement Scripting Speedup

Script

Non-mobile Web Mobile Web

31

slide-32
SLIDE 32

IR operations do not matter much

0% 2% 4% 8 16 24 32 Overall Improvement Layout Calculating Speedup

Layout

Non-mobile Web Mobile Web 0% 2% 4% 8 16 24 32 Overall Improvement Style Formatting Speedup

Style

Non-mobile Web Mobile Web 0% 2% 4% 8 16 24 32 Overall Improvement Scripting Speedup

Script

Non-mobile Web Mobile Web

32

slide-33
SLIDE 33

IR operations do not matter much

0% 2% 4% 6% 8% 8 16 24 32

Overall Improvement Speedup Combined: Parsing, Layout, Style, Scripting, Painting, Glue

Non-mobile Web Mobile Web

33

slide-34
SLIDE 34

Resource loading is the bottleneck!

34

slide-35
SLIDE 35

Resource loading is the bottleneck

35

0% 200% 400% 600% 8 16 24 32 Overall Improvement Resource Loading Speedup

Resource Loading

Non-mobile Web Mobile Web

slide-36
SLIDE 36

Resource loading is the bottleneck

36

0% 200% 400% 600% 8 16 24 32 Overall Improvement Resource Loading Speedup

Resource Loading

Non-mobile Web Mobile Web

slide-37
SLIDE 37

Resource loading is the bottleneck

  • Network RTT
  • Network Bandwidth
  • Browser loading procedure
  • Processing power

37

slide-38
SLIDE 38

Network RTT matters

10 20 30 200 400 Browser Delay (sec) Injected RTT (ms)

G1 - Non-mobile Web N1 - Non-mobile Web G1 - Mobile Web N1 - Mobile Web

38

3G

slide-39
SLIDE 39

Network bandwidth doesn’t matter

10 20 30 250/50 500/100 1000/200 1500/400 Browser Delay (sec) Bandwidth: Downlink/Uplink (Kbps)

G1 - Non-mobile Web N1 - Non-mobile Web G1 - Mobile Web N1 - Mobile Web

39

3G

slide-40
SLIDE 40

Browser loading procedure

40

Elapsed time (ms)

1 2 3 4

Resource Group

0 1000 1500 2000 2500 3000 3500 4000

5 6 7 8

Scripting Layout Resource Loading Painting Parsing Style New resources can only be discovered after parsing a loaded resource

slide-41
SLIDE 41

Browser loading procedure

41

Elapsed time (ms)

1 2 3 4

Resource Group

0 1000 1500 2000 2500 3000 3500 4000

5 6 7 8

Scripting Layout Resource Loading Painting Parsing Style Redirections on the main HTML file further delay the discovering time of later resources

slide-42
SLIDE 42

Browser loading procedure

42

Elapsed time (ms)

1 2 3 4

Resource Group

0 1000 1500 2000 2500 3000 3500 4000

5 6 7 8

Scripting Layout Resource Loading Painting Parsing Style Parsing of the HTML file is blocked by JavaScripts

slide-43
SLIDE 43

Browser loading procedure

  • Up to 25 concurrent requests for top

mobile/non-mobile webpages

  • Constrains on concurrent TCP connections

43

Mobile Browser Connections/hostname Maximum connections Android 4 4 iPhone 4.3 6 35 Blackberry 9700 4 16 Opera Mobile 4 4 Opera Mini 10 60

http://www.browserscope.org/

slide-44
SLIDE 44

Average number of resources

44

22 96 Top 10 Mobile Website Top10 Non-mobile Webpage

slide-45
SLIDE 45

Average number of network round trips

45

19 27 Top 10 Mobile Website Top10 Non-mobile Webpage

slide-46
SLIDE 46

Processing power in resource loading

Elapsed time (ms)

1 2 3 4

Resource Group

0 1000 1500 2000 2500 3000

5 6 7 8 9

Scripting Layout Resource Loading Painting Parsing Style http://mail.yahoo.com

46

This is part of resource loading. It is mainly spent on network.

slide-47
SLIDE 47

Processing power in resource loading

Elapsed time (ms)

1 2 3 4

Resource Group

0 1000 1500 2000 2500 3000

5

(i)

6 7 8 9

DNS lookup query

Scripting Layout Resource Loading Painting Parsing Style http://mail.yahoo.com

47

slide-48
SLIDE 48

Processing power in resource loading

Elapsed time (ms)

1 2 3 4

Resource Group

0 1000 1500 2000 2500 3000

5

(i) (ii)

6 7 8 9

DNS lookup query TCP connection established HTTP GET sent out

Scripting Layout Resource Loading Painting Parsing Style http://mail.yahoo.com

48

slide-49
SLIDE 49

Processing power in resource loading

Elapsed time (ms)

1 2 3 4

Resource Group

0 1000 1500 2000 2500 3000

5

(i) (ii) (iii)

6 7 8 9

DNS lookup query TCP connection established HTTP GET sent out

Scripting Layout Resource Loading Painting Parsing Style http://mail.yahoo.com

49

slide-50
SLIDE 50

50

126ms 13ms 98ms 40ms 3ms 18ms (i) (ii) (iii) G1 N1

Time spent by G1 and N1 for those three cases

slide-51
SLIDE 51

Total time spent in the three cases on average when opening a mobile webpage

51

2 sec 1 sec G1 N1

slide-52
SLIDE 52

Processing power in resource loading

  • Other uncategorized processing

– The OS moves the data from network stack to browser after receiving data packets – Computation for secure connection (HTTPS)

52

slide-53
SLIDE 53

More powerful hardware improves the browser delay mainly through faster OS services and network stack instead of faster IR operations.

53

slide-54
SLIDE 54

Performance characterization results

  • IR operations do not matter much
  • Resource loading is the bottleneck

– Network RTT (X) – Network bandwidth – Browser loading procedure (X) – Processing power (X)

54

slide-55
SLIDE 55

How to improve mobile browser’s performance?

Reduce RTT

  • Cloudlet
  • Data staging

Reduce # of Round Trips

  • Web Pre-fetching
  • Resource batching
  • Data URI scheme
  • Speculative resource

loading

55

1.M. Satyanarayanan, P. Bahl, R. Caceres, and N. Davies, "The Case for VM-Based Cloudlets in Mobile Computing," IEEE Pervasive Computing, vol. 8, pp. 14-23, 2009. 2.J. Flinn, S. Sinnamohideen, N. Tolia, and M. Satyanaryanan, "Data Staging on Untrusted Surrogates," in Proceedings of the 2nd USENIX Conference on File and Storage Technologies San Francisco, CA: USENIX Association, 2003. 3.V. N. Padmanabhan and J. C. Mogul, "Using predictive prefetching to improve World Wide Web latency," SIGCOMM Comput. Commun. Rev., vol. 26, pp. 22-36, 1996. 4.Skyfire: http://www.skyfire.com/. 5.L. Masinter, "The "data" URL scheme," http://tools.ietf.org/html/rfc2397, 1998.

slide-56
SLIDE 56

On-going work

  • Speculative mobile browser design
  • Fully understand the impact of hardware
  • OS and network service acceleration

56

http://www.owlnet.rice.edu/~zw3/projects_Tempo.html

slide-57
SLIDE 57

57

slide-58
SLIDE 58

Benchmark webpages

mobile

http://maps.google.com http://www.espn.com http://www.cnn.com http://www.google.com http://mail.yahoo.com http://mail.google.com http://www.weather.com http://www.facebook.com http://www.hotmail.com http://mail.aol.com

Non-mobile

http://freeappaday.com/ https://owlspace-ccm.rice.edu/portal http://www.restaurant.com/ http://www.neopets.com/games/ http://arstechnica.com/ http://houston.craigslist.org/ http://houston.varsitytutors.com/ http://www.morewords.com/ http://tripplanner.ridemetro.org/hiwire http://registrar.rice.edu/

58
