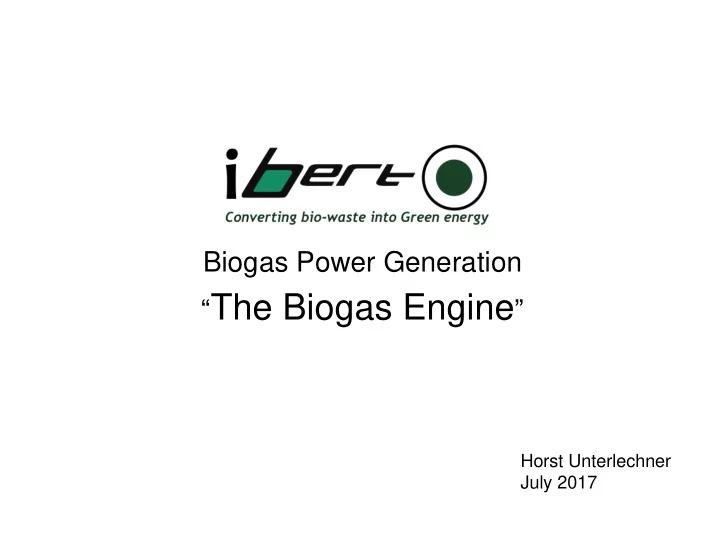

Biogas Power Generation “The Biogas Engine”

Horst Unterlechner July 2017

slide-2
SLIDE 2

Who is ibert ?

Otto Hager

Energy Economist

Horst Unterlechner Biomass energy specialist

Pilot site M2M Abattoir, Jan Kempdorp

1st waste to energy project 2012 In South Africa

6 Biogas plants

  • 3 x abattoir
  • 2 piggery
  • 1 energy crops

Biogas Express Reactor Technology

slide-3
SLIDE 3

Waste to Energy Process

slide-4
SLIDE 4

Waste to energy process

Bio-waste Non-organic Organic Anaerobic Digester Bio-fuel

Combined Heat & Power Generator

Electricity Heat biogas

Wood-gas

Ash

Gas scrubber

Combustion gasification Slurry Bio-fertilizer CO2

Waste to energy Cycel

Biogas (wet waste) Biomass (Dry waste)

slide-5
SLIDE 5

Typical Waste streams in Africa

(Biogas liter/kg ODM)

Manure Grasses Fruit & veg Waste

slide-6
SLIDE 6

Biogas and there Benefit

Biogas system generate renewable energy that will:

  • Avoided costs of waste or by-product management

removal;

  • Avoided costs of electricity supplied;
  • Avoided cost of generating heat or hot water with

electricity, coal, diesel or paraffin

  • Give security of supply (own generation capacity –

managing load shedding)

  • Replace fossil fuels with natural renewable fuel
slide-7
SLIDE 7

Biogas Plant Footprint >250 kW

slide-8
SLIDE 8

Biogas Plant ibert Standard Footprint

ibert foot print

slide-9
SLIDE 9

Biogas CHP

135 kW (el) 165 kW (therm)

slide-10
SLIDE 10
  • Modular integrated system
  • Small waste quantities from 5tons/day, on-site
  • Plant has small footprint (25 / 30 m)
  • Output from >18 kW(el) >20 kW(therm)
  • Imbedded self-usage less then 8% of total power

production

  • Utilization of “waste product”
  • Operation time not more then 2 hour/day
  • Double chamber AD plant, 12 % more Gas Production

Ibert USP

slide-11
SLIDE 11

Ibert plant overview

Operational Designprocess Under Construction

slide-12
SLIDE 12

Reference sites South Africa Plant #1 Meat to Market Jan Kempdorp

600m3 AD, 135 kW CHP, 15 – 20 t/day slaughter waste

slide-13
SLIDE 13

Plant #2 Hessequa Abattoir - Riverdale

400m3 AD, 50 kW CHP, 10 t/day slaughter waste

slide-14
SLIDE 14

Plant #3 No2 Piggeries – Peninsula - Queenstown

600m3 AD, 190 kW CHP, 35 t/day pig manure

slide-15
SLIDE 15

Plant #4 & 5 Cavalier Abattoir – Cullinan

2 x 500m3 AD, 135 kW + 360 kW CHP, 15 – 40 t/day slaughter waste

slide-16
SLIDE 16

Plant #6 Zandam Cheese & Piggery (W/Cape)

1 x 400m3 AD, 75 kW CHP, 30 t/day pig manure

  • Min. load 78 kW
slide-17
SLIDE 17

Plant #7 Sucro Power (KZN/Durban)

1 x 200m3 AD, 16kW CHP, 30 t/day Napier Gras

slide-18
SLIDE 18

Thank you for your Attention!
