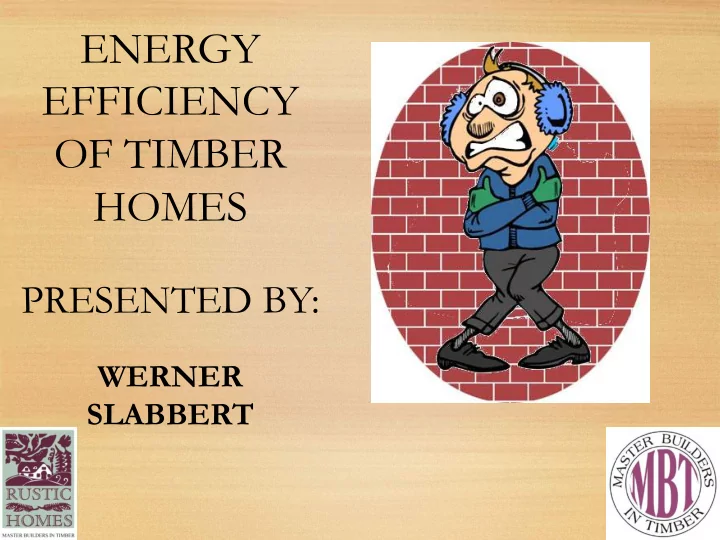

SLIDE 1
ENERGY EFFICIENCY OF TIMBER HOMES
PRESENTED BY:
WERNER SLABBERT
WHAT IS A TIMBER HOME?
ENERGY EFFICIENCY OF TIMBER HOMES PRESENTED BY: WERNER SLABBERT - - PowerPoint PPT Presentation
ENERGY EFFICIENCY OF TIMBER HOMES PRESENTED BY: WERNER SLABBERT - - PowerPoint PPT Presentation
ENERGY EFFICIENCY OF TIMBER HOMES PRESENTED BY: WERNER SLABBERT WHAT IS A TIMBER HOME? WHAT IS A TIMBER HOME? Energy Efficiency Definitions. How to apply energy efficiency? Comparing Energy Efficiency in Homes? World Wide Trends. Carbon
SLIDE 2
SLIDE 3
WHAT IS A TIMBER HOME?
SLIDE 4
Energy Efficiency Definitions. How to apply energy efficiency? Comparing Energy Efficiency in Homes? World Wide Trends. Carbon Footprint Definitions. The Carbon Footprint Story. Comparing Carbon Footprint of Different Materials.
SLIDE 5
Energy Efficiency Definitions
SLIDE 6
ENERGY EFFICIENCY DEFINITIONS.
What is Energy Efficiency?
“Is simply the process of doing more with less to accomplish the same tasks and functions as before while using less energy”.
SLIDE 7
ENERGY EFFICIENCY DEFINITIONS.
What is R-Value?
Measurement of the thermal resistance of a material. The HIGHER the R-Value, of a material, the GREATER its insulating effectiveness. Around most of the world, R-values are given in SI units(physical units), typically square-meter kelvin per watt or (m2·K/W)
SLIDE 8
ENERGY EFFICIENCY DEFINITIONS.
How we calculate heat loss?
To find the heat loss per square meter, simply divide the temperature difference by the R-Value. i.e.: If the interior of a home is at 20 °C, and the roof cavity is at 10 °C, the temperature difference is 10 C° (= 10 K difference). Assuming a ceiling is insulated to an R–Value of 2 (R = 2.0 m2K/W), the energy will be lost at a rate of 10 K/ 2 K·m2/W = 5 watts/per hr for every square meter of ceiling.
SLIDE 9
ENERGY EFFICIENCY DEFINITIONS.
For the exact same temperature difference but with insulation of an R-Value of 1 the calculation will be as follows : If the interior of a home is at 20 °C, and the roof cavity is at 10 °C, the temperature difference is 10 C° (= 10 K difference). Assuming a ceiling is insulated to an R–Value of 1 (R = 1.0 m2K/W), the energy will be lost at a rate of 10 K/1 K·m2/W = 10 watts/per hr for every square meter of ceiling.
SLIDE 10
HOW TO APPLY ENERGY EFFICIENCY IN YOUR HOME.
Energy Loss without Insulation:
≈ 25% Roof Walls ≈ 30% Glazing Thermal bridges ≈ 10% Ground Floor ≈ 10% ≈ 10% ≈ 15% Air renewal Summer Winter Principle of insulation ≈ 25% Roof Walls ≈ 30% Glazing Thermal bridges ≈ 10% Ground Floor ≈ 10% ≈ 10% ≈ 15% Air renewal Summer Winter Principle of insulation
SLIDE 11
HOW TO APPLY ENERGY EFFICIENCY IN YOUR HOME.
So what do we use?
SLIDE 12
HOW TO APPLY ENERGY EFFICIENCY IN YOUR HOME.
Roof Insulation:
SLIDE 13
HOW TO APPLY ENERGY EFFICIENCY IN YOUR HOME.
Floor Insulation in a Timber Frame Home:
SLIDE 14
HOW TO APPLY ENERGY EFFICIENCY IN YOUR HOME.
Cavity Timber Frame Wall Insulation:
SLIDE 15
HOW TO APPLY ENERGY EFFICIENCY IN YOUR HOME.
Building Envelope Sealing:
SLIDE 16
HOW TO APPLY ENERGY EFFICIENCY IN YOUR HOME.
Window Insulation:
SLIDE 17
LET’S COMPARE DIFFERENT HOMES. BRICK & MORTAR HOMES vs TIMBER FRAME HOMES
SLIDE 18
WORLD WIDE TRENDS
SLIDE 19
WORLD WIDE TRENDS:
- “Timber frame is expected to account for 27% of new housing in the UK by 2017,
according to a new report.” REF: http://www.structuraltimberawards.co.uk/news/timber-frame-heading-for-27-new-housing-market- share/
- “Back into the woods: global construction trends show that people are returning to wooden
houses.” REF: Ideologist and creator of Dores Factory Egons Garklavs tells his recent observations in global construction trends that people are returning to wooden houses.
- “The quarterly European Architectural Barometer survey of 1,200 architects across six
European nations showed most architects expect the use of timber frames to increase dramatically over the next five years due to the implementation of energy audits and green star ratings.” REF : http://www.building.co.uk/timber-frame-building-set-to-increase-say-architects/5041252.article
SLIDE 20
WORLD WIDE TRENDS:
- “Most European countries are strong advocates for the implementation of the Kyoto
protocol and thus all new buildings in Europe will undergo an energy audit and be attributed an energy rating, so that buyers have the ability to distinguish energy efficient from energy inefficient buildings. It is estimated that one-third to one-half of all GHG emissions are attributable to building construction and operation costs. REF : UK Timber Frame Association. 1-http://www.timber-frame.org/ 2-http://communiques.gouv.qc.ca/gouvqc/communiques/GPQF/Avril2006/20/c9105.html 3-Ürge-Vorsatz et al. 2007. Appraisal of policy instruments for reducing buildings’ CO2emissions. Building Research and Information. Volume 35. Number 4. July/August 2007. 4-Lowe, Robert. 2007. Editorial: Addressing the challenges of climate change for the built
- environment. Building Research and Information. Volume 35. Number 4. July/August 2007.
SLIDE 21
WORLD WIDE TRENDS:
- It is a well known fact that in America on
average 95% of all new houses are built in Timber Frame.
- In Australia an average of 85% of all new
homes are Timber Frame.
- In New Zealand 87% of all new homes are
Timber Frame.
SLIDE 22
CARBON FOOTPRINT.
Its not only about energy efficiency of your home; have you ever asked yourself what the environmental impact was of the material used to build your home?
SLIDE 23
Carbon Footprint Definitions
SLIDE 24
CARBON FOOTPRINT DEFINITIONS.
What is carbon footprint?
Carbon foot printing is a sub-set of a broader measure, the ecological footprint, which itself is a measure of the human demand on the Earth’s ecosystem and compares that demand to the Earth’s ecological capacity to regenerate resources and provide
- services. Carbon foot printing calculates ‘the amount of GHG
emissions caused by a particular activity or entity’ (British Standards Institution (BSI), 2008). This is commonly also referred to as global warming potential (GWP) and is measured in tonnes (or kilograms)
- f carbon dioxide equivalent (CO2eq.).
SLIDE 25
CARBON FOOTPRINT DEFINITIONS.
What is embodied energy?
Embodied energy is the energy consumed by all of the processes associated with the production of a building, from the mining and processing of natural resources to manufacturing, transport and product delivery.
SLIDE 26
The Carbon Footprint Story
CO²
CO² ¡
CO² ¡
Origin Transport Manufacturing
SLIDE 27
CO² ¡
The Carbon Footprint Story
CO² ¡ CO² ¡
Transport Distribution Transport
SLIDE 28
The Carbon Footprint Story
Timber is a negative carbon footprint building material.
For every m³ of pine at least 1 tonne of carbon is stored in the cellulose of the timber.
SLIDE 29
REF – timber.net.au, ‘The Australian Timber Database’
LET’S COMPARE DIFFERENT MATERIALS. COMPARING BRICK & MORTAR HOMES TO TIMBER FRAME HOMES – 100m²
SLIDE 30
CONCRETE TIMBER STEEL
LET’S COMPARE DIFFERENT MATERIALS. COMPARING BRICK & STEEL TO TIMBER – 300m²
REF - NZ Wood is a major promotional and development programme to promote New Zealand forests and wood resources to improve our economy, society and our whole way of life.
SLIDE 31
CO² ¡
Site The Carbon Footprint Story
SO HOW MUCH DID YOUR HOME DAMAGE THE EARTH??
SLIDE 32
SUSTAINABILITY
For every tree that is used 3 new trees are planted in sustainable plantation.
SLIDE 33
Courtesy of Eco Log Homes
SLIDE 34
Courtesy of Eco Log Homes
SLIDE 35
SLIDE 36
SLIDE 37
SLIDE 38
WHY ARE WE NOT SPECIFYING AND BUILDING MORE TIMBER HOMES IN SOUTH AFRICA WHEN THE REST WESTERNISED WORLD IS BUILDING SUSTAINABLE AND ENEGRY EFFICIENT HOMES???????
SLIDE 39
THANK YOU FOR PARTICIPATING. FOR ANY FURTHER IMFORMATION, YOU ARE WELCOME TO VISIT MY WEBSITE : www.rustichomes.co.za
