Wheelabrator Parc Adfer Community Liaison Group Meeting 6 Apo Sarandidis, Senior Project Manager Julian Harrison, Contractors Representative 25 July 2018 Community Liaison Group Meeting 6 Agenda 1. Welcome and introductions 2. Agreement of

slide-1
SLIDE 1

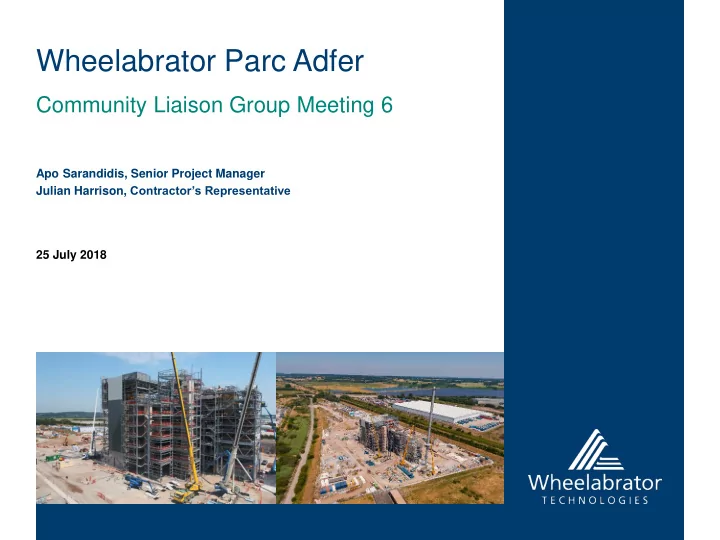

Wheelabrator Parc Adfer

Community Liaison Group Meeting 6

25 July 2018 Apo Sarandidis, Senior Project Manager Julian Harrison, Contractor’s Representative

slide-2
SLIDE 2

Community Liaison Group Meeting 6

  • 1. Welcome and introductions
  • 2. Agreement of minutes and actions from the last meeting
  • 3. Project progress update
  • 4. Focus topic: combustion technology
  • 5. Community benefit fund update
  • 6. North Wales Residual Waste Treatment Project – progress update
  • 7. Agreement of actions and date of next meeting
  • 8. AOB

2

Agenda

slide-3
SLIDE 3

Project Progress Update

slide-4
SLIDE 4

Parc Adfer Construction Update

  • On time and on budget
  • CNIM’s 2nd construction Jobs Fair held on 22nd May 2018
  • Parc Adfer’s operations Jobs Fair held on 21st June 2018
  • Support system development (IT, finance, maintenance systems, etc.)
  • Visitors’ Centre development continues

4

Progress To Date

Month Month

34

Month

27

slide-5
SLIDE 5

Parc Adfer Construction Update

5

May 2018

  • First three passes of boiler erected
  • FGT erection commenced, with the Labloop erected
  • Administration building steel structure erection

commenced

  • Electrical room building services installation
  • Bunker roof cladding commenced
slide-6
SLIDE 6

Parc Adfer Construction Update

6

June 2018

  • Waste fuel bunker wall cladding commenced
  • Installation of electrical switchgear
  • Dirty water pit construction commenced
  • FGT bag filter installation commenced
slide-7
SLIDE 7

Parc Adfer Construction Update

7

July 2018

  • Combustion air fan and associated air

ducting

  • Admin building steel erection completed
  • Tipping hall steel erection commenced
  • Air cooled condenser foundations

commenced

slide-8
SLIDE 8

Parc Adfer Construction Update

  • Operator mobilized
  • Discussion with 3rd party fuel suppliers continues
  • Incinerator Bottom Ash (IBA) and Air Pollution Control Residues (APCR)
  • fftake contracts continue to be developed
  • Discussions on construction completion and commission plan commenced

8

Commissioning

slide-9
SLIDE 9

Parc Adfer Construction Update

9

Visitors’ Centre Sneak Peek (Reception & Lecture)

slide-10
SLIDE 10

Parc Adfer Construction Update

10

Visitors’ Centre Sneak Peek (Interactive & Viewing)

slide-11
SLIDE 11

Combustion Control

slide-12
SLIDE 12

Parc Adfer Combustion Control

12

Combustion Process

Heat Fuel Heat Oxygen Exhaust

Oil Burner

  • Combustion process requires three key elements: fuel, heat & oxygen
  • Once combustion is underway, it can be sustained by control of these inputs
slide-13
SLIDE 13

Parc Adfer Combustion Control

13

Primary & Secondary Phase Combustion

Primary Phase Secondary Phase

Primary Phase:

  • Main combustion undertaken

here

  • Injection of under-fire air to

control and enable complete combustion on grate

  • Monitoring of grate furnace

line and temperature Secondary Phase:

  • Further combustions of

particles within flue gas

  • Injection of secondary and

tertiary air

  • Complete combustion of

particles within flue gas

slide-14
SLIDE 14

Parc Adfer Combustion Control

14

Furnace Camera Screen

slide-15
SLIDE 15

Parc Adfer Combustion Control

15

Computational Fluid Dynamics (CFD) is a software simulation of a process in a defined system.

  • The system can be a component, area or fluid defined

typically by computer aided design (CAD) drawing

  • The boiler furnace has been used for Parc Adfer
  • The system is divided into individual nodes
  • The modeling applies typically to equations of fluid

motion and thermodynamics to understand the interaction of each node

  • The simulation is started and the equations are solved

iteratively as a steady-state or transient

Understanding Combustion

node

slide-16
SLIDE 16

Computational Fluid Dynamics (CFD)

16

Boiler combustion involves simultaneous fluid flow, chemical reactions and heat and mass transfer.

CFD is a software simulation of the allowing estimation of:

  • Flue gas flow profile across the

boiler

  • Flue gas temperature profile
  • Flue gas velocity profile
  • Impacts of combustion air
  • Performance at different boiler

conditions

Parc Adfer Combustion Control

slide-17
SLIDE 17

17

  • Confirm boiler material selection against flue gas

conditions

  • Check impact of changes to combustion air and

grate operation

  • Confirm stable operation at different load conditions

Parc Adfer Combustion Control

CFD Modelling for Parc Adfer

Improves boiler design

slide-18
SLIDE 18

18

Environmental Permit Requirement (850˚C @ 2 seconds)

  • Conditions are set by the Industrial Emissions Directive
  • Demonstration through modelling submission to NRW during design
  • Demonstration during commissioning and performance testing to confirm

compliance

Parc Adfer Combustion Control

CFD Modelling for Parc Adfer

slide-19
SLIDE 19

Community Benefit Fund Update

slide-20
SLIDE 20

Community Benefit Fund Update

20

The Fund

  • £50,000 fund to cover 3-year

construction period

  • Maximum contribution of £2,000 per

project

  • For projects that are within, or benefit,

the Deeside Partnership area

slide-21
SLIDE 21

Community Benefit Fund Update

21

Activity to Date

Examples of Approvals to date

  • Redecoration of public facilities
  • Purchase of defibrillators
  • Support and funding of community

events

  • Educational events

Fund Status

  • 30 applications received to date
  • 13 applications approved
  • 1 application approved subject to
  • ther funds being raised
  • 1 application deferred until other

funds in place

  • 13 applications rejected as outside

eligibility criteria and 1 withdrawn

  • 1 application pending awaiting

further evidence of benefit within Deeside Partnership Area

£

APPROVED SPEND TO DATE 23,716.64 TOTAL REMAINING IN FUND 26,283.36 TOTAL REMAINING 2018 9,616.36

slide-22
SLIDE 22

Community Benefit Fund Update

22

Contributions to Date

Project

Contribution Awarded Enhancement

  • f Wider

Community Improved Health & Wellbeing Environmental Benefit

Connah's Quay Old People's association

£650

✔ ✔

Daffodils

£1,400

✔

Eye 2 Eye

£2,000

✔

St John Ambulance

£1,817

✔ ✔

DangerPoint Ltd

£1,980

✔ ✔

YSGOL CROES ATTI

£2,000

✔

Connah's Quay Sea Cadets

£2,000

✔

Deeside Community First Responders

£2,000

✔

Plas Derw Trust Ltd

£1,800

✔ ✔

Friends of Flintshire CAB Ltd trading as Libby’s Cafe

£520

✔

Shotton Town Council

£1,000

✔

Connah's Quay Town Council

£250

✔

Sandycroft Community Centre

£2,000

✔ ✔

Connah’s Quay and Shotton Interservices Committee

£2,000

✔

Deeside Community Hospital League of Friends

£2,000

✔

slide-23
SLIDE 23

23

Community Benefit Fund Update

Third Round of Applicants

  • The third round of applicants have been

assessed and approved providing funding to a diverse range of local community groups including:

  • Sandycroft Community Centre
  • Shotton Town Council
  • Connah’s Quay Town Festival
  • Connah’s Quay and Shotton

Interservices

Our social responsibility begins with the communities in which our facilities operate, our customers live and our employees work

slide-24
SLIDE 24

THANK YOU
