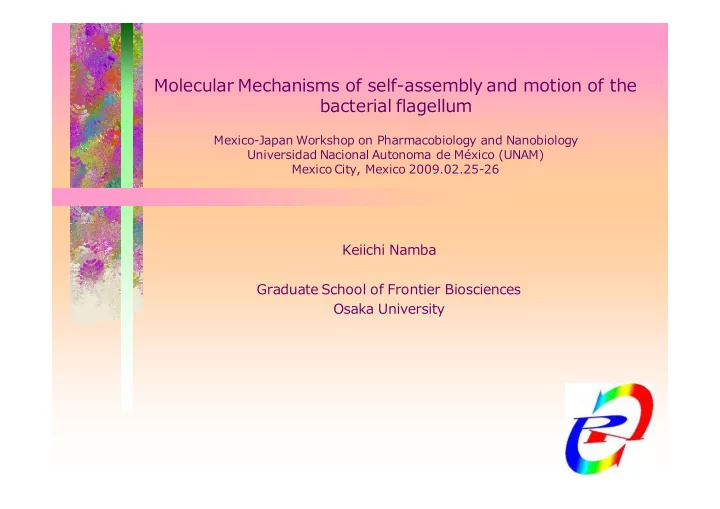

Molecular Mechanisms of self-assembly and motion of the bacterial flagellum

Mexico-Japan Workshop on Pharmacobiology and Nanobiology Universidad Nacional Autonoma de México (UNAM) Mexico City, Mexico 2009.02.25-26

Keiichi Namba Graduate School of Frontier Biosciences Osaka University

slide-2
SLIDE 2

Protonic NanoMachine

Bacteria Swimming

slide-3
SLIDE 3

Protonic NanoMachine

Electron micrograph of Salmonella

slide-4
SLIDE 4

Protonic NanoMachine

Flagellar bundle rotation

slide-5
SLIDE 5

Protonic NanoMachine

Bacterial flagellum (Basal body-Hook-Filament)

By Nao Moriya

basal body Hook-filament junction hook filament

slide-6
SLIDE 6

Protonic NanoMachine

Flagellar motor driven by the proton motive force

slide-7
SLIDE 7

Protonic NanoMachine

Filament L ring P ring Hook HAP2 S ring C ring HAP3 HAP1 M ring FliG FliM FliN Inner membrane Outer membrane Peptidoglycan layer FliF MotB MotA Rod Export apparatus

Structures and functions

  • f

the bacterial flagellum

Cytoplasmic chaperones (FlgN,FliJ,FliS,FliT) (FlhA,FlhB,FliH,FliI,FliO,FliP,FliQ,FliR)

Protein export system (ATPase driven) Rotary motor (proton driven) Universal joint Helical propeller Assembly Promoter

slide-8
SLIDE 8

Protonic NanoMachine Lab

SPring-8 at Harima, Hyogo, Japan

Super Photon ring 8 GeV (giga electron volt) Highly brilliant X-ray with variable wavelength by synchrotron radiation

slide-9
SLIDE 9

Protonic NanoMachine

Crystallography of flagllar proteins (update December 2007)

slide-10
SLIDE 10

Protonic NanoMachine Lab

Electron CryoMicroscope JEM3000SFF

(300 kV FEG & specimen holder cooled at 4 K)

slide-11
SLIDE 11

Protonic NanoMachine

Electron cryomicroscopy of flagellar subcomplexes

Miyata & Kato, unpublished

Hook basal body Polyrod basal body

Fujii & Kato, unpublished

slide-12
SLIDE 12

Protonic NanoMachine

Filament L ring P ring Hook HAP2 S ring C ring HAP3 HAP1 M ring FliG FliM FliN Inner membrane Outer membrane Peptidoglycan layer FliF MotB MotA Rod Export apparatus

Structures and functions

  • f

the bacterial flagellum

Cytoplasmic chaperones (FlgN,FliJ,FliS,FliT) (FlhA,FlhB,FliH,FliI,FliO,FliP,FliQ,FliR)

Protein export system (ATPase driven) Rotary motor (proton driven) Universal joint Helical propeller Assembly Promoter

slide-13
SLIDE 13

Protonic NanoMachine Lab

Structure of the filament as a helical propeller with switchable helical hand

slide-14
SLIDE 14

Protonic NanoMachine

Flagellar bundle rotation

slide-15
SLIDE 15

Protonic NanoMachine

Run and Tumble

slide-16
SLIDE 16

Protonic NanoMachine

Switching from left-handed to right-handed supercoil by quick reversal of the motor rotation

Macnab & Ornston (1977) J. Mol. Biol.

slide-17
SLIDE 17

Protonic NanoMachine

A model of polymorphic supercoiling

Based on the proposal by Asakura (1970) and Calladine (1975)

slide-18
SLIDE 18

Protonic NanoMachine Lab

Image recorded by H. Hotani

Polymorphic transition - Normal to Curly 1 & 2

slide-19
SLIDE 19

Protonic NanoMachine

Repeat distance along the protofilament

L-type R-type

Yamashita et al. (1998) Nature Struct. Biol.

slide-20
SLIDE 20

Protonic NanoMachine Lab

Models of 10 supercoils with 2 straight filaments

#: the number of the R-type protofilaments

Left handed Right handed

2 3 4 5 1 6 9 10 11 7 8

# L R

Run Tumble

slide-21
SLIDE 21

Protonic NanoMachine

Comparison of the two structures at 10 Å resolution

100 Å

Mimori-Kiyosue et al. (1996) P.N.A.S. Subtle changes in the conformation still not visible at this resolution

slide-22
SLIDE 22

Protonic NanoMachine Lab

Disassembly into subunits for crystallization

D3 D3 D2 D2 D1 D1 D0 D0

D3 D2 D1 D0 D2 D3 D1 D0

○ ○ ×

(1) (494)

SJW1103

F40 F27

(66) (178) (422) (450)

D1 D2 D1 D0 D3 D0

slide-23
SLIDE 23

Protonic NanoMachine Lab

Crystal of the F41 fragment of flagellin

slide-24
SLIDE 24

Protonic NanoMachine

Cα backbone trace of F41

Samatey et al. (2001) Nature

D1 D3 D2

slide-25
SLIDE 25

Protonic NanoMachine Lab

Crystal packing of F41 (a-c plane)

51.9 Å

slide-26
SLIDE 26

Protonic NanoMachine

A protofilament on EM map and the filament model

Samatey, Imada et al. (2001) Nature

slide-27
SLIDE 27

Protonic NanoMachine Lab

Crystal packing of F41 (a-c plane)

51.9 Å 52.7 Å

slide-28
SLIDE 28

Protonic NanoMachine Lab

Simulated extension of the protofilament

51.9 Å 52.7 Å

slide-29
SLIDE 29

Protonic NanoMachine Lab

Distribution and packing of hydrophobic side chains

slide-30
SLIDE 30

Protonic NanoMachine

Image of a single filament and its Fourier transform

Mimori et al. (1995) J. Mol. Biol.

slide-31
SLIDE 31

Protonic NanoMachine

High-resolution cryoEM map of the filament

(Resolution: meridional, 4 Å; equatorial, 5 Å)

Average of 100 filament images (~ 41,000 molecules) with unbending and solvent flattening refinement

Yonekura & Maki-Yonekura et al. (2003) Nature

slide-32
SLIDE 32

Protonic NanoMachine

Complete atomic model of the flagellar filament

Yonekura & Maki- Yonekura et al. (2003) Nature

slide-33
SLIDE 33

Protonic NanoMachine Lab

Structure of the hook for universal joint mechanism

slide-34
SLIDE 34

Protonic NanoMachine

The flagellar hook

Filament L ring P ring Hook HAP2 S ring C ring HAP3 HAP1 M ring FliG FliM FliN Inner membran e Outer membrane Peptidoglycan layer FliF MotB MotA Rod E xport apparatus (FliE,FlgB,FlgC,FlgF,FlgG)

hook Functions as a universal joint, transmitting the motor torque to the helical propeller

  • riented in different directions.

Length: 55 nm (±6 nm) Number of subunits: ~130

slide-35
SLIDE 35

Protonic NanoMachine

Flagellar hook working as a universal joint

slide-36
SLIDE 36

Protonic NanoMachine

Run and Tumble

slide-37
SLIDE 37

Protonic NanoMachine

Samatey, Matsunami, Imada et al. (2004) Nature

Cα Backbone of FlgE-32

slide-38
SLIDE 38

Protonic NanoMachine

Bacterial flagellum (Basal body-Hook-Filament)

By Nao Moriya

basal body Hook-filament junction hook filament

slide-39
SLIDE 39

Protonic NanoMachine

Universal joint motion of the flagellar hook

Basal body

slide-40
SLIDE 40

Protonic NanoMachine

Universal joint motion of the flagellar hook

Basal body

slide-41
SLIDE 41

Protonic NanoMachine

Simulated extension of a hook protofilament model

Molecular dynamic simulation of hook protofilament extension by Akio Kitao Samatey, Matsunami, Imada et al. (2004) Nature

slide-42
SLIDE 42

Protonic NanoMachine

Universal joint motion of the flagellar hook

Basal body

slide-43
SLIDE 43

Protonic NanoMachine Lab

Self-assembly of the flagellum

slide-44
SLIDE 44

Protonic NanoMachine

The assembly process of the bacterial flagellum

(update 2002)

slide-45
SLIDE 45

Protonic NanoMachine

Nature of lateral intersubnit interactions in the filament and inner surface of the central channel

* D1-D1: hydrophilic * D0-D0: hydrophobic * Surface of the central channel: hydrophilic (Inner diameter of the channel: 20 Å)

slide-46
SLIDE 46

Three caps for flagellar assembly

slide-47
SLIDE 47

Filament L ring P ring Hook HAP2 S ring C ring HAP3 HAP1 M ring FliG FliM FliN Inner membrane Outer memb rane Peptidoglycan layer FliF MotB MotA Rod Export apparatus

Flagellar protein export at the base and self-assembly at the distal end

Cytoplasmic chaperones (FlgN,FliJ,FliS,FliT) (FlhA,FlhB,FliH,FliI,FliO,FliP,FliQ,FliR)

Assembly Promoter

slide-48
SLIDE 48

3D structure of the HAP2 pentamer cap

2D average of side-view images Pentamer cap as one half of the HAP2 decamer

Maki-Yonekura & Yonekura et al. (2003) P.N.A.S.

slide-49
SLIDE 49

Rotary mechanism of the flagellar cap promoting the self-assembly of flagellin

slide-50
SLIDE 50

Protonic NanoMachine

Single particle cryoEM image analysis of the basal body

Miyata & Kato unpublished

100 Å

C ring M ring S ring P ring L ring

slide-51
SLIDE 51

Protonic NanoMachine

Structural information of important part still largely missing

Where? Where? Where?

slide-52
SLIDE 52

Protonic NanoMachine

Lab members

April 5, 2007 at EXPO Park

slide-53
SLIDE 53

Protonic NanoMachine

Protonic NanoMachine Project, ERATO, JST (1997-2002) Dynamic NanoMachine Project, ICORP, JST (2002-2007)
