What water quality do seagrass require in Western Port? Perran - PowerPoint PPT Presentation

What water quality do seagrass require in Western Port? Perran Cook, Dougal Greer, Andy Longmore, Brent Wormersley, David Ball, Michael Keough, John Beardall, Randall Lee, Ralph MacNally Why are seagrasses disappearing globally? Nutrient

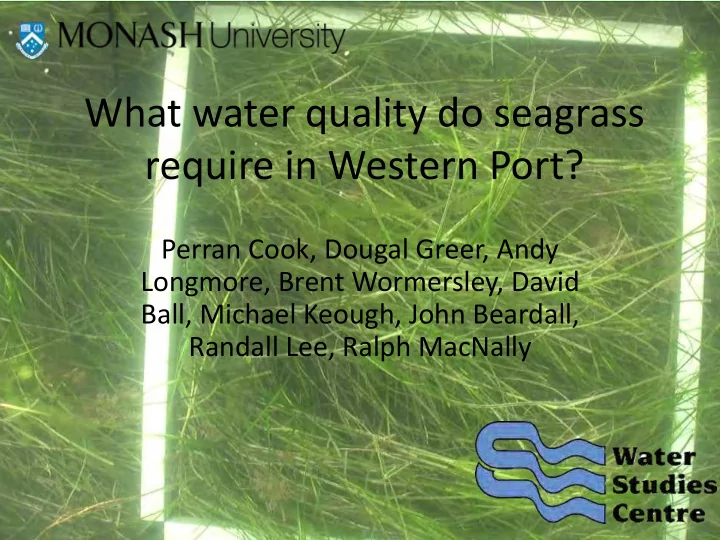

  1. What water quality do seagrass require in Western Port? Perran Cook, Dougal Greer, Andy Longmore, Brent Wormersley, David Ball, Michael Keough, John Beardall, Randall Lee, Ralph MacNally

  2. Why are seagrasses disappearing globally? • Nutrient inputs • Sediment inputs

  3. Seagrasses are disappearing globally, why? • Inputs of nutrients (nitrogen) - eutrophication

  4. Why have seagrasses disappeared in Western Port? Sediment input Benthic exchange

  5. Why have seagrasses disappeared in Western Port? Sediment input Benthic exchange

  6. Why have seagrasses disappeared in Western Port? Sediment input Benthic exchange

  7. Why have seagrasses disappeared in Western Port? Sediment input Benthic exchange

  8. Why have seagrasses disappeared in Western Port? Sediment input Benthic exchange

  9. Why have seagrasses disappeared in Western Port? Sediment input Benthic exchange

  10. Why have seagrasses disappeared in Western Port? Sediment input Benthic exchange

  11. Aims of this project • To identify the key factors (light or nutrients?) controlling the current seagrass distribution within Western Port • To quantify this relationship to obtain thresholds (and hence water quality) needed for seagrass growth • To investigate the possibility of using leaf chemistry as a sentinel to stress

  12. Method • Take existing habitat map, overlay with WQ, light TSS

  13. Method • Take existing habitat map, overlay with WQ, light TSS Critical threshold %Cover Driver (e.g. light)

  14. Method • Relate leaf chemistry to key drivers (nitrogen and light) Critical threshold %Cover or leaf chemistry Can we use leaf chemistry as a sentinel for change? Driver (e.g. light)

  15. What do carbon isotopes tell us? Photosynthesis Light limited Light replete Shallow water Deep water Clear water Turbid water Heavy Light Isotope scale

  16. Carbon isotopes in Western Port

  17. A comparison with Port Phillip Bay Shallow sites in the NE

  18. Undertstanding the sediment driver • Suspended sediments are derived from the catchment and re-suspension within Western Port • To understand this complex driver we used a hydrodynamic model which simulates resuspension by waves and currents

  19. Modelled mean significant wave height

  20. Mean modelled current velocities

  21. Sediment type

  22. Total suspended sediments

  23. From suspended sediments to light

  24. The light field!

  25. Total Suspended solids

  26. Conclusions • We believe light limitation is the key issue in Western Port • Spatial analysis of the data is currently underway to identify the key thresholds of light, TSS and elevation in this dynamic environment • Work is continuing to develop the use of carbon isotopes as a proxy for light limitation
