Westwood Community Church Chanhassen, Minnesota Overview Introduction Waiting / Gathering Space Lighting Design Worship Space Introduction Structural Breadth Lighting Design Open Office Plan Lighting Design

slide-1
SLIDE 1

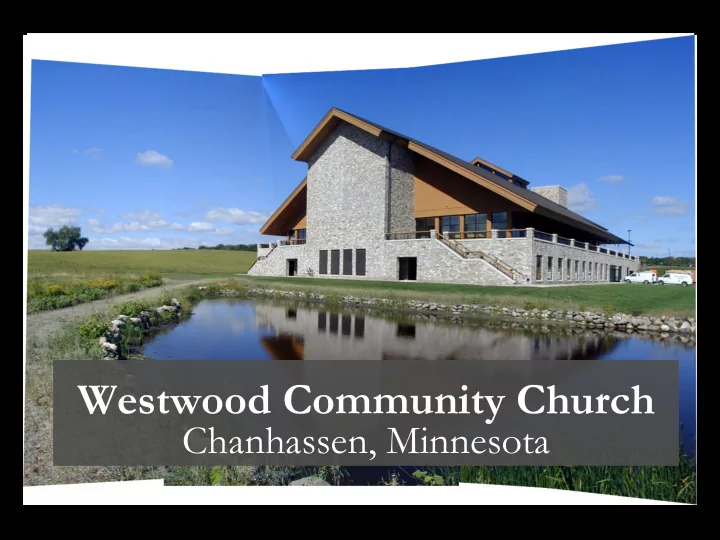

Westwood Community Church

Chanhassen, Minnesota

slide-2
SLIDE 2

Overview

Introduction Waiting / Gathering Space

Lighting Design

Worship Space

Introduction Structural Breadth Lighting Design

Open Office Plan

Lighting Design

slide-3
SLIDE 3

About Westwood Community Church

Former Westwood

Church existed only on paper

Created by church

leaders to allow for an expanding congregation

slide-4
SLIDE 4

Building Characteristics

  • Owner.
  • Westwood Community Church
  • Architect / Engineer.
  • Hammel, Green and Abrahamson
  • Building Cost.
  • $18,000,000
  • Construction Dates.
  • February 2002 – August 2003
  • Building Size.
  • 70,000 Square Feet
slide-5
SLIDE 5

Overview

Introduction Waiting / Gathering Space

Lighting Design

Worship Space

Introduction Structural Breadth Lighting Design

Open Office Plan

Lighting Design

slide-6
SLIDE 6

Waiting / Gathering Space

  • Immediate entrance space
  • Used primarily for gathering and

waiting

  • Space is modeled to include hallways

both north and south of the lobby

slide-7
SLIDE 7

Design Goals / Criteria

  • Appearance of the space should be

comfortable / non-threatening

  • Use light as a guide
  • Ensure light is diffuse enough for

facial modeling Floor illuminance 10 fc Desk Illuminance 50 fc

slide-8
SLIDE 8

Lighting Design

  • T5 high output lamps in cove
  • Wall washers along south and

east walls

  • Downlights over reception desk

and down halls

slide-9
SLIDE 9

Renderings

View upon entering the space Looking back into the Gathering Space

slide-10
SLIDE 10

Renderings

View from information desk View from reception desk

slide-11
SLIDE 11

Light Values

Information Table = 38 fc Reception Desk = 43 fc Floor = 10 fc

slide-12
SLIDE 12

Power Density

Lamp # Input Power Total Power Cove 28 59 1652 W Wall washer 11 38 418 W Downlight 10 52 520 W

Area of Lobby space: 3290 ft2 Power Density: 2590 W / 3290 ft2 = .79 W/ft2 Allowable Power Density: 1.72 W/ft2

slide-13
SLIDE 13

Overview

Introduction Waiting / Gathering Space

Lighting Design

Worship Space

Introduction Structural Breadth Lighting Design

Open Office Plan

Lighting Design

slide-14
SLIDE 14

Worship Space

slide-15
SLIDE 15

Worship Space Intentions

  • Current Proposition:
  • Structural Steel Truss
  • Hanging Acoustic Panels
  • My Proposition
  • Structural Timber Truss
  • Removal of Acoustic Panels
  • Relocation of Acoustic System
slide-16
SLIDE 16

Overview

Introduction Waiting / Gathering Space

Lighting Design

Worship Space

Introduction Structural Breadth Lighting Design

Open Office Plan

Lighting Design

slide-17
SLIDE 17

Structural Breadth

  • Change trusses from

steel to heavy timber

  • Trusses located at three

column lines

slide-18
SLIDE 18

Structural Breadth

Bottom chord: W14x120 Top Chords: W33x118 Webs: Vary

slide-19
SLIDE 19

New Truss – Structural Breadth

  • Fink truss
  • Douglas Fir Larch timber

Modulus of elasticity = 1600 ksi Density = 1.97 x 10^-5 kips/in2 Poisson’s Ratio = .292

  • Live load = 40 psf
  • Dead load = 14.18 psf
  • Shingle load = 3 psf
  • Decking load = 3.5 psf
  • Truss self-weight = 7.68 psf
slide-20
SLIDE 20

New Truss – Structural Breadth

Truss Size Attempted: 8-3/4” x 19-1/2” Three Goals

  • Deflection
  • Compression
  • Tension
slide-21
SLIDE 21

Design Goals

  • Deflection

Allowable Deflection = L / 360 = 4” Max Deflection = 1.12” @ node 6, 7

Compression

Allowable Stress = 1600 psi Max Compression = 765 psi @ beams 4, 7

  • Tension

Allowable Stress = 1250 psi Max Tension = 606 psi @ beams 1, 2, 3

slide-22
SLIDE 22

Overview

Introduction Waiting / Gathering Space

Lighting Design

Worship Space

Introduction Structural Breadth Lighting Design

Open Office Plan

Lighting Design

slide-23
SLIDE 23

Design Criteria

Used for worship activities and masses

  • Still a very multi-purpose space
  • All chairs in the center are movable
slide-24
SLIDE 24

Worship Space

  • Create a flexible environment
  • Visual focus should be on stage
  • Create atmosphere suitable for

worship space (drop light level) Seat illuminance 10 fc minimum Wall Illuminance 3 fc minimum

slide-25
SLIDE 25

Lighting Layout

Metal Halide Pendants T5 Wallwashers 4’x7” T8 4’x2” T5 Compact Fluorescent downlights

slide-26
SLIDE 26

Lighting Layout

View upon entering the worship space

slide-27
SLIDE 27

Renderings

Looking up at the Ceiling

slide-28
SLIDE 28

Renderings

View from the Pulpit

slide-29
SLIDE 29

Renderings

View from the risers during worship service

slide-30
SLIDE 30

Power Density

Fixture Type Quantity Number of Lamps Watts / Lamp Total Power Pendant 14 1 100 1400 Ceiling Wash 46 1 150 6900 W Cove Lamp 30 2 40 2400 T5 28 2 54 3024 W Downlight 24 2 26 1248 W Total Power = 14972 W Total Area = 12959 ft2 Power Density = 1.155 W/ft2 (before stage lighting) Allowable Power Density = 5.2 W/ft2

slide-31
SLIDE 31

Overview

Introduction Waiting / Gathering Space

Lighting Design

Worship Space

Introduction Structural Breadth Acoustic Breadth Lighting Design

Open Office Plan

Lighting Design

slide-32
SLIDE 32

Open Office Space

  • Can be entered from elevators and

stairwells

  • Space uses:

Circulation Office work (writing, typing,

calculating)

Meetings at table

  • Points of interest:

Raised ceiling area over

conference table

Cubicle area

slide-33
SLIDE 33

Design Criteria

  • Visual environment should be free
  • f clutter
  • Keep direct and reflected glare to a

minimum

  • Ensure light is diffuse enough for

facial modeling and reduction of shadows

  • Ensure enough light is present on

horizontal surfaces

slide-34
SLIDE 34

Lighting Layout

T8 2’x4’ Troffers T5 High Output Wallwashers T5 Pendants Floor Lamps

slide-35
SLIDE 35

Renderings

Coming out of the stairwell

slide-36
SLIDE 36

Renderings

View from the corner conference room

slide-37
SLIDE 37

Light Values

2:1 VDT to desk ratio (max. 3:1) 3:1 ceiling ratio 35-55 footcandles on cubicle surface

slide-38
SLIDE 38

Power Density

Fixture # Input Power Total Power T8 Pendant 15 85 1275 W Wall washer 17 60 1020 W T5 Pendant 2 176.4 352.8 W Floor Lamp 2 60 120 W

Total Power = 2767.8 W Area of open office space: 3265 ft2 Power Density: 2767.8 W / 3265 ft2 = .85 W/ft2 Allowable Power Density = 1.3 W/ft2

slide-39
SLIDE 39

Conclusions

  • Lighting designs used to create a comfortable, organic atmosphere
  • Switched trusses in worship space from steel to timber
  • Power densities all very low

Room Allowable Designed Gathering Space 1.7 W/ft2 0.8 W/ft2 Worship Space 5.2 W/ft2 1.2 W/ft2 Open Office Space 1.3 W/ft2 0.8 W/ft2

slide-40
SLIDE 40

Thanks!

Hawaiian music. Lipton Brisk Iced Tea. Honey Mustard and Onion pretzels. The Desperado soundtrack. Dr. Moeck. The Mad Mex wingorito. Brazillian Jazz

  • Samba. Professor Ling. The NCAA tournament for providing a distraction from

the lab. Ryan Adams. Imaginary girlfriend. Professor Davidson. Radio Netscape’s top 90’s alternative station. Yellow Ledbetter. Christa Henry. Girls in skirts. Not Lightscape or AGI. Howard Zinn. Sandy Olson. Gatorade Ice. Holden Caufield. Sam Snyder, for letting me borrow his headphones after some jerk stole mine. No acknowledgement for the jerk that stole my headphones. Dr.

  • Mistrick. the guy who invented the alt-tab feature. Up up down down left right

left right b a b a select start. All other fifth years, especially the L/E and Structural students. Necco Wafers. Seinfeld reruns. Homestar Runner. Franz

  • Ferdinand. Ed Wonderly. State College’s Cold rainy days that didn’t tempt me to

leave the lab. My family! The w-drive, for not crashing. Professor Parfitt. Wege Sourdough broken pretzels. Everyone at the fall Lutron presentations. E-Lumit. Super Dave Osborne. Todd Kraft.

slide-41
SLIDE 41

Questions?

slide-42
SLIDE 42

Acoustic Breadth

Three concerns: (1) Will speakers located behind the pulpit create feedback? (2) Is the central cluster capable of covering the entire central seating section? (3) Can the side fill speakers effectively fill the side seating areas?

slide-43
SLIDE 43

Acoustic Breadth

Beam spread clears pulpit area Central clusters entire central seating area

slide-44
SLIDE 44

Acoustic Breadth

Side fill speakers effectively fill side seating areas

slide-45
SLIDE 45

Light Values

Side Seating Sections

Back Seating Section Floor
