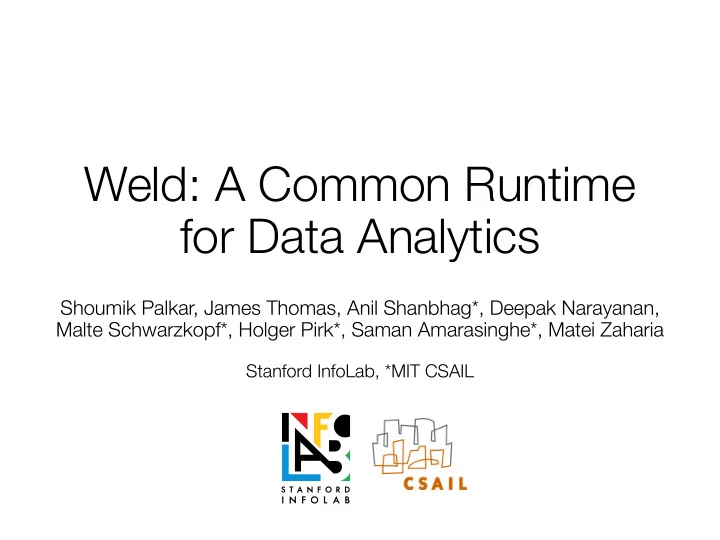

SLIDE 1
Weld: A Common Runtime for Data Analytics
Shoumik Palkar, James Thomas, Anil Shanbhag*, Deepak Narayanan, Malte Schwarzkopf*, Holger Pirk*, Saman Amarasinghe*, Matei Zaharia
Stanford InfoLab, *MIT CSAIL
Weld: A Common Runtime for Data Analytics Shoumik Palkar, James - - PowerPoint PPT Presentation
Weld: A Common Runtime for Data Analytics Shoumik Palkar, James - - PowerPoint PPT Presentation
Weld: A Common Runtime for Data Analytics Shoumik Palkar, James Thomas, Anil Shanbhag*, Deepak Narayanan, Malte Schwarzkopf*, Holger Pirk*, Saman Amarasinghe*, Matei Zaharia Stanford InfoLab, *MIT CSAIL Motivation Modern data apps combine many
SLIDE 2
SLIDE 3
How Bad is This Problem?
Growing gap between memory/processing makes traditional way of combining functions worse
data = pandas.parse_csv(string) filtered = pandas.dropna(data) avg = numpy.mean(filtered)
parse_csv dropna mean
5-30x slowdowns in NumPy, Pandas, TensorFlow, etc
SLIDE 4
How We Solve This
machine learning SQL graph algorithms
CPU GPU
…
Common Runtime
…
SLIDE 5
How We Solve This
machine learning SQL graph algorithms
CPU GPU
… …
Weld IR Backends Runtime API Optimizer Weld runtime
SLIDE 6
Runtime API
Uses lazy evaluation to collect work across libraries
data = lib1.f1() lib2.map(data, item => lib3.f2(item) )
User Application Weld Runtime
Combined IR program Optimized machine code
1101110 0111010 1101111
IR fragments for each function Runtime API
f1 map f2
Data in application
SLIDE 7
Weld IR
Designed to meet three goals:
- 1. Library composition: support complete
workloads such as nested parallel calls
- 2. Ability to express optimizations: e.g. loop
fusion, vectorization, loop tiling
- 3. Explicit parallelism
SLIDE 8
Weld IR
Small, powerful design inspired by “monad comprehensions” Parallel loops: iterate over a dataset Builders: declarative objects for producing results
» E.g. append items to a list, compute a sum » Can be implemented differently on different hardware
Captures relational algebra, functional APIs like Spark, linear algebra, and composition thereof
SLIDE 9
Examples
Implement functional operators using builders
def map(data, f): builder = new vecbuilder[int] for x in data: merge(builder, f(x)) result(builder) def reduce(data, zero, func): builder = new merger[zero, func] for x in data: merge(builder, x) result(builder)
SLIDE 10
Example Optimization: Fusion
squares = map(data, x => x * x) sum = reduce(data, 0, +) bld1 = new vecbuilder[int] bld2 = new merger[0, +] for x in data: merge(bld1, x * x) merge(bld2, x)
Loops can be merged into one pass over data
SLIDE 11
Implementation
Prototype with APIs in Scala and Python
» LLVM and Voodoo for code gen
Integrations: TensorFlow, NumPy, Pandas, Spark
SLIDE 12
Results: Individual Workloads
SQL (TPC-H) PageRank
2 4 6 8 10 12 1 2 4 8 12 Runtime [secs] Number of threads
GraphMat Hand-opt Weld
Word2Vec
Q1 Q3 Q6 Q12
0.2 0.4 0.6 0.8 1 1.2 1 4 12
Runtime [secs] Number of threads HyPer H.o. Weld
0.1 0.2 0.3 0.4 0.5 0.6 0.7 1 4 12
Runtime [secs] Number of threads HyPer H.o. Weld
0.05 0.1 0.15 0.2 0.25 0.3 1 4 12
Runtime [secs] Number of threads HyPer H.o. Weld
0.1 0.2 0.3 0.4 0.5 0.6 1 4 12
Runtime [secs] Number of threads HyPer H.o. Weld 5 10 15 20 25 Runtime [secs]
TF TF-Op Weld
TF-Op = C++ operator
SLIDE 13
TPC-H Logistic Regression Vector Sum
Results: Existing Frameworks
5 10 15 20 25 30 35 40 45 TPC-H Q1 TPC-H Q6
Runtime [secs] Workload
SparkSQL Weld
0.02 0.04 0.06 0.08 0.1 0.12 0.14 0.16 0.18 0.2 Runtime [secs] NP NExpr Weld
Integration effort: 500 lines glue, 30 lines/operator
0.1 1 10 100 1000 LR (1T) LR (12T)
Runtime [secs; log10] Workload
TF Hand-opt Weld
1 Core 12 Cores
SLIDE 14
Results: Cross-Library Optimization
0.01 0.1 1 10 100 Runtime (sec, log10)
Current Weld, no CLO Weld, CLO Weld, 12 core
Pandas + NumPy
290x 31x
0.0 0.5 1.0 1.5 2.0 Runtime (sec)
Scala UDF Weld
Spark SQL UDF
14x
SLIDE 15
Conclusion
The way we compose software will have to change to efficiently use modern hardware Weld is our first attempt at such a design – lots of
- pen questions!
