ITS335 Web Security Browsing Applications HTTPS Certificates Summary

1/31

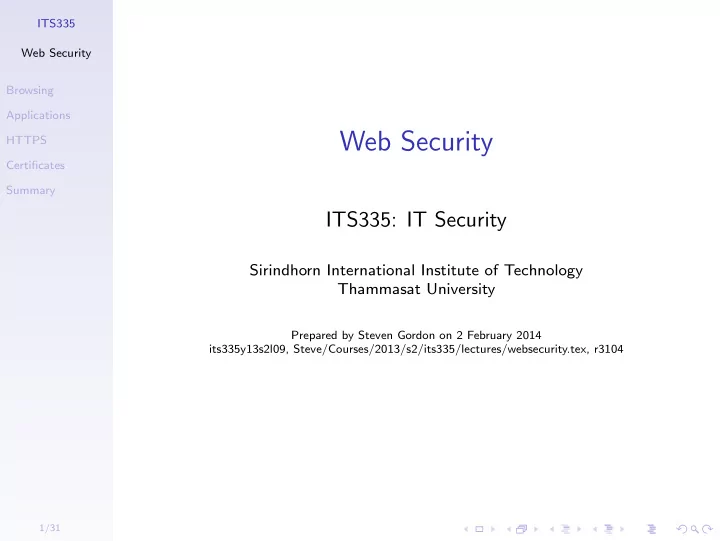

Web Security

ITS335: IT Security

Sirindhorn International Institute of Technology Thammasat University

Prepared by Steven Gordon on 2 February 2014 its335y13s2l09, Steve/Courses/2013/s2/its335/lectures/websecurity.tex, r3104

ITS335 Web Security Browsing Applications HTTPS Certificates Summary

2/31

Contents

Web Browsing Web Applications Confidential Web Communications with HTTPS Digital Certificates Summary

ITS335 Web Security Browsing Applications HTTPS Certificates Summary

3/31

Web Browsing with HTTP

ITS335 Web Security Browsing Applications HTTPS Certificates Summary

4/31

Web Browsing with HTTP

ITS335 Web Security Browsing Applications HTTPS Certificates Summary

5/31

Web Access with Hypertext Transfer Protocol

◮ HTTP is a request/response protocol for web browsing ◮ HTTP is stateless; no dependence between a request

and previous request

◮ User Agent (client) sends HTTP Request message ◮ Server responds with HTTP Response message ◮ Default server port number: 80 ◮ Generic HTTP message format:

Start line Optional header lines <empty line> Optional message body

◮ Start line differs for request and response ◮ Header format: field-name: value

ITS335 Web Security Browsing Applications HTTPS Certificates Summary

6/31

HTTP Example

ITS335 Web Security Browsing Applications HTTPS Certificates Summary

7/31

HTTP Request Messages

◮ Start line: Method URL Version ◮ Methods:

◮ GET: retrieve the resource at the specific URL ◮ HEAD: same as GET, except do not return message

body (only header)

◮ OPTIONS: retrieve options available for resource or

server

◮ POST: asks server to accept and process the attached

data at the resource

◮ . . .

◮ Version: version of HTTP, e.g. HTTP/1.0, HTTP/1.1

ITS335 Web Security Browsing Applications HTTPS Certificates Summary

8/31

HTTP Response Messages

◮ Start line: Version StatusCode StatusReason ◮ Status Codes and Reasons:

◮ 100: Continue (the client should continue with its

request)

◮ 200: OK (the request succeeded) ◮ 301: Moved Permanently (the requested resource has a

new URL)

◮ 304: Not Modified (resource hasnt changed since last

request, client should use cached copy)

◮ 401: Unauthorized (request must include user

authentication)

◮ 403: Forbidden (request was understood, but server

refuses to process it)

◮ 404: Not Found (server cannot find resource at

requested URL)

◮ 503: Service Unavailable (server currently unable to

handle request, e.g. server is too busy)

ITS335 Web Security Browsing Applications HTTPS Certificates Summary

9/31

HTTP Headers

◮ Date: data and time of message generation ◮ Host: domain name of host of resource (means relative

URLs can be used)

◮ Accept-Charset, Accept-Encoding, Accept-Language:

indicate the character sets, encodings and languages that client can accept

◮ Authorization: include user credentials (e.g. username,

password) if authorization is required

◮ User-Agent: indicates information about the client (user

agent), e.g. web browser

◮ Referrer: URL from which this request came from ◮ Content-Encoding: encoding or compression, e.g. gzip ◮ Content-Length: length of message body on bytes ◮ Content-Type: the type of content in message body ◮ Last-Modified: indicates data/time when content was

last modified on server

ITS335 Web Security Browsing Applications HTTPS Certificates Summary

10/31

Contents

Web Browsing Web Applications Confidential Web Communications with HTTPS Digital Certificates Summary

ITS335 Web Security Browsing Applications HTTPS Certificates Summary

11/31

Web Applications

◮ Plain, static web pages: HTML, images and other files

served to browser

◮ But many applications use dynamic content

◮ Content server to browse changes depending on request ◮ Provides interactive, tailored content ◮ Client-side: JavaScript, Flash, Silverlight, Java ◮ Server-side: CGI, ASP, PHP, Coldfusion, Java, . . . ◮ Content stored in databases

ITS335 Web Security Browsing Applications HTTPS Certificates Summary

12/31

Dynamic Content with Server-Side Processing

ITS335 Web Security Browsing Applications HTTPS Certificates Summary

13/31

What are the security issues?

◮ Data transmitted between browser and server is

confidential: encryption with HTTPS

◮ Browser sure it is communicating with intended server:

digital certificates

◮ Server sure it is communicating with intended user:

password authentication, session management

◮ Actions performed by server (engine) are appropriate:

authentication, access control

◮ Actions of user (of browser) are kept private: anonymity

services

ITS335 Web Security Browsing Applications HTTPS Certificates Summary

14/31

Contents

Web Browsing Web Applications Confidential Web Communications with HTTPS Digital Certificates Summary

ITS335 Web Security Browsing Applications HTTPS Certificates Summary

15/31

HTTPS

◮ HTTPS: HTTP over SSL (or TLS) ◮ URL uses https:// ◮ Web server listens on port 443 ◮ Encrypt: URL of requested document, contents of

document, contents of browser forms, cookies, contents

• f HTTP header

◮ Server is authenticated using certificate (using SSL) ◮ Client is authenticated using password (using HTTP)

ITS335 Web Security Browsing Applications HTTPS Certificates Summary

16/31

SSL and TLS

◮ Secure Sockets Layer (SSL) originated in Netscape web

browser

◮ Transport Layer Security (TLS) standardised by IETF ◮ SSLv3 and TLS are almost the same ◮ SSL provides security services to application layer

protocols using TCP

◮ SSL architecture consists of multiple protocols

ITS335 Web Security Browsing Applications HTTPS Certificates Summary

17/31

SSL Architecture

Record: provides confidentiality and message integrity Handshake: authenticate entities, negotiate parameter values Change Cipher: change cipher for use in connection Alert: alert peer entity of status/warning/error

ITS335 Web Security Browsing Applications HTTPS Certificates Summary

18/31

Connections and Sessions

◮ SSL connection corresponds with TCP connection

◮ Client and server may have multiple connections

◮ SSL session is association between client and server

◮ Session created with Handshake protocol ◮ Multiple connections can be associated with one session ◮ Security parameters for session can be shared for

connections

◮ State information is stored after Handshake protocol

◮ Session: ID, certificate, compression, cipher spec,

master secret, . . .

◮ Connection: random values, encrypt keys, MAC secrets,

IV, sequence numbers, . . .

ITS335 Web Security Browsing Applications HTTPS Certificates Summary

19/31

SSL Record Protocol Operation

ITS335 Web Security Browsing Applications HTTPS Certificates Summary

20/31

SSL Handshake Protocol

◮ Allow client and server to authenticate each other ◮ Negotiate encryption and MAC algorithms, exchange

keys

◮ Key Exchange: RSA, Diffie-Hellman ◮ MAC: HMAC using SHA or MD5 ◮ Encryption: RC4, RC2, DES, 3DES, IDEA, AES

◮ Multiple phases:

• 1. Establish security capabilities: client proposes

algorithms, server selects one

• 2. Server authentication and key exchange
• 3. Client authentication and key exchange
• 4. Finish setting up connection

ITS335 Web Security Browsing Applications HTTPS Certificates Summary

21/31

Contents

Web Browsing Web Applications Confidential Web Communications with HTTPS Digital Certificates Summary

ITS335 Web Security Browsing Applications HTTPS Certificates Summary

22/31

Authentication and Encryption in Web Browsing

◮ Browser and server do not have pre-shared secrets ◮ Use public key cryptography to securely exchange secret

key

◮ RSA/DSA ◮ Diffie-Hellman key exchange ◮ Elliptic curve cryptography

◮ Once a secret key is exchanged, use symmetric key

encryption

◮ AES, RC4, 3DES, . . .

◮ E.g. with RSA: if a server sends browser its RSA public

key, how does browser know it is indeed RSA public key

• f server?

◮ Get a trusted third party to confirm it is the servers

RSA public key

ITS335 Web Security Browsing Applications HTTPS Certificates Summary

23/31

Digital Certificates

Step 1: Server Obtains Digital Certificate

◮ Server (owner) creates key pair: (PUs, PRs) ◮ Server confirms identity, IDs, with trusted third party

called Certificate Authority

◮ CA issues server with a digital certificate by signing

relevant info: Cs = (IDs||PUs||T, E(PRCA, H(IDs||PUs||T))

◮ A timestamp, T, can be used to determine how long

the certificate is valid

◮ X.509 specifies standard format of certificates

ITS335 Web Security Browsing Applications HTTPS Certificates Summary

24/31

Digital Certificates

Step 2: Server Sends Digitial Certificate to Browser

◮ When browser initiates communications with server,

server responds with Cs

◮ Browser verifies signature using PUCA

◮ Assumes browser already knows and trusts PUCA ◮ PUCA is stored in self-signed certificate:

CCA = (IDCA||PUCA||T, E(PRCA, H(IDCA||PUCA||T))

◮ Once verified, browser can choose secret value and send

it encrypted using PUs to server

ITS335 Web Security Browsing Applications HTTPS Certificates Summary

25/31

X.509 Certificates

◮ X.509 certificate format includes:

◮ Version of X.509 certificate ◮ Serial number unique to the issuer (CA) ◮ Signature algorithm ◮ Issuer’s name and unique identifier ◮ Period of validity (start time, end time) ◮ Subject’s name and unique identifier ◮ Subject’s public key information: algorithm, parameters,

key

◮ Signature

◮ Certificates may be revoked before expiry

◮ CA signs a Certificate Revocation List (CRL), which is

publicly available

ITS335 Web Security Browsing Applications HTTPS Certificates Summary

26/31

Digital Certificates in Practice

How does a server obtain a certificate?

◮ Prove identity to CA by:

◮ Domain validation ◮ Extended validation

◮ Free and commercial services

How does browser obtain CA certificate?

◮ Pre-loaded into browsers ◮ Hierarchy of certificates is supported

What if CA certificate is not in browser?

◮ Browsers commonly present warning to user

ITS335 Web Security Browsing Applications HTTPS Certificates Summary

27/31

Security Issues with Digital Certificates

◮ Identity verification of server (owners) ◮ Security of CA private key ◮ Pre-loaded certificates by browser publisher ◮ Response when invalid certificate received ◮ Algorithms used in certificates should be strong

ITS335 Web Security Browsing Applications HTTPS Certificates Summary

28/31

Contents

Web Browsing Web Applications Confidential Web Communications with HTTPS Digital Certificates Summary

ITS335 Web Security Browsing Applications HTTPS Certificates Summary

29/31

Key Points

◮ Web browsing uses HTTP over TCP ◮ Secure web browsing inserts SSL in between HTTP and

TCP; HTTPS

◮ Secret key exchange between browser and server using

public key crypto

◮ For browser to trust server public key, must be signed

by trusted third party (certificate authority)

◮ X.509 digital certificates used in web browsing, email

and many networked applications

ITS335 Web Security Browsing Applications HTTPS Certificates Summary

30/31

Security Issues

◮ Digital certificates rely on trustworthiness of certificate

authorities

◮ Also rely on action by users: response with invalid

certificate received; trusting browser CA list

◮ Man-in-the-middle interception/modification attacks on

web browsing are easy if certificates are compromised

ITS335 Web Security Browsing Applications HTTPS Certificates Summary

31/31

Areas To Explore

◮ Public key distribution methods ◮ PGP and GPG for email ◮ Securing web applications, OWASP
