WD 290 IQ Intelligence Made Easy WD 290 IQ Intuitive, easy to use 10.4 touch screens Reduced water use Same footprint as our WD 290 Compatible with WD 290 racks and carts Compatible with WA 290 and SISO


slide-1
SLIDE 1

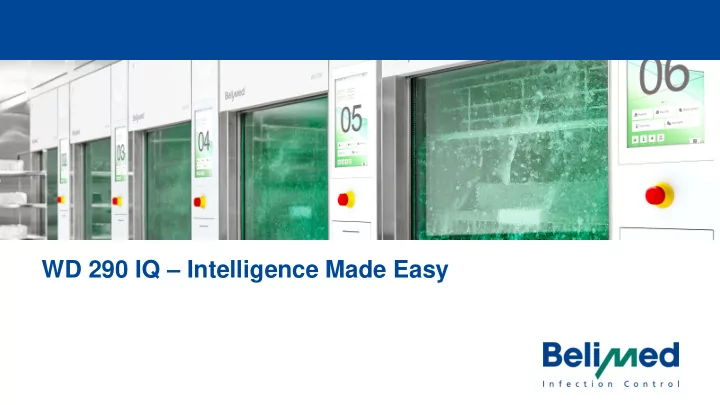

WD 290 IQ – Intelligence Made Easy

slide-2
SLIDE 2

WD 290 IQ

  • Intuitive, easy to use 10.4” touch screens
  • Reduced water use
  • Same footprint as our WD 290
  • Compatible with WD 290 racks and carts
  • Compatible with WA 290 and SISO automation
  • 100 programmable cycles
  • Internal storage for at least 1,000 cycles of data and alarms
  • USB port for data download and cycle upload
  • Speed controlled wash pump
  • Three dosing pumps with redundant flow sensors
slide-3
SLIDE 3

WD 290 IQ INTELLIGENCE

The transformation of Belimed into the digital world – Accessibility to both current and historical cycle data at any time

EFFICIENCY

Reduce energy and water use operating cost with Smart Fill technology and optional storage tank

FLEXIBILITY

Customizable interface provides the flexibility to view the data that you want to see

slide-4
SLIDE 4

10.4” Touch Screens

  • Five main views
  • Swipe to navigate

Intelligence

Remaining Time / Process Status Process Graphic (Temperature / A0 value) Custom Machine Naming Printer Output

slide-5
SLIDE 5

Intuitive, Easy to Use Interface

  • Similar to cell phones and tablets
  • Reduce training needs
  • Instant information

Intelligence

slide-6
SLIDE 6

Independent User Interfaces

  • Flexibility to view the

information you want to see,

  • n both sides
  • Each screen can display

different information

Flexibility

slide-7
SLIDE 7

Intelligence Service Information

  • Drives faster and more accurate service resolution
  • Alarm codes displayed by date or by % of occurrence
  • Filters to focus on a range of cycle data and/or alarms
  • Analysis of data by downloading to USB
slide-8
SLIDE 8

NEW Speed Controlled Pump

Variable impingement for each cycle step

  • Lower speed when impingement is not relevant – thermal disinfection
  • Reduced water use, fill time and heating time

Gentle Instruments Cycle: lower impingement for delicate instruments

Softstart for less stress on the instruments

  • Ramped pump start-up eliminates the water hammer effect
  • Quiet and smooth, no rack “bounce”

Effective Gentle Cleaning

slide-9
SLIDE 9

NEW - Data Storage USB Port

  • Stores over 1,000 wash cycles and alarms
  • Download CSV data files
  • Download or upload wash cycles
  • Ensure all washers have identical cycles
  • Easier/faster to program multiple washers
slide-10
SLIDE 10

Efficient Heating for Reduced Cycle Time

  • Faster heating with smart positioning of heating elements

and water flow

  • Reduces thermal rinse water heating by two minutes

NEW - Improved Sump Design

slide-11
SLIDE 11

1 2

NEW Option - Storage Tank

1 DI-water preheating 2 Storage tank

Save Thermal Disinfection Water from the Previous Wash Cycle

  • Programs will save thermal disinfect water
  • Cycle programs can use, or not use saved water

for the post-wash rinse

  • Saved water is only used ONCE
  • 5.4 gallons saved
  • Fresh water is always used for thermal disinfection
  • Self disinfection cycle will disinfect the tank
slide-12
SLIDE 12

Preheating of Thermal Disinfection DI-water for Faster Cycles

  • Tank can be drained through the User Interface
  • Included with electrically heated washers
  • OPTION for Steam heated washers
  • Reduces cycle time by 2 to 2.5 minutes

DI - Water Preheating Tank

slide-13
SLIDE 13

NEW Option – HEPA Filter Monitor HEPA Filter Monitor

  • Clogged filter affects drying time and effectiveness
  • Monitors dryer air filter
  • Alerts when filter needs to be replaced
slide-14
SLIDE 14

Option - Integrated Printer Document Cycles

  • Load (Decontam) side
  • Unload (Clean Side) is the recommended location
slide-15
SLIDE 15

Option - Drain Pump Drain Pump

  • Flexibility for site situation
  • Used when no floor drain is available
  • Installs under the unit
  • One needed for each washer

Drain from washer To wall drain Exhaust condensate Drain from door

slide-16
SLIDE 16

Low Additional Capital Investment

  • WD 290 IQ uses the complete accessories product portfolio from

the WD 290

  • Racks
  • Carts
  • SISO and WA 290 automation system

Accessories - Backward Compatible
