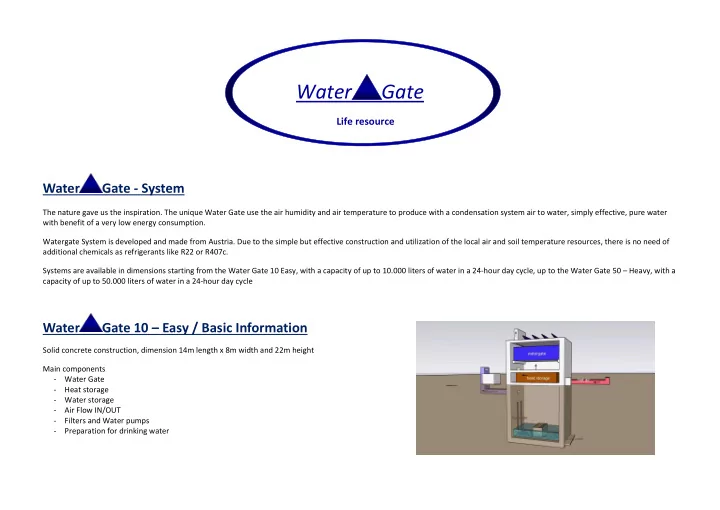

Water Gate

Life resource

Water Gate - System

The nature gave us the inspiration. The unique Water Gate use the air humidity and air temperature to produce with a condensation system air to water, simply effective, pure water with benefit of a very low energy consumption. Watergate System is developed and made from Austria. Due to the simple but effective construction and utilization of the local air and soil temperature resources, there is no need of additional chemicals as refrigerants like R22 or R407c. Systems are available in dimensions starting from the Water Gate 10 Easy, with a capacity of up to 10.000 liters of water in a 24-hour day cycle, up to the Water Gate 50 – Heavy, with a capacity of up to 50.000 liters of water in a 24-hour day cycle

Water Gate 10 – Easy / Basic Information

Solid concrete construction, dimension 14m length x 8m width and 22m height Main components

• Water Gate
• Heat storage
• Water storage
• Air Flow IN/OUT
• Filters and Water pumps
• Preparation for drinking water

Water Gate / environment

Atmospheric - humidity and temperature, with an average temperature between 25°C to 45°C and an average relative humidity of 45% – 75% to produce water as per their capacity. The output increases with an increase in humidity and vice versa. Warm coastal areas with high humidity are ideal. Water Gates condensate capacity varies in connection with air temperature and air humidity within a range of approximately 3.500 Liter/day up to 30.000 Liter/day with same Power supply. Higher possible capacity available at: Temperature 25°C to 45°C Humidity 60% – 75 % Lower capacity available at: Operation range Temperature 18°C to 25°C Humidity 35% – 45 %

Water Gate / types

Water Gate System 10 - Easy Rated water condensate capacity 10.000 Liter/day with relative humidity 35°C and 60% Water Gate inner main board with 8 system units Water Gate System 25 - Middle Rated water condensate capacity 25.000 Liter/day with relative humidity 35°C and 60% Water Gate inner main board with 16 system units Water Gate System 50 - Heavy Rated water condensate capacity 50.000 Liter/day with relative humidity 35°C and 60% Water Gate inner main board with 32 system units

Water Gate / type system 10 – Easy

Water capacity Rated water condensate capacity 10.000 Liter/day with relative humidity 35°C and 60% Main building 14m length, 8m width and in total ~22m height, Electric power supply 220V-230V/50Hz Electric power consumption for water production 12 kW/day – respectively 1,2 Watt/Liter Due to the low power consumption the Water Gates can be built in areas where no electric network lines are available, just using photovoltaic systems and solar connectors.

Water Gate / are source of free water from Air

There are 37.500 trillion gallons of “fresh” water in the air at any given time. Water Gate gives you fresh water using the air-to-water technology.

Water Gate / Placement everywhere you need

Wherever water is a need, in metropolis’s, at Plantations, in the Desert – Oasis or as additional water resource to the existing municipal water supply.

Water Gate / No water wastage

Water bound in the air will be condensate and direct lead to the water tank No water wastage. Our System don’t deplete existing water resources and unlike RO and desalination systems that waste 70% of the water as reject water, there is no water wastage.

Water Gate / Long Life System

Strong concrete construction in combination with solid stainless steel, gives these Watergate a long-life production of fresh water. Easy maintenance is arranged. Watergate are cost efficient and require minimum maintenance to make it run. Installation of the main building can be set up within a short time frame.

Water Gate / Drinking water

Air to water as condensate gives you pure water, containing no harmful substances like chemicals, bacteria’s, pesticides, or heavy metals and minerals. Ingredients like minerals are a need for drinking water are added Pure drinking water

MIDDLE EAST & GULF AREAS | AFRICA | SOUTH EAST ASIA

Beyond Water Gate

The Water Gate collected is distilled in its collection stage and then minerals are added to the water to make it reach recommended drinking standards. The water collected is very effective for Hydroponic farming. Other applications for Atmospheric Water Gate are in the Pharmaceutical, Food & Beverage industries and Micro-Breweries.

Hydroponic Farming

Water is not just about drinking, as other structures need water, such as agriculture to produce food. Maintenance of animal breeding, cultivation of vegetables and fruits

Pharmaceutical

Water is not just about drinking, as other structures need water to produce for pharmaceutical products. production of pharmaceutical or chemical products, as solvent, base water, cleaning products

Food manufacture

Water is not just about drinking, as other structures need water to produce for foods products. Producing foods that require water as a base, drinks, pickled foods

Water Gate / Vision & Mission Statement

With only 60% of water ready for consumption by 2030, the rest of the world is staring at a global crisis, unless we care about our environment. The hour has come to try and find sustainable solutions to minimize the use of groundwater and innovate to develop cost efficient technology to provide clean drinking water for mankind.

Vision

Water, Wherever Whenever. – ‘Access to pure, clean and safe water for everyone with the least environmental impact.

Mission

Our endeavor is to tackle the water issues experienced worldwide by providing environmentally sustainable solutions that minimize the use of groundwater and develop innovative cost efficient, technology to provide clean and safe water for all.

Water Gate / Manufacturing Atmospheric

The production of the Watergate system is made by a particularly precise production of components using high quality products and materials with well proved and high technologies. The technical management of the system with sensors and measurement data that lead to an optimal result of water condensation. Almost the whole main concrete construction and other main components can be easily produced at sight in your country/destination.

Water Gate / Other water systems in comparison

There are also other suppliers on the market which offer condense-water systems. These plants have one thing in common, they produce water with a very high energy consumption. Like the desalination or water treatment by heat. But also, condensation water systems that draw direct water from the air require huge amounts of electricity. The Water Gate shows a different feature even without producing much energy. The Water Gate can be operated completely independently and there is only one time to build the

• system. we make progress on other roads ....

Simply comparison – electric consumption – to produce 1 Liter of water Water Gate: 1,2 Watt / L Other suppliers: 340 Watt / L ( ~283 times more energy)

Water Gate

Life resource

FAQs |

What is air-to-water technology? Technology is simply copied from nature – air humidity converts into water in connection with temperature. Air-to-water technology is the process of converting water vapor in the air (humidity) to water. Water Gate atmospheric water system replicates this natural process of condensation by simulating the dew point, which allows it to make water continuously, even in low humidity conditions. Is air vapor an unlimited resource? There’s approximately 3100 cubic miles (mi3) or 12,900 cubic kilometers (km3) of water in the atmosphere. Water vapor is an unlimited resource constantly replenished by nature’s hydrologic cycle. Water Gate atmospheric system can extract water from air indefinitely without impacting the planet How do Watergates air-to-water machines make water? Water Gate atmospheric water generators draws air through the vents and then passes through the condenser. The condenser converts the vapor in the air from gas to a liquid (water) by continuously reaching the dew point with cool air. What are the best conditions to make water? The two key figures to produce water are humidity and temperature. Ideal operating conditions are a temperature between 21º C to 32º C and relative humidity between 40% to 99%. What happens when there’s low humidity in the air? If the humidity is low, all air to water machines are challenged. Water Gate systems are not designed for dry or cold climates. Generally, there are some days with low humidity even in ideal regions of the world.

What is the lifespan of Water Gate? With proper maintenance Water Gate atmospheric water systems can operate for several years with an estimation of about 30-50 years. There are only few moving and sliding parts. The lifespan of the Water Gate will depend primarily on the overall maintenance of the system. What are the power requirements for Watergates? The Water Gate need for water condensation approximately 0,5 kilowatts per hour (1,2 Watt / Liter). It operates on 50hz– 220/240V (single phase) and/or 380 – 440V (3-phase). This power can be supplied directly from available electric network, from a photovoltaic system or from a small portable petrol generator. How does the Water Gate atmospheric water system filter impurities from the air? Water Gate water is activated by a carbon filter system, but also by a mineralization plant (mineral rock as desired). the water is activated by active movement. Is the Water Gate crisis-proof Water Gate atmospheric water system is a humidity and temperature-controlled devices. This means that the appliance's ability to generate water is completely dependent on humidity and ambient temperature. Water Gate is crisis-proof as it operates absolutely independent, out of fixed power grid. Is it possible to add a large system? Water Gate units are scale able and interfaced in sequence to fulfil the most sizeable water requirements. These models have been designed to work in most arid environments with humidity levels as low as 50%. Using different systems Water Gate – 10 Easy, Water Gate – 25 Middle or Water Gate – 50 Heavy gives you the possibility to choose the right one for your need. There is also the possibility to install / locate systems of quantity you require.
