1

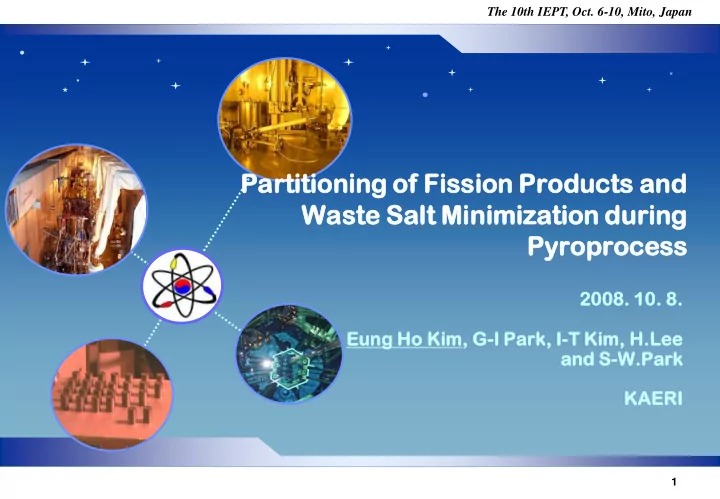

Part rtitio itionin ing g of Fissio ion Product ducts and Waste Salt Minim imiza zatio ion durin ing g Pyropro

  • process
  • 2008. 10. 8.

Eung Ho Kim, G-I Park, I-T Kim, H.Lee and S-W.Park KAERI

The 10th IEPT, Oct. 6-10, Mito, Japan

slide-2
SLIDE 2

2

Backgrounds

 Next generation nuclear fuel cycles

○ Reduction of environmental hazard by selectively recovering a long-lived nuclide and transmuting it ○ Minimization of the waste volume to be eventually disposed of

 Basic strategy for partitioning

○ Classify and optimize waste streams arising when treating spent fuel ○ Minimize waste volumes resulting from each waste stream

 Strategy for optimization of waste streams and waste minimization

○ Pyro-partitioning of fission products being performed in KAERI ○ Strategy requested for optimizing waste streams and minimizing waste amounts ○ Reduction of HLW generating from each waste stream

  • Converting HLW to LLW through an increase of DF or SF

○ Candidate wasteforms for consolidation of waste salts from a pyroprocess

Little information on a strategy for waste minimization in pyroprocess

slide-3
SLIDE 3

3

Burn-up

Fresh Fuel (100 % Uranium) Spent Fuel

FP TRU

Pu (0.9%) MA (0.1%) I, Tc (0.1%) FP (3%) Cs, Sr (0.3%) U (95.6%)

Recovered / Transmute Recovered / Stored

Reuse Sodium-Cooled Fast Reactor ( SFR ) Disposal Facility (D/F)

A Strategy for Efficient Management of Spent Fuel in Korea

CANDU Storage/Reuse Reuse

Reducing HLW by converting to LLW and disposal

100 % Uranium

235U = 0.9%

Dispose of LLW Dispose of LLW / HLW

FP: Rare earth, Noble metal, Volatile / Semi-volatile Fission Products KAERI’s waste management strategy: directed to minimize HLW amounts Hull

slide-4
SLIDE 4

4 Waste salt Treatment U+TRU+ RE U recovery Recycle to SFR / CANDU or Store as LLW

SFR

Ceramic Waste forms

  • Cs/Sr
  • RE with An

U +TRU + FP(RE) Air U3O8 (TRU+FP) Oxide Hulls UO2 PWR Spent Oxide fuel Electrolytic reduction Electro- refining Decladding & Vol-oxidation TRU fuel fabrication

A Flow Diagram of Pyroprocess being Developed by KAERI

Spent Metallic Fuel

Optimizing waste streams and evaluating a strategy for minimization of wastes

LiCl-KCl- RECl3(AnCl3) LiCl- CsCl/SrCl2 Metallic Waste Form Fab. Anode Sludgy (NM) Off-gas treatment Environment Metallic Waste form Waste form (?) Cathode Processor (Salt Vaporization)

Xe, Kr, 3H, I, Tc, etc

slide-5
SLIDE 5

5 Nuclides Standard voloxidation (500oC) Advanced voloxidation* (1200oC) Remarks Kr / Xe <30% 100% H 100% 100% I <10% 100%

I-129: long- lived nuclide

Tc <1% 92%

Tc-99: long- lived nuclide

C <10% 100%

C-14: long- lived nuclide

Cs <1% 98%

Highly radioactive, high decay heat nuclide

Ru <1% 98%

Noble metal

Mo <1% 62%

Noble metal

Rh <1% 83%

Noble metal

Rb <1% 96%  DF > 10 4 to minimize the impact to the environment Further development of trapping technologies and conditions  Optimization of waste forms for consolidation of several absorbents  Minimization of waste amounts issued from capturing fission gases

Challenges

Fission Products Release with Voloxidation Conditions

Advanced Voloxidizer ~1200 oC vacuum

Cs,Rb,Cd

Trapping Unit Fly ash Filter 1,000 oC

Tc, Ru,C-14

Trapping Unit Ca-based filter 600 oC

HT

Conversion Unit CuO 400 oC

I

Trapping Unit Ag-X 150 oC HTO Trapping Unit Molecular Sieve, RT

HEPA Filter

RT

Kr/Xe Trapping Unit

Solid Adsorbent

  • 80 oC

Vent

Flow sheet for capturing fission gases

 Minimize influence of fission products on the down-stream process conditions  Recover and store fission products separately

Advantages

* INL hot experimental data in I-NERI program of INL-KAERI

slide-6
SLIDE 6

6

Treatment of Hull

  • Experimentally recover higher than 99% fissile material during air-voloxidation process
  • Look for a promising way enabling a conversion of hull to LLW
  • Strip residual fissile materials from the contaminated hull
  • Classify the hull as LLW → Challenge !!

Objective:

4UO2 + 3ZrCl4 + Zr = 4UCl3 + 4ZrO2 4PuO2 + 3ZrCl4 + Zr = 4PuCl3 + 4ZrO2 4AmO2 +3 ZrCl4 + Zr = 4AmCl3 + 4ZrO2

LiCl + KCl ZrCl4

RE2O3 + ZrCl4 = RECl3 + ZrO2 Cs2O + ZrCl4 = CsCl + ZrO2 SrO + ZrCl4 = SrCl2 + ZrO2

  • Not chlorinated
  • Co-precipitated with ZrO2

Promising technology (Rinsing Mechanism) LiCl + KCl AnCl3, RECl3, CsCl, SrCl2 NMO+ZrO2 Regeneration of Salt Fabrication of metallic Waste (Zr - 8SS1))

LLW Actinides Rare earth and I/II groups Noble metals

Hull contaminated with actinide

1) Steven M. Frank, et al., “Immobilization of Technetium and other Fission Products from Processed Spent Nuclear Fuel into a Metallic Waste Form”, 2008 IPRC, Aug 24-27, 2008 Jeju Island, Korea

slide-7
SLIDE 7

7 

Electrorefining (Drawdown)

PWR Spent Fuel

Voloxidation

U, TRU, FPs (Oxides)

LiCl Waste (Sr/Cs)

LiCl Recycle  

U, TRU, FPs (Metal)

LiCl/KCl Recycle 

RE

Oxides

LiCl+KCl Waste (RE / An) RE : Oxidation

Residual Salt w/ Cs & Sr

Disposal

Solidifying Agent Final Waste Forms

High-integrity Solidification Salt Regeneration

(FPs Removal & Salt Recycle) : Waste from unit process

Electrolytic Reduction

Solidifying Agent

Cs/Sr : Salt refining (Crystallization) Distillation & Condensation Pretreatment

U TRU

Strategy

Minimize waste salt by adopting a recycling technology Develop high- integrity wasteforms

Waste Salt Treatment Technologies

 Developing technologies to recycle waste salts to process units, not by releasing to repository

  • Salt cooling technologies: Czochlarski, Zone freezing, Layer crystallization
  • Precipitation technology: oxidation-precipitation using air
slide-8
SLIDE 8

8

Recovery of Purified LiCl Salt from a Waste Salt

Cooled wall Crystal layer Salt

Czochlarski Zone Freezing Layer Crystallization

  • To concentrate Cs and Sr

to eutectic point by cooling method

  • To theoretically recover 99wt%
  • f LiCl from a waste salt
  • To evaluate and select which

technology is more preferable and effective for scale-up and practical use.

LiCl LiCl LiCl

slide-9
SLIDE 9

9

Zone Freezing Technology for Recovery of LiCl Salt

0.0 0.2 0.4 0.6 0.8 1 0.0 0.2 0.4 0.6 0.8 1.0 C

h/C O

h/H [-]

* Diameter : 44mm(LiCl=200g) * initial weight : 2wt% (CsCl=1wt%, SrCl2=1wt%) * temperature : 660 oC *1.67 mm/Hr CsCl ; k=0.0101 / SrCl2 ; k=0.0116 *2.8mm/Hr CsCl ; k=0.0224 / SrCl2 ; k=0.0184

* Diameter : 44mm(LiCl=200g) * Initial weight : 2wt% (CsCl=1%, SrCl2=1%) * Temperature : 660oC * 1.67 mm/Hr CsCl k=0.0101 SrCl2 k=0.0116 * 2.8mm/Hr CsCl k=0.0224 SrCl2 k=0.0184 Cs/Sr separation efficiency : 95%(80%recovery of LiCl) Cs/Sr separation efficiency : 90%(90% recovery of LiCl)

Ch/Co

h/ho (or weight ratio) [-]

90% 10% Experimentally recycle 90% of LiCl (contaminated with a small amount of impurity) Fabricated to a final wasteform (contaminated with 90% of initial impurity amount)

slide-10
SLIDE 10

10

LiCl-KCl Waste Salt Recycle

TRU

3+

U

3+

Electro-refining

O2

Precipitation Vacuum Distillation & Oxidation/Dechlorination LiCl/KCl waste Phase separation pure LiCl/KCl

RE/TRU Oxychloride (or oxide) + Salt residue

LiCl/KCl vapor

condensation

RE oxide Final Waste form pure LiCl/KCl metal ingot Pure salt phase REUSE

1)

1) RECl3 + 0.5O2 → REOCl + Cl2

  • r RECl3 +O2 → REO2 + 1.5Cl2

2) REOCl + 0.25O2 → 0.5RE2O3 + 0.5Cl2

2)

Precipitate phase

Possible to recycle all most of eutectic salts to electrorefiner and to minimize waste salt to be disposed of

  • REE are precipitated as oxide or oxychloride forms
slide-11
SLIDE 11

11

Waste LiCl from Electro-reduction Waste LiCl-KCl from Electro-refining Melt Crystallization Oxide precipitation

Concentrated residual salt Cs & Sr Oxide precipitates REE Recycle of clean salt

Solidification

Candidate wasteform for consolidation

  • f waste salt [LiCl residual salt]
  • Incorporation of Cl into a wasteform
  • Mineral-based wasteform

sodalite, apatite, spodiosite, wadalite

  • phosphate-based glass
  • Not incorporation of Cl [KAERI]
  • SAP-based wasteform

[SAP: xSiO2-yAl2O3-zP2O5] Candidate wasteform for REE / An oxides

  • BSG, SynRoc, Pyrochlore and etc
  • Monazite-based wasteform [KAERI]
  • Reliable host matrix for α-radionuclide
  • Reasonable processing condition
  • Waste loading & Chemical durability
  • Radiation stability

Wasteforms

slide-12
SLIDE 12

12

Preparation

  • f SAP matrix

Gellation & Aging (70oC) Drying (100oC) Heat (600oC) Treatment

Gelling Agent (Si, Al, P) SAP matrix Glass Frit Salt Residue (with Cs/Sr) Final Waste Form Heat Treatment (≈ 1,000oC) Mixing & Rxn (650oC) RE Oxides Reaction Agent (NH4H2PO4) Glass Frit

Fabrication of Final Ceramic Waste Forms

 Two different waste streams : LiCl salt residue and RE oxides  Each waste can be treated by using the same solidification

equipment, but at different processing conditions.

Solidification of LiCl Salt Residue Solidification of RE Oxides

A Flowsheet for Wasteforms Fabrication

SAP Waste Form Monazite Waste Form

slide-13
SLIDE 13

13

Chemical route and Qualification of Waste forms

 Chemical route for the immobilization of each waste

For LiCl waste For REE oxide waste RE(An)2O3 + 2 NH4H2PO4 = 2 RE(An)PO4 + 2 NH3 + 3 H2O

 Waste loading factor of waste forms

LiCl waste salt : SAP material : Glass frit = 1 : 2 :1 [waste loading : 25 wt%] for SAP RE oxide : Chemical additive(NH4H2PO4) : Glass frit = 1 : 0.52 : 3.48 [waste loading: 20wt%] for Monazite

 Chemical durability of waste forms

SAP for LiCl waste Monazite for REE oxides Conventional BSG Sodalite for LiCl-KCl Cs ~ 10-2

  • ~ 10-1

~10-2 Sr ~ 10-2

  • ~ 10-2

~10-2 RE

  • < 10-3

< 10-3

  • PCT-7days,

(unit : g/m2)

Salt waste + 2 SAP → LixAlxSi1-xO2-x + Li3PO4 + (Li, Cs)-aluminosilicate + Cs2AlP3O10 + Sr5(PO4)3Cl(apatite) + CePO4(monazite) + amorphous phase (M2O-Al2O3- P2O5) + Cl2 (Vaporized as gas)

xSiO2-yAl2O3-zP2O5

slide-14
SLIDE 14

14

Partitioning-Waste Streams

Pyroprocess

Volatile / Semi- volatile species Selective partitioning

  • f FP’s

using substrates Hull Metal sludgy (NM) U TRU Cs / Sr + LiCl salt Lanthanides + LiCl-KCl (with TRU) Removal of residual actinides from metallic products Alloy form with Zr and Fe (may include Tc and

  • ther noble metals)

Not determined Waste stream Partitioning & Recovery Potential Wasteform Classification Ceramic waste (SAP) Removal of actinides

( contaminated with > 100 nCi-TRU/g )

to store as LLW Temporally stored as Metallic form Recovery yield: > 99.9 % Transmuted at ABR LLW HLW →LLW HLW(?) HLW LLW Ceramic waste (Monazite)

Spent fuel

Oxide precipitation & salt recycled to ER Recycling of LiCl to Electroreducer

slide-15
SLIDE 15

15

Conclusion

 Classify into 4 waste streams

  • Volatile and semi-volatile species waste stream
  • Metallic form waste stream
  • Uranium metal waste stream
  • Salt waste stream-ceramic composite wasteform

 KAERI’ strategy for waste minimization is focused on

  • Reduction of HLW by converting to LLW

☞Removal of actinide residual from hull ☞Removal of actinides from an electrorefinned uranium metal product ☞Increase of decontamination factor of actinide from waste LiCl salt

  • Reduction of LLW: waste arising from voloxidation

☞Simplification of wasteforms applicable to several absorbents ☞Reduction of waste amounts

 Comparison of wasteform volume with and without a salt recycle

  • Possible to reduce HLW amounts by 30 times
  • Predictable to reduce HLW by 80 times if converting LiCl waste to LLW

 Eng.-scale demonstration for waste salt recovery and wasteform fabrication

  • Establishment of Eng.-scale facility(10 t-HM/yr) for an inactive test by 2011 at KAERI
slide-16
SLIDE 16

16

Environmentally-Friendly Nuclear Energy for Next Generation

Thank for your attention !!
