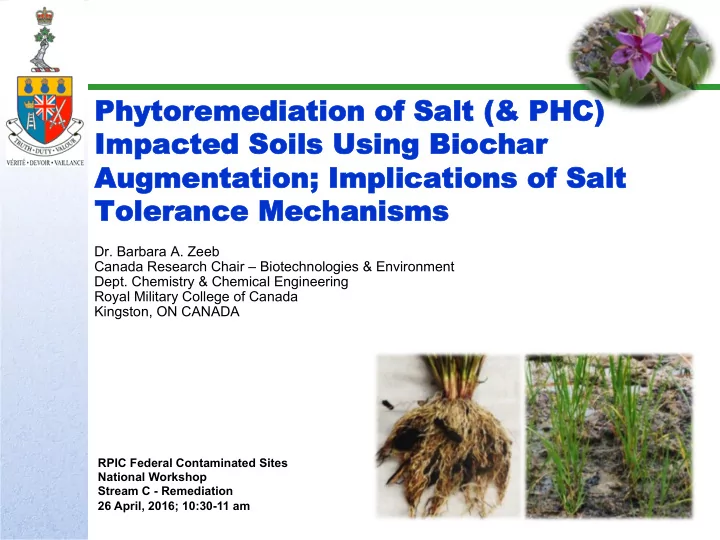

  • Dr. Barbara A. Zeeb

Canada Research Chair – Biotechnologies & Environment

  • Dept. Chemistry & Chemical Engineering

Royal Military College of Canada Kingston, ON CANADA

RPIC Federal Contaminated Sites National Workshop Stream C - Remediation 26 April, 2016; 10:30-11 am

slide-2
SLIDE 2

Salinization

Causes︎

  • Natural processes︎
  • Landfilling of high salt

content wastes︎

Consequences︎

  • Land degradation
  • Reduction in plant

growth & yield

  • Reduction water

quality

  • Toxic to aquatic,

microbial, veg communities

︎

Weathering Agricultural Practices

The image cannot be displayed. Your computer may not have enough memory to open the image, or the image may have been corrupted. Restart your computer, and then open the file again. If the red x still appears, you may have to delete the image and then insert it again.

Landfilling Waste

The image cannot be displayed. Your computer may not have enough memory to open the image, or the image may have been corrupted. Restart your computer, and then open the file again. If the red x still appears, you may have to delete the image and then insert it again.

http://blogs.oregonstate.edu

Currently estimated that Canada has >7.2 million ha of salinized soils

slide-3
SLIDE 3

Phytotechnologies

the application of plants to engineering and science problems

  • remediating environmental contaminants

(phytoremediation)

  • ecorestoration & habitat creation
  • carbon sequestration
slide-4
SLIDE 4

Mechanisms of Phytoremediation

1. Accumulate 2. Excrete

slide-5
SLIDE 5

Biochar

carbon rich by-product of pyrolysis

The image cannot be displayed. Your computer may not have enough memory to open the image, or the image may have been corrupted. Restart your computer, and then open the file again. If the red x still appears, you may have to delete the image and then insert it again.
slide-6
SLIDE 6

Phytotechnologies

6

Phytoextraction

Use vegetation to mobilize salts into above ground tissues Biochar︎

Improve soil structure ︎ Improve seed germination︎ Improve plant growth︎

︎

Uptake ︎

Accumulation︎

slide-7
SLIDE 7

Halophytes

  • 2. Accumulation
  • 1. Exclusion
  • 3. Excretion

Na+ ¡ ¡ Cl ¡-­‑ ¡

slide-8
SLIDE 8

Adapted from Yensen & Biel 2006

The image cannot be displayed. Your computer may not have enough memory to open the image, or the image may have been corrupted. Restart your computer, and then open the file again. If the red x still appears, you may have to delete the image and then insert it again.
slide-9
SLIDE 9

Cement Kiln Dust (CKD) Landfill

Operating Cement Plant in Bath, ON

30 min west of Kingston

CKD landfilled from 1973 – 2009

Saline sodic material, slightly alkaline, low TOC

Project Objectives: i) improve aesthetics & ii) reduce [salt]︎

slide-10
SLIDE 10

CKD Site Characterization

Electrical Conductivity (dS/m) Sodium Absorption Ratio Chloride (µg/g) MOE Guideline <0.7 5

  • Soil

Characterization Saline: >4 Sodic: >13 Average: ~100 CKD Site 11-20 15.4 5800-13500

slide-11
SLIDE 11

Objectives

  • 1. Compare the phytoextraction efficiency of 3

halophytes

– P. australis – P. nuttalliana – S. pectinata

  • 2. Investigate different salt tolerance

mechanisms & their ability to remove salt from soil

  • 3. Role of biochar augmentation
slide-12
SLIDE 12

12

Phytoextract Phytoextraction of Chloride wit ion of Chloride with h Phragmites austral Phragmites australis is

slide-13
SLIDE 13

Phytoextraction Phragmites australis = accumulator species︎

  • large, perennial grass︎
  • growth prolifically︎
  • effectively extracts Cl- from soils︎

July 2013 July 2013︎ Oct 2013 Oct 2013︎ July 2014 July 2014︎

slide-14
SLIDE 14

Temporal Study Temporal Study

slide-15
SLIDE 15

3 - 9 years

3 - 9 years︎

  • Total chloride in top 10 cm of soil:︎
  • 464 ± 193 kg︎
  • Based on yearly extractions of 72-82 kg︎

Remediation Timeframe Remediation Timeframe

McSorley, K., Rutter, A. Cumming, R., and Zeeb, B.A. 2015. Phytoextraction of chloride from a cement kiln dust (CKD) contaminated landfill with Phragmites australis. J. Waste Management (accepted Oct 2015).

slide-16
SLIDE 16
slide-17
SLIDE 17

Addition of 60 lbs of biochar (5% w/w) Addition of 60 lbs of biochar (5% w/w)︎ Planted 36 seedlings per plot Planted 36 seedlings per plot︎

Field Trial Field Trial

slide-18
SLIDE 18

S.

  • S. pectinata

pectinata︎ A.

  • A. elongatum

elongatum︎ P.

  • P. nuttalliana

nuttalliana ︎ A.

  • A. elongatum

elongatum & & ︎ P.

  • P. nuttalliana

nuttalliana seeds seeds︎

5% Biochar︎ Buffer Zone︎ Control︎

slide-19
SLIDE 19

5% Biochar 5% Biochar︎ Control Control︎

Biochar Biochar Effects Effects

︎

  • Significant ↓ in uptake of Na+ in P. nuttalliana &

K+ and Cl- in S. pectinata︎

  • No ↓uptake of divalent cations︎
  • Improved germination of P. nuttalliana by 67%︎
slide-20
SLIDE 20

Accumulation

20

  • Conventional phytoextraction calculation ︎

i.e. [shoot ion] x biomass at harvest︎

  • P. australis has highest

phytoextraction potential︎

slide-21
SLIDE 21
  • S. pectinata growing

in RMC lab

Implications of Salt Tolerance Implications of Salt Tolerance Mechanisms on Extraction Efficiency Mechanisms on Extraction Efficiency

82X mag 2200X mag excreted salts salt glands

slide-22
SLIDE 22

EDS for identification of salts excreted on stem & leaf surfaces of S. pectinata

Cl- and K+ main ions excreted

Mean weekly excretion

Cl- 8500 ± 1200 µg/g K+ 5800 ± 940 µg/g

Characterization of Excreted Salts

slide-23
SLIDE 23

When considering excretion in lieu of accumulation:

  • Cl- removal increased 160%
  • K+ removal increased 30%

Salt Excretion

S.

  • S. pectinata

pectinata ︎

  • highest salt phytoextraction potential︎
  • native to Ontario︎

McSorley, K., Rutter, A. Cumming, R., and Zeeb, B.A. Chloride Accumulation vs Excretion: Variations in phytoextraction potential of three halophytic grass species growing in a salinized landfill. J. Waste Management (submitted April 2016).

slide-24
SLIDE 24

Potential for wind dispersion and dilution

haloconduction theory micro (Cl-) and macro (K+) nutrients released by

  • S. pectinata & wind dispersed

potential beneficial effects

Further research needed to determine extent

  • f redistribution

Fate of Salts

slide-25
SLIDE 25

Summary

  • P. australis can extract 65 ± 4 kg/km2 Cl-/season

remediate site in 3-9 years

  • Biochar can be used for assisted re-vegetation at the

CKD landfill

– ↑ germination of P. nuttalliana by 67%

  • Salt tolerance mechanisms affect phytoextraction

efficiency

– Salt excretion with S. pectinata most efficient

slide-26
SLIDE 26

Acknowledgements

Co-Authors:

  • Dr. Allison Rutter, Queen’s

University

  • Kaitlin McSorley, Pinchin Envt.
  • Rob Cumming, Lafarge, Canada
