Waste Reduction and Utility Conservation Kelly Campbell, Mansfield IS D Marcia Coker, Wylie IS D Jeremy Wirth, Grand Prairie IS D conservation /knsrvSH()n/ Noun -the action of conserving something, in particular.

slide-1
SLIDE 1

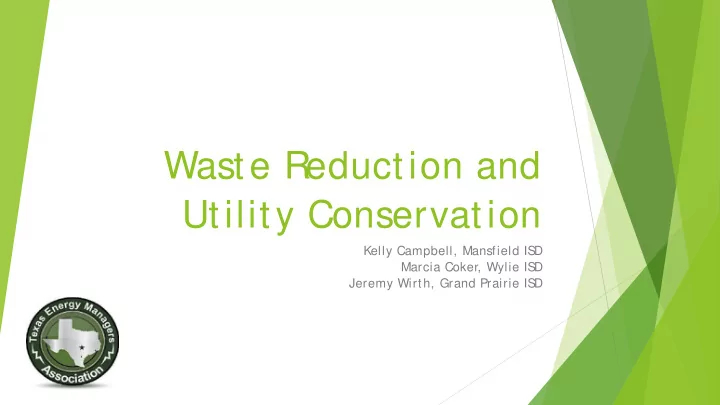

Waste Reduction and Utility Conservation

Kelly Campbell, Mansfield IS D Marcia Coker, Wylie IS D Jeremy Wirth, Grand Prairie IS D

slide-2
SLIDE 2

con·ser·va·tion /ˌkänsərˈvāSH(ə)n/

Noun

  • the action of conserving something, in

particular.

  • reduction of any utility, energy or monetary

expenditure

slide-3
SLIDE 3

Monthly Utility Outlays and Conservation

 Lighting  Reduction, S

cheduling, Retrofits

 HVAC Operations  Time of day schedules, seasonal adj ustments, settings,

retrofits

 Water/ S

ewer

 Quick repairs, preventative maintenance  Irrigation  S

easonal scheduling, quick repairs, preventative maintenance

 Waste Removal

slide-4
SLIDE 4

Waste Removal

 Classroom/ Office Waste Mix of paper and non-recyclables  Cafeteria/ Kit chen areas

slide-5
SLIDE 5

Cafeterias/ Kitchen Areas

 Food Waste  Non-recyclables  Recyclables  And lots and lots of air

slide-6
SLIDE 6

Traditional Cafeteria Waste Disposal

 Assuming disposable trays, students deposit their

trays and all waste into a 40 gallon trash bin.

 By volume, most of what goes out is air.  Assuming you’ re not using compactors, you’re

paying for trash companies to haul air.

slide-7
SLIDE 7

Mansfield IS D’s S hake and S tack

 S

tudents dump the contents of their trays into a waste bin

 S

tudents then stack their trays neatly (“ nesting” )

 It’s “ j ust that easy” .  This single change could reduce your trash volume

by up to 80%

slide-8
SLIDE 8

S hake and S tack (+Recycling)

 S

tudents empty their recyclable containers (cans, water bottles, milk/ j uice cartons) into the trash

  • r a bucket

 S

tudents deposit recyclables into a recycling bin

 S

tudent dump the remaining contents into a waste bin

 S

tudents then stack their trays neatly

slide-9
SLIDE 9

S hake and S tack (+Recycling)

slide-10
SLIDE 10

S hake and S tack (+Recycling)

slide-11
SLIDE 11

S hake and S tack (+Recycling)

slide-12
SLIDE 12

S hake and S tack (+Recycling): ENERGY S TAR Recommendations

slide-13
SLIDE 13

Food Waste Handling

The heaviest and most dense

waste from any non-manufacturing facility.

slide-14
SLIDE 14

Food Waste Handling

slide-15
SLIDE 15

Challenges of New Implementation Grand Prairie’s S tory “ Pour, Recycling, S hake and S tack”

*Develop S tudent Awareness and Responsibility *Environmental Curriculum Focus *District S avings for S

  • lid Waste Disposal

*Reduce Associated Inj uries/ Claims (Risk Management )

Pilot S chools: Austin Environmental S cience Academy De Zavala Environmental S cience Academy Ochoa S TEM Academy @ Ben Milam

slide-16
SLIDE 16

S tep 1

 Empty your drink in the bucket

slide-17
SLIDE 17

S tep 2

 Recycle your milk or j uice carton, water bottle or drink can

slide-18
SLIDE 18

S tep 3

 S

hake your trash/ food into the trash can

slide-19
SLIDE 19

S tep 4

 Finally, neat ly stack your tray

slide-20
SLIDE 20

Four Easy S teps Pour, Recycle, S hake,

and S

tack

slide-21
SLIDE 21

Before After

slide-22
SLIDE 22

Potential Dumpster S avings

slide-23
SLIDE 23

Dumpster S avings

Current Dumpter Rates Size 1 Lift 2 Lifts 3 Lifts 4 Lifts 5 Lifts Extra PU 4 YD $155.80 $177.55 $244.13 $312.24 $381.85 $31.38 8 YD $177.55 $299.00 $367.27 $476.95 $602.77 $52.45 Current Dumpster Cost vs Potential Savings Size Current PU Schedule Current Monthly Cost Reduce PU by 1 Pull/Mo Reduce PU by 2 Pulls/Mo Potential Savings 1 Pull/Mo Potential Savings 2 Pulls/Mo 4 YD 5 x $381.85 $1,909.25 $1,248.96 $732.39 $660.29 $1,176.86 8 YD 5 x $602.77 $3,013.85 $1,907.80 $1,101.81 $1,106.05 $1,912.04 Annual Savings (based on 10 months of service): Reduction of 1 Pull Reduction of 2 Pulls 4 YD $6,603 4 YD $11,769 8 YD $11,061 8 YD $19,120 Total $17,664 Total $30,889

slide-24
SLIDE 24

Can Liner S avings

Description Type Recommend Gauge Color Per Case Case Weight Grand Prairie Price Bag Price Annual Spend Annual Purchase Annual Difference

Reliable 30x37 8 Mic 500/cs Current 8.00 clr 500 11.80 $17.15 $0.0343 17836 1,040 NA Liner HD 30x36 8mic clr 500/c 10/50 Standard HD 8.00 clr 500 11.34 $15.19 $0.0304 15798 1,040

(2,038) $

Liner RHD 33x39 10mic clr 250/c 10/25 R-Spec HD Recommend 10.00 clr 250 8.45 $13.14 $0.0526 13666 1,040

(2,132) $

Heritage 24x24 6 Mic 1,000/cs Current 6.00 clr 1,000 9.24 $19.46 $0.0195 21114 1,085 NA Liner HD 24x24 7mic clr 1000/c 20/50 Standard HD 7.00 clr 1,000 10.58 $14.27 $0.0143 15483 1,085

(5,631) $

Liner LL 24x23 0.5ml wht 500/c 10/50 Standard LL Recommend 0.50 wht 500 9.20 $12.89 $0.0258 13986 1,085

(7,128) $

Berry Plastics 40x46 1.2 Mil 100/cs Current 1.20 blk 100 14.60 $15.38 $0.1538 111582 7,255 NA Liner LL 40x46 1ml blk 100/c 4/25 Standard LL 1.00 blk 100 12.27 $15.20 $0.1520 110276 7,255

(1,306) $

Liner RLL 40x46 0.8ml blk 100/c 4/25 R-Spec 0.80 blk 100 9.81 $15.10 $0.1510 109551 7,255

(2,031) $

Liner RLL 36.5x49 0.8ml blk 100/c 4/25 R-Spec/R-Fit Recommend 0.80 blk 100 9.54 $15.00 $0.1500 108825 7,255

(2,757) $

Berry 38x63 2.7 Mil 50/cs Current 2.70 blk 50 21.40 $24.29 $0.4858 15157 624 NA Liner RLL 38x58 1.7ml blk 100/c 4/25 R-Spec LL Recommend 1.70 blk 100 24.98 $40.92 $0.4092 12767 312

(2,390) $

Total Annual Savings for Recommended Product $14,407

slide-25
SLIDE 25

Custodial Services Injury Claims FY 2015 - 2018

2015/2016 2016/2017 2017/2018 3-Year Average Total Claims 40 32 23 31.67 Total Incurred 121,649.19 $ 135,961.87 $ 69,162.54 $ 108,924.53 $ Average Incurred per Claim 3,041.23 $ 4,248.81 $ 3,007.07 $ 3,432.37 $ Total Indemnity 23,826.84 $ 20,590.62 $ 14,280.00 $ 19,565.82 $ Average Indemnity per Claim 595.67 $ 643.46 $ 620.87 $ 620.00 $

Risk Management Three-Year Injury Report

*Most severe claims associated with shoulder injuries (e.g., throwing trash in dumpsters) *Second most common injuries are slips and falls

slide-26
SLIDE 26

Wylie IS D’s S tory

In the fall of 2016, S tudent Nutrition Director introduced the EP A ’s Food Recovery Challenge as part of its S ustainable Materials Management Program. The challenge targets reducing “ food print” and reducing food waste in half by the year 2030.

https:/ / www.epa.gov/ smm

Wylie IS D enrolled in t he program by 2017.

slide-27
SLIDE 27

With members of the energy management team, Wylie IS D set out to get baseline measurements out of each of its school cafeterias. Measurements were collected for liquid and solid waste. Y es… a week of dumpster diving!

slide-28
SLIDE 28
slide-29
SLIDE 29

Wylie ISD Schools Food Waste (lbs.) Liquid Waste (gallons) High Schools (9-12) Wylie High School 5.70 0.48 Wylie East High School 71.70 3.29 Junior High Schools (7-8) Burnett Junior High 69.20 4.37 Cooper Junior High 103.20 2.85 McMillan Junior High 33.60 2.17 Intermediate Schools (5-6) Davis Intermediate 79.86 5.90 Draper Intermediate 241.60 15.35 Harrison Intermediate 97.95 4.15 Elementary Schools (K-4) Akin Elementary 39.20 3.22 Birmingham Elementary 97.00 7.20 George Bush Elementary 120.40 11.74 Cox Elementary 90.70 10.00 Dodd Elementary 75.00 3.64 Groves Elementary 133.25 12.50 Hartman Elementary 19.06 1.49 Smith Elementary 67.15 5.81 Tibbals Elementary 100.05 7.69 Watkins Elementary 87.75 5.65 Whitt Elementary 97.00 6.56 Total: 1629.37 114.06 Wylie ISD EPA Food Waste Study - Baseline Measurement March 5-9, 2018

More than 1600 pounds

  • f solid food

and 114 gallons of liquid waste… .DAIL Y!

slide-30
SLIDE 30

What do we do now with this information?

slide-31
SLIDE 31
slide-32
SLIDE 32

 County of S

an Diego S chools

S hare Table-diverting uneaten, unopen food product to those who are in need or composting  Mansfield IS

D

S hake and S t ack-recycling to landfill then stacking those S tyrofoam trays

slide-33
SLIDE 33

S hare, (Pour, Recycle), S hake, and S tack

slide-34
SLIDE 34
slide-35
SLIDE 35
slide-36
SLIDE 36

2018-2019 Timeline

 *Burnett Junior High- Aug. 27-Aug. 31 (120 bags eliminated)  Bush Elementary S

chool-S

  • ept. 4-S
  • ept. 10 (80 bags eliminated)

 Cox Elementary S

chool-S

  • ept. 24-S
  • ept. 28 (60 bags eliminated)

 Achieve Academy-Oct. 12-Oct.15 (20 bags eliminated)-S

tyrofoam recycling

 Birmingham Elementary-Oct. 22-Oct. 26 (75 bags eliminated)  Draper Intermediate-Nov. 12-Nov. 16 (100 bags eliminated)  S

mith Elementary-Dec. 3 –

  • Dec. 7 (60 bags eliminated)

 *Harrison Intermediate-Dec. 10-Dec. 14 (60 bags eliminated)

*added some composting *campus requested the program

slide-37
SLIDE 37

Coming soon… ..

March 2019-EP A Y ear One-return to the schools where S S S was implemented and get measurements. How much have we impacted our baseline data?

August 2019-Implement the program to the remaining Wylie IS D schools (except the two high schools)

March 2020-EP A Y ear Two-measurements at all S S S schools

August 2020-S ustaining the program; expanding it to the high schools

slide-38
SLIDE 38

Questions?

Kelly Campbell Mansfield IS D KellyJCampbell@ misdmail.org Jeremy Wirth Grand Prairie IS D Jeremy.Wirth@ gpisd.org Marcia Coker Wylie IS D marcia.coker@ wylieisd.net
