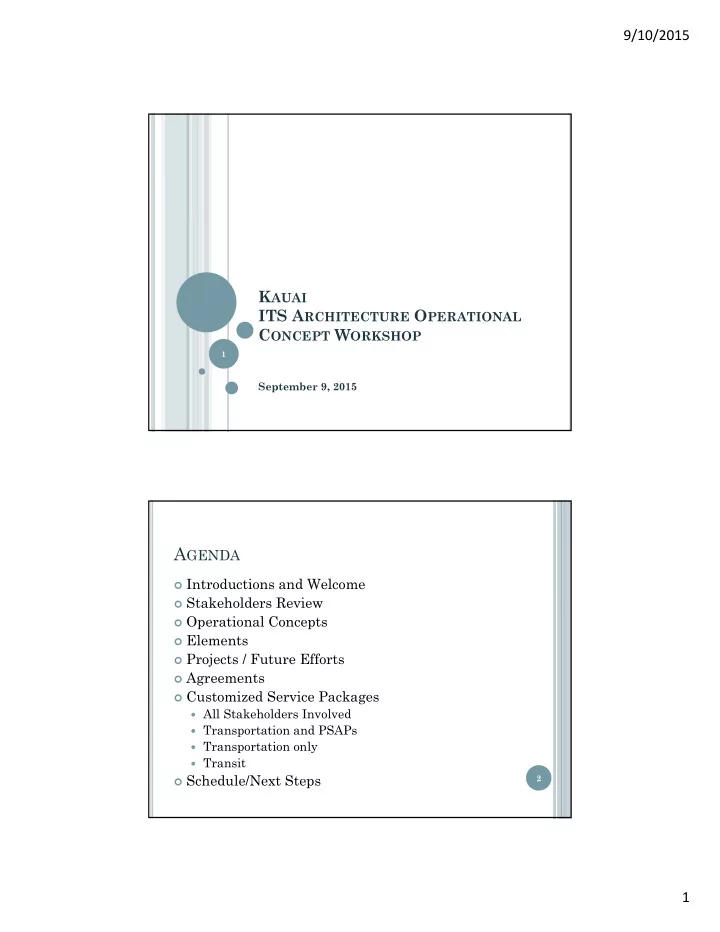

9/10/2015 1 KAUAI ITS ARCHITECTURE OPERATIONAL CONCEPT WORKSHOP

September 9, 2015

1

AGENDA

 Introductions and Welcome  Stakeholders Review  Operational Concepts  Elements  Projects / Future Efforts  Agreements  Customized Service Packages  All Stakeholders Involved  Transportation and PSAPs  Transportation only  Transit  Schedule/Next Steps

2

slide-2
SLIDE 2

9/10/2015 2

STAKEHOLDERS REVIEW

3

WHO IS A STAKEHOLDER?

 Technical Definition:  Someone that sends or receives transportation

information to/from other stakeholders either directly

  • r with their systems.

 Institutional Definition:  Someone who builds, operates or maintains ITS

equipment.

4

slide-3
SLIDE 3

9/10/2015 3

5

KAUAI STAKEHOLDERS

State or County Stakeholder Name Abbreviation

State Department of Transportation Highways Division, Kauai District HDOT-HWY-K State Department of Transportation Airports Division, Kauai District HDOT-AIR-K State Department of Transportation Harbors Division, Kauai District HDOT-HAR-K County of Kauai Department of Public Works Kauai DPW County of Kauai Police Department Kauai Police County of Kauai Fire Department Kauai Fire County of Kauai Civil Defense Agency Kauai CDA County of Kauai Transportation Agency Kauai TA County of Kauai Medical Transportation Kauai EMS County of Kauai

  • Dept. of Finance, Info. Tech.

Kauai IT County of Kauai Department of Planning Kauai Planning State Kauai Visitors Bureau KVB

OPERATIONAL CONCEPTS

6

slide-4
SLIDE 4

9/10/2015 4

OPERATIONAL CONCEPTS

 Defines roles and responsibilities of stakeholders

in providing the ITS services

 Organized by  Stakeholder  Service Area

 Emergency Management  Incident Management  Information Dissemination  Maintenance Management  Traffic Signal Control  Transit Management

7

OPERATIONAL CONCEPT EXAMPLE

8

Stake- holder Service Area Roles and Responsibilities Description Status Notes

HDOT-HWY- K Incident Management Perform network surveillance for detection and verification of incidents

  • n state roads

Future Send traffic, incident information and traffic images to the 911 Dispatch Center and Kauai County EOC Future Information Dissemination Provide traffic information to travelers via HDOT DMS equipment Existing HDOT currently

  • perates

portable DMS, but the DMS is not controlled remotely.

slide-5
SLIDE 5

9/10/2015 5

ELEMENTS

9

ITS INVENTORY

 A list of ITS elements and the elements that

interface with them

 And an ITS element is:  The name used by stakeholders to describe high level

parts of an ITS system.

 Types of Elements:  Centers – Traffic, Emergency, Transit  Field Devices – Traffic, Maintenance  Traveler Interfaces – Websites, Smart Phones  Data Systems – Planning, Archives  Vehicles – Transit, Emergency, Maintenance

10

slide-6
SLIDE 6

9/10/2015 6

REGIONAL ITS INVENTORY

 Review current and planned elements  Owner  Status  Definition  Entity Type

11

REGIONAL ITS INVENTORY: SUBSYSTEMS

12

Information Service Provider Commercial Vehicle Check Parking Management Roadway Payment Security Monitoring Roadway Field - Vehicle Communications Vehicle - Vehicle Communications Vehicle Commercial Vehicle Maintenance & Construction Vehicle Transit Vehicle Emergency Vehicle Personal Information Access Remote Traveler Support

Travelers Centers Field Vehicles

Payment Administration Emergency Management Emissions Management Traffic Management Archived Data Management

Fleet and

Freight Management Commercial Vehicle Administration Transit Management Maintenance & Construction Management Fixed Point - Fixed Point Communications Wide Area Wireless (Mobile) Communications

slide-7
SLIDE 7

9/10/2015 7

REGIONAL ITS INVENTORY

 Let’s go to the inventory….

13

REGIONAL ITS PROJECTS

14

slide-8
SLIDE 8

9/10/2015 8

REVIEW ITS PROJECTS

 ITS projects identified from stakeholder

interviews with key

 For each project consider  Name, Description  Key Stakeholders  Timeframe

 Near-Term: Within the next 5 years  Long-Term: More than five years

 Mapping to Architecture

15

ITS PROJECTS

 Will input ITS projects into the Turbo

Architecture database.

 Ability to generate outputs to create a systems

engineering analysis and functional requirements for each project.

16

slide-9
SLIDE 9

9/10/2015 9

HIGHLIGHTED PROJECTS

 Hanalei Flood Warning System K-34  Jet Fuel Tank Relocation  Let’s go to Project List……

17

AGREEMENTS

18

slide-10
SLIDE 10

9/10/2015 10

POTENTIAL AGREEMENTS

 Managing ITS equipment, including traffic signals  HDOT-HWY-K  Kauai DPW  Sharing of video feeds  HDOT-HWY-K  Kauai Fire Dept  Kauai Police Dept  Sharing of speed data and signs  HDOT-HWY-K  Kauai Police Dept  Kauai DPW  Use of permanent and portable dynamic message

signs

 HDOT-HWY-T  Agencies wanting to use the signs

19

ITS SERVICES

20

slide-11
SLIDE 11

9/10/2015 11

ITS SERVICES COVER

 Traffic Management  Traveler Information  Transit Management  Emergency Management  Commercial Vehicle Operations  Maintenance and Construction  Archived Data Management  Advanced Vehicle Safety

21

ITS SERVICE: TRAFFIC INFORMATION DISSEMINATION

22

slide-12
SLIDE 12

9/10/2015 12

ITS SERVICE: INCIDENT MANAGEMENT

Other 911 Center Info Provider Other TMC TMC Personnel TMC 911 911 911 Center Maintenance Dispatch

23

SERVICE PACKAGES = ITS SERVICES

24

slide-13
SLIDE 13

9/10/2015 13

NATIONAL ITS ARCHITECTURE SERVICE PACKAGE

25 26

CUSTOMIZED SERVICE PACKAGE

slide-14
SLIDE 14

9/10/2015 14

CUSTOMIZED SERVICE PACKAGE DIAGRAMS

 Customize to reflect regional operational

concepts

 Review selected service package diagrams  Incident Management  Emergency Management  Disaster/ Evacuation  Traveler Information  Traffic Management  Transit Management  Review first the Summary Diagram for the area,

then the details of each service package

27 28

slide-15
SLIDE 15

9/10/2015 15

29 30

slide-16
SLIDE 16

9/10/2015 16

31

SCHEDULE

32

slide-17
SLIDE 17

9/10/2015 17

SCHEDULE & NEXT STEPS

 Sept-Oct. 2015: Update Service Package Diagrams

to reflect Workshop Discussion

 Nov. 2015:

Stakeholder Review of Architecture

 Dec. 2015:

Finalize Kauai ITS Architecture

33

OPEN

 Questions?  Comments?

34

slide-18
SLIDE 18

9/10/2015 18

THANK YOU!!!!

35
