SLIDE 1

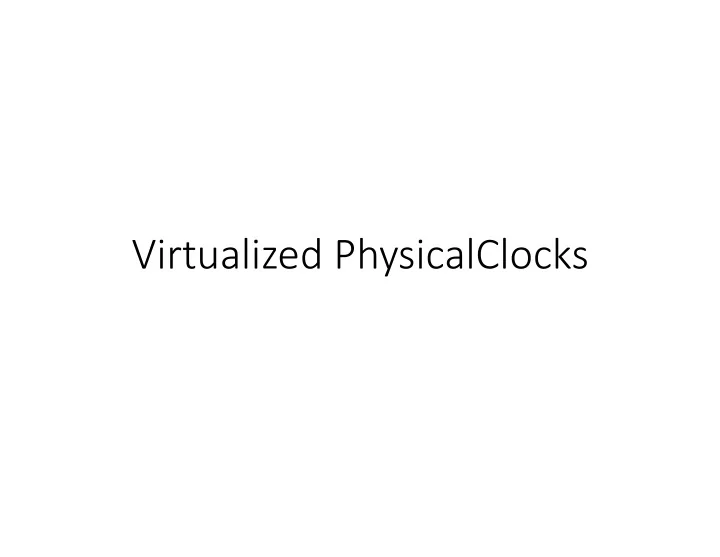

Virtualized PhysicalClocks

SLIDE 2

What do we use Clocks for

When did something happen? When will it happen
This class starts at 3pm
How long does something take?
This class lasts for 1 hour 20 minutes
What happened first and happened later
The class started before it ended

SLIDE 3

Clocks in Distributed Systems

We use clocks for similar things in distributed systems
Take a backup at 5pm/Restore to the backup at 5pm
Take a backup every hour
Ensure that resource is released by process 1 before process 2 accesses it

SLIDE 4

Application of Clocks to Order Events

Consider a multi‐version database system
When a new version is created, we add it to existing versions
A transaction (system on behalf of the transition) can determine which

version to read

Each version has a timestamp.
Suppose you have a perfectly synchronized clock and a very fast

processor

Treat every transaction as if it were instantaneous
Assign a timestamp say T for the transaction
Each read and write of the transaction would have time T

SLIDE 5

Application of Clocks to Order Events

Example:
T1 has timestamp 100
It reads x which has versions at time 0, 50, 75, 90
T1 would read the version at time 90
It creates a new version of x
It would have a timestamp of 100
T2 has timestamp 110
Assuming no transactions other than T1 and T2. If it reads x, it should read x written by T1
Advantages
To know what the state of the system was at time 100 is trivial
Read only transactions are never aborted
Problems
If T2 ran concurrently with T1 and read x before T1 had written x, aborting T1 or T2 may be

necessary

…

SLIDE 6

But..

Our Clocks are not perfectly synchronized
Problems caused by loosely synchronized clocks
Suppose we have transactions T3 and T4 such that
T3 wrote x
T4 read x
T3 finished before T4 started
Then, T4 must be ordered later than T3 in serialization order
i.e., T4 must read x written by T3 (or some later transaction)
Loose synchronization may, however, permit the possibility that T3’s timestamp is

higher than T4’s timestamp. It will prevent T4 from reading the value of x written by T3.

To prevent this problem, Google Spanner introduces the notion of commit‐wait
Force T4 to delay thereby guarantee that its timestamp is higher than that of T3

SLIDE 7

Why did this happen?

We anticipated/wanted that temporal dependency would translate

into causal dependency.

T3 finished before T4 started
We wanted to T3 to impact T4
Notion of causality captures what events can (potentially) affect other

events

SLIDE 8

Causality

Causality (happened before) captures the information flow
Event a happened before b iff
a and b are on the same process and a occurred before b
a is a send event and b is corresponding receive event, or
there exists event c such that
a happened before c and
c happened before b
Lamport’s logical clocks assign a timestamp to each event such that
a happened before b  l.a < l.b
Vector clocks assign a (vector) timestamp to each event such that
a happened before b  vc.a < vc.b

SLIDE 9

Causality (Continued)

Implementation of Logical Clocks
When process j sends message m
l.j = l.j + 1
l.m = l.j
For receive event where message m is received
l.j = max(l.j, l.m) + 1
Property of logical clocks
a happened before b  l.a < l.b
l.a = l.b  l.a is concurrent with l.b
Useful to take a consistent snapshot

SLIDE 10

How would logical clocks be different?

Given the expected dependency between T3 and T4
Assign timestamp of T4 to be higher than that of T3
Waiting not involved since it is a logical clock

SLIDE 11

Let’s review what we wanted to do with (logical) clocks

When did something happen? When will it happen
This class starts at 3pm
NO
How long does something take?
This class takes 1 hour 20 minutes
NO
What happened first and happened later
The class started before it ended
YES/NO

SLIDE 12

What is the problem?

Logical clocks did not convey any meaning to the actual real/physical

time

SLIDE 13

Goals

Problem: Given a distributed system, assign each event e a timestamp l.e, such

that

1. e hb f => l.e < l.f
2. Space requirement of l.e is O(1) integers
3. l.e is represented with bounded space
4. l.e is close to pt.e i.e. |l.e – pt.e| is bounded.

SLIDE 14

Naïve Algorithm

Logical Clocks

When process j sends message m
l.j = l.j + 1
l.m = l.j
For receive event where message m is

received

l.j = max(l.j, l.m) + 1

Naïve Algoirthm

When process j sends message m
l.j = l.j + 1
l.j := max(l.j, pt.j)
l.m = l.j
For receive event where message m is

received

l.j = max(l.j, l.m) + 1
l.j := max(l.j, pt.j)

SLIDE 15

Naïve Algorithm

Satisfies first two requirements:

1. e hb f => l.e < l.f
2. Space requirement of l.e is O(1) integers
Fails these requirements (we will ignore proof)
1. l.e is represented with bounded space
2. l.e is close to pt.e i.e. |l.e – pt.e| is bounded.
Unbounded drift caused by
l.j := max (l.j+1, pt.j), and
l.j := max(l.j+1, l.m+1, pt.j)

15

SLIDE 16

This is an example to show that drift between l and pt can increase in unbounded fashion

16

SLIDE 17

Problem with Naïve algorithm

Drift between l.e and pt.e is not bounded
Why is this a problem?
Consider the case where the user wants a snapshot of a database at time t
Since no process knows the precise physical time, the snapshot provided will not be precisely

at physical time t.

It will be at time t’ (that is hopefully close to t)
If clock skew is , the best we can do is to let t’ to be in [t‐ , t+ ]

17

SLIDE 18

Algorithm for Hybrid Logical Clocks

Naïve Algoirthm

When process j sends message m
l.j = l.j + 1
l.j := max(l.j, pt.j)
l.m = l.j

Revised Algorithm

When process j sends message m
l.j’ = l.j
l.j := max(l.j, pt.j)
If (l.j = l.j’) c.j = c.j + 1
Else c.j = 0
l.m = l.j, c.m = c.j

SLIDE 19

Algorithm for Hybrid Logical Clocks (Continued)

Naïve Algorithm

Upon receiving m at j
l.j = max(l.j, l.m) + 1
l.j := max(l.j, pt.j)

Revised Algorithm

Upon receiving m at j
l.j’ := l.j;
l.j := max(l.j’, l.m, pt.j);
If (l.j =l.j’ =l.m) then c.j := max(c.j,

c.m)+1

Elseif (l.j’ =l.j) then c.j := c.j + 1
Elseif (l.j =l.m) then c.j := c.m + 1
Else c.j := 0
l.m = l.j

SLIDE 20

HLC Algorithm

20

10,10,0 0,0,0 1,10,1 2,10,2 2,10,3 3,10,4 3,10, 5 4,10, 6 14,14,0 13,13,0 pt.j l’.j c.j l.m = 10 c.m = 0 l.m = 10 c.m = 2 l.m = 10 c.m = 4 l.m = 10 c.m = 4

1 2 3

l’.j c.j pt.j l.j := max(l’.j, l.m, pt.j); elseif (l.j =l.m) then c.j := c.m + 1 l’.j c.j pt.j l.j := max(l’.j, pt.j); If (l.j =l’.j) then c.j := c.j + 1 l’.j pt.j l.j := max(l’.j, l.m, pt.j);

Reset c

SLIDE 21

Properties of HLC

Logical clock property:
e hb f => (l.e, c.e) < (l.f, c.f) (lexicographical comparison)
|l.f – pt.f| <= є
pt.e <= l.e <= pt.e + є
The value c.e is bounded
c.e <= N * (number of events that can be created on a process within є)
In practice, it is very small (in single digits)

21

SLIDE 22

Let’s review what we wanted to do with (hybrid logical) clocks

When did something happen? When will it happen
The class started at 3pm
Yes. Choose l value to be within epsilon of 3pm. The best we can do anyway.
How long does something take?
The class took 1 hour 20 minutes
Look at the difference between the l values
What happened first and happened later
The class started before it ended
Use lexicographic ordering (guarantees consistency with causal order)

SLIDE 23

Revisiting Multiversion Database

SLIDE 24

Review the earlier example

Problems caused by loosely synchronized clocks
Suppose we have transactions T3 and T4 such that
T3 wrote x
T4 read x
T3 finished before T4 started
Then, T4 must be ordered later than T3 in serialization order
i.e., T4 must read x written by T3 (or some later transaction)
Loose synchronization may, however, permit the possibility that T3’s timestamp is

higher than T4’s timestamp. It will prevent T4 from reading the value of x written by T3.

To prevent this problem, Google Spanner introduces the notion of commit‐wait
Force T4 to delay thereby guarantee that its timestamp is higher than that of T3

SLIDE 25

Other Choices

Alternate choice
Increase (physical) time of the machine running T4
Unacceptable, as it would cause problems to other applications (e.g., sleep

function) as well as NTP synchronization

A better choice
Create a new HLC timesdtamp for T4 that is higher than that of T3
Leave physical time unchanged
Change l value of the timestamp (and if necessary c value)
c value is still bounded

SLIDE 26

Other Applications of HLC

Causally Consistent Data Store
Rollback on Key‐Value store
Runtime monitoring partially synchronous distributed systems

SLIDE 27

Moral

Questions?

SLIDE 28
