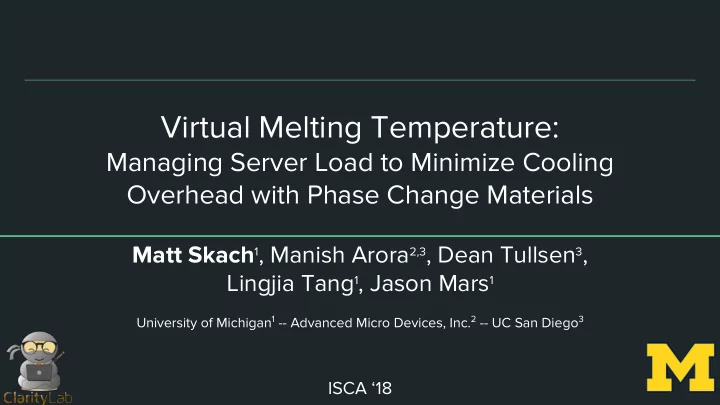

Virtual Melting Temperature:

Managing Server Load to Minimize Cooling Overhead with Phase Change Materials

Matt Skach1, Manish Arora2,3, Dean Tullsen3, Lingjia Tang1, Jason Mars1

University of Michigan1 -- Advanced Micro Devices, Inc.2 -- UC San Diego3

ISCA ‘18

Datacenters

2

Facebook Ireland Datacenter Facebook datacenter

Huge warehouses full of servers that host the internet and the cloud

Datacenters Cooling

3

• Heat must be removed to prevent:

○ Overheating ○ Thermal downclocking ○ Component failure

http://www.asetek.com/media/1031/rackcdu_d2c_datacenter.jpg

Global Energy Consumption (CIA World Factbook)

4

Energy Consumption Electricity Consumption (TWh/year) 1 China 6,100 2 United States 4,100 3 European Union 3,100 4 India 1,300 5 Russia 1,000 6 Japan 980 7 Canada 640

Datacenter Energy Consumption (Avgerinou, 2017)

5

Energy Consumption Electricity Consumption (TWh/year) 1 China 6,100 2 United States 4,100 3 European Union 3,100 Datacenters (global, est.) 1,600 4 India 1,300 5 Russia 1,000 6 Japan 980 7 Canada 640

Datacenter Energy Consumption (Avgerinou, 2017)

6

Energy Consumption Electricity Consumption (TWh/year) 1 China 6,100 2 United States 4,100 3 European Union 3,100 Datacenters (global, est.) 1,600 4 India 1,300 5 Russia 1,000 6 Japan 980 Datacenter Cooling (global, est.) 650 7 Canada 640

Datacenter Cooling

7

• Datacenter cooling is very

expensive

○ Infrastructure can cost 10s of millions of dollars for large DCs

(Kontorinis, 2014)

○ Generally, more power efficient systems are more expensive up front

Open Compute cooling system

Datacenter Workloads

• Diurnal load is problematic

○ Work is uneven ○ Work is distributed ○ Heat is produced when work is done

8

Google Search: US Load

Datacenter Cooling

• Build a big cooling system for peak load

○ Underutilized most of the time

9

Expensive

100% coverage, low utilization

Datacenter Cooling ctd.

• Build a big cooling system for peak load

○ Underutilized most of the time

10

Expensive

100% coverage, low utilization

Datacenter Cooling ctd.

• Build a big cooling system for peak load

○ Underutilized most of the time

11

Expensive Best

100% coverage, low utilization 50% coverage, maximum utilization

Thermal Time Shifting (TTS) [ISCA ‘15]

3am 7am 7pm 12am Time Cooling Load Store heat to flatten peak Release heat during off hours Coupled Decoupled

12

Cooling Load

• Metric of heat that must be removed
• Datacenter is primarily concerned with IT & support equipment

13

http://www.slideshare.net/spsu/12-cooling-load-calculations

A Phase Change Material (PCM)

14

• Store energy in a Solid->Liquid phase change
• Commercial paraffin wax offers the best properties of currently

available PCMs (Skach, 2015)

The problem with passive TTS

Thermal Time Shifting:

• Paraffin has a limited range of melting temperatures
• Melting temperature cannot be changed
• Power and temperature profiles vary over lifetime of servers

15

Wikimedia Commons

Virtual Melting Temperature

• Datacenters need more flexibility
• Create a “virtual” melting temperature separate from the actual melting

temperature

16

Microsoft, Wikimedia Commons

Test Infrastructure

• 2U High Throughput Server
• 2-day Google Workload trace divided between 5 datacenter workloads

17

Test Methodology

• 5 common datacenter workloads

1. Web Search 2. Data Caching 3. Video Encoding 4. Virus Scan 5. Clustering

• Consider datacenter where all are colocated

○ Contention mitigation techniques applied (eg. Bubble Up (Mars, 2011) and Protean Code (Laurenzano, 2014))

18

Baseline: Load Balancing Schedulers

• Round Robin and Coolest First

19

Baseline: Load Balancing Schedulers

• Round Robin and Coolest First
• Problem: Average cluster temperature is too low to melt wax

Thermal Aware VMT

• Categorize jobs based upon thermal characteristics

○ Binary classification: Would they melt significant wax in isolation?

21

Thermal Aware VMT

• Grouping Value (GV): Controllable ratio of group size

○ Proportional to hot group size

• Locate ‘hot jobs’ together in ‘hot group’ to melt wax

22

Thermal Aware VMT Results

• Hot Group sized to melt wax during peak hours

23

Thermal Aware VMT Results

• Balance between melting wax too soon and not melting enough wax

24

GV=24: Hot group is too big GV=22: Hot group is just right GV=20: Hot Group is too small

Thermal Aware VMT Results

• Balance between melting wax too soon and not melting enough wax

25

GV=24: Hot group is too big GV=22: Hot group is just right GV=20: Hot Group is too small

Wax Aware VMT

• Begin with same setup as VMT-TA
• When wax in hot group is fully melted, expand hot group

26

Wax Aware VMT Results

• Hot Group slightly too small: automatically expands during peak load

27

Wax Aware VMT Results

• Wax expansion preserves significant cooling load reduction

28

GV=24: Hot group is too big GV=22: Hot group is just right GV=20: Hot Group is too small

Wax Aware VMT Results

• Wax expansion preserves significant cooling load reduction

29

GV=24: Hot group is too big GV=22: Hot group is just right GV=20: Hot Group is too small

VMT-TA vs. VMT-WA

• Both work well at ideal GV
• VMT-WA offers much more flexibility for unpredictable load

30

Smaller Hot Group Bigger Hot Group

Summary

• VMT stores thermal energy when passive TTS alone cannot

○ Reduces maximum cooling load of a diurnal workload ○ Configurable for varying datacenter power and load levels

• VMT-enabled thermal energy storage can:

○ Reduce cooling system size 12% ○ Or allow up to 14% more servers under the same cooling budget

31
