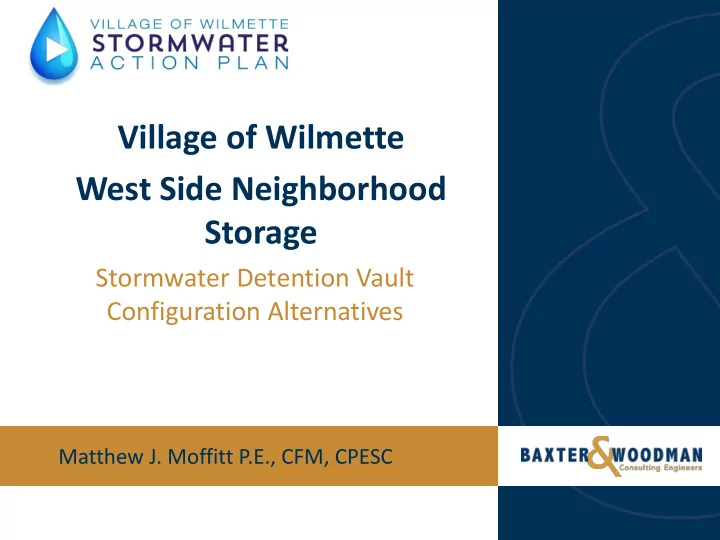

Village of Wilmette West Side Neighborhood Storage Stormwater Detention Vault Configuration Alternatives Matthew J. Moffitt P.E., CFM, CPESC Title Detention Vault Configuration Alternatives West Side Neighborhood Storage Configuration
SLIDE 2
SLIDE 3
Title Detention Vault Configuration Alternatives
- Precast Concrete Detention Vault (not
visible from the surface)
- All configurations have equivalent volume
and performance
- Alternatives designed to minimize impact
to trees
- Deeper vault configurations will require
pump stations
SLIDE 4
Title Underground Detention Wescott Park in Northbrook, IL
SLIDE 5
Title Pump Stations
- Pump only volume below the gravity outlet
- Pump rate designed to provide similar
performance to gravity outlet (24-hr drawdown)
- Backup pump and power included
- Will require more annual maintenance
SLIDE 6
Title Pump Stations
SLIDE 7
$10,680,000
32 Trees Removed
SLIDE 8
$10,420,000 ($260,000↓)
2 Trees Removed
SLIDE 9
$9,880,000 ($800,000↓)
0 Trees Removed
SLIDE 10
Title Community Playfield Comparison
Original Configuration
- Alt. Configuration 1
- Alt. Configuration 2
$10,680,000 $10,420,000 ($260,000↓) $9,880,000 ($800,000↓) Gravity Outlet Gravity Outlet Gravity & Pumped Outlet Relocation of EX Detention Preserves EX Detention Preserves EX Detention 3.86 Acre footprint 3.56 Acre footprint 1.9 Acre footprint 6 feet Tall (underground) 6 feet Tall (underground) 11’-4” Tall (underground) Removal of 32 trees Removal of 2 trees Protects all trees Temp impact of 1 soccer field Temp impact of 3 soccer fields Temp impact of 1 soccer field
SLIDE 11
$7,430,000
36 Trees Removed
SLIDE 12
$6,280,000 ($1,150,000↓)
8 Trees Removed
SLIDE 13
$6,340,000 ($1,090,000↓)
8 Trees Removed
SLIDE 14
$7,180,000 ($250,000↓)
2 Trees Removed
SLIDE 15
Title Hibbard ParkComparison
Original Configuration
- Alt. Configuration 1
- Alt. Configuration 2
- Alt. Configuration 3
$7,430,000 $6,280,000 ($1,150,000↓) $6,340,000 ($1,090,000↓) $7,180,000 ($250,000↓) Gravity Outlet Gravity & Pumped Outlet Gravity & Pumped Outlet Gravity & Pumped Outlet 2.0 Acre footprint 1.0 Acre footprint 1.0 Acre footprint 0.8 Acre footprint 6 feet Tall (underground) 11’-4” Tall (underground) 11’-4” Tall (underground) 15 feet Tall (underground) Removal of 36 trees Removal of 8 trees
- n east side
Removal of 8 trees
- n west side
Removal of 2 trees
- n west side
- Temp. disrupts 2
baseball fields
- Temp. disrupts 1
baseball field
- Temp. disrupts 1
baseball field
- Temp. disrupts 1
baseball field
SLIDE 16
$8,610,000
53 Trees Removed
SLIDE 17
$8,810,000 ($200,000↑)
60 Trees Removed Preserves Oak Grove
SLIDE 18
$7,060,000 ($1,550,000↓)
3 Trees Removed
SLIDE 19
Title Thornwood Park Comparison
Original Configuration
- Alt. Configuration 1
- Alt. Configuration 2
$8,610,000 $8,810,000 ($200,000) $7,060,000 ($1,550,000↓) Gravity Outlet Gravity Outlet Gravity & Pumped Outlet 3.0 Acre footprint 3.0 Acre footprint 1.4 Acre footprint 6 feet Tall (underground) 6 feet Tall (underground) 11’-4” Tall (underground) Removal of 53 trees Removal of 60 trees Removal of 3 trees Impacts Oak grove Preserves Oak grove Preserves Oak grove Temp impact of 2 baseball fields Temp impact of 2 baseball fields Temp impact of 2 baseball fields
SLIDE 20
