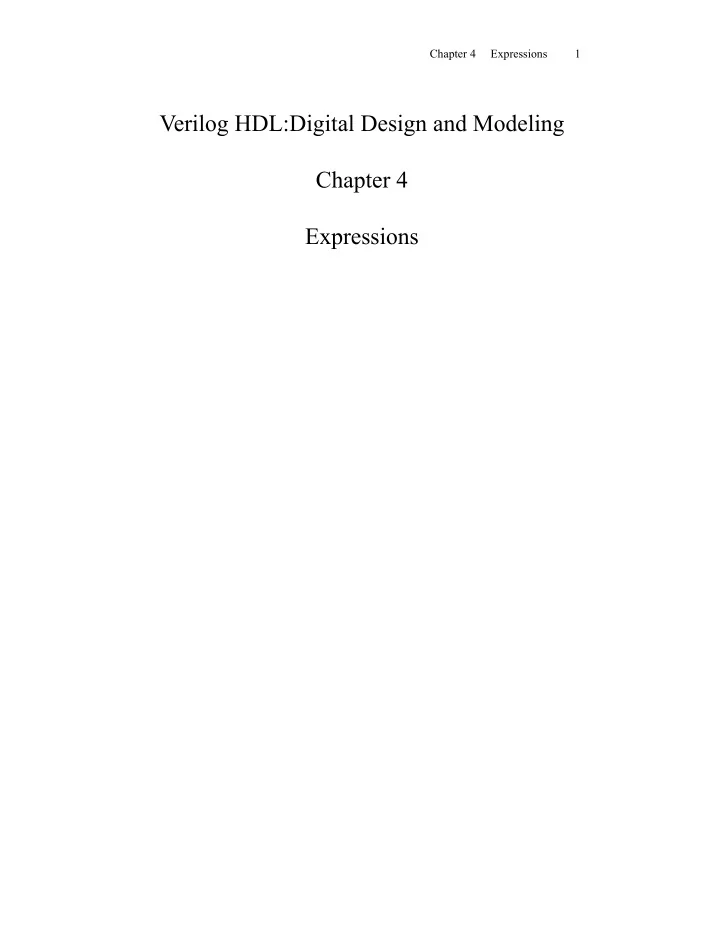

Chapter 4 Expressions 1

Verilog HDL:Digital Design and Modeling Chapter 4 Expressions

Chapter 4 Expressions 2

Page 120

//example of using a parameter module param1 (a, b, cin, sum); parameter width = 8; input [width-1:0] a, b; //a and b are 8 bits (7:0) input cin; //cin is a scalar

• utput [width:0] sum;

//sum is 9 bits (8:0) //to include cout //inputs default to wire reg [width:0] sum; always @ (a or b or cin) begin sum = a + b + cin; end endmodule

Figure 4.2 Module for the 8-bit adder of Figure 4.1 illustrating the use of the pa- rameter statement.

//param1 test bench module param1_tb; parameter width = 8; reg [width-1:0] a, b; reg cin; wire [width:0] sum; //display variables initial $monitor ("a b cin = %b_%b_%b, sum = %b", a, b, cin, sum); //continued on next page

Figure 4.3 Test bench for the module of Figure 4.2.

//apply input vectors initial begin #0 a = 8'b0000_0011; b = 8'b0000_0100; cin = 1'b0; #5 a = 8'b0000_1100; b = 8'b0000_0011; cin = 1'b0; #5 a = 8'b0000_0111; b = 8'b0000_0110; cin = 1'b1; #5 a = 8'b0001_1001; //25 (19h) b = 8'b0010_0111; //39 (27h) cin = 1'b1; //1. sum = 65 (41h) #5 a = 8'b0111_1101; //125 (7dh) b = 8'b0110_0111; //103 (67h) cin = 1'b1; //1. sum = 229 (e5h) #5 a = 8'b1000_1111; //143 (8fh) b = 8'b1100_0110; //198 (c6h) cin = 1'b1; //1. sum = 342 (156h) #5 $stop; end //instantiate the module into the test bench param1 inst1 ( .a(a), .b(b), .cin(cin), .sum(sum) ); endmodule Chapter 4 Expressions 3

Figure 4.3 (Continued)

Chapter 4 Expressions 4

Page 122

a b cin = 00000011_00000100_0, sum = 000000111 a b cin = 00001100_00000011_0, sum = 000001111 a b cin = 00000111_00000110_1, sum = 000001110 a b cin = 00011001_00100111_1, sum = 001000001 a b cin = 01111101_01100111_1, sum = 011100101 a b cin = 10001111_11000110_1, sum = 101010110

Figure 4.4 Outputs obtained from the test bench of Figure 4.3. Figure 4.5 Data analyzer waveforms for the test bench of Figure 4.4.

Chapter 4 Expressions 5

Page 128

//demonstrate arithmetic operations module arith_ops1 (a, b, opcode, rslt); input [3:0] a, b; input [2:0] opcode;

• utput [7:0] rslt;

reg [7:0] rslt; parameter addop = 3'b000, subop = 3'b001, mulop = 3'b010, divop = 3'b011, modop = 3'b100; always @ (a or b or opcode) begin case (opcode) addop: rslt = a + b; subop: rslt = a - b; mulop: rslt = a * b; divop: rslt = a / b; modop: rslt = a % b; default: rslt = 8’bxxxxxxxx; endcase end endmodule

Figure 4.7 Verilog code illustrating the operations of addition, subtraction, multi- plication, division, and modulus.

//arithmetic operations test bench module arith_ops1_tb; reg [3:0] a, b; reg [2:0] opcode; wire [7:0] rslt ; //continued on next page

Figure 4.8 Test bench for the module of Figure 4.7.

initial $monitor ("a = %b, b = %b,

• pcode = %b, rslt = %b",

a , b, opcode, rslt); initial begin #0 a = 4'b0011; b = 4'b0111;

• pcode = 3'b000;

#5 a = 4'b1111; b = 4'b1111;

• pcode = 3'b001;

#5 a = 4'b1110; b = 4'b1110;

• pcode = 3'b010;

#5 a = 4'b1000; b = 4'b0010;

• pcode = 3'b011;

#5 a = 4'b0111; b = 4'b0011;

• pcode = 3'b100;

#5 $stop; end //instantiate the module into //the test bench arith_ops1 inst1 ( .a(a), .b(b), .opcode(opcode), .rslt(rslt) ); endmodule Chapter 4 Expressions 6

Figure 4.8 (Continued) Page 129

a = 0011, b = 0111, opcode = 000, rslt = 00001010 //add a = 1111, b = 1111, opcode = 001, rslt = 00000000 //subtract a = 1110, b = 1110, opcode = 010, rslt = 11000100 //multiply a = 1000, b = 0010, opcode = 011, rslt = 00000100 //divide a = 0111, b = 0011, opcode = 100, rslt = 00000001 //modulus

Figure 4.9 Outputs for the test bench of Figure 4.8.

Chapter 4 Expressions 7

Page 130 Figure 4.10 Waveforms for the test bench of Figure 4.8. Page 130

//examples of logical operators module log_ops1 (a, b, z1, z2, z3); input [3:0] a, b;

• utput z1, z2, z3;

assign z1 = a && b; assign z2 = a || b; assign z3 = !a; endmodule

Figure 4.11 Examples of logical operators.

Chapter 4 Expressions 8

Page 131

//test bench for logical //operators module log_ops1_tb; reg [3:0] a, b; wire z1, z2, z3; initial $monitor ("z1 = %d, z2 = %d, z3 = %d", z1, z2, z3); //apply input vectors initial begin #0 a = 4'b0110; b = 4'b1100; #5 a = 4'b0101; b = 4'b0000; #5 a = 4'b1000; b = 4'b1001; #5 a = 4'b0000; b = 4'b0000; #5 a = 4'b1111; b = 4'b1111; #5 $stop; end //instantiate the module //into the test bench log_ops1 inst1 ( .a(a), .b(b), .z1(z1), .z2(z2), .z3(z3) ); endmodule

Figure 4.12 Test bench for the logical operators module.

z1 = 1, z2 = 1, z3 = 0 //z1 is logical AND z1 = 0, z2 = 1, z3 = 0 //z2 is logical OR z1 = 1, z2 = 1, z3 = 0 //z3 is logical negation z1 = 0, z2 = 0, z3 = 1 z1 = 1, z2 = 1, z3 = 0

Figure 4.13 Outputs for the logical operators obtained from the test bench of Figure 4.12. Output z1 is the logical AND; output z2 is the logical OR; output z3 is the logical negation.

Chapter 4 Expressions 9

Page 132 Figure 4.14 Waveforms for the logical operators obtained from the test bench of Figure 4.12. Output z1 is the logical AND; output z2 is the logical OR; output z3 is the logical negation. Pagw 133

//examples of relational operators module relational_ops1 (a, b, gt, lt, gte, lte); input [3:0] a, b;

• utput gt, lt, gte, lte;

assign gt = a > b; assign lt = a < b; assign gte = a >= b; assign lte = a <= b; endmodule

Figure 4.15 Verilog module to illustrate the relational operators.

Chapter 4 Expressions 10

Page 133

//test bench relational ops module relational_ops1_tb; reg [3:0] a, b; wire gt, lt, gte, lte; initial $monitor ("a=%b, b=%b, gt=%d, lt=%d, gte=%d, lte=%d", a, b, gt, lt, gte, lte); //apply input vectors initial begin #0 a = 4'b0110; b = 4'b1100; #5 a = 4'b0101; b = 4'b0000; #5 a = 4'b1000; b = 4'b1001; #5 a = 4'b0000; b = 4'b0000; #5 a = 4'b1111; b = 4'b1111; #5 $stop; end //instantiate the module relational_ops1 inst1 ( .a(a), .b(b), .gt(gt), .lt(lt), .gte(gte), .lte(lte) ); endmodule

Figure 4.16 Test bench for the relational operators module of Figure 4.15. Page 134

a=0110, b=1100, gt=0, lt=1, gte=0, lte=1 a=0101, b=0000, gt=1, lt=0, gte=1, lte=0 a=1000, b=1001, gt=0, lt=1, gte=0, lte=1 a=0000, b=0000, gt=0, lt=0, gte=1, lte=1 a=1111, b=1111, gt=0, lt=0, gte=1, lte=1

Figure 4.17 Outputs for the test bench of Figure 4.16 for the relational operators. Figure 4.18 Waveforms for the test bench of Figure 4.16 for the relational operators.

Chapter 4 Expressions 11

Page 135

//illustrate the use of equality operators module equality (x1, x2, x3, x4, x5, z1, z2, z3, z4); input [3:0] x1, x2, x3, x4, x5;

• utput z1, z2, z3, z4;

wire x1, x2, x3, x4, x5; //can be omitted. //inputs are wire by default //z1 is logical equality //z2 is logical inequality //z3 is case equality //z4 is case inequality reg z1, z2, z3, z4; always @ (x1 or x2 or x3 or x4 or x5) begin if (x1 == x2) //logical equality z1 = 1; else z1 = 0; end always @ (x1 or x2 or x3 or x4 or x5) begin if (x2 != x3) //logical inequality z2 = 1; else z2 = 0; end always @ (x1 or x2 or x3 or x4 or x5) begin if (x3 === x4) //case equality z3 = 1; else z3 = 0; end always @ (x1 or x2 or x3 or x4 or x5) begin if (x4 !== x5) z4 = 1; else z4 = 0; end endmodule

Figure 4.19 Module to illustrate the use of the equality operators.

Chapter 4 Expressions 12

Page 136

//equality operators test bench module equality_tb; reg [3:0] x1, x2, x3, x4, x5; wire z1, z2, z3, z4; initial $monitor ("x1=%b, x2=%b, x3=%b, x4=%b, x5=%b, z1=%b, z2=%b, z3=%b, z4=%b", x1, x2, x3, x4, x5, z1, z2, z3, z4); //apply input vectors initial begin #0 x1 = 4'b1000; x2 = 4'b1101; x3 = 4'b01xz; x4 = 4'b01xz; x5 = 4'bx1xx; #10 x1 = 4'b1011; x2 = 4'b1011; x3 = 4'bx1xz; x4 = 4'bx1xz; x5 = 4'b11xx; #10 x1 = 4'b1100; x2 = 4'b0101; x3 = 4'bx10z; x4 = 4'b11xz; x5 = 4'b11xx; end //instantiate the module into the test bench equality inst1 ( .x1(x1), .x2(x2), .x3(x3), .x4(x4), .x5(x5), .z1(z1), .z2(z2), .z3(z3), .z4(z4) ); endmodule

Figure 4.20 Test bench for the equality module of Figure 4.19.

Chapter 4 Expressions 13

Page 137

x1=1000, x2=1101, x3=01xz, x4=01xz, x5=x1xx, z1=0, z2=1, z3=1, z4=1 x1=1011, x2=1011, x3=x1xz, x4=x1xz, x5=11xx, z1=1, z2=1, z3=1, z4=1 x1=1100, x2=0101, x3=x01z, x4=11xz, x5=11xx, z1=0, z2=1, z3=0, z4=1

Figure 4.21 Outputs for the test bench of Figure 4.20 for the equality module of Fig- ure 4.19. Page 141

//example of the bitwise operators module bitwise1 (a, b, and_rslt, or_rslt, neg_rslt, xor_rslt, xnor_rslt); input [7:0] a, b;

• utput [7:0] and_rslt, or_rslt, neg_rslt, xor_rslt,

xnor_rslt; wire [7:0] a, b; reg [7:0] and_rslt, or_rslt, neg_rslt, xor_rslt, xnor_rslt; always @ (a or b) begin and_rslt = a & b; //bitwise AND

• r_rslt = a | b;

//bitwise OR neg_rslt = ~a; //bitwise negation xor_rslt = a ^ b; //bitwise exclusive-OR xnor_rslt = a ^~ b; //bitwise exclusive-NOR end endmodule

Figure 4.22 Module to illustrate the coding for the bitwise operators.

Chapter 4 Expressions 14

Page 142

//test bench for bitwise1 module module bitwise1_tb; reg [7:0] a, b; wire [7:0] and_rslt, or_rslt, neg_rslt, xor_rslt, xnor_rslt; $monitor ("a=%b, b=%b, and_rslt=%b, or_rslt=%b, neg_rslt=%b, xor_rslt=%b, xnor_rslt=%b", a, b, and_rslt, or_rslt, neg_rslt, xor_rslt, xnor_rslt); initial $monitor ("a=%b, b=%b, and_rslt=%b, or_rslt=%b, neg_rslt=%b, xor_rslt=%b, xnor_rslt=%b", a, b, and_rslt, or_rslt, neg_rslt, xor_rslt, xnor_rslt); //apply input vectors initial begin #0 a = 8'b1100_0011; b = 8'b1001_1001; #10 a = 8'b1001_0011; b = 8'b1101_1001; #10 a = 8'b0000_1111; b = 8'b1101_1001; #10 a = 8'b0100_1111; b = 8'b1101_1001; #10 a = 8'b1100_1111; b = 8'b1101_1001; #10 $stop; end //instantiate the module into the test bench bitwise1 inst1 ( .a(a), .b(b), .and_rslt(and_rslt), .or_rslt(or_rslt), .neg_rslt(neg_rslt), .xor_rslt(xor_rslt), .xnor_rslt(xnor_rslt) ); endmodule

Figure 4.23 Test bench for the bitwise module of Figure 4.22.

Chapter 4 Expressions 15

Page 143

a = 11000011, b = 10011001, and_rslt = 10000001,

• r_rslt

= 11011011, neg_rslt = 00111100, xor_rslt = 01011010, xnor_rslt= 10100101 ____________________________ a = 10010011, b = 11011001, and_rslt = 10010001,

• r_rslt

= 11011011, neg_rslt = 01101100, xor_rslt = 01001010, xnor_rslt= 10110101

_______________________________

a = 00001111, b = 11011001, and_rslt = 00001001,

• r_rslt

= 11011111, neg_rslt = 11110000, xor_rslt = 11010110, xnor_rslt= 00101001 a = 01001111, b = 11011001, and_rslt = 01001001,

• r_rslt

= 11011111, neg_rslt = 10110000, xor_rslt = 10010110, xnor_rslt= 01101001 ____________________________ a = 11001111, b = 11011001, and_rslt = 11001001,

• r_rslt

= 11011111, neg_rslt = 00110000, xor_rslt = 00010110, xnor_rslt= 11101001 ____________________________

Figure 4.24 Outputs for the bitwise module of Figure 4.22.

Chapter 4 Expressions 16

Page 145

//module to illustrate the use of reduction operators module reduction (a, and_rslt, nand_rslt, or_rslt, nor_rslt, xor_rslt, xnor_rslt); input [7:0] a;

• utput and_rslt, nand_rslt, or_rslt, nor_rslt, xor_rslt,

xnor_rslt; wire [7:0] a; reg and_rslt, nand_rslt, or_rslt, nor_rslt, xor_rslt, xnor_rslt; always @(a) begin and_rslt = &a; //reduction AND nand_rslt = ~&a; //reduction NAND

• r_rslt = |a;

//reduction OR nor_rslt = ~|a; //reduction NOR xor_rslt = ^a; //reduction exclusive-OR xnor_rslt = ^~a; //reduction exclusive-NOR end endmodule

Figure 4.25 Module to illustrate the use of the reduction operators.

//test bench for reduction module module reduction_tb; reg [7:0] a; wire and_rslt, nand_rslt, or_rslt, nor_rslt, xor_rslt, xnor_rslt; initial $monitor ("a=%b, and_rslt=%b, nand_rslt=%b, or_rslt=%b, nor_rslt=%b, xor_rslt=%b, xnor_rslt=%b", a, and_rslt, nand_rslt, or_rslt, nor_rslt, xor_rslt, xnor_rslt); //continued on next page

Figure 4.26 Test bench for the reduction operators of Figure 4.25.

//apply input vectors initial begin #0 a = 8'b1100_0011; #10 a = 8'b1001_0011; #10 a = 8'b0000_1111; #10 a = 8'b0100_1111; #10 a = 8'b1100_1111; #10 $stop; end //instantiate the module into the test bench reduction inst1 ( .a(a), .and_rslt(and_rslt), .nand_rslt(nand_rslt), .or_rslt(or_rslt), .nor_rslt(nor_rslt), .xor_rslt(xor_rslt), .xnor_rslt(xnor_rslt) ); endmodule Chapter 4 Expressions 17

Figure 4.26 (Continued)

a=11000011, and_rslt=0,nand_rslt=1,or_rslt=1,nor_rslt=0, xor_rslt=0,xnor_rslt=1 a=10010111, and_rslt=0,nand_rslt=1,or_rslt=1,nor_rslt=0, xor_rslt=1,xnor_rslt=0 a=00000000, and_rslt=0,nand_rslt=1,or_rslt=0,nor_rslt=1, xor_rslt=0,xnor_rslt=1 a=01001111, and_rslt=0,nand_rslt=1,or_rslt=1,nor_rslt=0, xor_rslt=1,xnor_rslt=0 a=11111111, and_rslt=1,nand_rslt=0,or_rslt=1,nor_rslt=0, xor_rslt=0,xnor_rslt=1

Figure 4.27 Outputs for the reduction operators of Figure 4.25.

Chapter 4 Expressions 18

Page 147

//examples of shift operations module shift (a_reg, b_reg, rslt_a, rslt_b); input [7:0] a_reg, b_reg;

• utput [7:0] rslt_a, rslt_b;

wire [7:0] a_reg, b_reg; reg [7:0] rslt_a, rslt_b; always @ (a_reg or b_reg) begin rslt_a = a_reg << 3; //multiply by 8 rslt_b = b_reg >> 2; //divide by 4 end endmodule

Figure 4.28 Examples of shift-left and shift-right operators.

Chapter 4 Expressions 19

Page 148

//shift test bench module shift_tb; reg [7:0] a_reg, b_reg; wire [7:0] rslt_a, rslt_b; //display variables initial $monitor ("a_reg = %b, b_reg = %b, rslt_a = %b, rslt_b = %b", a_reg, b_reg, rslt_a, rslt_b); //apply input vectors initial begin #0 a_reg = 8'b0000_0010; //2; rslt_a = 16 b_reg = 8'b0000_1000; //8; rslt_b = 2 #10 a_reg = 8'b0000_0110; //6; rslt_a = 48 b_reg = 8'b0001_1000; //24; rslt_b = 6 #10 a_reg = 8'b0000_1111; //15; rslt_a = 120 b_reg = 8'b0011_1000; //56; rslt_b = 14 #10 a_reg = 8'b1110_0000; //224; rslt_a = 0 b_reg = 8'b0000_0011; //3; rslt_b = 0 #10 $stop; end //instantiate the module into the test bench shift inst1 ( .a_reg(a_reg), .b_reg(b_reg), .rslt_a(rslt_a), .rslt_b(rslt_b) ); endmodule

Figure 4.29 Test bench for the shift operators of Figure 4.28.

Chapter 4 Expressions 20

Page 149

a_reg = 00000010, b_reg = 00001000, //shift a_reg left 3 rslt_a = 00010000, rslt_b = 00000010 //shift b_reg right 2 a_reg = 00000110, b_reg = 00011000, //shift a_reg left 3 rslt_a = 00110000, rslt_b = 00000110 //shift b_reg right 2 a_reg = 00001111, b_reg = 00111000, //shift a_reg left 3 rslt_a = 01111000, rslt_b = 00001110 //shift b_reg right 2 a_reg = 11100000, b_reg = 00000011, //shift a_reg left 3 rslt_a = 00000000, rslt_b = 00000000 //shift b_reg right 2

Figure 4.30 Outputs for the test bench of Figure 4.29 showing the results of the shift- left and shift-right operations. Operand a_reg is shifted left three bits with the low-or- der bits filled with zeroes. Operand b_reg is shifted right two bits with the high-order bits filled with zeroes. Page 150

//dataflow 2:1 mux using conditional operator module mux_2to1_cond (s0, in0, in1, out); input s0, in0, in1;

• utput out;

assign out = s0 ? in1 : in0; endmodule // s0

• ut

// 1(true) in1 // 0(false) in0

Figure 4.31 Verilog code to model a 2:1 multiplexer using the conditional operator.

Chapter 4 Expressions 21

Page 151

//2:1 multiplexer test bench module mux_2to1_cond_tb; reg s0, in0, in1; wire out; //display variables initial $monitor ("s0=%b, in0 in1=%b,

• ut = %b",

s0, {in0, in1}, out); //apply stimulus initial begin #0 s0 = 1'b0; in0 = 1'b0; in1 = 1'b0; #10 s0 = 1'b0; in0 = 1'b1; in1 = 1'b1; #10 s0 = 1'b1; in0 = 1'b1; in1 = 1'b0; #10 s0 = 1'b1; in0 = 1'b0; in1 = 1'b1; #10 $stop; end //instantiate the module //into the test bench mux_2to1_cond inst1 ( .s0(s0), .in0(in0), .in1(in1), .out(out) ); endmodule

Figure 4.32 Test bench for the 2:1 multiplexer of Figure 4.31.

s0 = 0, in0 in1 = 00, out = 0 s0 = 0, in0 in1 = 11, out = 1 s0 = 1, in0 in1 = 10, out = 0 s0 = 1, in0 in1 = 01, out = 1

Figure 4.33 Outputs for the test bench of Figure 4.32.

Chapter 4 Expressions 22

Page 152

//examples of concatenation module concat (a, b, c, d, a_bus, z1, z2, z3, z4, z5, z6); input [1:0] a; input [2:0] b; input [3:0] c; input d; input [7:0] a_bus;

• utput [9:0] z1, z2, z3, z4;
• utput [7:0] z5;
• utput [11:0] z6;

assign z1 = {a, c}; assign z2 = {b, a}; assign z3 = {c, b, a}; assign z4 = {a, b, c, d}; assign z5 = {a_bus[3:0], a_bus[7:4]}; assign z6 = {b, c, d, 4’b0111}; endmodule

Figure 4.34 Verilog module to demonstrate the use of the concatenation operator.

//concatenation test bench module concat_tb; reg [1:0]a; reg [2:0]b; reg [3:0]c; reg d; reg [7:0] a_bus; wire [7:0] z5; wire [9:0] z1, z2, z3, z4; wire [11:0] z6; initial $monitor ("a=%b, b=%b, c=%b, d=%b, z1=%b, z2=%b, z3=%b, z4=%b, z5=%b, z6=%b", a, b, c, d, z1, z2, z3, z4, z5, z6); //continued on next page

Figure 4.35 Test bench for the concatenation module of Figure 4.34.

initial begin #0 a = 2'b11; b = 3'b001; c = 4'b1100; d = 1'b1; a_bus = 8'b1111_0000; #10 $stop; end //instantiate the module into the test bench concat inst1 ( .a(a), .b(b), .c(c), .d(d), .a_bus(a_bus), .z1(z1), .z2(z2), .z3(z3), .z4(z4), .z5(z5), .z6(z6) ); endmodule Chapter 4 Expressions 23

Figure 4.35 (Continued)

z1, z2, z3, and z4 are 10 bits in length. a = 11, b = 001, c = 1100, d = 1 a_bus = 11110000 z1 = 0000_11_1100 //z1 = {a, c} z2 = 00000_001_11 //z2 = {b, a} z3 = 0_1100_001_11 //z3 = {c, b, a} z4 = 11_001_1100_1 //z4 = {a, b, c, d} z5 = 0000_1111 //z5 = {a_bus [3:0], a_bus [7:4]} z6 = 001_1100_1_0111 //z6 = {b, c, d, 4’b0111}

Figure 4.36 Outputs for the concatenation test bench of Figure 4.35.

Chapter 4 Expressions 24

Page 154

//example of replication module replication (a, b, c, z1, z2); input [1:0] a; input [2:0] b; input [3:0] c;

• utput [11:0] z1;
• utput [21:0] z2;

assign z1 = {2{a, c}}; assign z2 = {2{b, c, 4'b0111}}; endmodule

Figure 4.37 Module to illustrate the replication operator.

Chapter 4 Expressions 25

Page 155

//replication test bench module replication_tb; reg [1:0] a; reg [2:0] b; reg [3:0] c; wire [11:0] z1; wire [21:0] z2; initial $monitor ("a=%b, b=%b, c=%b, z1=%b, z2=%b", a, b, c, z1, z2); initial begin #0 a = 2'b11; b = 3'b010; c = 4'b0011; #10 $stop; end //instantiate the module into the test bench replication inst1 ( .a(a), .b(b), .c(c), .z1(z1), .z2(z2) ); endmodule

Figure 4.38 Test bench for the replication module of Figure 4.37.

a = 11, b = 010, c = 0011, z1 = 11_0011_11_0011, //z1 = {2{a, c}} z2 = 010_0011_0111_010_0011_0111 //z2 = {2{b, c, 4'b0111}}

Page 156 Figure 4.39 Outputs for the replication test bench of Figure 4.38.
