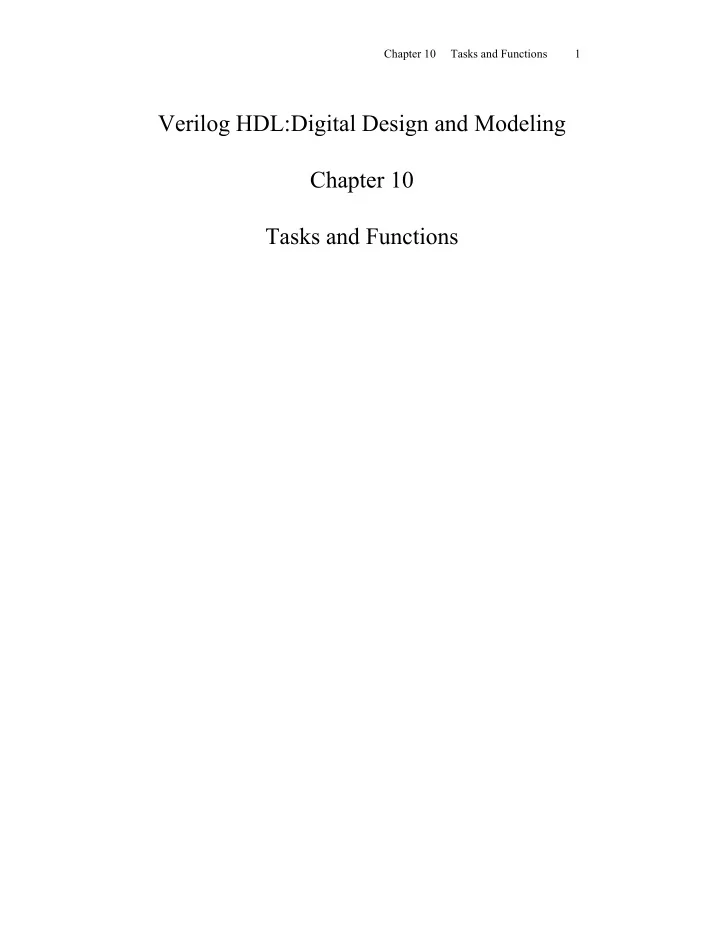

Chapter 10 Tasks and Functions 1

Verilog HDL:Digital Design and Modeling Chapter 10 Tasks and Functions

Chapter 10 Tasks and Functions 2

Page 584

//module to illustrate a task module task_arith_log; reg [7:0] a, b, c; reg [7:0] z1, z2, z3, z4; initial begin a=8'b0000_1111; b=8'b0011_1100; c=8'b0101_0101; calc (a, b, c, z1, z2, z3, z4); //invoke task a=8'b1111_1111; b=8'b0000_1100; c=8'b1011_1101; calc (a, b, c, z1, z2, z3, z4); //invoke task a=8'b0011_1100; b=8'b0001_1101; c=8'b1010_0101; calc (a, b, c, z1, z2, z3, z4); //invoke task a=8'b1100_1001; b=8'b1011_1101; c=8'b0111_0111; calc (a, b, c, z1, z2, z3, z4); //invoke task end task calc; input [7:0] a, b, c;

• utput [7:0] z1, z2, z3, z4;

begin z1 = (a + b) & (c); z2 = (a + b) | (c); z3 = (a & b) + (c); z4 = (a | b) + (c); $display ("a=%b, b=%b, c=%b, z1=%b, z2=%b, z3=%b, z4=%b", a, b, c, z1, z2, z3, z4); end endtask endmodule

Figure 10.1 Module for the task of Example 10.1.

Chapter 10 Tasks and Functions 3

Page 585

a=00001111, b=00111100, c=01010101, z1=01000001, z2=01011111, z3=01100001, z4=10010100 a=11111111, b=00001100, c=10111101, z1=00001001, z2=10111111, z3=11001001, z4=10111100 a=00111100, b=00011101, c=10100101, z1=00000001, z2=11111101, z3=11000001, z4=11100010 a=11001001, b=10111101, c=01110111, z1=00000110, z2=11110111, z3=00000000, z4=01110100

Figure 10.2 Outputs for the task module of Figure 10.2.

Chapter 10 Tasks and Functions 4

Page 586

//module to illustrate a task for logical operations module task_logical; reg [7:0] a, b; reg [7:0] a_and_b, a_nand_b, a_or_b, a_nor_b, a_xor_b, a_xnor_b; initial begin a=8'b1010_1010; b=8'b1100_1100; logical (a, b, a_and_b, a_nand_b, a_or_b, a_nor_b, a_xor_b, a_xnor_b); //invoke the task a=8'b1110_0111; b=8'b1110_0111; logical (a, b, a_and_b, a_nand_b, a_or_b, a_nor_b, a_xor_b, a_xnor_b); //invoke the task a=8'b0000_0111; b=8'b0000_0111; logical (a, b, a_and_b, a_nand_b, a_or_b, a_nor_b, a_xor_b, a_xnor_b); //invoke the task a=8'b0101_0101; b=8'b1010_1010; logical (a, b, a_and_b, a_nand_b, a_or_b, a_nor_b, a_xor_b, a_xnor_b); //invoke the task end task logical; input [7:0] a, b;

• utput [7:0] a_and_b, a_nand_b, a_or_b, a_nor_b,

a_xor_b, a_xnor_b; begin a_and_b = a & b; a_nand_b = ~(a & b); a_or_b = a | b; a_nor_b = ~(a | b); a_xor_b = a ^ b; a_xnor_b = ~(a ^ b); $display ("a=%b, b=%b, a_and_b=%b, a_nand_b=%b, a_or_b=%b, a_nor_b=%b, a_xor_b=%b, a_xnor_b=%b", a, b, a_and_b, a_nand_b, a_or_b, a_nor_b, a_xor_b, a_xnor_b); end endtask endmodule

Figure 10.5 Module for the task of Example 10.2.

Chapter 10 Tasks and Functions 5

Page 587

a=10101010, b=11001100, a_and_b=10001000, a_nand_b=01110111, a_or_b=11101110, a_nor_b=00010001, a_xor_b=01100110, a_xnor_b=10011001 a=11100111, b=11100111, a_and_b=11100111, a_nand_b=00011000, a_or_b=11100111, a_nor_b=00011000, a_xor_b=00000000, a_xnor_b=11111111 a=00000111, b=00000111, a_and_b=00000111, a_nand_b=11111000, a_or_b=00000111, a_nor_b=11111000, a_xor_b=00000000, a_xnor_b=11111111 a=01010101, b=10101010, a_and_b=00000000, a_nand_b=11111111, a_or_b=11111111, a_nor_b=00000000, a_xor_b=11111111, a_xnor_b=00000000

Figure 10.6 Outputs for the task module of Figure 10.5.

Chapter 10 Tasks and Functions 6

Page 588

//module to illustrate the use of a task module task1_adder4; integer a, b, cin, sum; initial begin a=2; b=5; cin=0; add (a, b, cin, sum); //invoke the task a=3; b=2; cin=1; add (a, b, cin, sum); //invoke the task a=4; b=6; cin=1; add (a, b, cin, sum); //invoke the task a=14; b=63; cin=1; add (a, b, cin, sum); //invoke the task a=150; b=225; cin=0; add (a, b, cin, sum); //invoke the task end task add; input a; input b; input cin;

• utput sum;

integer a, b, cin, sum; begin sum = a + b + cin; $display ("a=%d, b=%d, cin=%d, sum=%d", a, b, cin, sum); end endtask endmodule

Figure 10.8 Module for the task of Example 10.3.

a = 2, b = 5, cin = 0, sum = 7 a = 3, b = 2, cin = 1, sum = 6 a = 4, b = 6, cin = 1, sum = 11 a = 14, b = 63, cin = 1, sum = 78 a = 150, b = 225, cin = 0, sum = 375

Figure 10.9 Outputs for the task module of Figure 10.8.

Chapter 10 Tasks and Functions 7

Page 590

//module to illustrate a function module fctn_parity; reg [15:0] addr; reg parity; initial begin parity = calc_parity (16’b1111_0000_1111_0000); if (parity ==1) $display ("parity is even"); else $display ("parity is odd"); parity = calc_parity (16’b1111_0000_1111_0001); if (parity ==1) $display ("parity is even"); else $display ("parity is odd"); end function calc_parity; input [15:0] address; begin calc_parity = ^address; end endfunction endmodule

Figure 10.11 Module for the function of Example 10.4.

parity is even parity is odd

Figure 10.12 Outputs for the function module of Figure 10.11.

Chapter 10 Tasks and Functions 8

Page 592

//module to illustrate a function module fctn_count1s; reg [3:0] count; //invoke the function initial begin count = count1s (8'b1100_0011); $display ("number of 1s = %d", count); count = count1s (8'b1101_0011); $display ("number of 1s = %d", count); count = count1s (8'b1111_1011); $display ("number of 1s = %d", count); count = count1s (8'b1010_1010); $display ("number of 1s = %d", count); count = count1s (8'b0000_0000); $display ("number of 1s = %d", count); count = count1s (8'b0000_0010); $display ("number of 1s = %d", count); count = count1s (8'b1111_1111); $display ("number of 1s = %d", count); count = count1s (8'b0110_0100); $display ("number of 1s = %d", count); end //continue on next page

Figure 10.13 Module for a function to count the number of 1s in a word.

function [3:0] count1s; input [7:0] reg_a; reg [3:0] cnt; begin cnt = 0; while (reg_a) begin cnt = cnt + reg_a[0]; reg_a = reg_a >> 1; end count1s = cnt; end endfunction endmodule Chapter 10 Tasks and Functions 9

Figure 10.13 (Continued)

number of 1s = 4 number of 1s = 5 number of 1s = 7 number of 1s = 4 number of 1s = 0 number of 1s = 1 number of 1s = 8 number of 1s = 3

Figure 10.14 Outputs for a function to count the number of 1s in a word.

//module for a full adder using a function module fctn_full_add; reg a, b, cin; reg [1:0] sum; initial begin sum = full_add (1'b0, 1'b0, 1'b0); //invoke the function $display ("abcin=000, cout, sum = %b", sum); sum = full_add (1'b0, 1'b0, 1'b1); $display ("abcin=001, cout, sum = %b", sum); //continued on next page

Page 594 Figure 10.16 Module for the full adder function of Example 10.6.

sum = full_add (1'b0, 1'b1, 1'b0); $display ("abcin=010, cout, sum = %b", sum); sum = full_add (1'b0, 1'b1, 1'b1); $display ("abcin=011, cout, sum = %b", sum); sum = full_add (1'b1, 1'b0, 1'b0); $display ("abcin=100, cout, sum = %b", sum); sum = full_add (1'b1, 1'b0, 1'b1); $display ("abcin=101, cout, sum = %b", sum); sum = full_add (1'b1, 1'b1, 1'b0); $display ("abcin=110, cout, sum = %b", sum); sum = full_add (1'b1, 1'b1, 1'b1); $display ("abcin=111, cout, sum = %b", sum); end function [2:0] full_add; input a, b, cin; reg [1:0] sum; begin case ({a,b,cin}) 3'b000: sum = 2'b00; 3'b001: sum = 2'b01; 3'b010: sum = 2'b01; 3'b011: sum = 2'b10; 3'b100: sum = 2'b01; 3'b101: sum = 2'b10; 3'b110: sum = 2'b10; 3'b111: sum = 2'b11; default:sum = 2'bxx; endcase full_add = sum; end endfunction endmodule Chapter 10 Tasks and Functions 10

Figure 10.16 (Continued)

Chapter 10 Tasks and Functions 11

Page 596

abcin=000, cout, sum = 00 abcin=001, cout, sum = 01 abcin=010, cout, sum = 01 abcin=011, cout, sum = 10 abcin=100, cout, sum = 01 abcin=101, cout, sum = 10 abcin=110, cout, sum = 10 abcin=111, cout, sum = 11

Figure 10.17 Outputs for the full adder function module of Figure 10.16.

Chapter 10 Tasks and Functions 12

Page 596

//module for a shifter using a function module fctn_shifter; reg [7:0] left_word, right_word; reg ctrl; initial begin left_word = shift (8'b1010_1010, 1'b0);//invoke function $display ("word = %b", left_word); right_word = shift (8'b1100_0011, 1'b1); $display ("word = %b", right_word); left_word = shift (8'b0000_1111, 1'b0); $display ("word = %b", left_word); right_word = shift (8'b0000_1111, 1'b1); $display ("word = %b", right_word); left_word = shift (8'b0010_0000, 1'b0); $display ("word = %b", left_word); right_word = shift (8'b0010_0000, 1'b1); $display ("word = %b", right_word); end function [7:0] shift; input [7:0] word; input ctrl; begin shift = (ctrl == 1'b0) ? (word << 1) : (word >> 1); end endfunction endmodule

Figure 10.18 Module for a function to shift a word left or right 1 bit position.

word = 01010100 word = 01100001 word = 00011110 word = 00000111 word = 01000000 word = 00010000

Page 597 Figure 10.19 Outputs for the shift function module of Figure 10.18.

Chapter 10 Tasks and Functions 13

Page 598

//module for an arithmetic and logic unit using a function module fctn_alu; reg [7:0] a, b; reg [1:0] mode; reg [15:0] rslt; initial begin rslt = alu (8'b0000_1111, 8'b0000_0011, 2'b00); $display ("add, a=0000_1111, b=0000_0011, rslt = %b", rslt); rslt = alu (8'b0011_1101, 8'b0010_0011, 2'b00); $display ("add, a=0011_1101, b=0010_0011, rslt = %b", rslt); rslt = alu (8'b0000_1111, 8'b0000_0011, 2'b01); $display ("sub, a=0000_1111, b=0000_0011, rslt = %b", rslt); rslt = alu (8'b0000_1111, 8'b0001_0000, 2'b01); $display ("sub, a=0000_1111, b=0001_0000, rslt = %b", rslt); rslt = alu (8'b0000_1111, 8'b0000_0011, 2'b10); $display ("mul, a=0000_1111, b=0000_0011, rslt = %b", rslt); rslt = alu (8'b0000_1111, 8'b0001_1001, 2'b10); $display ("mul, a=0000_1111, b=0001_1001, rslt = %b", rslt); rslt = alu (8'b0000_1111, 8'b0000_0011, 2'b11); $display ("div, a=0000_1111, b=0000_0011, rslt = %b", rslt); rslt = alu (8'b0011_0111, 8'b0000_0111, 2'b11); $display ("div, a=0011_0111, b=0000_0111, rslt = %b", rslt); end //continued on next page

Figure 10.21 Module to implement a function for a 4-operation ALU.

function [15:0] alu; input [7:0] a, b; input [1:0] mode; reg [15:0] rslt; begin case (mode) 2'b00: rslt = a + b; 2'b01: rslt = a - b; 2'b10: rslt = a * b; 2'b11: rslt = a / b; default: rslt = 16'bxxxx_xxxx_xxxx_xxxx; endcase alu = rslt; end endfunction endmodule Chapter 10 Tasks and Functions 14

Figure 10.21 (Continued) Page 599

add, a=0000_1111, b=0000_0011, rslt = 0000000000010010 add, a=0011_1101, b=0010_0011, rslt = 0000000001100000 sub, a=0000_1111, b=0000_0011, rslt = 0000000000001100 sub, a=0000_1111, b=0001_0000, rslt = 1111111111111111 mul, a=0000_1111, b=0000_0011, rslt = 0000000000101101 mul, a=0000_1111, b=0001_1001, rslt = 0000000101110111 div, a=0000_1111, b=0000_0011, rslt = 0000000000000101 div, a=0011_0111, b=0000_0111, rslt = 0000000000000111

Figure 10.22 Outputs for Figure 10.21, which implements a 4-operation ALU.
