using topological data analysis to study glandular
play

Using Topological Data Analysis to Study Glandular Architecture - PowerPoint PPT Presentation

Nov 02, 2022 •22 likes •592 views

Using Topological Data Analysis to Study Glandular Architecture Brittany Terese Fasy School of Computing, Montana State University 2 October 2016 TDA-Bio Workshop Seattle, Washington B. Fasy (MSU) TDA for Glandular Architecture 2 October

  1. Using Topological Data Analysis to Study Glandular Architecture Brittany Terese Fasy School of Computing, Montana State University 2 October 2016 TDA-Bio Workshop Seattle, Washington B. Fasy (MSU) TDA for Glandular Architecture 2 October 2016 1 / 22

  2. Joint Work With Carola Wenk (Tulane, CS) J. Quincy Brown (Tulane, BME) 0 NSF DMS / NIH Planning Grant: 1557716 (MSU) and 1557750 (Tulane) B. Fasy (MSU) TDA for Glandular Architecture 2 October 2016 2 / 22

  3. Joint Work With Carola Wenk (Tulane, CS) J. Quincy Brown (Tulane, BME) Andrew Sholl (Tulane Med) John Sheppard (MSU, CS) Brian Summa (Tulane, CS) 0 NSF DMS / NIH Planning Grant: 1557716 (MSU) and 1557750 (Tulane) B. Fasy (MSU) TDA for Glandular Architecture 2 October 2016 2 / 22

  4. Joint Work With Carola Wenk (Tulane, CS) J. Quincy Brown (Tulane, BME) Andrew Sholl (Tulane Med) John Sheppard (MSU, CS) Brian Summa (Tulane, CS) Pete Lawson (Tulane, BME) Eric Berry (MSU, Math) Sush Majhi (Tulane, Math) Alan Cleary (MSU, CS) Sawyer Payne(MSU, CS Undergrad) 0 NSF DMS / NIH Planning Grant: 1557716 (MSU) and 1557750 (Tulane) B. Fasy (MSU) TDA for Glandular Architecture 2 October 2016 2 / 22

  5. The Problem: Qualitative Diagnosis and Prognosis Prostate Cancer The Question is Will He Outlive It? More than 225 , 000 cases per year (USA). One is seven men will be diagnosed. Treatments: surgery, chemo, radiation, harmone therapy. Either slowly-growing and benign or fast-growing and dangerous. Surgery / radiation benefits questionable for SG/B. Surgery / radiation side effects not desirable. ... therefore, active surveillance. B. Fasy (MSU) TDA for Glandular Architecture 2 October 2016 3 / 22

  6. The Problem: Qualitative Diagnosis and Prognosis Prostate Cancer Diagnosis PCA B. Fasy (MSU) TDA for Glandular Architecture 2 October 2016 4 / 22

  7. The Problem: Qualitative Diagnosis and Prognosis Prostate Cancer Diagnosis 2+2 3+3 Surveillance 3+4 PCA 4+3 4+4 Radical 5+4 5+5 B. Fasy (MSU) TDA for Glandular Architecture 2 October 2016 4 / 22

  8. The Problem: Qualitative Diagnosis and Prognosis Prostate Cancer Diagnosis 2+2 3+3 Surveillance 2+2 3+4 PCA 3+3 4+3 3+4 4+4 Radical 4+3 5+4 4+4 5+5 5+4 5+5 B. Fasy (MSU) TDA for Glandular Architecture 2 October 2016 4 / 22

  9. The Problem: Qualitative Diagnosis and Prognosis Prostate Cancer Diagnosis 2+2 3+3 Surveillance PCA 2+2 3+4 PCA 3+3 4+3 S.M. 3+4 4+4 Radical Other 4+3 5+4 Treatment 4+4 5+5 5+4 Age 5+5 B. Fasy (MSU) TDA for Glandular Architecture 2 October 2016 4 / 22

  10. The Problem: Qualitative Diagnosis and Prognosis Biopsy and Prostectmy Slides How to Describe Glandular Architecture B. Fasy (MSU) TDA for Glandular Architecture 2 October 2016 5 / 22

  11. The Problem: Qualitative Diagnosis and Prognosis Gleason Grading Grade 1: well-defined, nicely packed Grade 2: larger, more tissue, less uniform Grade 3: less defined glands, some cribriform Grade 4: fused glands, open lumens Grade 5: no glandular definition, sheets of cells 0 Donald Gleason, 1966, image from The Gleason Grading System: A Complete Guide for Pathologist and Clinicians by Eppstein B. Fasy (MSU) TDA for Glandular Architecture 2 October 2016 6 / 22

  12. The Problem: Qualitative Diagnosis and Prognosis Gleason Grading Grade 1: well-defined, nicely packed Grade 2: larger, more tissue, less uniform Grade 3: less defined glands Grade 4: fused glands, open lumens, cribriform Grade 5: no glandular definition, sheets of cells 0 2005 Consensus, image from The Gleason Grading System: A Complete Guide for Pathologist and Clinicians by Eppstein B. Fasy (MSU) TDA for Glandular Architecture 2 October 2016 6 / 22

  13. The Problem: Qualitative Diagnosis and Prognosis Learning to Grade The Gleason Grading System: A Complete Guide for Pathologists and Clinicians B. Fasy (MSU) TDA for Glandular Architecture 2 October 2016 7 / 22

  14. The Problem: Qualitative Diagnosis and Prognosis Glandular Architecture Discrete-vs-Fused Glands Gleason 3 Discrete glands. Gleason 4 Presence of fused glands. 0 Image source: Eppstein, The Gleason Grading System B. Fasy (MSU) TDA for Glandular Architecture 2 October 2016 8 / 22

  15. The Problem: Qualitative Diagnosis and Prognosis Glandular Architecture Cribriform Pattern Gleason 4 A gland with numerous small holes. 0 Image source: Eppstein, The Gleason Grading System B. Fasy (MSU) TDA for Glandular Architecture 2 October 2016 9 / 22

  16. The Problem: Qualitative Diagnosis and Prognosis Glandular Architecture Glomeruloid Structures Gleason 3,4 Intraluminal cribriform, single point of attachment. 0 Image source: http://www.nature.com/modpathol/journal/v17/n3/fig_tab/3800050f9.html B. Fasy (MSU) TDA for Glandular Architecture 2 October 2016 10 / 22

  17. The Problem: Qualitative Diagnosis and Prognosis Glandular Architecture Telescoping Glands Gleason 3 Telescoping (gland in gland) may mimic Glumeroid. Gleason 4 Actual glumeroid pattern. 0 Image source: Eppstein, The Gleason Grading System B. Fasy (MSU) TDA for Glandular Architecture 2 October 2016 11 / 22

  18. The Problem: Qualitative Diagnosis and Prognosis Glandular Architecture Distribution of Glandular Shape and Size Gleason 1 Uniform distribution of gland size. Round. Gleason 3 Irregularly separated glands. Gleason 4 Poorly formed glands. 0 Image source: Eppstein, The Gleason Grading System B. Fasy (MSU) TDA for Glandular Architecture 2 October 2016 12 / 22

  19. Methods: TDA Persistent Homology ? = B. Fasy (MSU) TDA for Glandular Architecture 2 October 2016 13 / 22

  20. Methods: TDA Persistent Homology ? = B. Fasy (MSU) TDA for Glandular Architecture 2 October 2016 13 / 22

  21. Methods: TDA Quantifying the Process TDA B. Fasy (MSU) TDA for Glandular Architecture 2 October 2016 14 / 22

  22. Methods: TDA Quantifying the Process TDA B. Fasy (MSU) TDA for Glandular Architecture 2 October 2016 14 / 22

  23. Methods: TDA Quantifying the Process TDA B. Fasy (MSU) TDA for Glandular Architecture 2 October 2016 14 / 22

  24. Methods: TDA Quantifying the Process TDA Death Birth B. Fasy (MSU) TDA for Glandular Architecture 2 October 2016 14 / 22

  25. Methods: TDA Quantifying the Process TDA Death Birth B. Fasy (MSU) TDA for Glandular Architecture 2 October 2016 14 / 22

  26. Methods: TDA Quantifying the Process TDA Death Death Birth Birth B. Fasy (MSU) TDA for Glandular Architecture 2 October 2016 14 / 22

  27. Methods: TDA Quantifying the Process TDA Death Death 100 120 0 20 40 60 80 Birth (Birth + Death)/2 Birth B. Fasy (MSU) TDA for Glandular Architecture 2 October 2016 14 / 22

  28. Methods: TDA Functional and Vectorized Summaries Death 100 120 0 20 40 60 80 Birth (Birth + Death)/2 B. Fasy (MSU) TDA for Glandular Architecture 2 October 2016 15 / 22

  29. Methods: TDA Aside: Hypothesis Testing Upcoming Paper The Euler Characteristic curve seems to be the most discriminating among the functional summaries when using the Hotelling Test a . a Joint work with Jessi Cisewski, Wojciech Hellwing, Mark Lovell, Alessandro Rinaldo, Larry Wasserman, Mike Wu B. Fasy (MSU) TDA for Glandular Architecture 2 October 2016 16 / 22

  30. Methods: TDA Collaboration B. Fasy (MSU) TDA for Glandular Architecture 2 October 2016 17 / 22

  31. Results: Towards Classification Comparing Purely Graded Images Initial Results 4 4 0 4 4 4 3 3 3 3 4 4 3 −3 44 3 4 3 3 4 4 3 3 5 −6 4 5 5 55 5 3 5 5 −9 −20 −15 −10 −5 0 5 B. Fasy (MSU) TDA for Glandular Architecture 2 October 2016 18 / 22

  32. Other Problems: Analyzing DeBruijn Graphs Joint work with Alan Cleary and Brendan Mumey CTGAACAGCTAGCAGTAGTGTAGGG B. Fasy (MSU) TDA for Glandular Architecture 2 October 2016 19 / 22

  33. Other Problems: Analyzing DeBruijn Graphs Joint work with Alan Cleary and Brendan Mumey CTGAACAGCTAGCAGTAGTGTAGGG GTG AGG GGG TAT CTG GTA TGA AGT GAA AAC GCA TAG CAG CTA AGC GCT B. Fasy (MSU) TDA for Glandular Architecture 2 October 2016 19 / 22

  34. Other Problems: Analyzing DeBruijn Graphs Joint work with Alan Cleary and Brendan Mumey CTGAACAGCTAGCAGTAGTGTAGGG GTG AGG GGG TAT CTG GTA TGA AGT GAA AAC GCA TAG CAG CTA AGC GCT B. Fasy (MSU) TDA for Glandular Architecture 2 October 2016 19 / 22

  35. Other Problems: Analyzing DeBruijn Graphs Joint work with Alan Cleary and Brendan Mumey CTGAACAGCTAGCAGTAGTGTAGGG GTG AGG GGG TAT CTG GTA TGA AGT GAA AAC GCA TAG CAG CTA AGC GCT B. Fasy (MSU) TDA for Glandular Architecture 2 October 2016 19 / 22

  36. Other Problems: Analyzing DeBruijn Graphs Joint work with Alan Cleary and Brendan Mumey CTGAACAGCTAGCAGTAGTGTAGGG GTG AGG GGG TAT CTG GTA TGA AGT GAA AAC GCA TAG CAG CTA AGC GCT B. Fasy (MSU) TDA for Glandular Architecture 2 October 2016 19 / 22

  37. Other Problems: Analyzing DeBruijn Graphs Joint work with Alan Cleary and Brendan Mumey CTGAACAGCTAGCAGTAGTGTAGGG GTG AGG GGG TAT CTG GTA TGA AGT GAA AAC GCA TAG CAG CTA AGC GCT B. Fasy (MSU) TDA for Glandular Architecture 2 October 2016 19 / 22

  38. Other Problems: Analyzing DeBruijn Graphs Joint work with Alan Cleary and Brendan Mumey CTGAACAGCTAGCAGTAGTGTAGGG GTG AGG GGG TAT CTG GTA TGA AGT GAA AAC GCA TAG CAG CTA AGC GCT B. Fasy (MSU) TDA for Glandular Architecture 2 October 2016 19 / 22

Download Presentation
Download Policy: The content available on the website is offered to you 'AS IS' for your personal information and use only. It cannot be commercialized, licensed, or distributed on other websites without prior consent from the author. To download a presentation, simply click this link. If you encounter any difficulties during the download process, it's possible that the publisher has removed the file from their server.

Recommend

Topological Analysis and Visualisation of Network Monitoring Data: Darknet case study Marc

Topological Analysis and Visualisation of Network Monitoring Data: Darknet case study Marc

Topological Analysis and Visualisation of Network Monitoring Data: Darknet case study Marc Coudriau 1 , 2 , Abdelkader Lahmadi 3 , cois 2 J er ome Fran 1 ENS Ulm, Paris, France 2 Inria Nancy Grand Est, Vill` ers-les-Nancy, France 3

564 views • 25 slides
Software for TDA ACM-BCB Workshop on TDA October 2, 2016 by Svetlana Lockwood Topological Data

Software for TDA ACM-BCB Workshop on TDA October 2, 2016 by Svetlana Lockwood Topological Data

Open Source Software for TDA ACM-BCB Workshop on TDA October 2, 2016 by Svetlana Lockwood Topological Data Analysis 1. Persistence-Way Topological analysis using persistent homology Finds topological invariants in data (# of

823 views • 35 slides
Statistical topological data analysis using persistence landscapes applied to brain arteries

Statistical topological data analysis using persistence landscapes applied to brain arteries

Application Theory Analysis Statistical topological data analysis using persistence landscapes applied to brain arteries CANSSISAMSI Workshop: Geometric Topological and Graphical Model Methods in Statistics Peter Bubenik Department of

2.58k views • 50 slides
Topological Data Analysis with applica2ons to porous and

Topological Data Analysis with applica2ons to porous and

Topological Data Analysis with applica2ons to porous and granular materials ARC Future Fellowship Vanessa Robins FT140100604 Applied Mathema2cs, RSPE,

1.27k views • 26 slides
Topological Data Analysis with applica2ons to porous and

Topological Data Analysis with applica2ons to porous and

Topological Data Analysis with applica2ons to porous and granular materials ARC Future Fellowship Vanessa Robins FT140100604 Applied Mathema2cs, RSPE,

231 views • 21 slides
topology and data topological data analysis and manifold learning what is dimensionality

topology and data topological data analysis and manifold learning what is dimensionality

by Joshua Tan, for Ufora & NYU Capstone, 12/16/2014 a library for topology and data topological data analysis and manifold learning what is dimensionality reduction Given some input space X and a sample set S , dimensionality

955 views • 16 slides
Topological data analysis and topology-based visualization Leila De Floriani Topology-based

Topological data analysis and topology-based visualization Leila De Floriani Topology-based

Topological data analysis and topology-based visualization Leila De Floriani Topology-based methods v Why topology? topology deals with qualitative geometric information , thus v providing a structural description of data topological

298 views • 10 slides

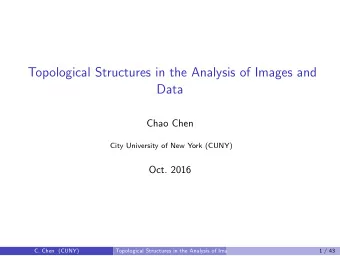

Topological Structures in the Analysis of Images and Data Chao Chen City University of New York

Topological Structures in the Analysis of Images and Data Chao Chen City University of New York

Topological Structures in the Analysis of Images and Data Chao Chen City University of New York (CUNY) Oct. 2016 C. Chen (CUNY) Topological Structures in the Analysis of Images and Data 1 / 43 Outline Topological Structures 1 High

1.03k views • 67 slides
Universality of the GromovHausdorff distance Workshop on Topological Data Analysis as part of

Universality of the GromovHausdorff distance Workshop on Topological Data Analysis as part of

Universality of the GromovHausdorff distance Workshop on Topological Data Analysis as part of Thematic Program on Toric Topology and Polyhedral Products June 1518, 2020 The Fields Institute Luis Scoccola ( lscoccol@uwo.ca ) University of

274 views • 9 slides
Functional Data Analysis using Topological Summary Statistics NSF TRIPODS Workshop: Geometry and

Functional Data Analysis using Topological Summary Statistics NSF TRIPODS Workshop: Geometry and

Functional Data Analysis using Topological Summary Statistics NSF TRIPODS Workshop: Geometry and Topology of Data Lorin Crawford Department of Biostatistics Center for Statistical Sciences Center for Computational Molecular Biology Brown

967 views • 63 slides
Introduction to Topological Data Analysis Persistent Homology Norm Matloff University of

Introduction to Topological Data Analysis Persistent Homology Norm Matloff University of

Introduction to Topological Data Analysis Norm Matloff University of California, Davis Introduction to Topological Data Analysis Persistent Homology Norm Matloff University of California, Davis Introduction to Topological Broad Overview

801 views • 54 slides
Kernel Methods for Topological Data Analysis Kenji Fukumizu The Institute of Statistical

Kernel Methods for Topological Data Analysis Kenji Fukumizu The Institute of Statistical

Kernel Methods for Topological Data Analysis Kenji Fukumizu The Institute of Statistical Mathematics (Tokyo, Japan) Joint work with Genki Kusano and Yasuaki Hiraoka (Tohoku Univ.), supported by JST CREST STM2016 at ISM. July 22, 2016 1

481 views • 37 slides
Introduction to topological data analysis Ippei Obayashi Adavnced Institute for Materials

Introduction to topological data analysis Ippei Obayashi Adavnced Institute for Materials

Introduction to topological data analysis Ippei Obayashi Adavnced Institute for Materials Research, Tohoku University Jan. 12, 2018 I. Obayashi (AIMR (Tohoku U.)) Introduction to TDA Jan. 12, 2018 1 / 32 Persistent homology Topological

690 views • 32 slides
Topological Data Analysis for Brain Networks Relating Functional Brain Network Topology to

Topological Data Analysis for Brain Networks Relating Functional Brain Network Topology to

Topological Data Analysis for Brain Networks Relating Functional Brain Network Topology to Clinical Measures of Behavior Bei Wang Phillips 1 , 2 University of Utah Joint work with Eleanor Wong 1 , 2 , Sourabh Palande 1 , 2 , Brandon Zielinski 3 ,

430 views • 30 slides
Topological Data Analysis A Framework for Machine Learning Samarth Bansal (11630) Deepak

Topological Data Analysis A Framework for Machine Learning Samarth Bansal (11630) Deepak

Topological Data Analysis A Framework for Machine Learning Samarth Bansal (11630) Deepak Choudhary (11234) Motivation Ayasdi was started in 2008 to bring a groundbreaking new approach to solving the worlds most complex problems after a

420 views • 17 slides
Texture Based Classification Of Seismic Image Patches Using Topological Data Analysis June 6,

Texture Based Classification Of Seismic Image Patches Using Topological Data Analysis June 6,

Texture Based Classification Of Seismic Image Patches Using Topological Data Analysis June 6, 2019 Abstract 640 Rahul Sarkar and Bradley J. Nelson Institute for Computational and Mathematical Engineering Stanford University Speaker 2

695 views • 40 slides
Maximal Exact Matchings similar to (local) alignment, but only identify parts that are exactly

Maximal Exact Matchings similar to (local) alignment, but only identify parts that are exactly

Maximal Exact Matchings similar to (local) alignment, but only identify parts that are exactly identical (no gaps) exact matches must be connected at sequence or structure level S.Will, 18.417, Fall 2011 faster than structure

439 views • 6 slides

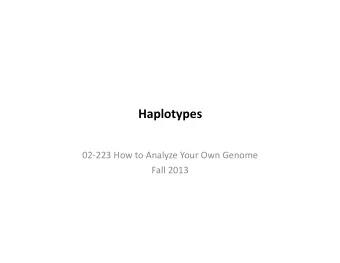

Haplotypes 02-223 How to Analyze Your Own Genome Fall

Haplotypes 02-223 How to Analyze Your Own Genome Fall

Haplotypes 02-223 How to Analyze Your Own Genome Fall 2013 Single Nucleo2de Polymorphism (SNP) GATCTTCGTACTGAGT GATCTTCGTACTGAGT C p GATTTTCGTACGGAAT C m GATTTTCGTACTGAGT

505 views • 27 slides

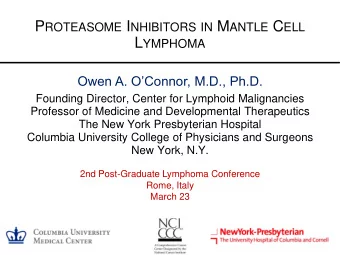

P ROTEASOME I NHIBITORS IN M ANTLE C ELL L YMPHOMA Owen A. OConnor, M.D., Ph.D. Founding

P ROTEASOME I NHIBITORS IN M ANTLE C ELL L YMPHOMA Owen A. OConnor, M.D., Ph.D. Founding

P ROTEASOME I NHIBITORS IN M ANTLE C ELL L YMPHOMA Owen A. OConnor, M.D., Ph.D. Founding Director, Center for Lymphoid Malignancies Professor of Medicine and Developmental Therapeutics The New York Presbyterian Hospital Columbia University

747 views • 60 slides
Status and Prospects of KamLAND 1000m KamLAND BO 50% dodecane long. 137 18 43 . 495

Status and Prospects of KamLAND 1000m KamLAND BO 50% dodecane long. 137 18 43 . 495

Kunio Inoue Research Center for Neutrino Science, Tohoku University Windows to new paradigm in particle physics, 14-16 February 2005, Sendai, Japan Status and Prospects of KamLAND 1000m KamLAND BO 50% dodecane long. 137 18 43 . 495

705 views • 44 slides

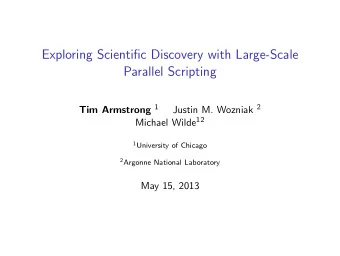

Exploring Scientific Discovery with Large-Scale Parallel Scripting Tim Armstrong 1 Justin M.

Exploring Scientific Discovery with Large-Scale Parallel Scripting Tim Armstrong 1 Justin M.

Exploring Scientific Discovery with Large-Scale Parallel Scripting Tim Armstrong 1 Justin M. Wozniak 2 Michael Wilde 12 1 University of Chicago 2 Argonne National Laboratory May 15, 2013 Parallel Scripting with Swift/T SciColSim Application

691 views • 21 slides
Temporal Graph Algebra VERA ZAYCHIK MOFFITT JOINT WORK WITH JULIA STOYANOVICH SEPTEMBER 1, 2017

Temporal Graph Algebra VERA ZAYCHIK MOFFITT JOINT WORK WITH JULIA STOYANOVICH SEPTEMBER 1, 2017

Temporal Graph Algebra VERA ZAYCHIK MOFFITT JOINT WORK WITH JULIA STOYANOVICH SEPTEMBER 1, 2017 Graph Evolution https://www.kenedict.com/apples-internal-innovation-network-unraveled-part-1-evolving-networks/ 2 Interesting and Important

318 views • 20 slides

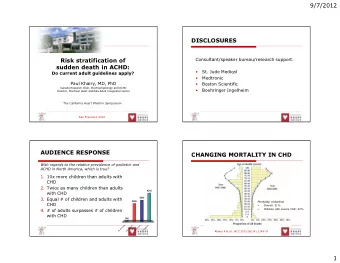

9/7/2012 DISCLOSURES Consultant/speaker bureau/research support: Risk stratification of sudden
