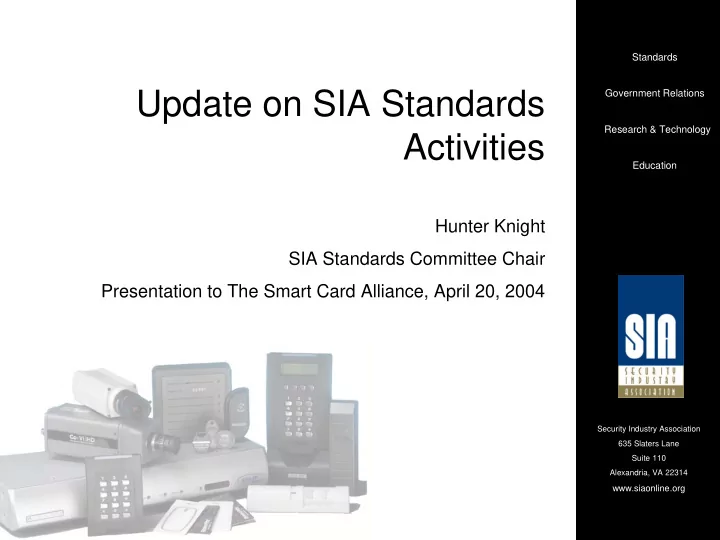

Standards Update on SIA Standards Government Relations Research & Technology Activities Education Hunter Knight Government Relations SIA Standards Committee Chair Presentation to The Smart Card Alliance, April 20, 2004 Education


slide-1
SLIDE 1

Government Relations Education Standards Research & Technology

www.siaonline.org

www.siaonline.org

Security Industry Association 635 Slaters Lane Suite 110 Alexandria, VA 22314

www.siaonline.org

Standards Government Relations Research & Technology Education

Update on SIA Standards Activities

Hunter Knight SIA Standards Committee Chair Presentation to The Smart Card Alliance, April 20, 2004

slide-2
SLIDE 2

Government Relations Education Standards Research & Technology

www.siaonline.org

www.siaonline.org

Activity Update

  • Objective: Aggressively and regularly

publish SIA standards.

  • Tactic: OSIPS (Open, System Integration

and Performance Standards)

– An integrated family of American National Standards interface data models that are binding independent – Documented in UML (Unified Modeling Language, an OMG Standard.) – SCA Related Work: Personal Identity And Card Management Interface Data Model

  • SIA is developing a Standards Roadmap

based on an industry meta-model. This an essential element of SIA’s planning process.

slide-3
SLIDE 3

Government Relations Education Standards Research & Technology

www.siaonline.org

www.siaonline.org

Binding Independence: Plugging Into The IT Backplane

Component

The infamous... IT Backplane

Content Agnostic Message Encoding Protocol Message Agnostic Message Transport Protocol Transport Protocol Agnostic Electrical Interface ANS.1, XML, ASCII,... TCP, UDP, SOAP,... RS232, Ethernet, USB

Binding:

Binding Type + Port + Connection Point

Binding Type:

Connection Point

slide-4
SLIDE 4

Government Relations Education Standards Research & Technology

www.siaonline.org

www.siaonline.org

Described In Unified Modeling Language (OMG Standard)

Binding Component Consumer Interface OSIPS Framework

Informative Reference Normative Realization

Other OSIPS Models

Normative Realization

slide-5
SLIDE 5

Government Relations Education Standards Research & Technology

www.siaonline.org

www.siaonline.org

Meta-Model: Field and Edge Devices

Portal Controller Digital Video Server Digital Video Server Digital Video Server

Input / Output Edge Device Input / Output Edge Device

Portal Controller Portal Controller Portal Controller

The IT Backplane

slide-6
SLIDE 6

Government Relations Education Standards Research & Technology

www.siaonline.org

www.siaonline.org

Meta-Model: Applications & Middleware

Business Operations Applications Human Resource Management Monitoring And Control Other Possible Applications Middleware System Administration System Provisioning Provisioning User Interface System Operation

Interfaced Integrated

slide-7
SLIDE 7

Government Relations Education Standards Research & Technology

www.siaonline.org

www.siaonline.org

The Meta-Model Defines The Scope of SIA’s Roadmap

System Administration Business Operations Applications Other Possible Applications System Operation Human Resource Management Provisioning User Interface

Portal Controller Digital Video Server Digital Video Server Portal Controller

Input / Output Edge Device Input / Output Edge Device

Monitoring And Control System Provisioning Middleware Middleware Middleware

Interface Interface Interface Interface Interface

slide-8
SLIDE 8

Government Relations Education Standards Research & Technology

www.siaonline.org

www.siaonline.org

Current OSIPS Activity and Timeline

OSIPS Framework: A set of common design elements required to provide the foundation for open, system integration and performance standards (OSIPS). future future

Summer '06

Digital Video Server

Summer '06

Access Control

Fall '06

Access Point Controller

Fall '06

Identity and Card Management

Fall '06

Component Connection: How products connect to one another Capabilities Exchange: How products tell others the services they provide Authentication and Authorization: How to exchange info about user authorities Schedules Exchange: How products exchange information about schedules Event Reporting: A unified mechanism for reporting events IO Points: A generic set of templates for monitored and controlled points Framework Elements: Common message types & formats, data types, definitions
