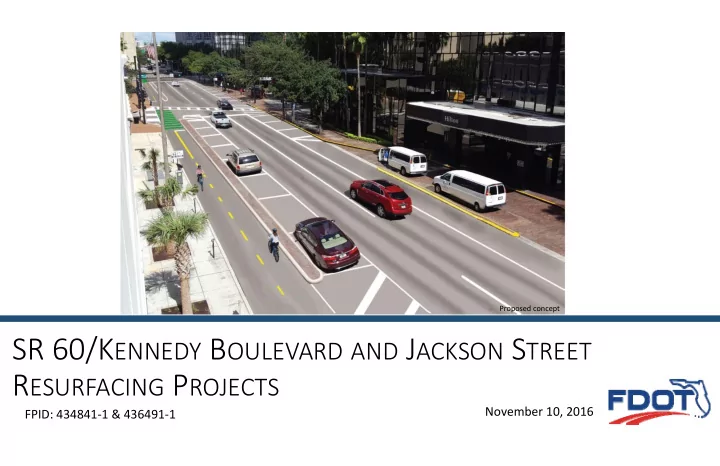

SR 60/KENNEDY BOULEVARD AND JACKSON STREET RESURFACING PROJECTS

FPID: 434841‐1 & 436491‐1 November 10, 2016

Proposed concept

Upcoming Resurfacing Projects on SR 60

FPID Project Schedule Final Design Begin Construction End Construction

434841‐1 SR 60/Kennedy Blvd & Jackson St from Brevard Ave to Meridian Ave Winter 2016 Summer 2017 Winter 2017 436491‐1 SR 60/Kennedy Blvd from Nebraska Ave to Ashley Dr Spring 2018 Summer 2018 Spring 2019

SR 60 RESURFACING PROJECTS

2

Project Costs (includes both projects) Total $3,600,000

(No additional right‐of‐way is needed for this project)

Supporting Plans & Policies

“Our neighborhoods will be vibrant, diverse, distinctive, and safe and will be linked to each

• ther and to the river through a

series of attractive, bicycle and pedestrian connections.” InVision Tampa Center City Plan

FDOT Complete Streets Policy

(Adopted September 2014) …While maintaining safety and mobility, Complete Streets shall serve the transportation needs of transportation system users of all ages and abilities, including but not limited to:

• Cyclists
• Freight Handlers
• Motorists
• Pedestrians
• Transit Riders…

SR 60 RESURFACING PROJECTS

3

Mobility in a Growing Downtown

Source: www.idahostatesman.com Source: www.tbo.com Source: Tindale Oliver Source: Strategic Property Partners

Channelside Waterfront Redevelopment

Source: kenbaldwinre.com

Channel District

Source: www.ptbchannelside.com

Port Tampa Bay Channel District Redevelopment

University

• f Tampa

Waterfront District Channel District Port Tampa Bay Encore

Transit Walking Bicycling

SR 60 RESURFACING PROJECTS

4

Existing Multimodal Connections

Brevard Ave

Riverwalk Selmon Greenway Meridian Trail Cass St Cycle Track Existing Bike Lanes Selmon Greenway Meridian Trail Riverwalk

5

Cass Street Cycletrack

Coast Bike Share – biking happens in Tampa!

300 Bikes 2 Dozen Hubs In & Around CBD 150,000 total miles in first year (GPS Tracked)

Blue lines represent each individual trips on Tampa roadways, showing high usage on the Cass Street Cycletrack soon after it opened

6

Jackson Street Existing Typical Section

The current roadway configuration on Jackson Street is as shown below

Existing Condition (Typical Section)

8.5’ 8.5’ 11’ 11’ 11’ 5’ SR 60 RESURFACING PROJECTS

Currently there is parking on both sides of the road, there are 3 travel lanes and a bike lane on eastbound Jackson Street. There is no bike lane on Kennedy Blvd (parallel roadway westbound)

7

Jackson Street Recommended Alternative

10’ 7’ 10’ 10’ 10’ 8’ 10’ 4’ 11’ 11’ 11’ 8’ 10’ 4’ 11’ 11’ 11’ 8’ 10’ 4’8.5’ 12’ 12’ 8.5’

A B C D

SR 60 RESURFACING PROJECTS

8

3’

Jackson Street Recommended Alternative

10’ 3’ 7’ 10’ 10’ 10’ 8’ SR 60 RESURFACING PROJECTS

Jackson Street (SR 60 Eastbound) between Ashley Drive and Tampa Street

A dedicated right turn lane was included because of the high number of vehicles turning right on to Tampa Street. Parking is included on both sides of the roadway.

9

A

Jackson Street Recommended Alternative

10’ 4’ 8.5’ 12’ 12’ 8.5’ SR 60 RESURFACING PROJECTS

Jackson Street (SR 60 Eastbound) between Tampa Street and Franklin Street and between Florida Avenue and Morgan Street

Traffic volumes are low enough to consider a lane elimination (or road diet) on these segments. Parking is included on both sides of the roadway. Eliminating one of the thru lanes can help improve safety, livability and satisfy other community needs by reallocating the space for pedestrians, cyclists or

• n‐street parking.

10

B

Jackson Street Recommended Alternative

10’ 4’ 11’ 11’ 11’ 8’ SR 60 RESURFACING PROJECTS

Jackson Street (SR 60 Eastbound) between Franklin Street and Florida Avenue

11

C

A dedicated left turn lane was included because of the high number of vehicles turning left on to Florida Avenue. Parking is included on the south side of the roadway.

Jackson Street Recommended Alternative

10’ 4’ 11’ 11’ 11’ 8’ SR 60 RESURFACING PROJECTS

Jackson Street (SR 60 Eastbound) between Morgan Street and Nebraska Avenue

Because of traffic volume east of Morgan Street, the existing lane configuration is being maintained. Parking is included on the south side of the roadway.

12

D

Traffic Analysis is part of the process

SR 60 RESURFACING PROJECTS

24‐Hour Corridor Volumes The question that must be answered when considering Jackson Street for a road diet: Does existing & future traffic demand require 3 travel lanes to function at an acceptable level of service? This is currently being studied. Existing volume does not require 3 lanes along the entire corridor. Future demand is being analyzed.

13

Public/Stakeholder Outreach to Date

Meetings have been held with interested parties along the corridor:

• Property Owners & Managers
• Business Owners
• Tampa Downtown Partnership Committee Meetings (Urban Design Committee,

Transportation Committee)

• MPO Committees (Bike/Ped, Citizen’s Advisory, Technical Advisory, MPO Board)
• City of Tampa
• Hillsborough County
• Hillsborough Area Regional Transit (HART)
• Tampa Hillsborough Expressway Authority (THEA)

SR 60 RESURFACING PROJECTS

14

Questions or comments?

Staff and Consultants are available to answer any questions you may have. Please fill out a comment form before you leave or submit comments on line at: www.tampabaytrafficsafety.com/SR60Resurfacing Please send any comments to: Tana Johnston‐Schultz, P.E. Design Project Manager Tana.Shultz@dot.state.fl.us (813) 975‐6266

Cass St at Tampa St

15

Concept Nov 2016
