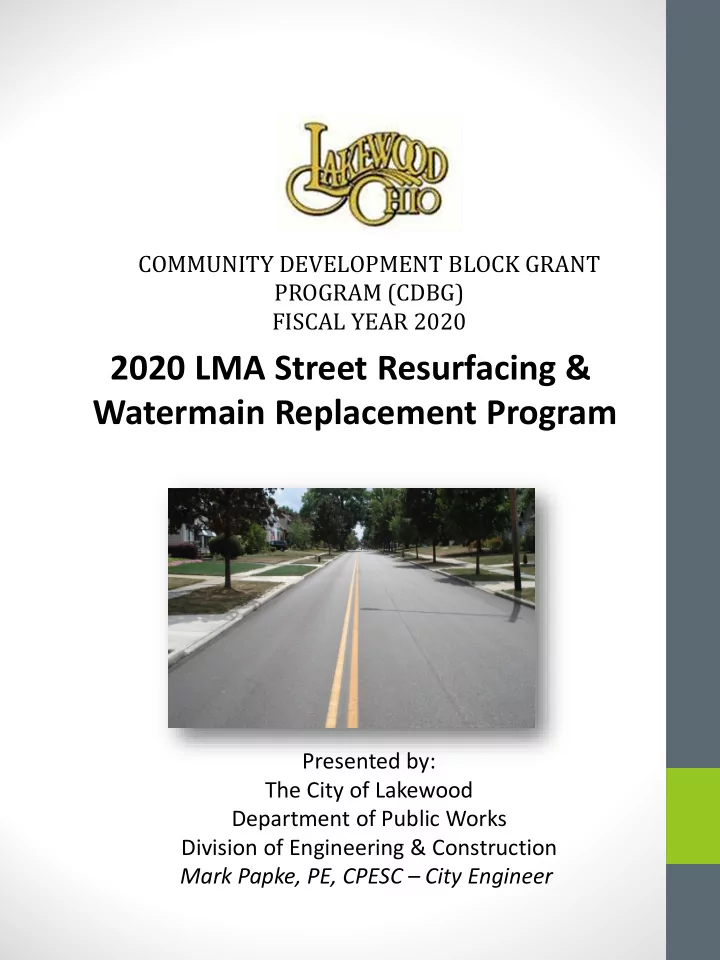

COMMUNITY DEVELOPMENT BLOCK GRANT PROGRAM (CDBG) FISCAL YEAR 2020 2020 LMA Street Resurfacing & Watermain Replacement Program Presented by: The City of Lakewood Department of Public Works Division of Engineering & Construction Mark

slide-1
SLIDE 1

COMMUNITY DEVELOPMENT BLOCK GRANT PROGRAM (CDBG) FISCAL YEAR 2020

2020 LMA Street Resurfacing & Watermain Replacement Program

Presented by: The City of Lakewood Department of Public Works Division of Engineering & Construction Mark Papke, PE, CPESC – City Engineer

slide-2
SLIDE 2

2020 LMA Street Resurfacing & Watermain Replacement Program

Agenda 1) Determination of how streets are selected 2) 2020 Proposed LMA Street Resurfacing

  • Needs
  • Costs
  • Schedule

3) Determination of how watermains are selected 4) 2020 Watermain Replacement

  • Needs
  • Cost
  • Schedule

5) Neighborhood Compositions 6) Questions

slide-3
SLIDE 3

What are the roadway conditions of the City? PCR = Pavement Condition Rating

2018 City-Wide PCR = 77.5

slide-4
SLIDE 4

2018 City –Wide PCR

slide-5
SLIDE 5
slide-6
SLIDE 6
slide-7
SLIDE 7
slide-8
SLIDE 8
slide-9
SLIDE 9
slide-10
SLIDE 10

Before Resurfacing After Resurfacing

slide-11
SLIDE 11

PROPOSED 2020 LMA Street Resurfacing Street 2018 PCR Length Last Year Paved – Type (Watermain Year) Ridgewood Ave. 58 1,420’ 1996 – Resurface (WM – 1991) Bayes Ave. 58 LMA = 786’ 2001 – Resurface with Fiberglass Grid (WM – 1990) Athens Ave. 59 640’ 2003 – Resurface with Fiberglass Grid (WM – 1922) Project Service Area Street Limits Census Tract Block Group Ridgewood Ave. Franklin to Detroit 161600 & 161700 1 Bayes Ave. Warren to Brown 161400 3 Athens Ave. Brown to Bunts 161400 3

CDBG - Data Infrastructure - Data

slide-12
SLIDE 12

2020 LMA Resurfacing Program Budget PS&E $ 5,000 Construction $ 500,000 Inspection $ 25,000 Bid $ 500 Estimate $ 530,500 CDBG Request Amount $ 260,000

slide-13
SLIDE 13

2020 LMA Street Resurfacing Project Work Schedule Design Kickoff Meeting Jan 2020 50% Plan Review Apr 2020 PS&E May 2020 Bidding May 2020 Award Jun 2020 Construction Jul 2020 Project Completion Nov 2020

slide-14
SLIDE 14

2020 Watermain Replacement Idlewood – 1915 6” Watermain

slide-15
SLIDE 15

Low Fire Flow - ArcGIS

slide-16
SLIDE 16
slide-17
SLIDE 17

PROPOSED 2020 Watermain Replacement Street 2018 PCR Length Last Year Paved – Type Idlewood Ave. 58 527’ 1992 – Resurface Project Service Area Street Limits Census Tract Block Group Idlewood Ave. Williamson to Clifton 1606602 2

CDBG - Data Infrastructure - Data

PROPOSED 2020 Watermain Replacement Street Breaks Since 2000 Fireflow (gal/min) Separation Combination to Watermain Idlewood Ave. 7 7.5 ft

slide-18
SLIDE 18

2020 Watermain Replacement Budget for Costs Attributable to Idlewood Ave CDBG Area PS&E $ 39,025 Construction $ 613,250 Inspection $ 39,025 Estimate $ 691,300 CDBG Request Amount $ 200,000

Entire Project 2020 Watermain Project Funding Breakdown Local Funds $ 800,000 CDBG $ 200,000 OPWC $ 2,443,540 Total Project Amount $ 3,443,540

slide-19
SLIDE 19

2020 Watermain Replacement Project Work Schedule Design Kickoff Meeting Completed 50% Plan Review Completed 90% Plan Review Oct 2019 PS&E Jan 20210 Bidding Feb 2020 Award Mar 2020 Construction Apr 2020 Project Completion Nov 2020

slide-20
SLIDE 20

Combined Projects Neighborhood Composition Housing Single Family 45 Two-Family 46 Three Family 4 Other School 1 Apartment Buildings 6 Commercial Building 1

slide-21
SLIDE 21

QUESTIONS
