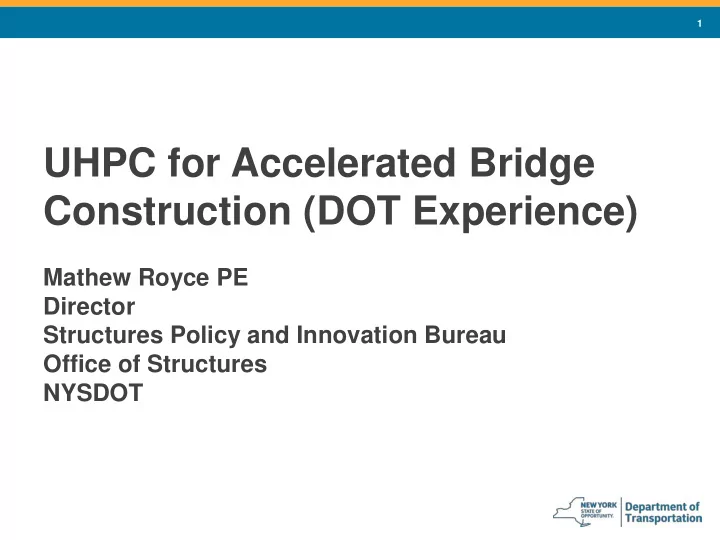

UHPC for Accelerated Bridge Construction (DOT Experience)
Mathew Royce PE Director Structures Policy and Innovation Bureau Office of Structures NYSDOT
2
UHPC for Accelerated Bridge Construction (DOT Experience) Mathew - - PowerPoint PPT Presentation
UHPC for Accelerated Bridge Construction (DOT Experience) Mathew - - PowerPoint PPT Presentation
1 UHPC for Accelerated Bridge Construction (DOT Experience) Mathew Royce PE Director Structures Policy and Innovation Bureau Office of Structures NYSDOT 2 Compression Behavior 3 Tensile Behavior 4 5 Deck-to-Deck Deck-to-Girder
SLIDE 2
SLIDE 3
3
Tensile Behavior
SLIDE 4
4
SLIDE 5
5
- Deck-to-Deck
- Deck-to-Girder
- Deck Beam-to-Deck Beam
- Column-to-Footing/Cap
- Girder-to-Girder
- Deck-to-Barrier
- Headers for Expansion Joint
SLIDE 6
6
Development Length Tests
# 4 BARS (BLACK & EPOXY) – 3” EMBEDMENT # 5 BARS (BLACK & EPOXY) – 4” EMBEDMENT # 6 BARS (BLACK & EPOXY) – 5” EMBEDMENT
SLIDE 7
7
Simple Lap-Splice Cxn. Smaller Grout Volumes Shortened Bar Lengths Emulates Monolithic
Component
SLIDE 8
8
Precast Deck Panels and Slabs
61 in. 6 in. Closure Pour (UHPC) Deck Bulb Tee Prestressed Girder 41 in.
6 in. UHPC Closure Pour Precast Deck Panel 8 in. 96 in.
Deck Bulb Tee Girders
SLIDE 9
9
Joint Testing by FHWA for Strength Durability and Performance
8 ” THI CK PANEL - # 4 EPOXY COATED HAI RPI N BARS 8 ” THI CK PANEL - # 5 GALV. STRAI GHT BARS ( 6 ” LAP) 8 ” THI CK PANEL - # 5 BLACK STRAI GHT BARS ( 6 ” LAP) 8 ” THI CK PANEL - # 5 BLACK HEADED BAR ( 3 ½ ” LAP) 6 ” THI CK PANEL - # 5 BLACK STRAI GHT BARS ( 6 ” LAP) 6 ” THI CK PANEL - # 5 BLACK HEADED BARS ( 3 ½ ” LAP)
SLIDE 10
10
Test Conclusions
- 1. Joint system emulates or surpasses C I P
monolithic decks hence can be designed similar to CIP decks
- 2. No interface de-bonding during testing was
- bserved
- 3. No de-bonding of reinforcing bars during
testing
SLIDE 11
11
SLIDE 12
12
SLIDE 13
13
Rte 23 over Otego Creek
SLIDE 14
14
Precast Deck Grout Steel Girder
A
Precast Deck Grout Concrete Girder
C
Precast Deck UHPC Steel Girder
B
Precast Deck UHPC Concrete Girder
D
SLIDE 15
15
Steel Girder Connection Concrete Girder Connection
SLIDE 16
16
- Simple Connection
- No Interference
- Hidden Connection
- Emulates Cast-in-Place
SLIDE 17
17
SLIDE 18
18
SLIDE 19
19
19
Composite Connections NYSDOT collaborated with the industry, trade associations and the FHWA in developing and testing Composite Connections between Precast Decks and steel/concrete girders using UHPC. The results are documented in the following report: Composite Connections for Precast Concrete Bridge Decks. NTIS Accession No. PB2012-107569 FHWA Publication No. FHWA-HRT-12-041
