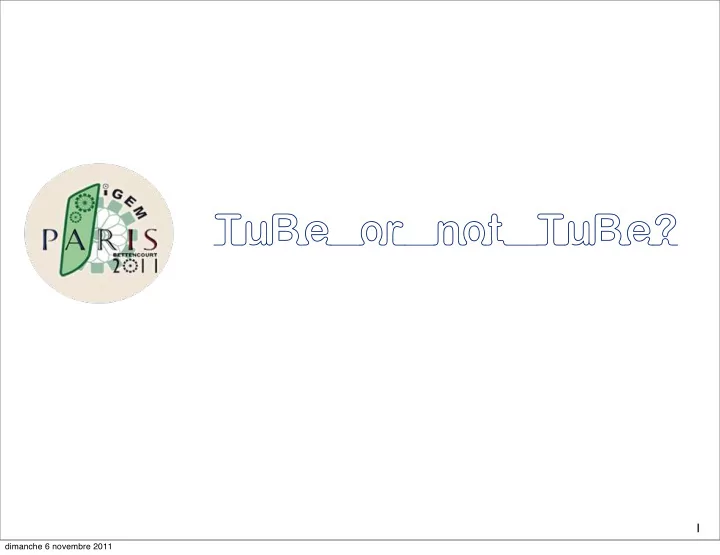

TuBe or not TuBe?

1

dimanche 6 novembre 2011

2

dimanche 6 novembre 2011

Discovery of a new communication channel between cells

Early 2011... Exciting news came out:

BACTERIAL NANOTUBES

2

dimanche 6 novembre 2011

Discovery of a new communication channel between cells

Early 2011... Exciting news came out:

Can we characterize them ? BACTERIAL NANOTUBES

What could a synthetic biology approach bring to this problem?

2

dimanche 6 novembre 2011

3

dimanche 6 novembre 2011

TuBe or not TuBe?

harnessing bacterial nanotubes by and for synthetic biology

3

dimanche 6 novembre 2011

Harnessing the possibilities of the nanotube network

Factory Amorphous computing Pattern formation

4

dimanche 6 novembre 2011

Back to reality

Dubey, G.P . & Ben-Yehuda, S. Intercellular Nanotubes Mediate Bacterial Communication. Cell (2011).

5

dimanche 6 novembre 2011

Back to reality

Dubey, G.P . & Ben-Yehuda, S. Intercellular Nanotubes Mediate Bacterial Communication. Cell (2011).

5

dimanche 6 novembre 2011

Back to reality

Red arrows: gfp- gaining fluorescence

CmR + KanR

Dubey, G.P . & Ben-Yehuda, S. Intercellular Nanotubes Mediate Bacterial Communication. Cell (2011).

5

dimanche 6 novembre 2011

Appearance of GFP in originally gfp– cells

Confirmation of GFP transfer (from B. subtilis 3610 gfp+ to 3610 gfp– strains) t = 0 min t = 45 min

6

dimanche 6 novembre 2011

CmR KanR

1

CmR +KanR

• B. subtilis strains on

LBA + Cm & Kan plate

2

Filter

KanR expressing GFP CmR Fluorescence image

Verification of published results Additionnal control experiment: Separating cells by filter

Alternative explanation for antibiotic resistance transfer

7

dimanche 6 novembre 2011

8

Episode 2

BACTERIAL NANOTUBES

dimanche 6 novembre 2011

Links between teams: collaboration map

9

JAPAN

USA

ASIA EUROPE AMERICA

JAPAN

Paris

2011

dimanche 6 novembre 2011

Links between teams: collaboration map

9

JAPAN What do iGEMers share?

USA

ASIA EUROPE AMERICA

JAPAN

Paris

2011

dimanche 6 novembre 2011

Assisted diffusion model through nanotubes

Cell 2 Cell 1

Modeling results: Time < 1µs Volume transfer ≈ 0.1%

10

dimanche 6 novembre 2011

Assisted diffusion model through nanotubes

Cell 2 Cell 1

Modeling results: Time < 1µs Volume transfer ≈ 0.1%

10

dimanche 6 novembre 2011

Passive diffusion model through nanotubes

Molecule name T7 tRNA insulin GFP glucose 1st molecule transfer (s) 4.46E-2 8.59E-1 7.43E-3 5.06E-2 2.89E-4

11

dimanche 6 novembre 2011

Amplified & robust detection of nanotube Amplified & robust detection of nanotube communication

Emitter

12

dimanche 6 novembre 2011

Amplified & robust detection of nanotube Amplified & robust detection of nanotube communication

Emitter Amplifier Receptor

12

dimanche 6 novembre 2011

Amplified & robust detection of nanotube Amplified & robust detection of nanotube communication

Emitter Amplifier Receptor Reporter

12

dimanche 6 novembre 2011

Amplified & robust detection of nanotube Amplified & robust detection of nanotube communication

Emitter Amplifier Receptor Reporter

12

dimanche 6 novembre 2011

Amplified & robust detection of nanotube Amplified & robust detection of nanotube communication

Emitter Amplifier Receptor Reporter

12

dimanche 6 novembre 2011

Amplified & robust detection of nanotube Amplified & robust detection of nanotube communication

Emitter Amplifier Receptor Reporter Emitter transient signal

12

dimanche 6 novembre 2011

Amplified & robust detection of nanotube Amplified & robust detection of nanotube communication

Emitter Amplifier Receptor Reporter Receiver response Emitter transient signal

12

dimanche 6 novembre 2011

Our designs

YFP concentrator Sporulation induction by KinA λ switch ComS diffusion system

Positive feedback loop Bistable switches Concentrator

T7 RNA polymerase diffusion tRNA Amber

13

dimanche 6 novembre 2011

T7 pol. amber

tRNA amber diffusion Emitter

tRNA RFP T7 GFP

14

dimanche 6 novembre 2011

T7 pol. amber

mRNA

tRNA amber diffusion Emitter

tRNA RFP T7 GFP

14

dimanche 6 novembre 2011

T7 pol. amber

mRNA

tRNA amber diffusion Emitter Receptor

tRNA RFP T7 GFP

14

dimanche 6 novembre 2011

T7 pol. amber

mRNA

tRNA amber diffusion Emitter Receptor Amplifier

tRNA RFP T7 GFP

14

dimanche 6 novembre 2011

tRNA amber characterization in E.coli

GFP amber + tRNA amber GFP amber

IPTG

GFP Amber tRNA Amber

15

dimanche 6 novembre 2011

T7 polymerase amber characterization in E.coli

2,75 5,5 8,25 11

Fluorescence/OD GFP T7 amber pT7 pVeg GFP pT7 GFP T7 amber pT7 pVeg pHs tRNA Amber

16

dimanche 6 novembre 2011

YFP concentrator Emitter Receptor + Concentrator

TetR-YFP TetO array

17

dimanche 6 novembre 2011

YFP concentrator Emitter Receptor + Concentrator

TetR-YFP TetO array

17

dimanche 6 novembre 2011

YFP concentrator: characterization in E.coli

TetR-YFP/TetO Arrows:Bright YFP foci TetR-YFP/TetO Red:ibpA-mCherry Green: tetR-YFP spot TetR-YFP

18

dimanche 6 novembre 2011

Testing nanotubes formation: YFP concentrator

Mix B.Subtilis TetR-YFP/B.Subtilis TetO Mix E.coli TetR-YFP/B.Subtilis TetO

Emitter + Receiver No TetO foci observed after dozens of repeats

19

dimanche 6 novembre 2011

T7 autoloop design

T7 pol

Autoloop

Expression of GFP as monitor pT7 T7 pol GFP

20

dimanche 6 novembre 2011

T7 autoloop design

T7 pol

Autoloop

Expression of GFP as monitor pT7 T7 pol GFP

External input

20

dimanche 6 novembre 2011

T7 autoloop design

T7 pol

Autoloop

Expression of GFP as monitor pT7 T7 pol GFP

Autoloop response External input

20

dimanche 6 novembre 2011

T7 autoloop characterization in E.coli

T7 autoloop in T7+ E.coli cells T7 autoloop in T7– B.subtilis Memory of autoloop-amplified signal

• ver time in E.coli

Fluorescence/OD Time(min)

21

dimanche 6 novembre 2011

T7 RNA polymerase diffusion design

• B. subtilis

pT7 T7 pol GFP T7 pol

Autoloop

Expression of GFP as monitor

• B. subtilis

IPTG Induction

pHS T7 pol RFP

22

dimanche 6 novembre 2011

T7 diffusion design modeling

Genetic network model

23

Delayed differential equations

GFP T7 autoloop mRNA T7 pol from emitter

Time Number of molecules

vfvr

1h 2h

dimanche 6 novembre 2011

Emitter/Receiver mix T7 RNA polymerase diffusion experiments

TRANS RFP GFP

Plasmidic

24

dimanche 6 novembre 2011

Emitter/Receiver mix T7 RNA polymerase diffusion experiments

TRANS RFP GFP

Plasmidic Chromosomal

24

dimanche 6 novembre 2011

Microfluidic chambers for nanotube formation

Mondragón-Palomino, O., Danino, T., Selimkhanov, J., Tsimring, L. & Hasty, J. Entrainment of a population of synthetic genetic oscillators. Science (2011).

Why use microfluidic device?

Monolayer Exponential phase Long-time observation

25

Mix of B.subtilis

dimanche 6 novembre 2011

Achievements

✓Successfully reproduced and improved the original experiments, proposed

an alternative hypothesis.

✓Designed, modeled and characterized 6 emitter/receivers in E.coli and B.subtilis. ✓Developed 2 original computational diffusion models accounting for

transport through nanotubes.

✓Provided proofs of principle of 5 working emitter/receiver devices. ✓Created 49 new BioBricks and characterized 25 BioBricks for B. subtilis. ✓ Collaboration:

• Grenoble iGEM team for the human practice
• Fatih Turkey team for the rewriting of the B.Subtilis page of the Parts Registry
• Dundee, Edinbourgh, Freibourg, Pekin

26

dimanche 6 novembre 2011

27

dimanche 6 novembre 2011

Conclusion

27

dimanche 6 novembre 2011

Conclusion

27

Smaller molecules Microfluidic conditions Statistical methods EM microscopy

dimanche 6 novembre 2011

27

TuBe or not TuBe?

The question remains!
